Description
Inverter Transformer: An inverter transformer is a type of transformer used in inverter power systems. Inverters are electronic devices that convert direct current (DC) into alternating current (AC), usually used in solar energy applications, power backup systems, etc. The transformer in an inverter may be needed to increase or decrease the voltage, or to electrically isolate the input circuit from the output circuit.
The TM-0917 inverter transformer is a specific piece of hardware used in some models of Samsung monitors and TVs, such as the 932MW you mention. This component is essential for the proper power and operation of the device.
Some general steps to test or replace an inverter transformer on a Samsung monitor or TV:
Power disconnection: Before handling any internal components, be sure to disconnect the device from the electrical current and allow all capacitors to discharge to avoid dangerous electric shock.
Disassembling the device: Open the monitor or TV by following the instructions in the user manual or by searching online guides specific to your model. This usually involves removing the back cover and possibly some screws.
Inverter Transformer Location: Locates the inverter transformer inside the device. It will usually be close to the main board and will be connected to the LCD panel and control board.
Visual inspection: Perform a visual inspection of the inverter transformer and look for signs of physical damage, such as burns, swelling, or fluid leaks.
Voltage measurement: If you have a suitable multimeter and experience using it, you can measure the output voltage of the inverter transformer to determine if it is working properly. Refer to your device’s service manual for specific instructions on how to do this and what values to expect.
Replacement: If you suspect that the inverter transformer is defective and you have experience repairing electronic hardware, you can try replacing it. Be sure to get a compatible replacement and follow safety precautions when soldering and handling electronic components.
Test: Once you’ve replaced the inverter transformer, reassemble the device and connect it to the electrical current. Turn on your device and see if the screen lights up properly. If everything works as it should, the problem was probably related to the inverter transformer.

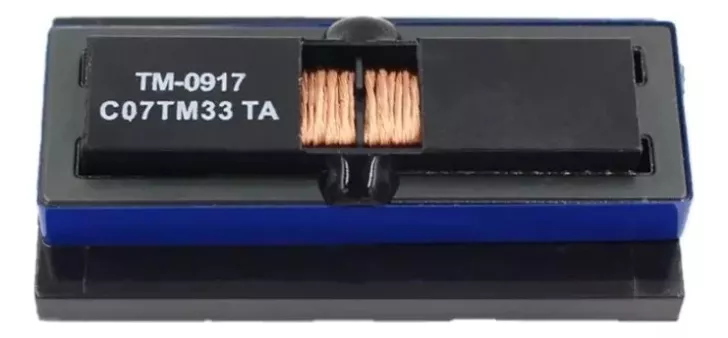

Part Number: TM-0917
Size: 29X55mm
Pin Distance: 19.5x17mm
Total: 6+4 PIN
