Description

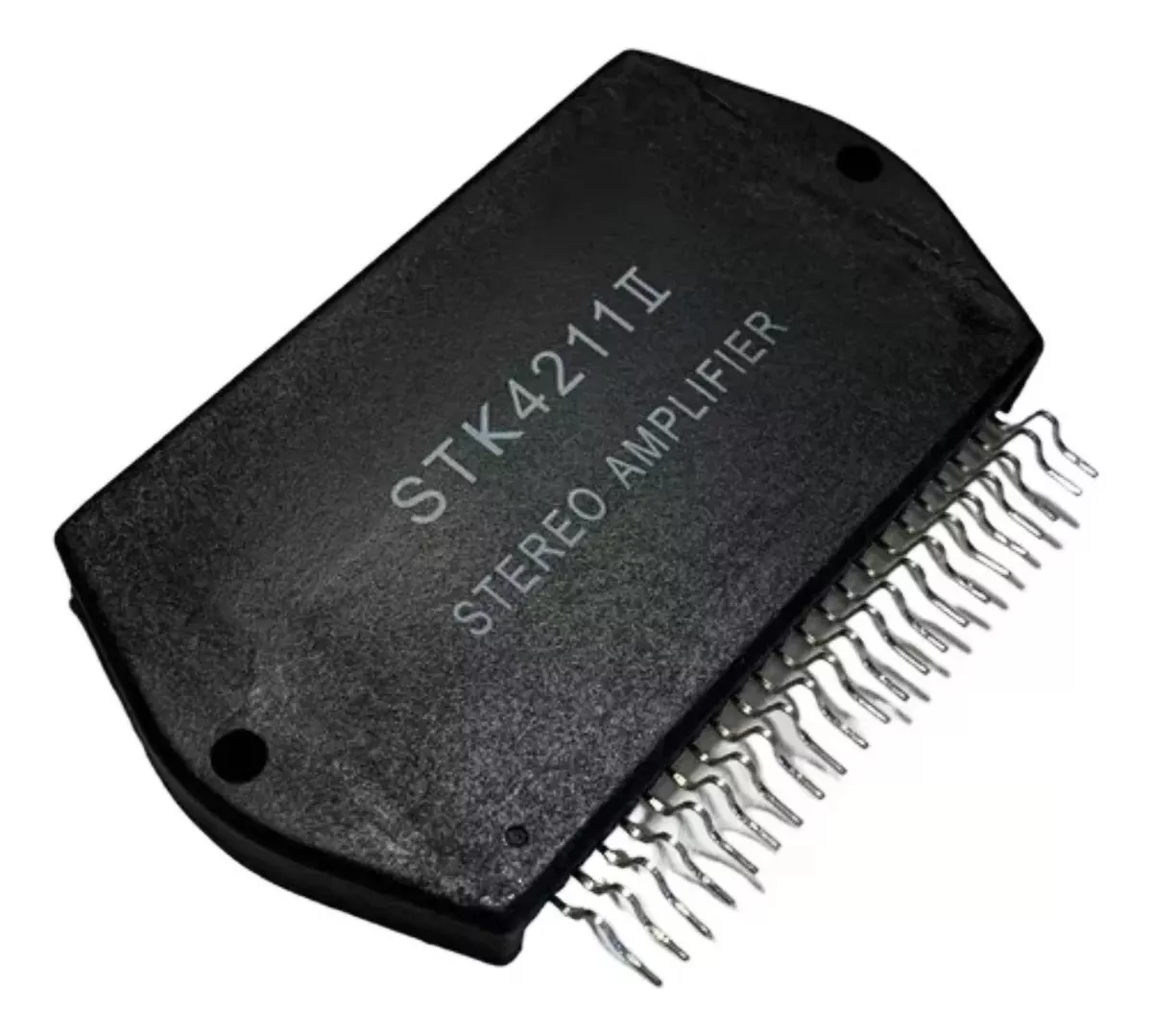

The STK4211 is an audio power amplifier IC that has been used in a variety of audio amplification applications. Here are some typical features of this device:
Power Output: It can provide an output power of up to several watts, depending on the configuration and power supply used.
Channels: It is a multi-channel audio amplifier, which means that it can be used to amplify stereo or even multi-channel audio signals.
Integrated Design: The STK4211 is an integrated circuit that includes various internal components, such as power transistors, protection circuits, etc. This makes it easy to implement in amplifier designs.
Protection: It has built-in protection features to protect the amplifier and speakers from short circuits, thermal overloads, and other adverse conditions.
Power Supply: Requires a proper power supply to function properly. The power and quality of the power supply can significantly affect the performance of the amplifier.
Applications: Used in a wide range of audio applications, such as home stereo systems, car amplifiers, PA systems, etc.
Amplifier Configuration: The STK4211 can be configured in different modes, such as bridge mode or stereo mode, to suit various applications and power requirements.
The STK4211, as an audio amplifier, has a frequency response that spans the human audible range. Typically, the frequency response of this type of amplifier is quite wide and can vary depending on the specific configuration of the circuit and other components in the system.
Important Notes:
Special attention should be paid to circuit design and heat dissipation, as STK4211 can generate significant heat during operation.
It is crucial to follow the manufacturer’s recommendations regarding circuit configuration, power supply, and connections to ensure optimal performance and long amplifier life.
The STK4211 and other STK series amplifiers have been widely used in a variety of audio applications due to their reliable performance and compact design.
