Description
INTRODUCTION

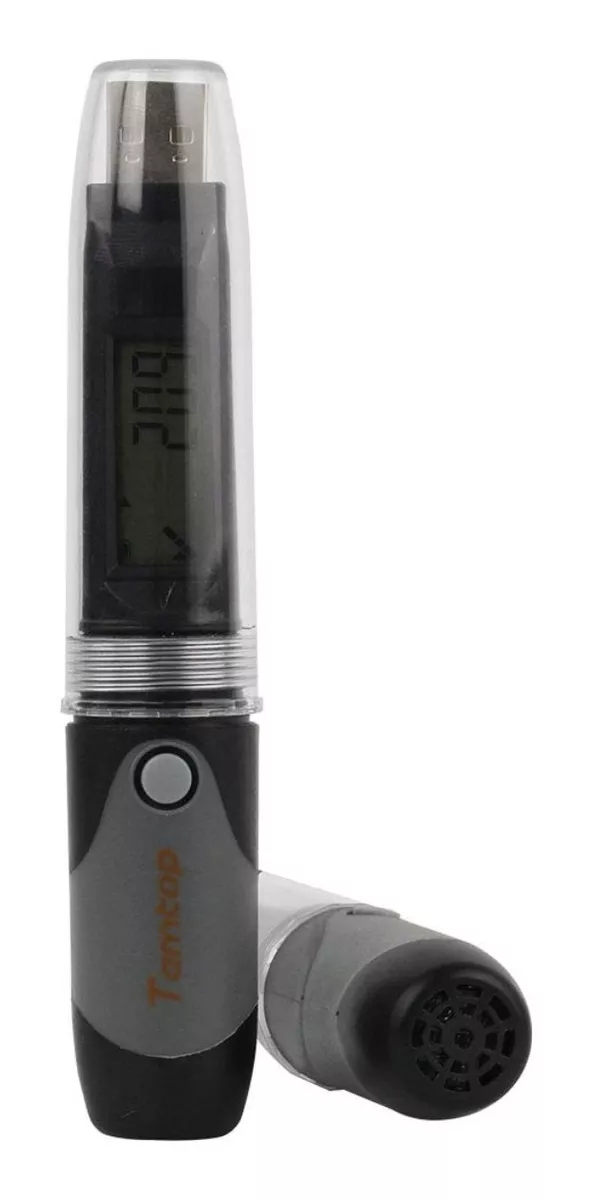

TemLog20H is a temperature and humidity data logger.
TemLog20 is a temperature data logger.
TemLog20H Temperature and Humidity Data Logger is mainly used in the fields of medicine, food, science, flowers, breeding industry, cooler, container, shaded cabinet, medical cabinet, refrigerator, laboratory and greenhouse, etc.
The TemLog20H is designed with a USB model, which you can plug in and play with easily.
You can generate the data report automatically, without installing the data management software. The data can still be read even if the battery dies.
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
CHARACTERISTICS:
•Generate PDF report automatically.
• Multi-alarm indication.
• High degree of protection, wide range of applications.
• High-precision sensor with long-term stability property.
•USB port, plug and play easily.
•32000 recording point. After it runs out, it can be restored using the software settings.
• Generate PDF report automatically, without the need for software.
•IP67 waterproof protection grade, wide range of applications.
•Configurable Celsius and Farenheit display
• Multi-function LCD display and supports up to 5 alarms.
• Multi-alarm indication.
• High degree of waterproof protection, wide range of applications.
• High-precision sensor with long-term stability property.
•USB port, plug and play easily
•••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••••
SPECS:
•Power supply: ER14250 (Typically one year. It can be replaced by a 3.6V lithium battery);
• Temperature Measurement Range: -30 C ~ 70 C / 22 F ~ 158 F
• Humidity measurement range: 10%~95% RH
• Resolution: 0.1 C; 0.1% RH
• Temperature accuracy: ± 0.5 C/0.9 F (-20 C~ -40 C), ± 1 C/1.8 F (others);
• Humidity accuracy: ± 3% RH (25 C, 20%~90% RH), ± 5% RH (others)
•Sensor: Built-in temperature and humidity sensor;
•Logging Capacity: 32000 points (Max.), Support Data Cycle and Coverage;
•Logging Interval: 10 seconds to 12 hours continuously set
•Display Type: Multi-function LCD, Status Indicator
• Operation Mode: Multi-function keypad
•Alarm Type: Individual/Cumulative;
•Communication Type: USB 2.0;
• Operating system: WIN XP/VISTA/7/8/MAC (does not support upper computer operation, but only AI report view on MAC system);
BATTERIES NOT INCLUDED.
