Description
Characteristics:
– Calibration mode available for ORP at different temperatures.

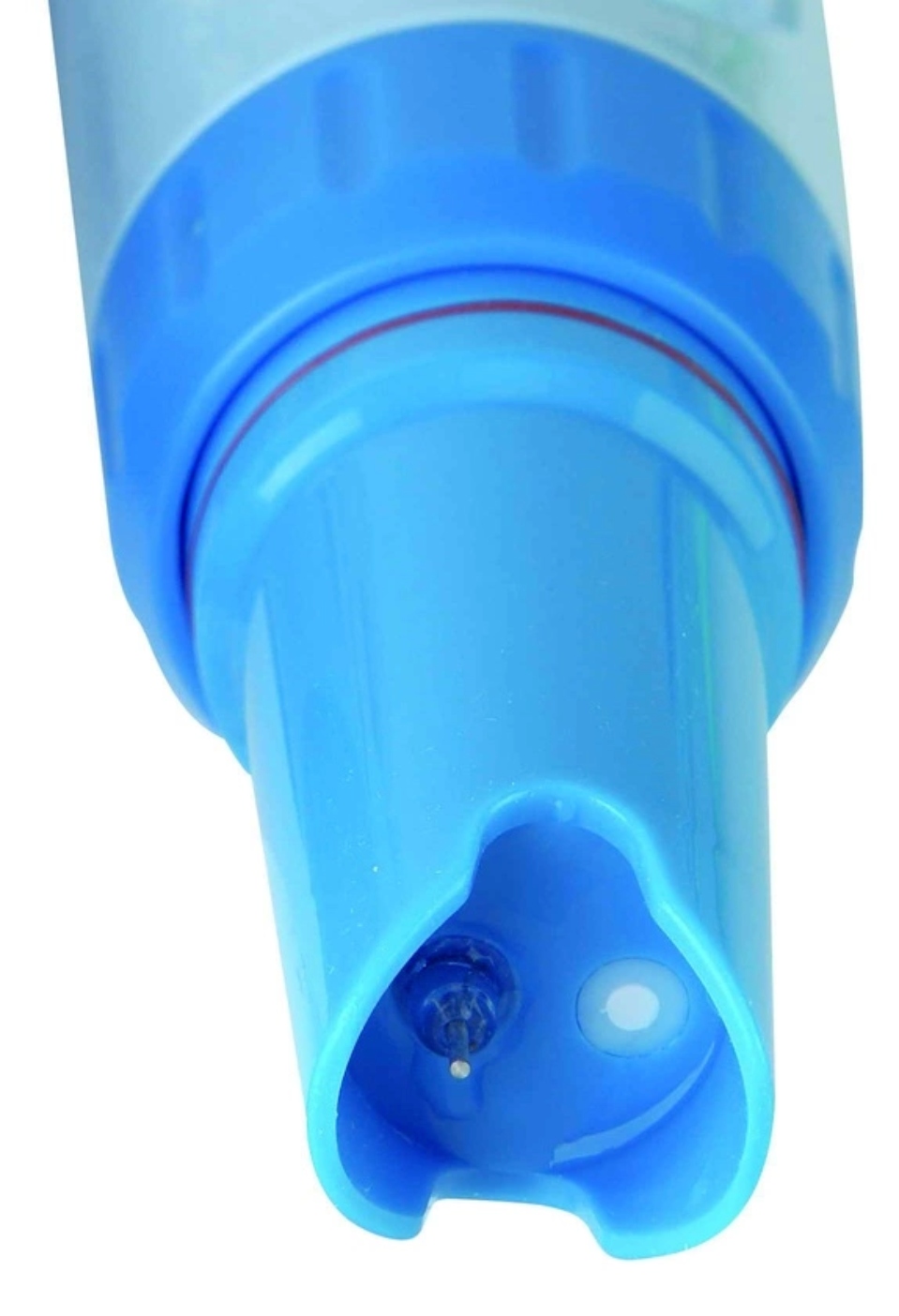

– Replaceable ORP platinum probe, easy to install so you don’t have to buy a whole new meter once the probe is removed.
– Automatic recognition of stable values (optional auto-hold feature available) improves consistency so you don’t have to guess when to manually hold the measurement.
– LARGE AND CLEAR LCD with 3 backlit colors (indicating 3 different modes), dual temp/ORP display, and indications of completed calibrations and stable readings.

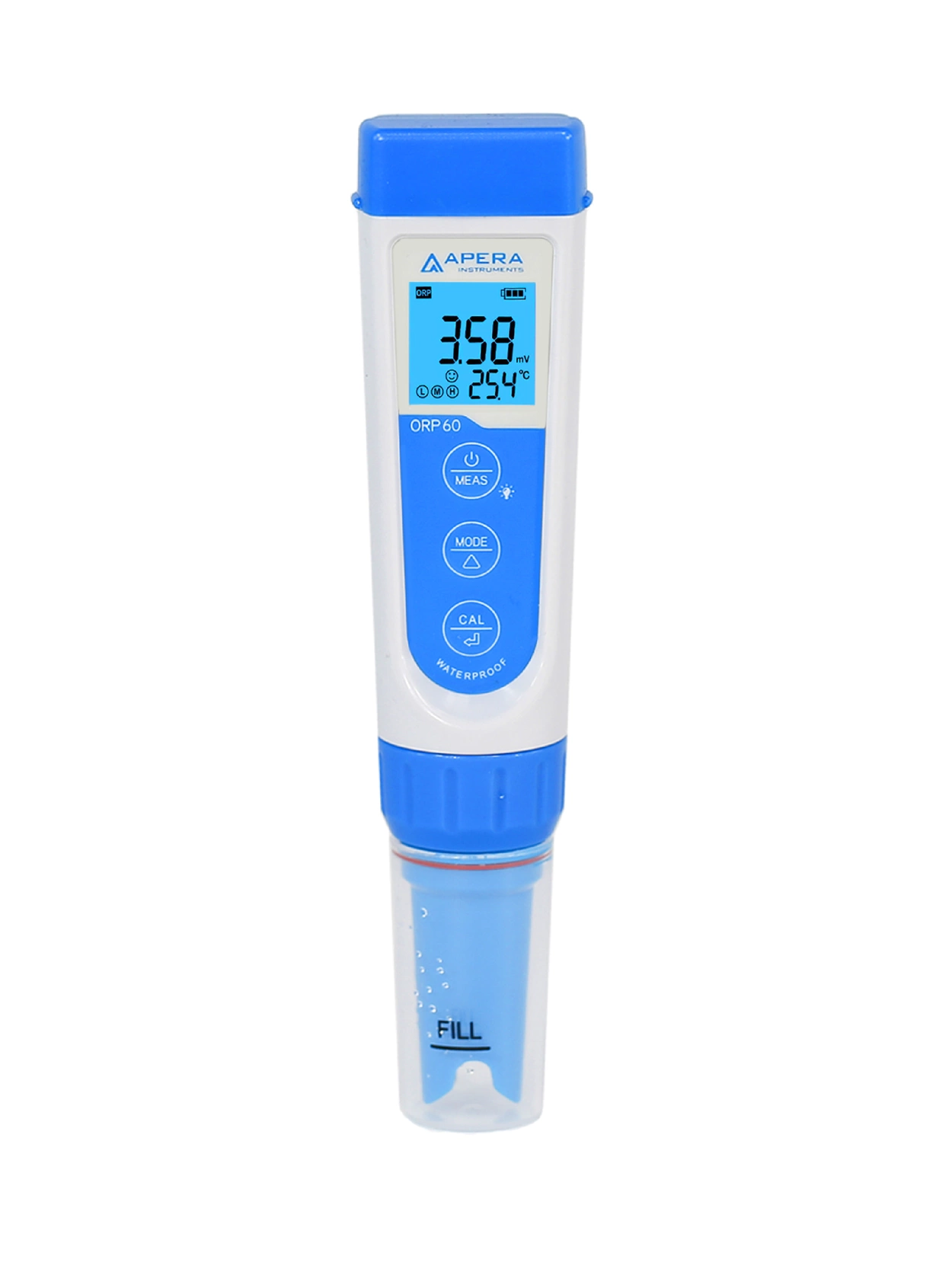

The Apera Instruments ORP60 tester is designed for reliable monitoring of ORP (redox) in regular water solutions, e.g. swimming pools and water treatment. The ORP Platinum Probe is replaceable and easy to install, so you don’t have to buy a whole new meter once the probe is aged.
Manual calibration with 222 mV standard in the kit. 1 mV/± 0.2% FS, accuracy of 0.5°C with measurement range of -1000 to 1000 mV, an indication of stable values (optional auto-hold function available) improves consistency, saving you the trouble of guessing when to manually hold the measurement (with auto-hold function). A large clear display with 180° viewing angle with 3 backlit colors (blue for measurement mode, green for calibration mode, red for warnings), supports dual display of temperature/pH value and stable readings (with a smiley face).
Technical specifications of the meter:
ORP (mV):
– Range: ± 1000 mV
– Resolution: 1 mV
– Accuracy: ± 0.2% F.S
Temperature:
– Range: 0 to 50 °C (32 to 122 °F)
– Resolution: 0.1 °C
– Accuracy: ± 0.5 °C
LCD: 3-color backlit LCD, 180°
viewing angle- Blue: measurement mode; Green: calibration mode;
– Red: Heads-Up Mode
Read Lock: HOLD
Stable reading indication: smiley face icon
Low battery warning: battery icon flashing, battery replacement reminder
Self-diagnosis: Yes
Reminder function: Yes
Auto Shut-Off: Yes, Auto Shut-Off in 8 Minutes without Operation
Waterproof rating: IP67; Floatable
Power: DC3V, AAA*4 batteries
Battery life: continuous operation up to 2000 hours
Dimensions and weight:
– Tester: (40 * 40 * 178) mm / 133g

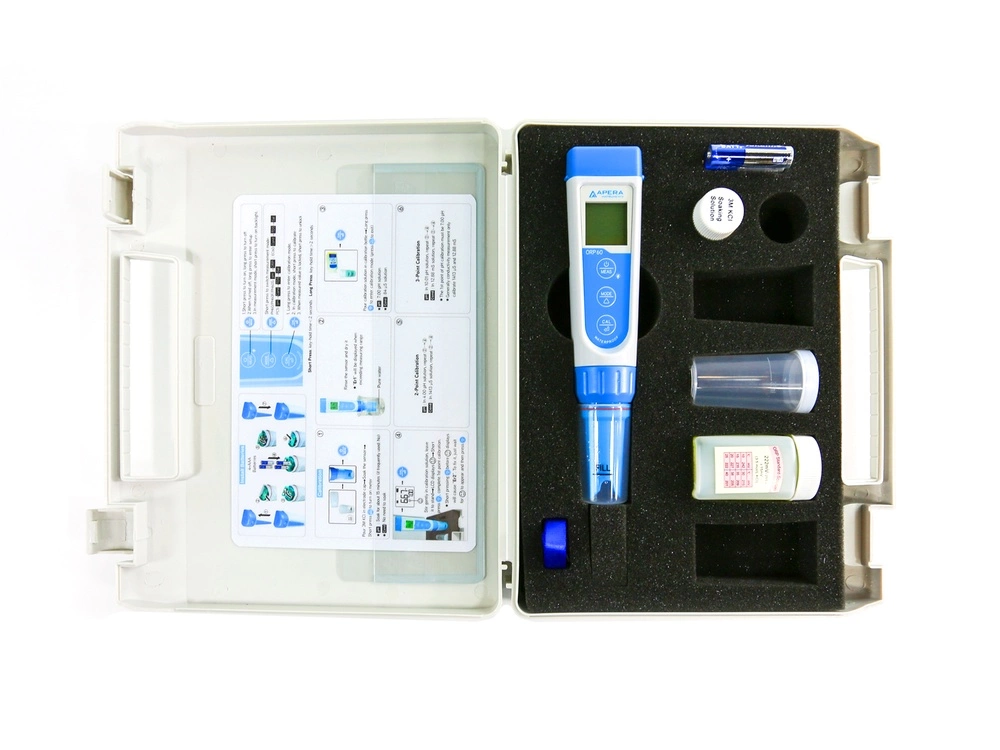

– With case (255 * 210 * 50) mm / 700g
Technical specifications of the electrode
Application: Regular testing of water solutions, such as swimming pools and spas, hydroponics, tap water, drinking water, water treatment, aquaculture, etc.
Sensor Material: Platinum
Replaceable: Yes
– Temperature sensor: Yes
Reference Electrode: Ag/AgCl
Electrolyte: KCL Gel
Range: ± 1000 mV
Temperature range: 0 to 50 °C (32 to 122 °F)
