Description
Product description

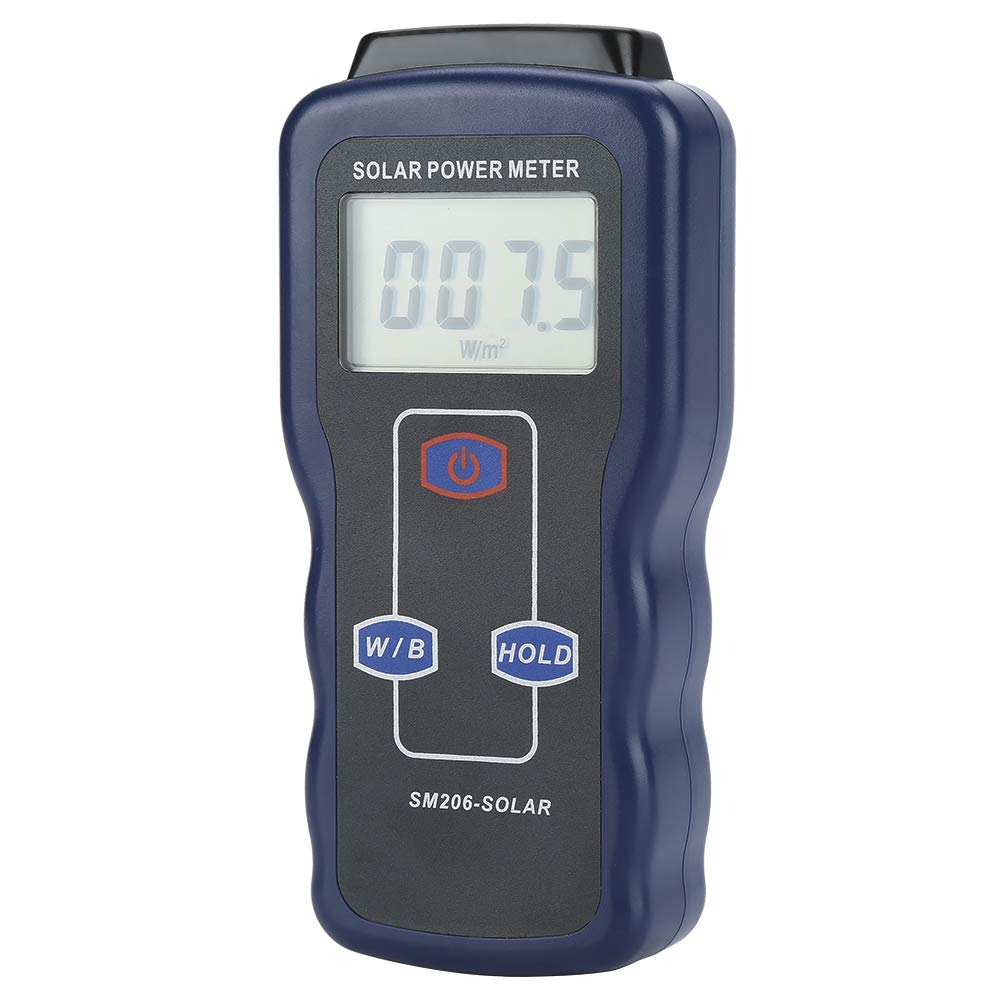

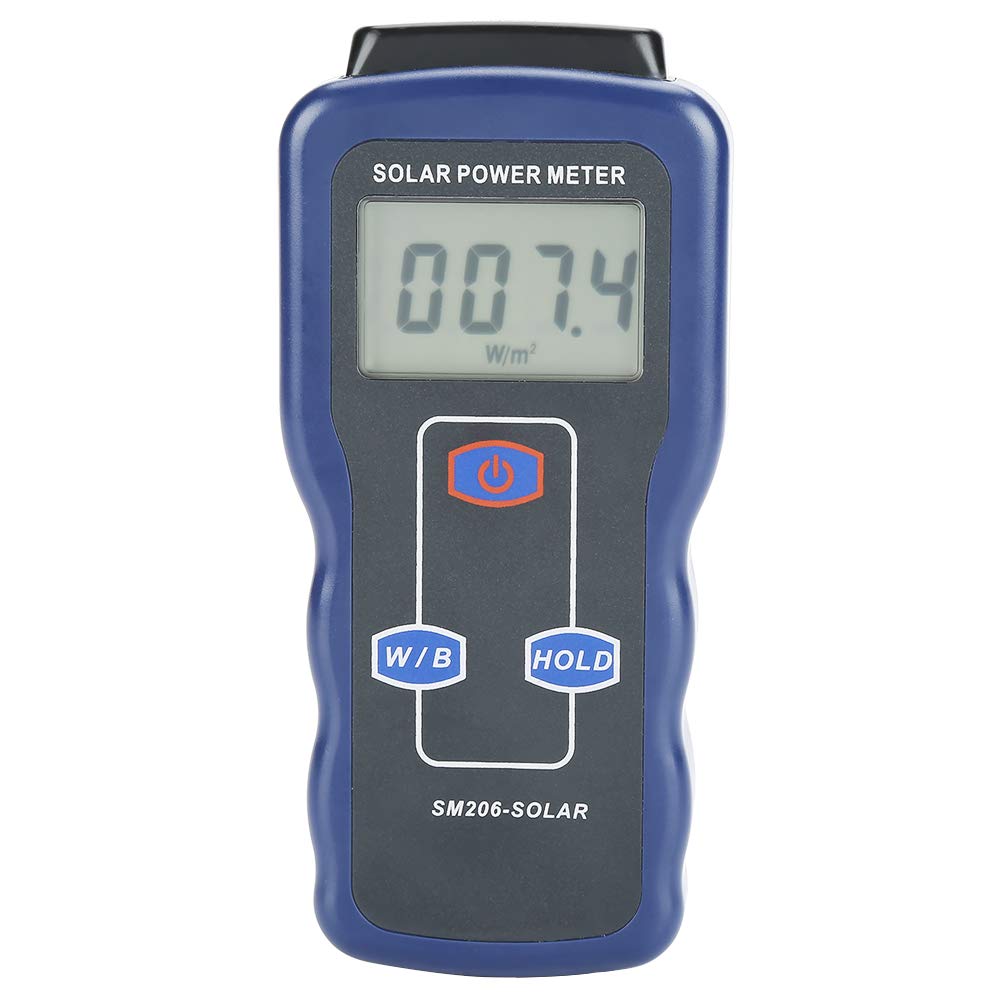

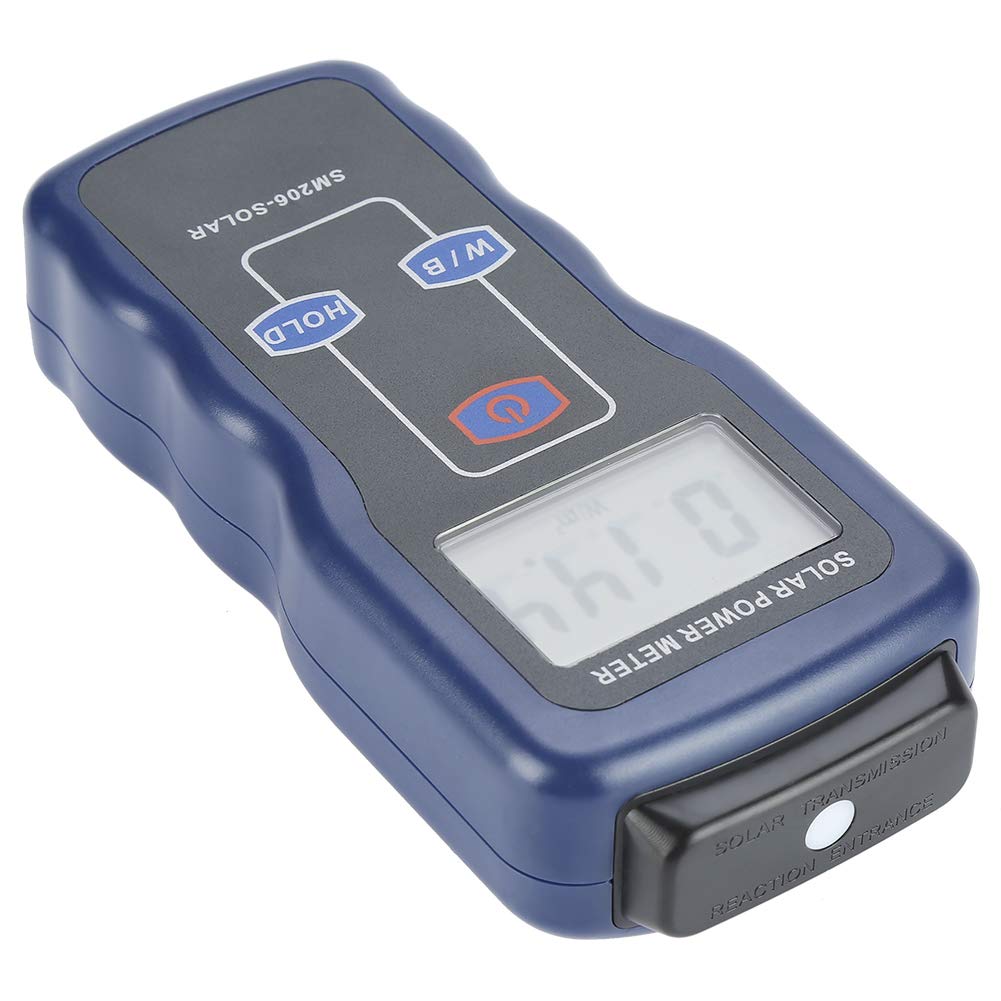

Digital Solar Energy Meter, Sunlight Energy Measurement Tester to Test Car Window Performance, Handheld Portable Solar Light Intensity Meter, W/m² and Btu.
Wide Application
Widely used for solar radiation measurement, solar energy research, meteorology, agriculture, physical and optical experiments. It can also be used to measure the light transmission intensity of glass to check the performance of glass, for example, car window to test car window performance.
With saving
function The most important feature of the lighting tester is that it can support maximum data retention. Therefore, it is desirable to record, which favors the maintenance of data integrity and supports experimental research.
Accurate measurement of the sun’s
intensity This meter is a precision instrument that measures the intensity of the sunlight intensity meter. Operating temperature and humidity: 0~50C, <80% RH; Storage temperature and humidity: -10~60C, <70% RH.
Features of Solar
Radiation Measuring Instrument Measure directly without adjustment, measure steadily over a long period.
Specification:
Model No.: SM206
Resolution: 0.1 W/m², 0.1 Btu/(ft²-h)
Range Error: ± 10W/m² (± 3Btu/(ft²-h) or ± 5% of the measured value
Temperature Error: ± 0.38W/m²/C±0.12Btu/(ft²-h)/C deviation at 25C
Display: 3-3/4 LCD screen, max 3999
Overload Display: “OL”
Shift: <± 3%/year
Measurement Range: 0.1-399.9W/m², 1-3999W/m², 0.1-399.9Btu/(ft²-h), 1-3999Btu/(ft²-h)
Sampling Time: 0.25 seconds/time
Operating temperature and humidity: 0~50C, <80% RH
Storage temperature and humidity: -10~60 C, <70% RH
Battery: 9V battery (NOT included)

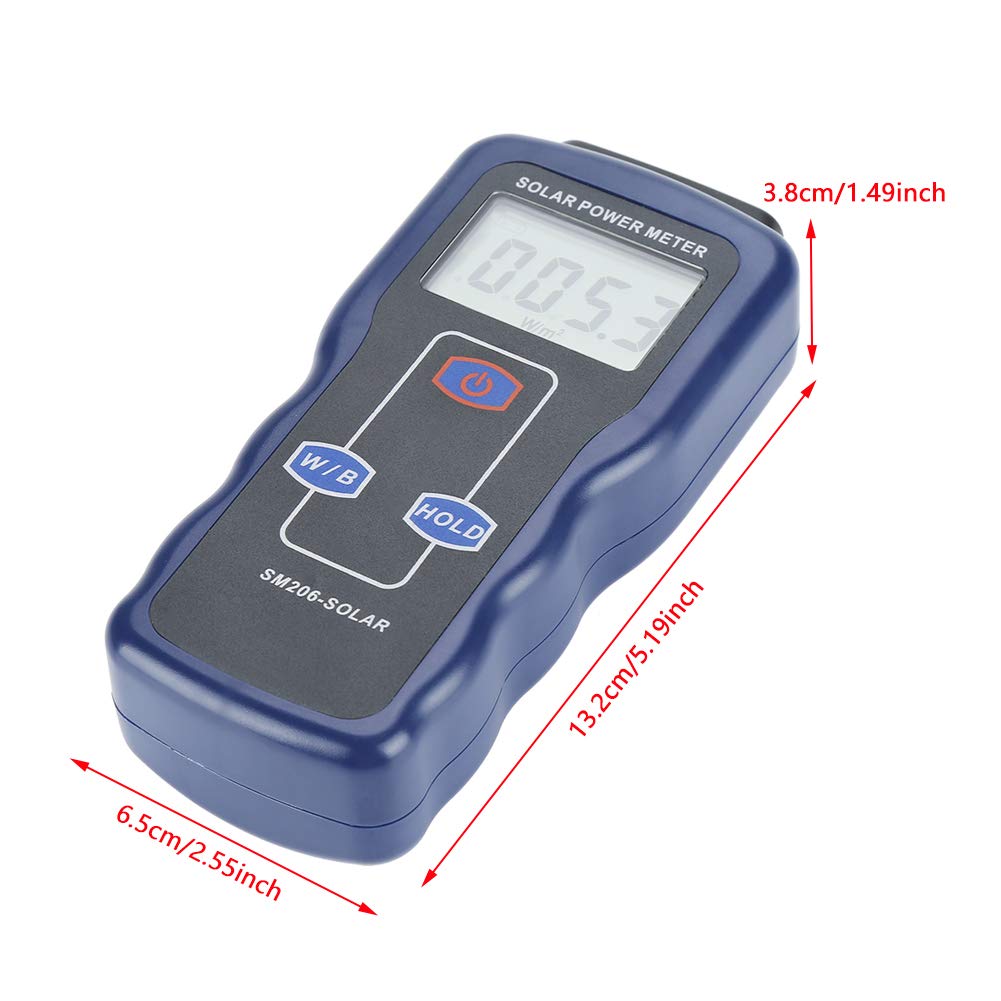

Size: 132 * 65 * 38mm / 5.2 * 2.6 * 1.5in
Weight: 325 g / 11.5 oz (approx.)
