Description
The BTMETER BT-508P Three-Phase Multimeter Clamp is an advanced measuring device ideal for industrial and commercial electrical work. This tool allows you to measure voltages in both alternating current (AC) and direct current (DC), as well as current, resistance, capacitance, frequency and temperature. Its main feature is the ability to perform TRMS (True Root Mean Square) measurements to obtain accurate results under signal distortion conditions. Its ergonomic design and backlit display make it easy to use in various working conditions.
This clamp multimeter is also suitable for testing three-phase systems, detecting phase sequences, and measuring power in amps, volts, kW, kVA, and more. With a large measuring jaw, it is capable of measuring non-contact currents from multiple wires, making it perfect for checking energized connections or for working on HVAC (heating, ventilation, and air conditioning) systems.
In addition, the device has a dual display that displays two measurements simultaneously, increasing efficiency in its use, and has a wide range of measurements for different applications in the electrical industry.
Characteristics:

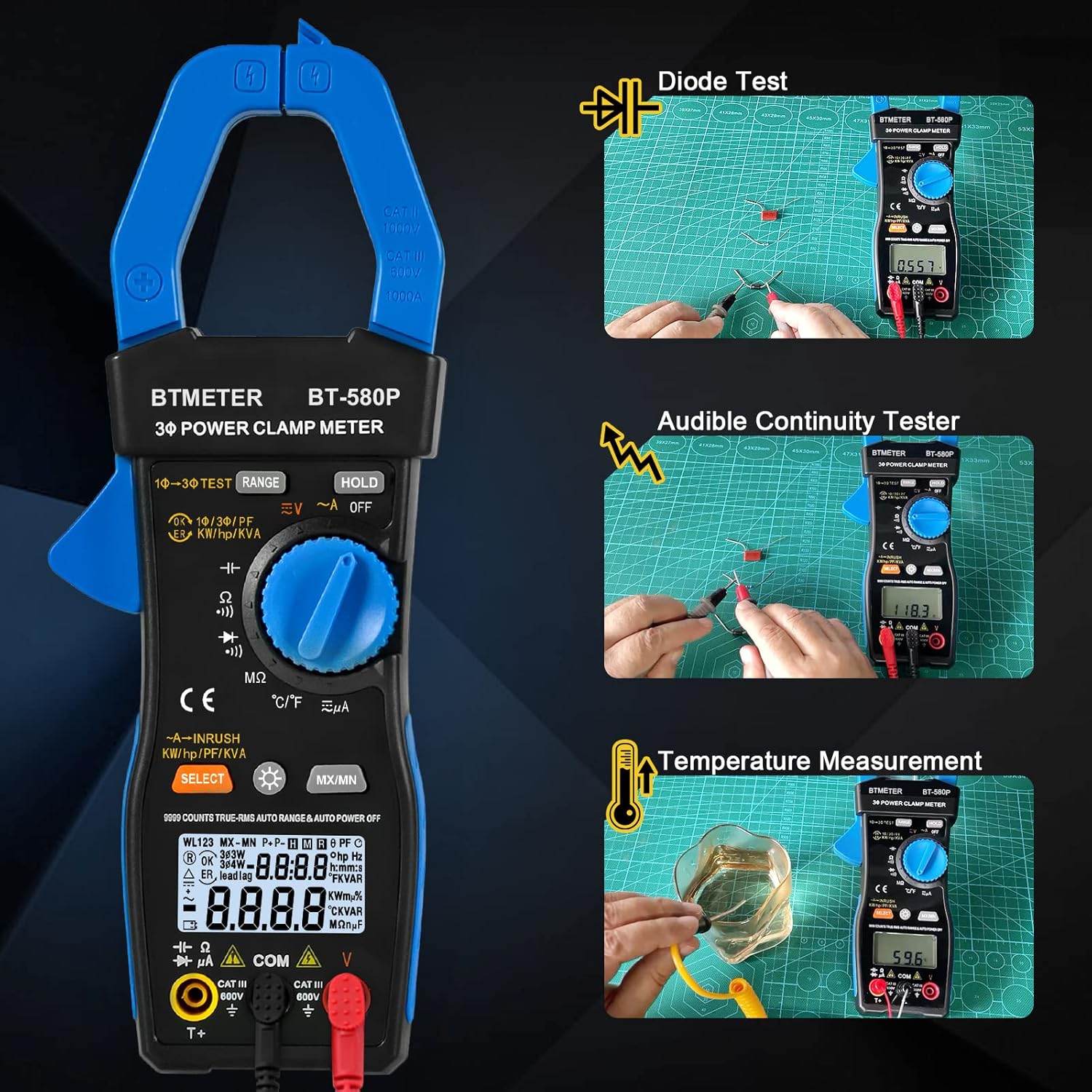

Measures AC/DC voltage, current, resistance, capacitance, diodes, continuity, temperature, and more.

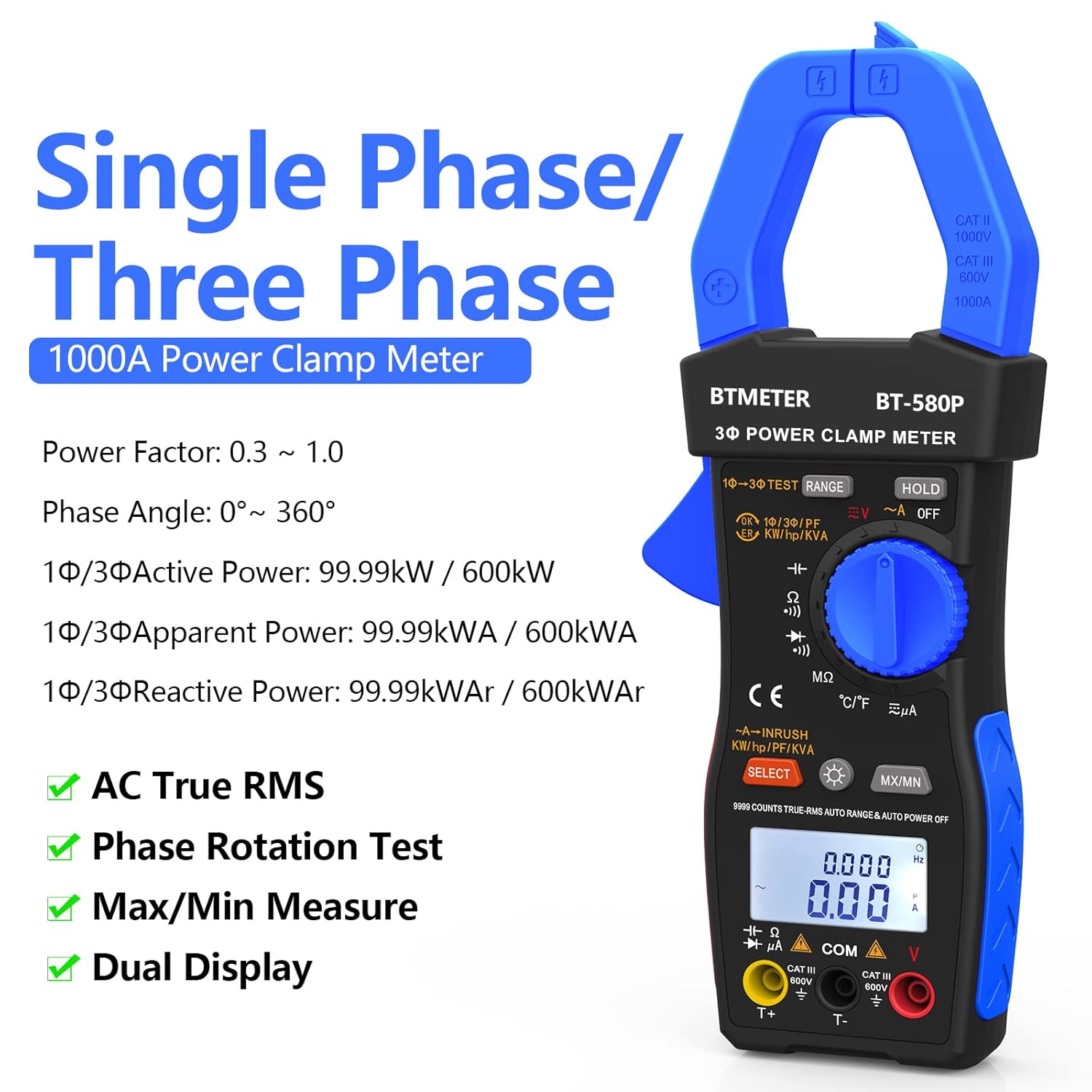

It monitors actual power (kW), reactive power (KVAR), apparent power (KVA), power factor (PF), phase angle, and phase sequence.
Dual display to display two measurements simultaneously.
True RMS function for accurate measurement in AC/DC.
Ideal for testing on HVAC electrical systems and other industrial circuits.
Specs:

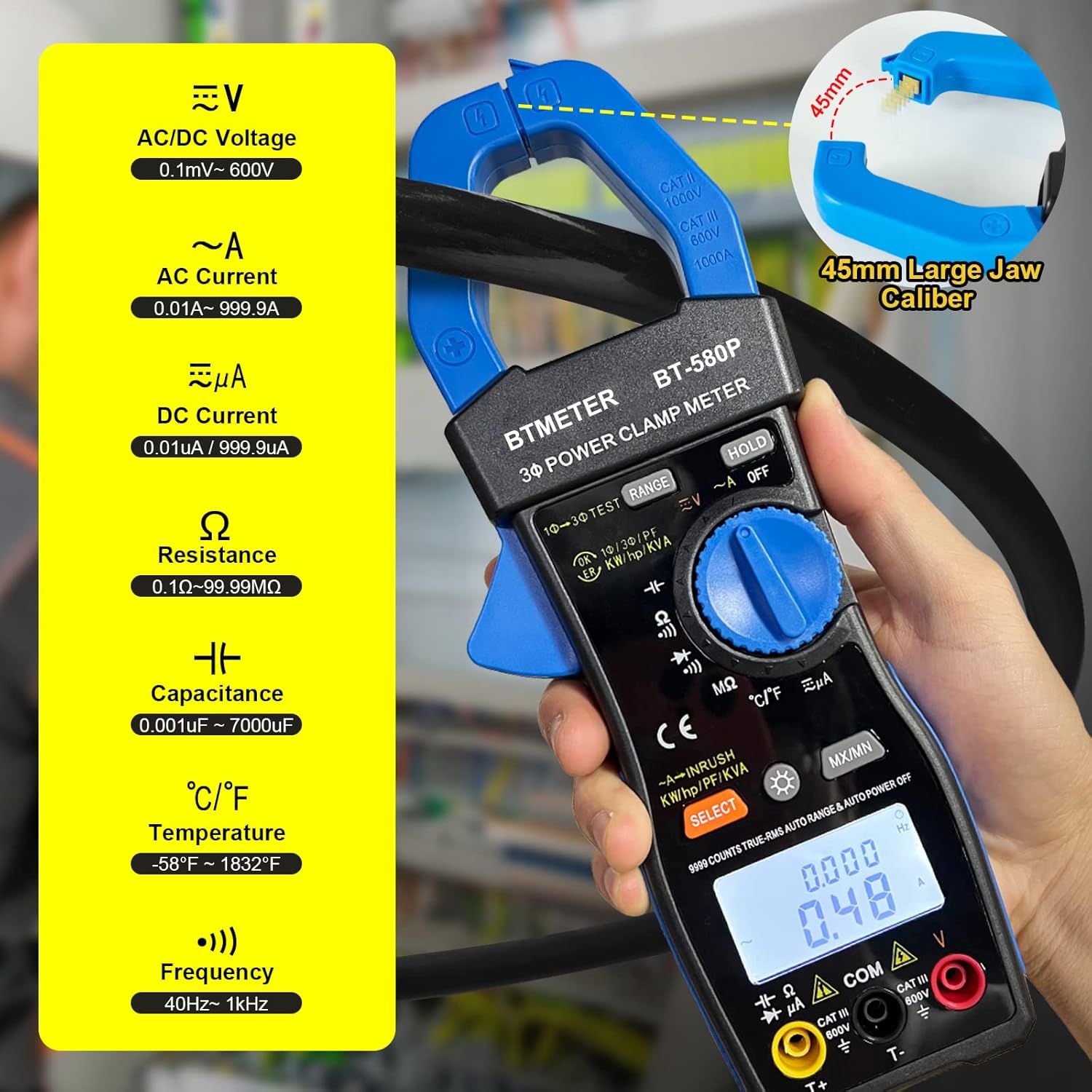

Measurement range:
AC True RMS current: 0.01 A to 999.9 A
True RMS AC voltage: 2.0 mV to 600.0 V
AC power 10 VA to 600.0 kVA
Active power (kW): 10 W to 600.0 kW
Frequency: 40.0 Hz to 999.9 Hz
Capacitance: 1 nF to 7000UF
Temperature: -58 °F to 1,652 °F (with included thermocouple)
Resistance: 0.1 ohm to 99.99 megaohm
Continuity: <40.0 ohm to 999.9 ohm
Diode: 1 mV to 2.00 V

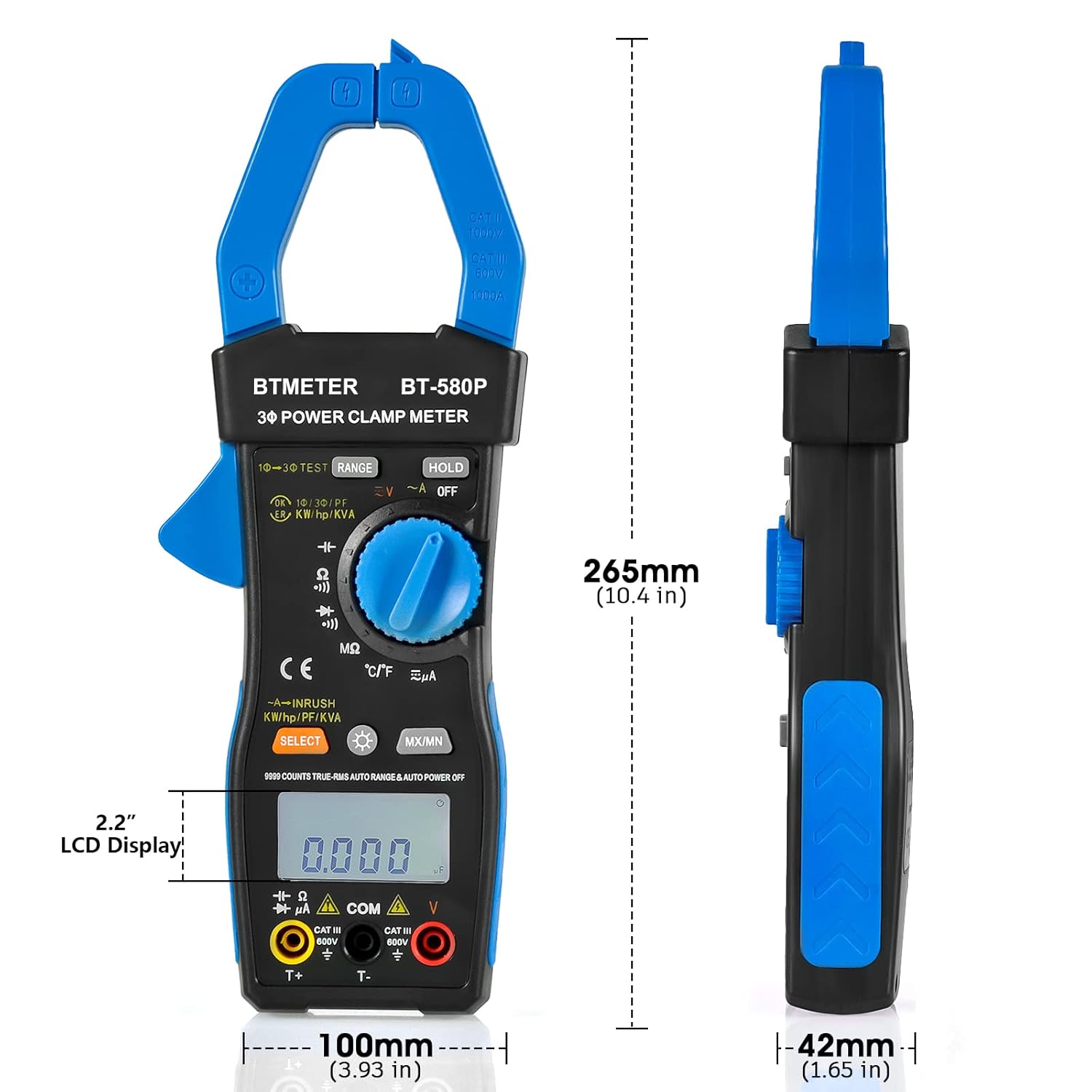

Design:

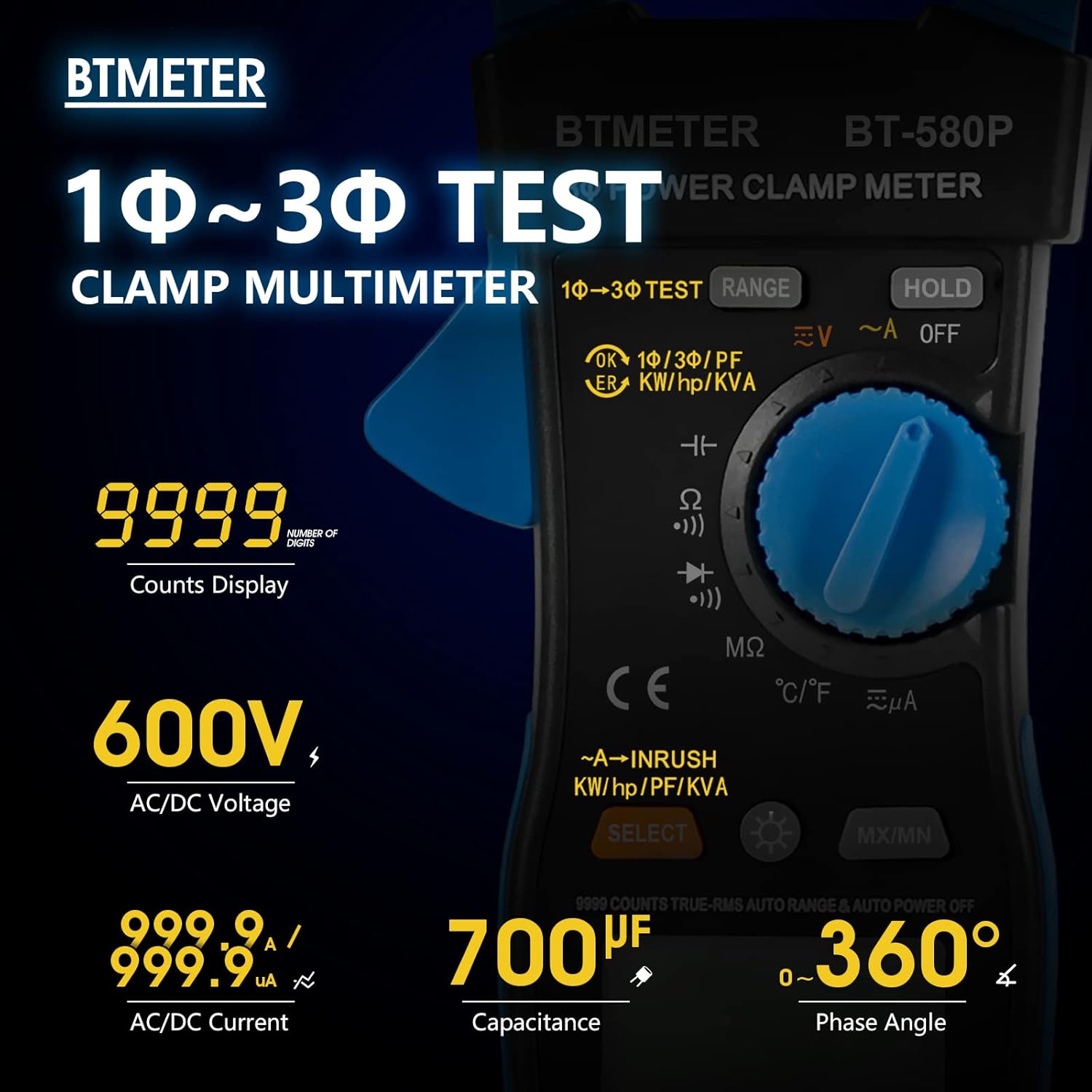

9999 count display, backlit.
High-precision sensor for non-contact measurements on multiple wires.
Automatic shutdown with option to deactivate it.
Applications:
Diagnosis of HVAC (heating, ventilation and air conditioning) systems.
Ideal for electricians, technicians and electrical engineering professionals.

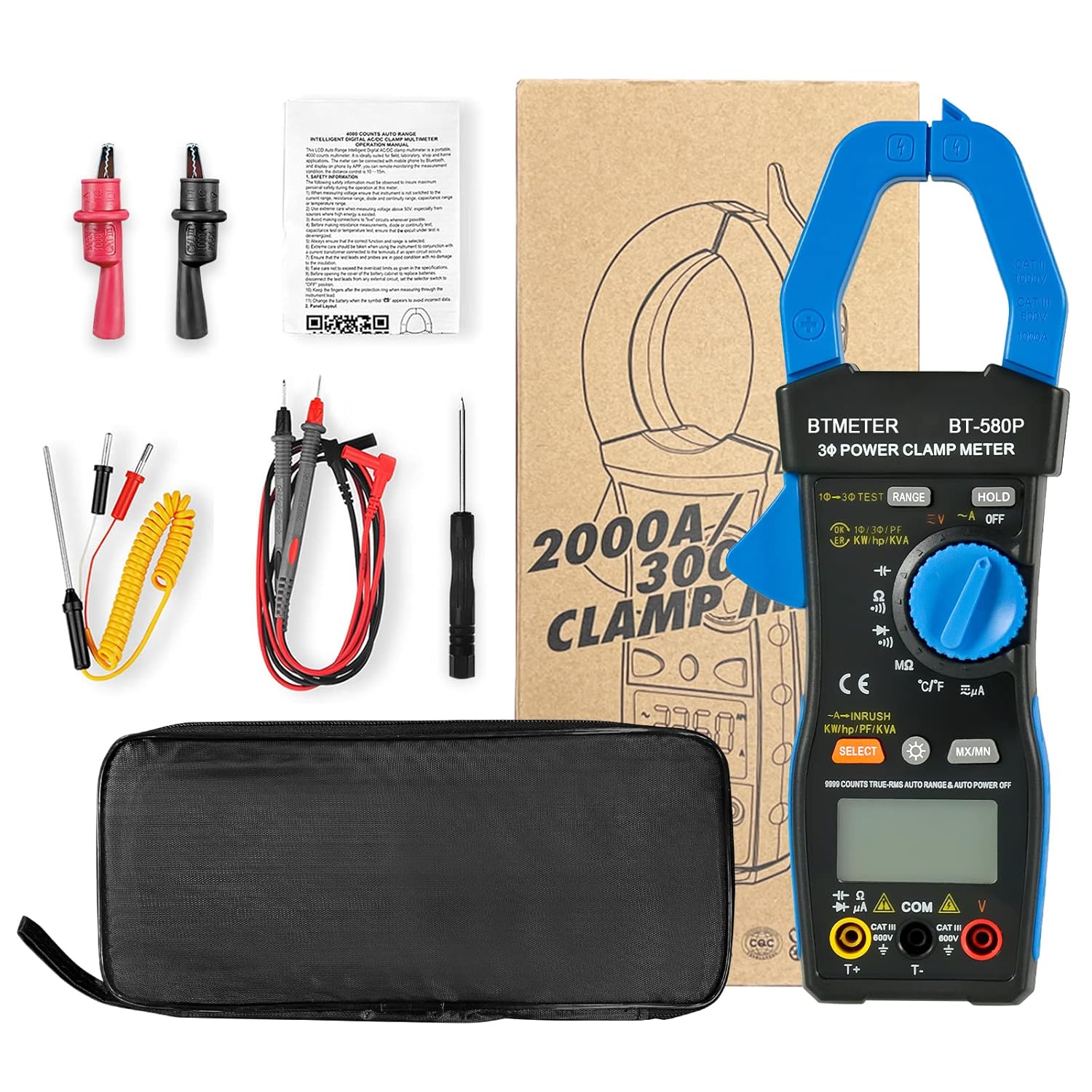

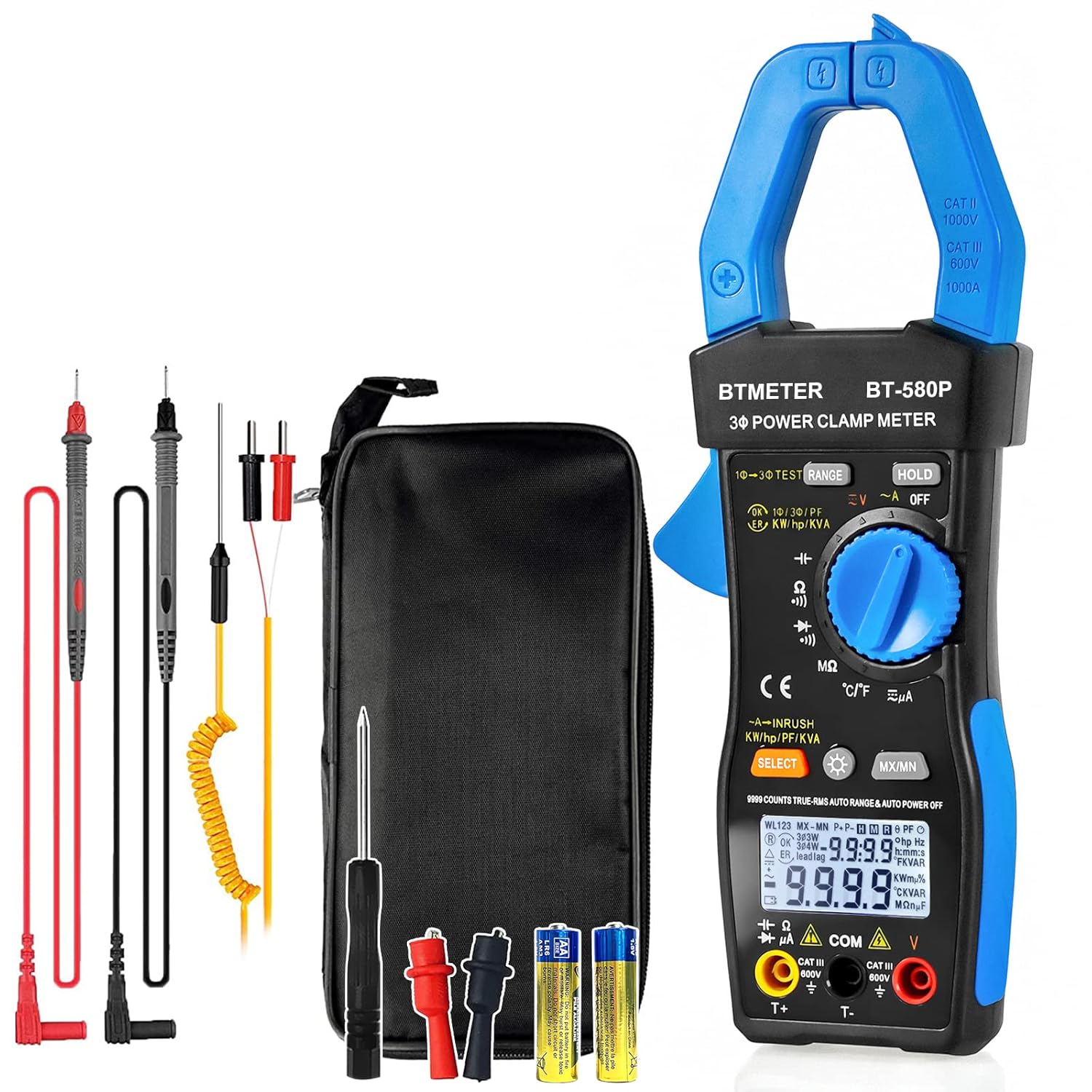

Includes: Thermocouple for temperature measurement.
This multimeter offers high accuracy for starting current, phase sequence, and power measurement testing in three-phase systems.
To use the BTMETER BT-508P Three-Phase Multimeter Clamp, follow these steps:
Power on: Press the power button to wake up the device.
Measurement selection: Use the dial to select the measurement you want to make (voltage, current, resistance, etc.).
Connect the measurement cable: If necessary, connect the test leads for voltage or resistance measurements.
Current measurement: Open the clamp and place it around a conductor to measure current without direct contact.
Reading: Refer to the screen to see the measured values.
Remember to use the device to its specifications to get accurate readings and avoid damage.
