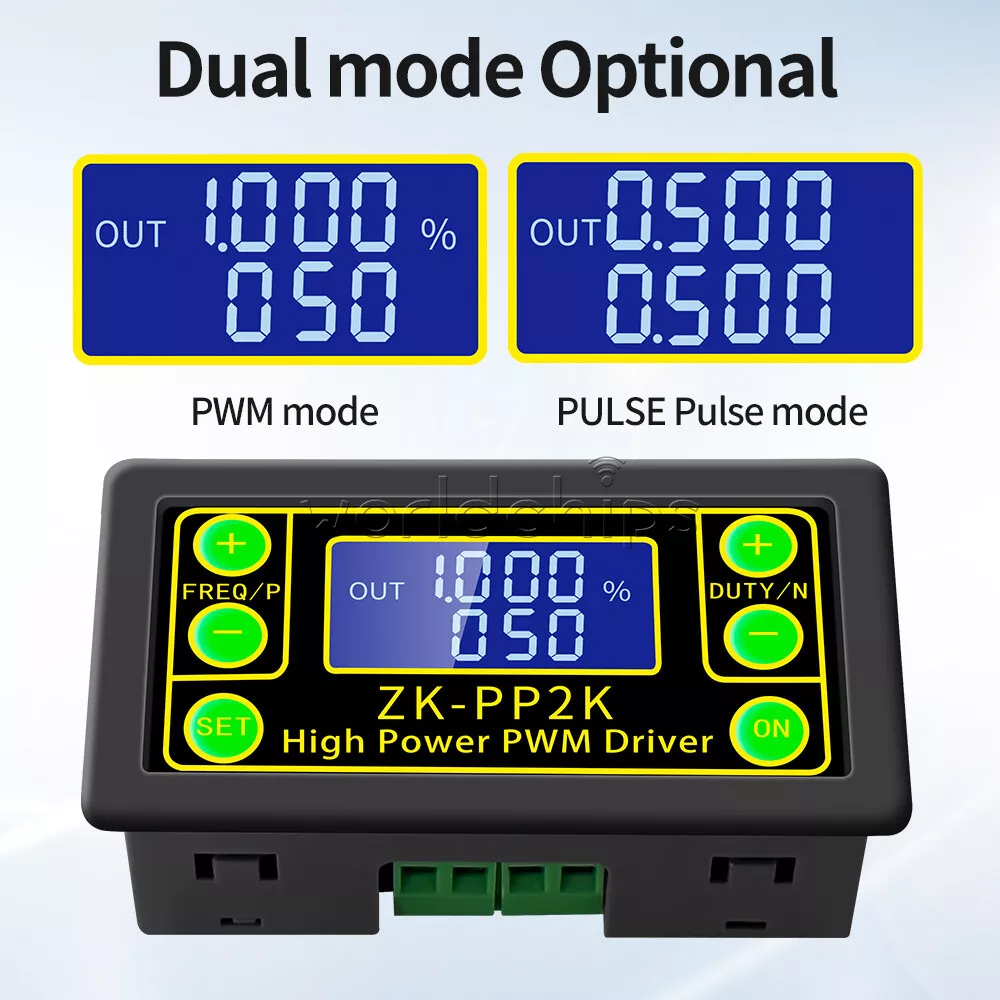

ZK-PP2K PWM Motor Speed Controller
Description: The ZK-PP2K PWM Motor Speed Controller is a device designed to control the speed of direct current (DC) motors using pulse width modulation (PWM). This controller is ideal for adjusting the speed of small to medium motors from 12V to 24V, allowing precise and efficient speed control without losing power.
Key features:
PWM Controller: Uses pulse width modulation (PWM) to regulate the speed of DC motors.
Voltage Range: Accepts inputs from 12V to 24V DC.
Maximum Output Current: 2A, suitable for low to medium power motors.
Speed Adjustment: Speed control adjustable by a potentiometer.
High Efficiency: Conversion efficiency of up to 90%.
Protection: Protects against short circuits and overloads.
Applications: Ideal for robotics projects, fans, pumps, and other devices that require speed control.
Technical Data:
Type of Regulator: PWM (Pulse Width Modulation).
Minimum Input Voltage: 12V DC.
Maximum Input Voltage: 24V DC.
Output Voltage: The output voltage will be the same as the input voltage, with the ability to be adjusted by speed control.
Maximum Output Current: 2A.
Power: Up to 48W at 24V and 24W at 12V.
Frequency: 25 kHz.
Conversion Efficiency: Approximately 90%.
Minimum Operating Temperature: 0°C.
Maximum Operating Temperature: 40°C.
Dimensions:
Height: 4.3 cm
Width: 8.8 cm
Length: 6.8 cm
Weight: 0.1 kg.
Number of Sockets: 1 motor output.
With Adjustable Output Voltage: Yes, controllable by potentiometer.
With short circuit protection: Yes.
With Electrical Breaker: Does not include circuit breaker.
How to Use:

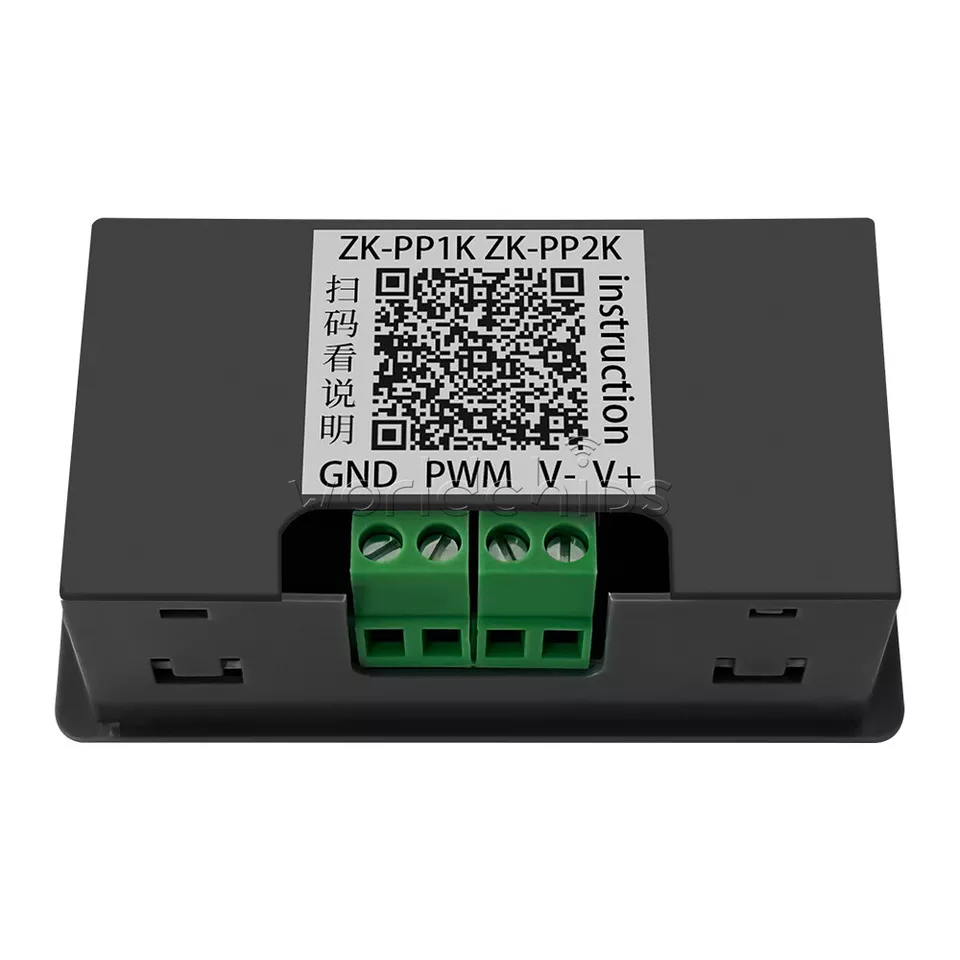

Input Connection:
Connect the voltage from 12V to 24V DC to the input terminals of the controller. Make sure to connect the positive (+) and negative (-) terminals correctly.
Motor Connection:
Connect the direct current (DC) motor to the controller’s output terminals (positive and negative).
Speed Adjustment:
Use the potentiometer (control dial) to adjust the speed of the motor. Turning the potentiometer will vary the width of the PWM pulse, which will adjust the speed of the motor.
Operation:
Turn on the controller and adjust the motor speed according to your needs.
Off:
To turn off the device, simply disconnect the voltage supply.
Common Applications:
Robotics: Motor control in robotics projects for smooth and efficient movements.
Fans: Adjusting fan speed in cooling systems.
Pumps: Speed control in water pumps or hydraulic systems.
Electric Toys: To vary the speed of motors in small electrical devices.
Proceeds:
Precise Control: PWM modulation allows precise speed control without power losses.
Energy Efficiency: High efficiency with a conversion of up to 90%.
Easy Installation: Easy to connect and adjust, ideal for DIY and professional applications.
Protection: Built-in protection against short circuits and overloads for safer operation.
This speed controller is perfect for those who need to adjust the speed of their motors efficiently and easily, without losing power or generating unnecessary heat. Ideal for use in engineering, automation, ventilator and robotics projects.
Make sure you have a ZK-PP2K controller to take control of your projects to the next level!
