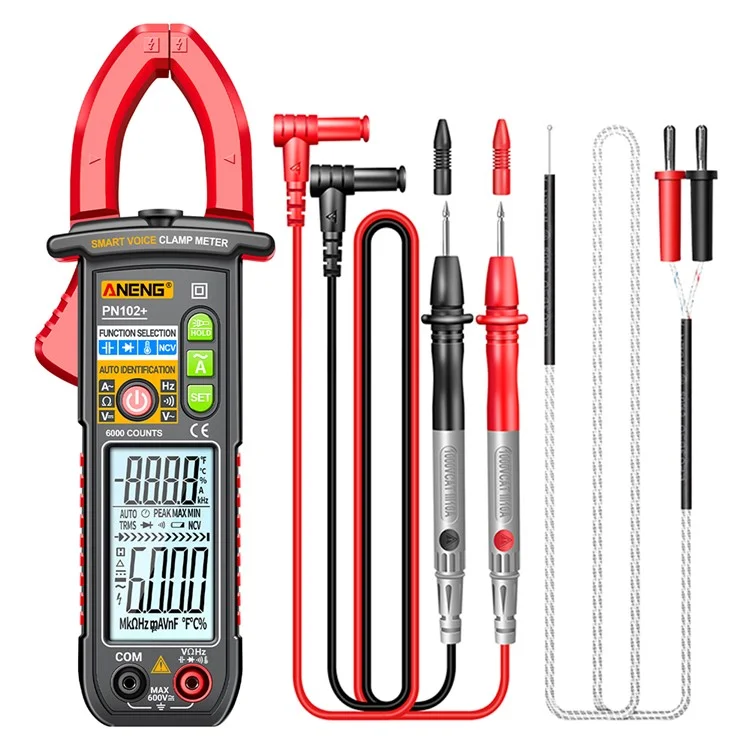

ANENG PN102 Digital Clamp Meter – AC / DC Voltage and Current
Tester Product Description:
The ANENG PN102 Digital Clamp Meter is an advanced tool ideal for professionals and electrical enthusiasts. With an ergonomic design and multiple functions.
This meter is perfect for measuring alternating current (AC) and direct current (DC), as well as voltage, resistance, frequency, temperature, and more. Its voice transmission readout allows you to listen to the results without having to look at the screen, which improves efficiency in measurement tasks.
In addition, it has useful features such as non-contact voltage detection (NCV), backlit display, and flashlight for low-light measurements.

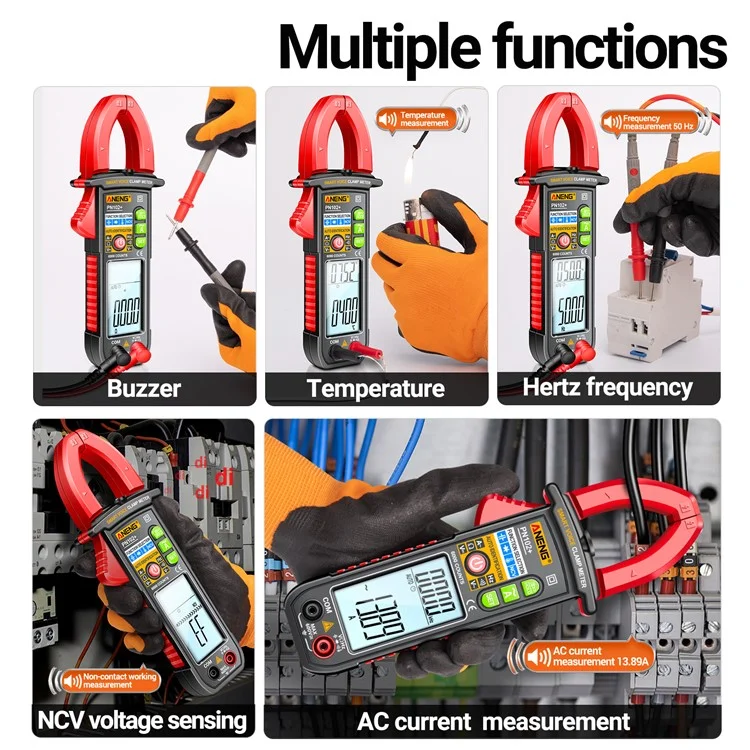

Key features:
Voice Transmission Reading: When the value stabilizes, the reading is automatically transmitted, allowing you to hear the result without looking at the screen.
Non-Contact Voltage Detection (NCV): Detects voltages without physical contact. The closer to the power source, the more urgent the alarm will be.
Maximum current: Measures up to 600A in alternating current (AC) and direct current (DC).
Backlit screen: Facilitates reading in low light conditions or in dark environments.
Flashlight function: Provides additional illumination during night measurements or in dark environments.
Diode and data hold: Includes diode test function and option to retain data on screen for easy reading.
Automatic shutdown: Saves battery by automatically turning off when not in use.
Low power indication: Alerts you when the battery is low.

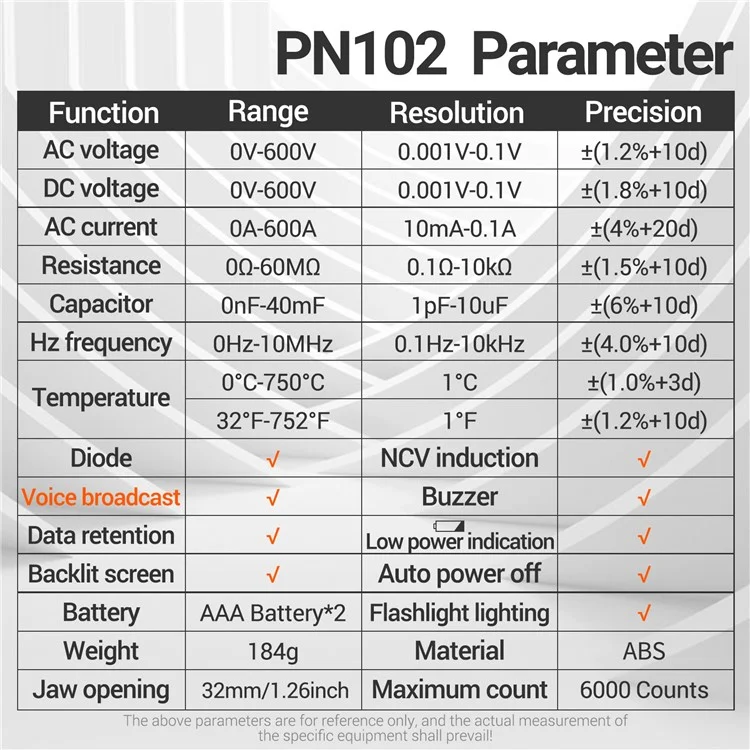

Technical Specifications:
AC voltage: 0V – 600V
DC voltage: 0V – 600V
AC current: 0A – 600A
Capacitance: 0nF – 40uF
Frequency: 0Hz – 10MHz
Temperature: 0°C – 750°C (32°F – 752°F)
Diode: Available function
Data hold: Available
Backlit display: Yes
NCV induction (Non-contact detection): Yes
Alert bell: Yes
Battery: 2 AAA batteries (not included)
Material: ABS
Maximum count: 6000 counts

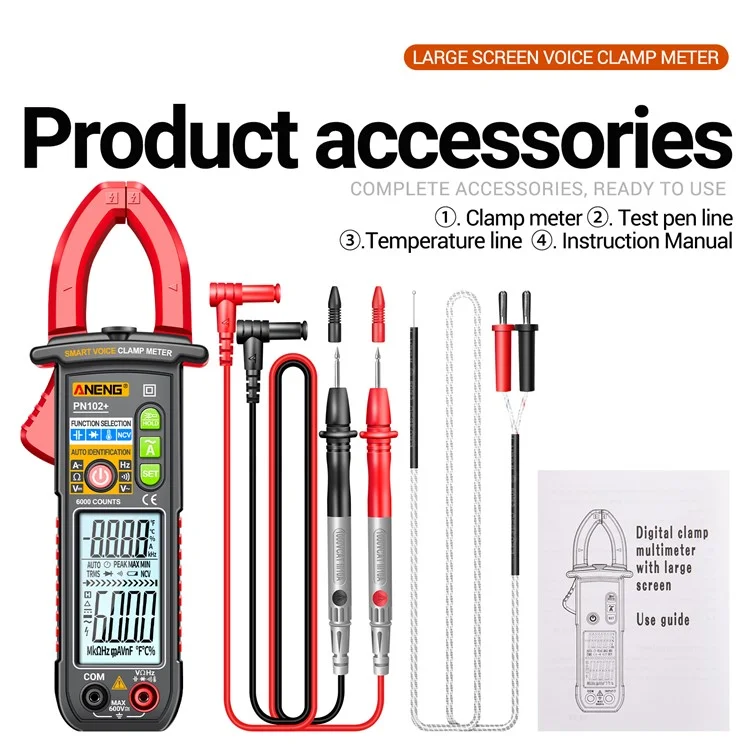

Includes in the package:
1 x ANENG PN102
Clamp Gauge 2 x Test
Leads 1 x Temperature Cable
1 x English
User Manual Packaging Specifications:
Gross weight: 0.355 kg
Volume weight: 0.314 kg
Package dimensions: 24.7 cm x 12.6 cm x 4.5 cm
Retail packaging: Yes
