Description

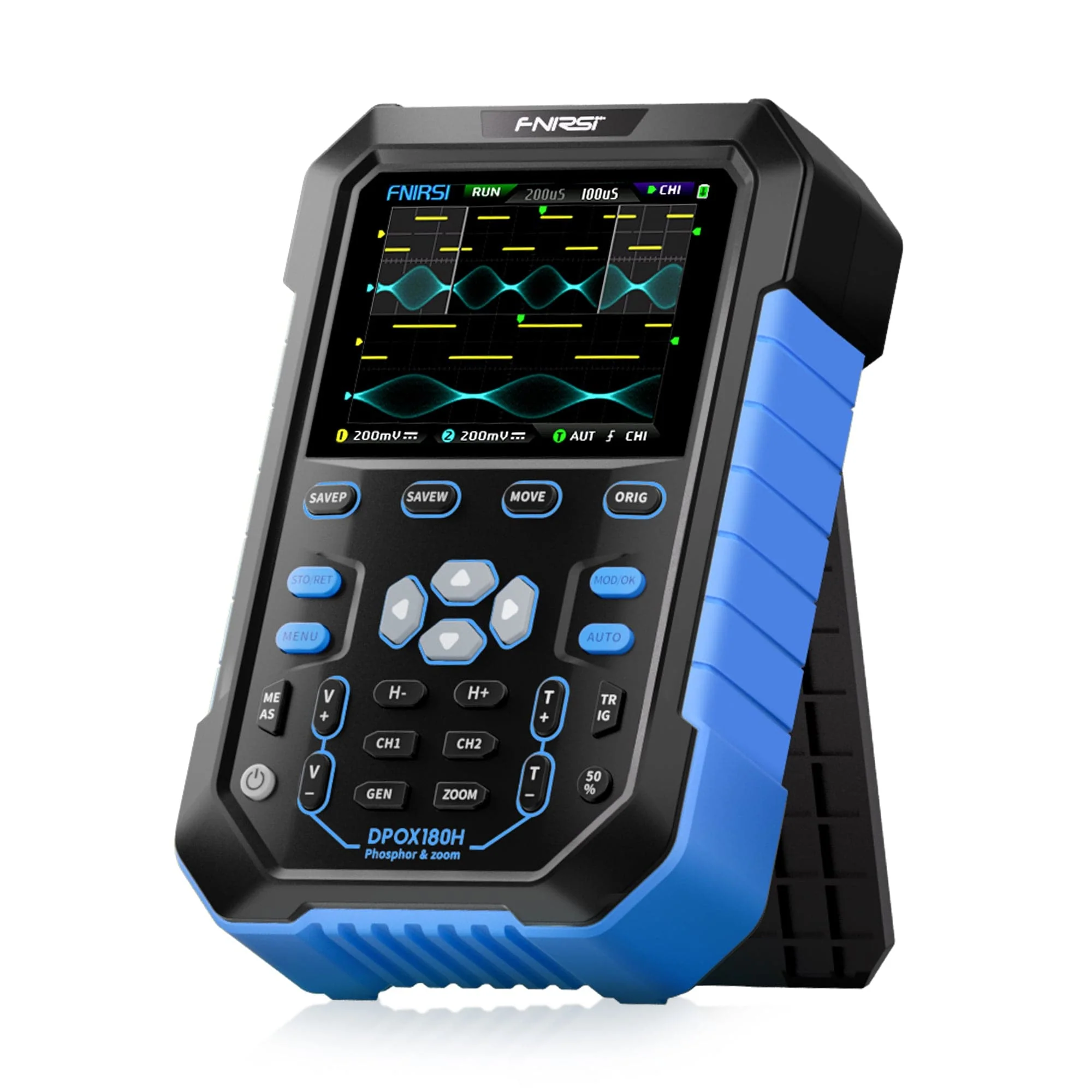

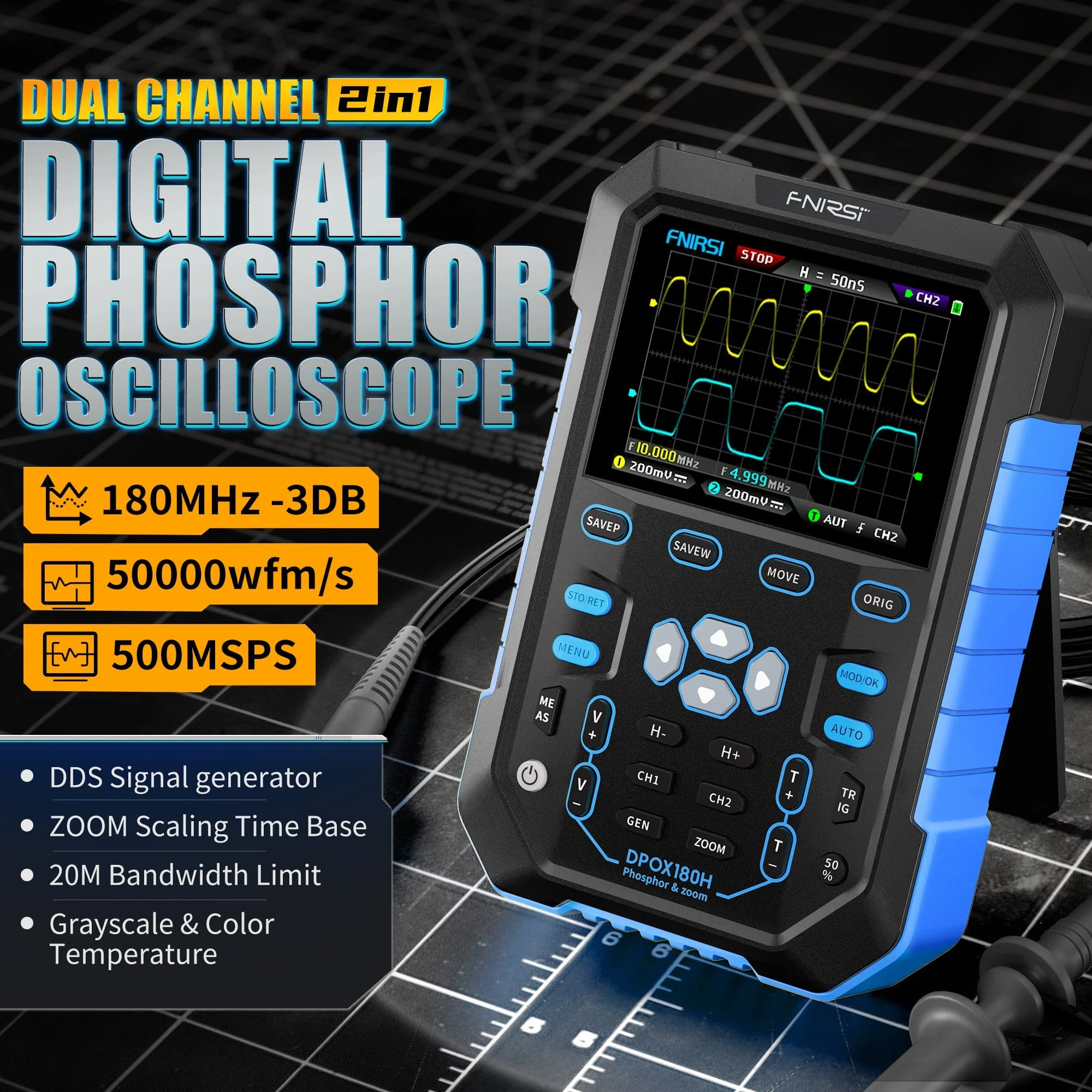

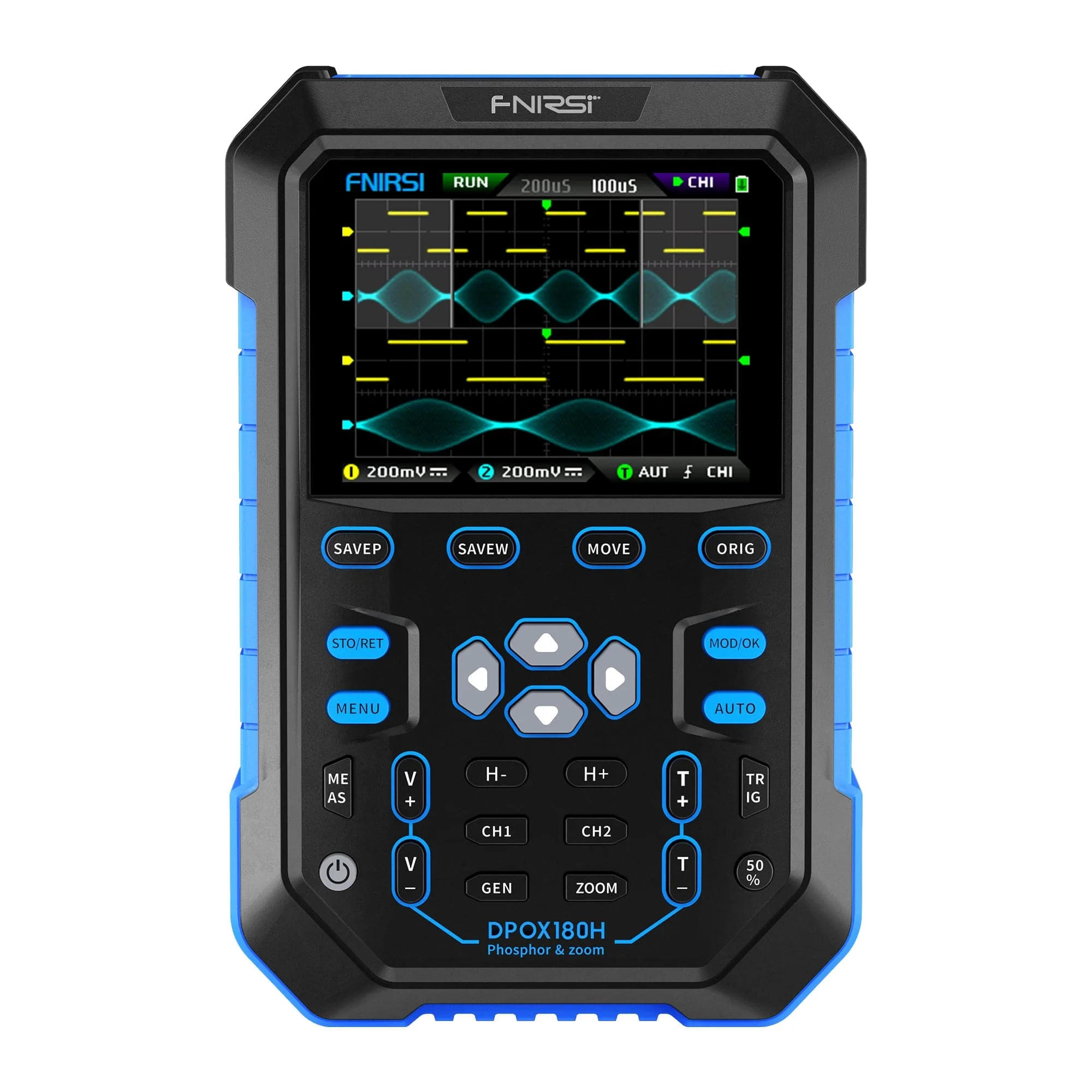

FNIRSI® DPOX180H 2-channel digital phosphor oscilloscope, 180 MHZ, 2 in 1

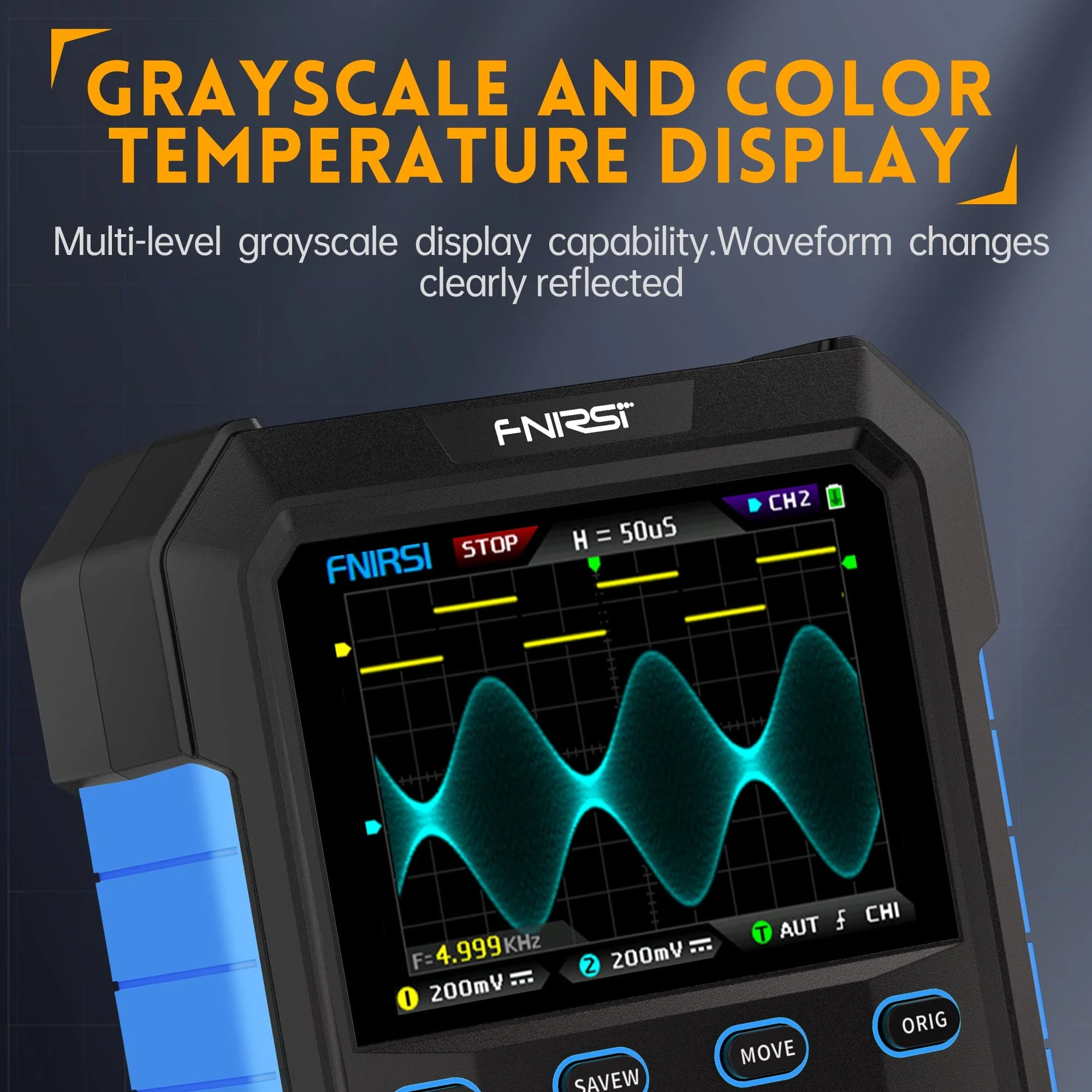

Digital Phosphor Oscilloscope: The DPOX180H minimizes waveform noise and distortion with advanced digital phosphor technology. The color temperature display improves signal clarity, showing signal distribution and rise and fall times. XY mode allows for easy comparison of amplitude, frequency, and phase between two signals.
Professional design: It features a portable 2-channel oscilloscope and a DDS signal generator with a bandwidth of 180 MHz and a sampling rate of 500 MSa/s. It includes an innovative digital triggering system, cursor metering, 5 mV sensitivity, 50,000 wfm/s refresh rate, a 2.8-inch IPS display, built-in 4.2 V/3000 mAh battery, automatic shut-off, and high-voltage protection.
Unique and innovative features: It offers an adjustable automatic bandwidth limit that adapts to the base time range, filtering out noise for clearer signal analysis. Its high-frequency adaptive rejection suppresses high-frequency components, ensuring stable activation even with large noise signals.

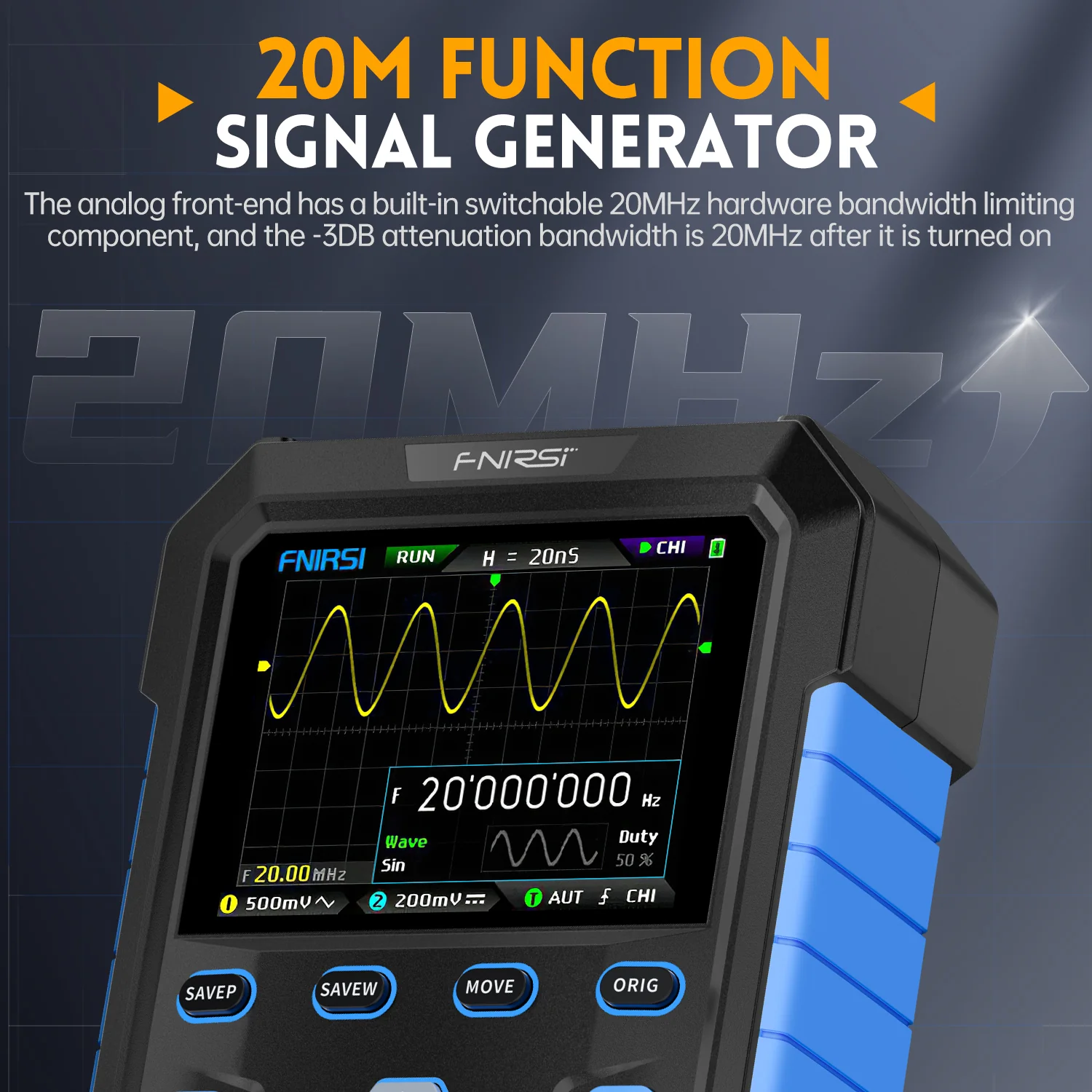

Function Signal Generator: It has a 20M DDS signal generator with 14 waveforms, 1 VPP amplitude, 20MHz and 10MHz sine wave frequency for other waveforms. Its cutting technology offers a more accurate and realistic signal output than traditional generators.
Easy Measurement: Equipped with a high-efficiency auto button, 25%, 50%, 75% adaptive trigger, can display the measured waveform without cumbersome adjustments. Visualization of the FFT spectrum.
Storage function: with a single click you can save the screenshot or waveform. With your own data storage, you can view the saved screenshot file and waveform data. The data can be exported via a USB connection to a computer.
2-channel
phosphor digital oscilloscope 2 in 1 portable oscilloscope + DDS
signal generator 180 MHz bandwidth 500 MSa/s
sampling frequency Recording depth 32kb
Maximum measurement voltage ±400 V
Vertical sensitivity from 200 mv/div to 10 v/div
Supports waveform image storage and export.
Shooting function: auto/normal/simple
Effortless use: automatic with a single key
Perfect operations: improved data saving
