Description

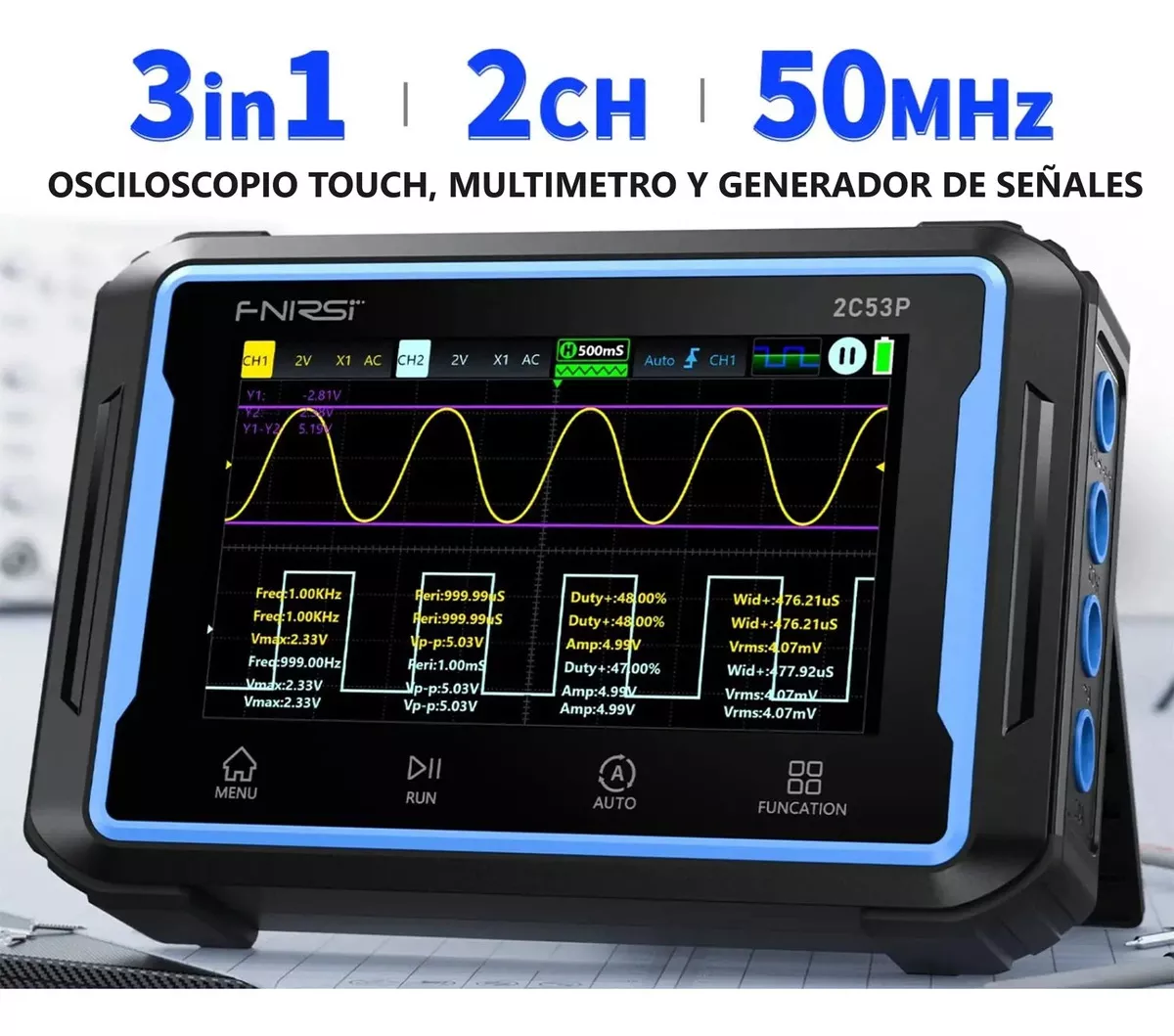

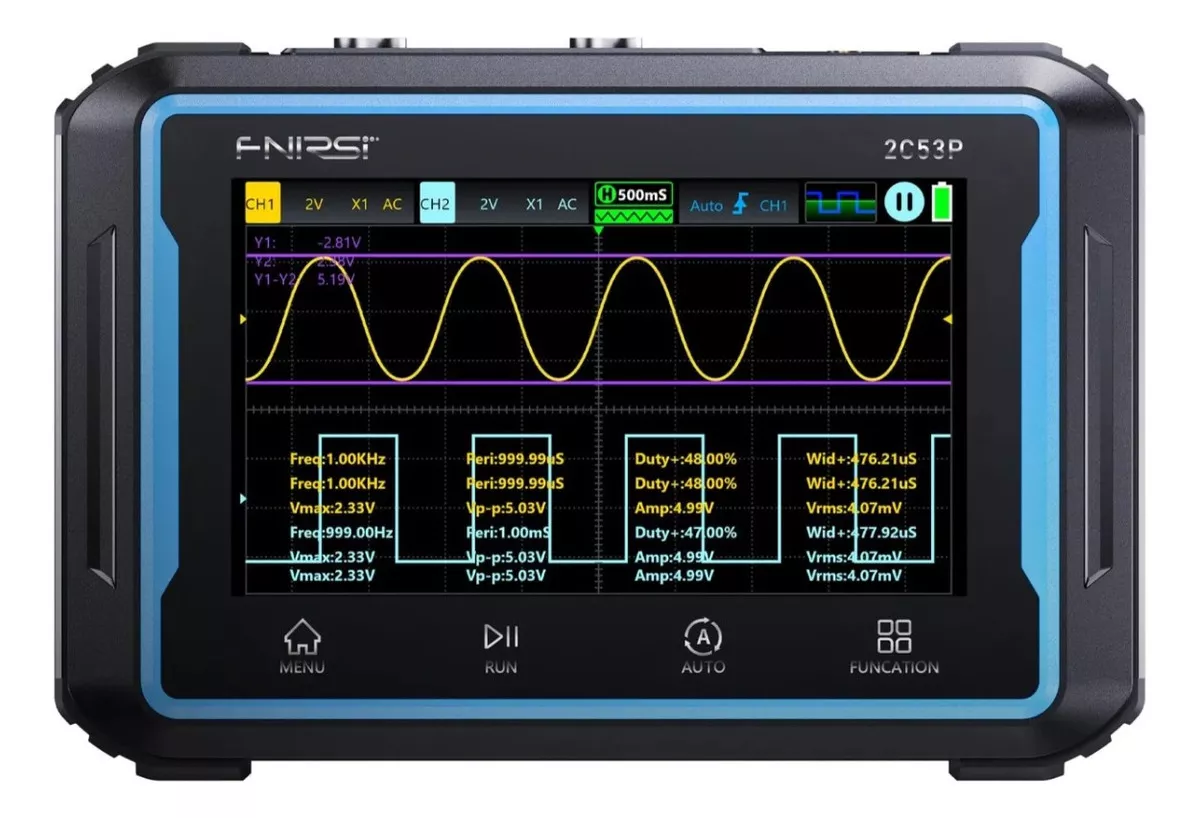

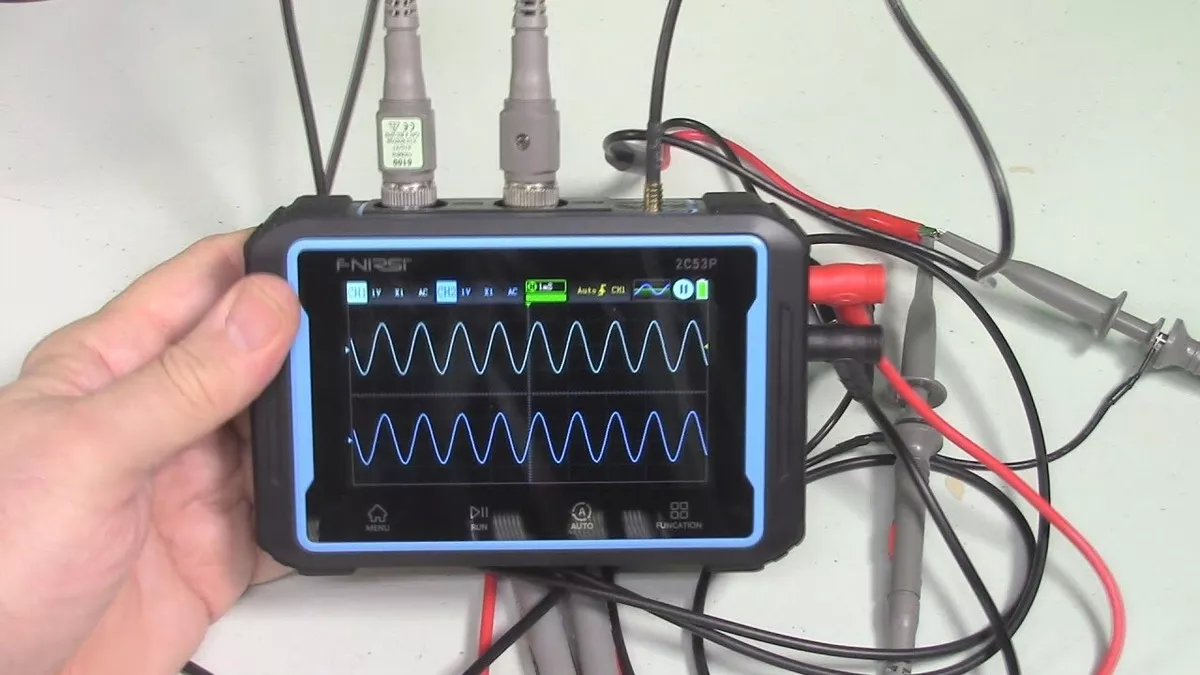

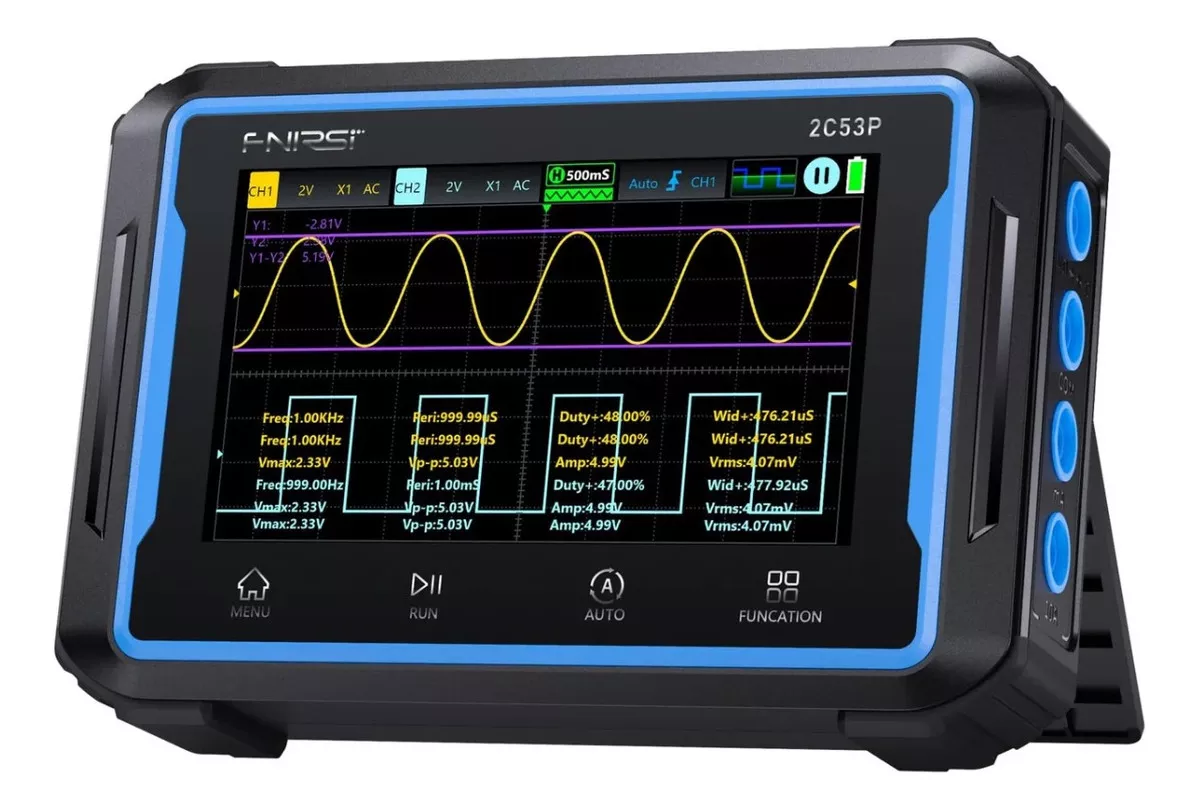

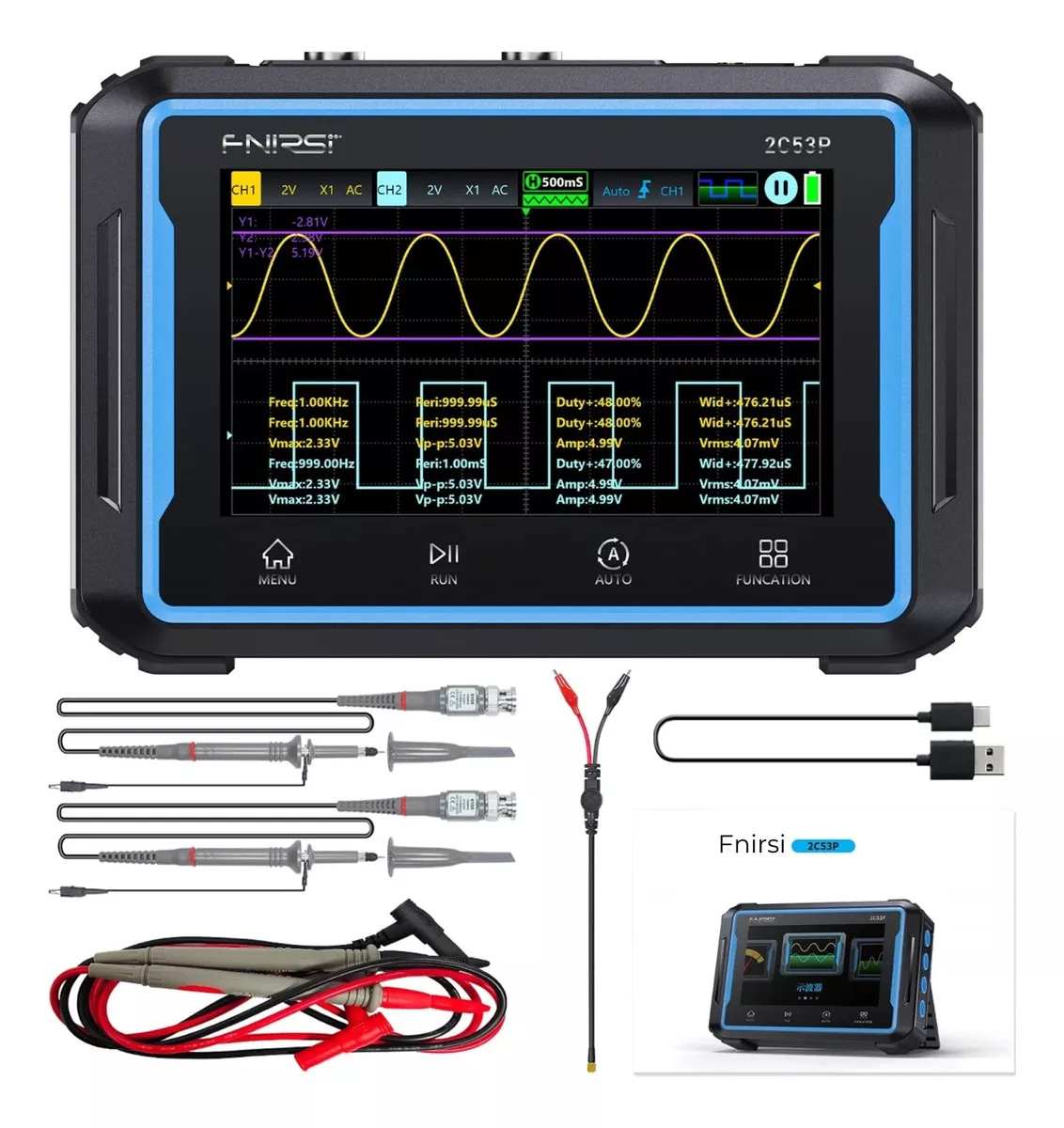

FNIRSI® 2C53P 3 in 1 Dual Channel Tablet Oscilloscope + Multimeter + Function Generator
2-channel oscilloscope multimeter: upgraded from the 2C23T. The 2C53P oscilloscope has a sampling rate of 250 MS/s and a bandwidth of 50 MHz. 19999 count multimeter, 5 measurement values, maximum and minimum display. 4.3-inch IPS touchscreen, 480 x 272 high resolution.
DDS Signal Generator: Generates 12 waveforms with a maximum frequency of 10 MHz. The FPGA+MCU+ADC architecture ensures robust waveform capture and supports saving, viewing, and exporting waveforms for analysis.
Improved efficiency: Features an AUTO key for quick measurements and simplified operations, with auto/normal/single trigger modes. Suitable for both periodic analog and non-periodic digital signals.
Comprehensive analysis: XY mode compares the phase, amplitude, and frequency of two signals, while FFT spectrum analysis estimates harmonic content and manages complex signals.
Long Battery Life: The built-in 4000mAh battery provides up to 4 hours of use, with Type-C charging for uninterrupted work.
10m
Automatic Sine Wave Signal Generator Tablet
Oscilloscope 4 and a Half Digit
Automotive Multimeter Bandwidth 50 MHz
Auto
Range Digital Multimeter Touch
Screen Control 20 MHz
Bandwidth Limit Color Touch Screen IPS
Mathematical Algorithmb
