Description

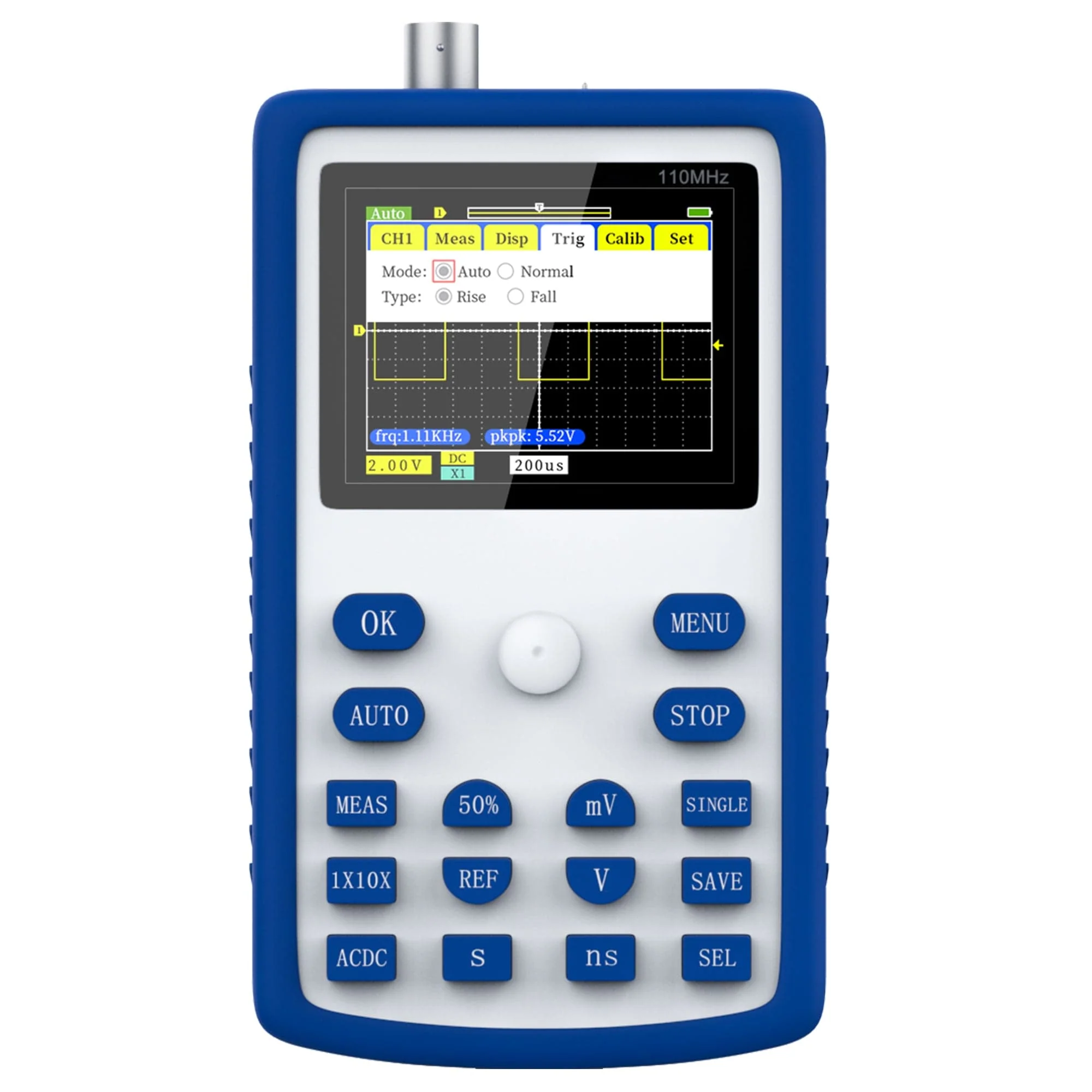

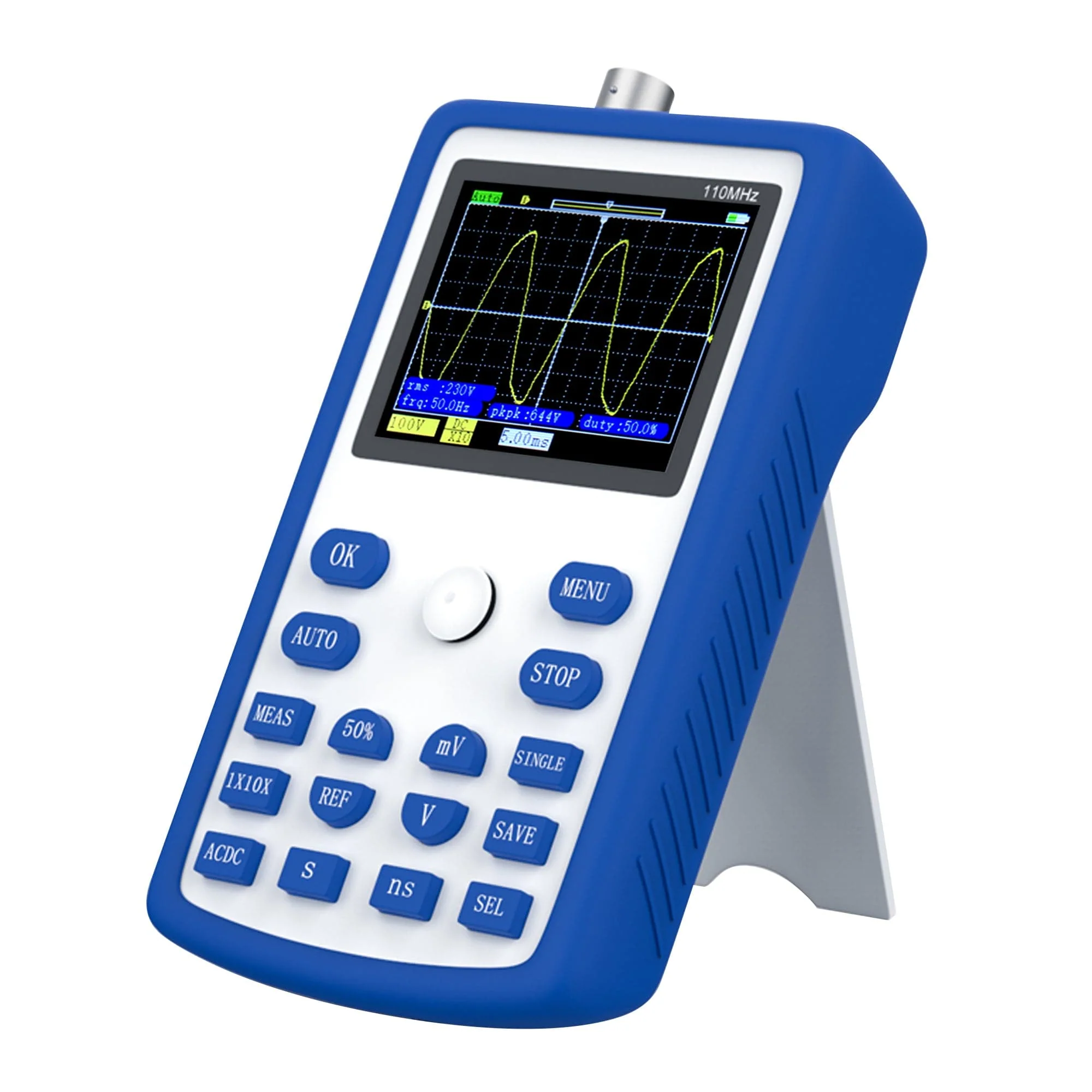

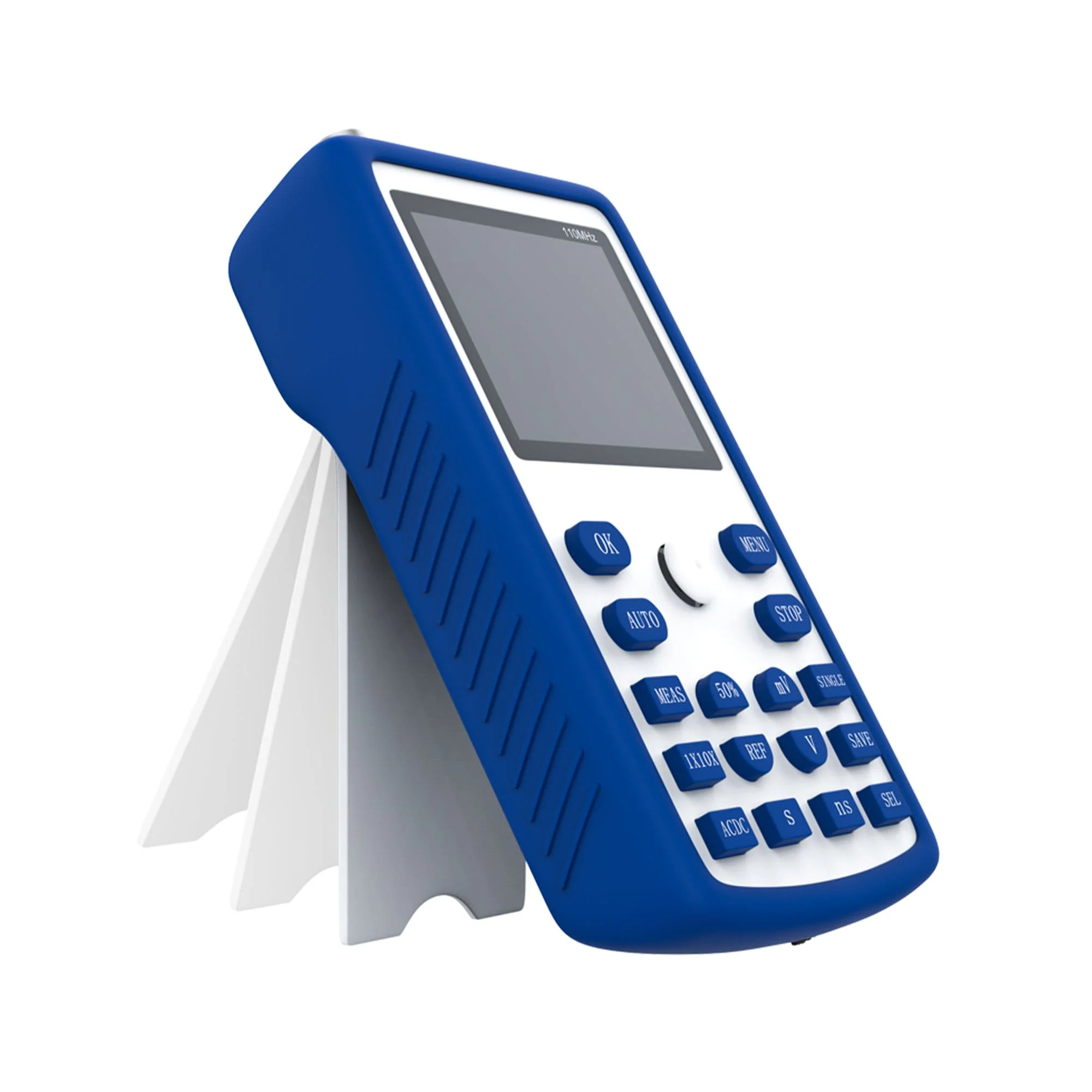

The FNIRSI 1C15 Oscilloscope is an essential tool for technicians and electronics enthusiasts looking for a compact, portable, and high-performance device. With a bandwidth of 110 MHz and a sampling rate of up to 500 MSa/s, this oscilloscope is ideal for capturing fast signals and performing accurate diagnostics. Designed to offer an intuitive user experience, the FNIRSI 1C15 is perfect for field or laboratory use.
Sheet:
Model No.: FNIRSI 1C15
Number of Channels: 1

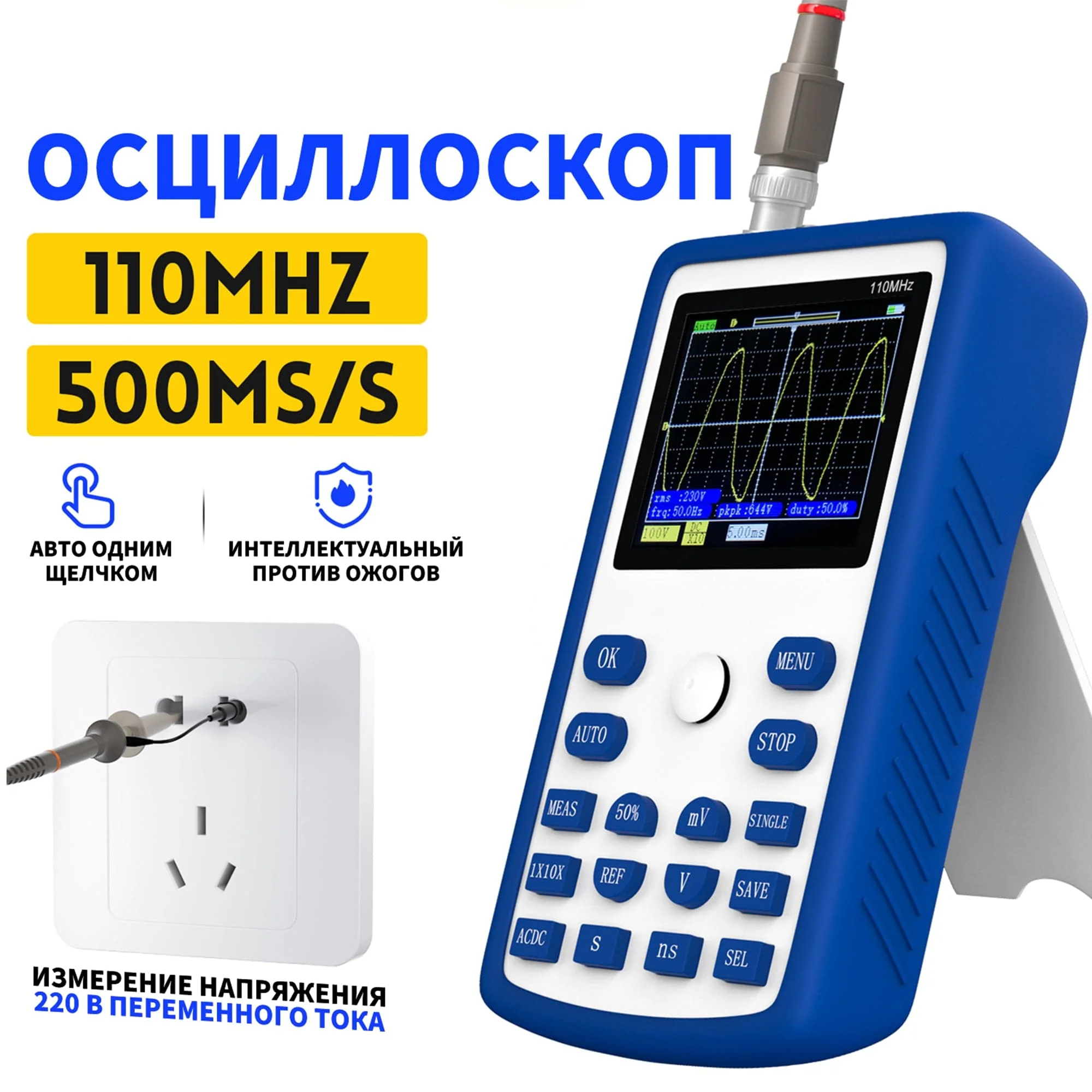

Bandwidth: 110 MHz
Sample Rate: 500 MSa/s (Mega Samples Per Second)
Memory Depth: 12 Kpts (12,000 sample points)
Display: 2.4-inch LCD with 320×240 pixel resolution
Maximum Input Voltage: ±400 V (with probe in 10X configuration)
Minimum Input Voltage: 20 mV/div

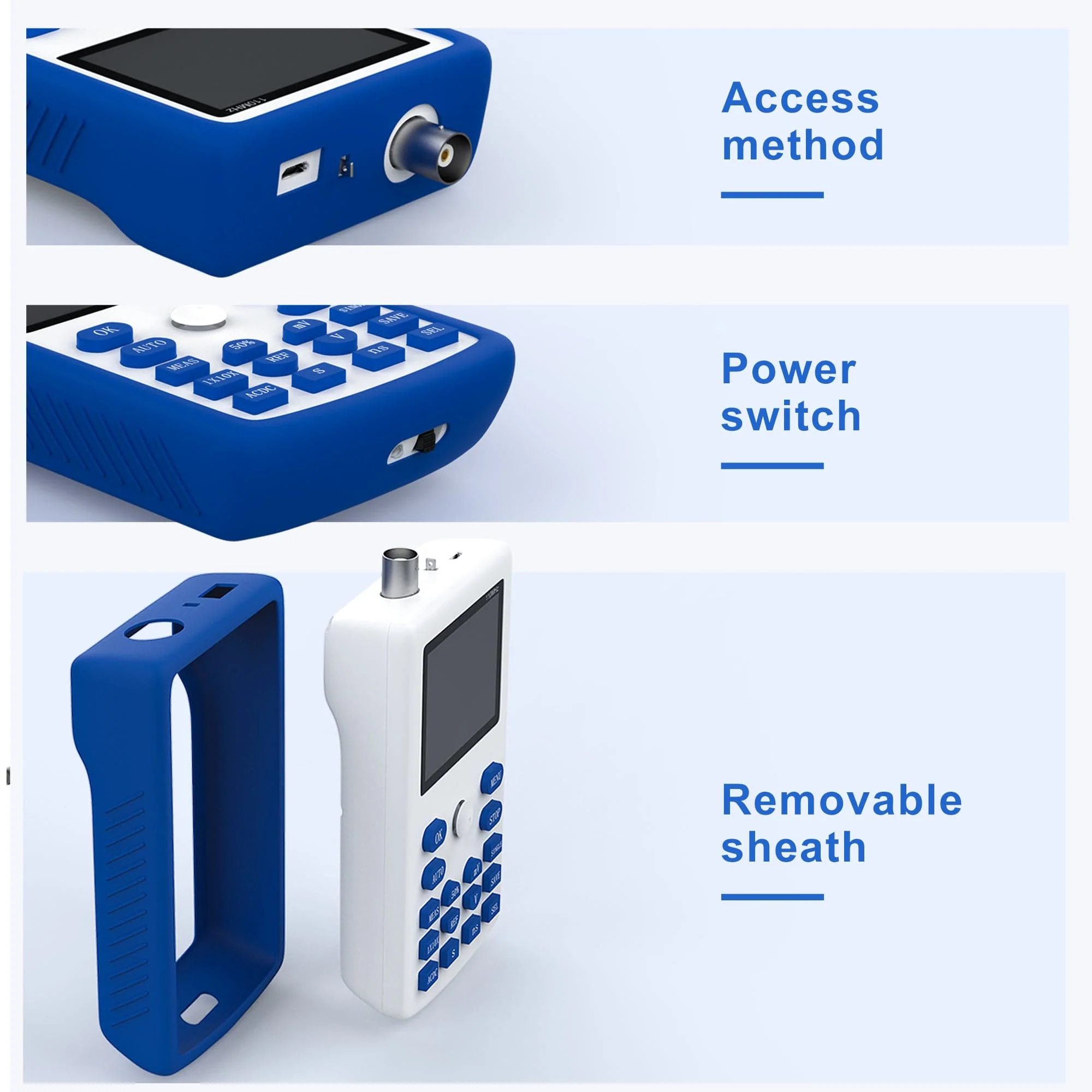

USB interface: Micro-USB port for charging and data transfer
Battery: 3000 mAh (up to 10 hours of continuous use)
Dimensions: 130mm x 76mm x 27mm
Weight: 206 g
Specs:
Working Mode: Portable
Voltage Measurement Range: 20 mV/div to 100 V/div
Additional Features:
Screenshot
Data storage
Built-in math functions
Waveform Analysis
How to use:
Power On: Connect the FNIRSI 1C15 oscilloscope to a power source using the provided USB cable or use the built-in battery.
Connecting the Probe: Insert the probe into the corresponding channel (CH1).
Scale Adjustment: Set the voltage and time scale according to the signal you want to measure.
Signal Capture: Use the screen to visualize the signals. You can adjust the vertical sensitivity and time base for more accurate analysis.
Data Storage and Transfer: Use the USB port to transfer data to your computer or store screenshots.
Power off: Unplug the probe and turn off the device.
This oscilloscope is ideal for applications in electronics repair, product development, and learning in educational institutions. With its compact design and advanced functionalities, the FNIRSI 1C15 becomes a must-have tool for any electronics professional or enthusiast.
