Description
The DT-5302 EMC is an advanced digital multimeter designed for accurate resistance, current, and voltage measurements. Here’s a summary of its main features and functions:
Key Features:
Four Kelvin Terminal Connection: This connection allows for low resistance measurements with high accuracy, which is ideal for applications where accuracy is required, such as insulation testing.
LCD Display: Features a 4000-count backlit display that makes it easy to read measurements, even in low-light conditions.

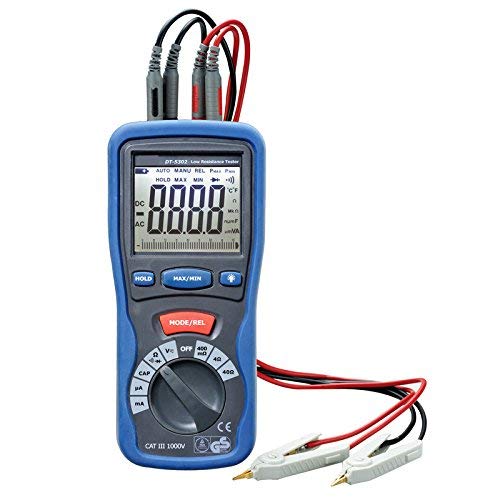

Milliohmmeter-EMC Multimeter Model DT-5302
Its connection via 4 Kelvin terminals ensures a measurement of low resistances with high precision.
4 Kelvin
terminals High resolution
4000 count LCD display with illumination
Low battery
indicator Overcharge protection in all ranges
HOLD, rMAX and MIN
hold functions Diode checks and continuity
test MILLIOHMMETER function:
Measurement with four wires.
Ranges and resolution:
400 megaohm: 100 Uohm
4 ohm: 1 mohm
40ohm 0.1 ohm
Accuracy: ±1% of reading ±5 or 10 digits.
Test current: 200 mA for 400 megaohm, 20 mA for 4 ohm, 2 mA for 40 ohm.
MULTIMETER Function:
Diode checks and continuity testing.
Ranges:
Resistance: 40 megaohm
AC/DC current: 400 mA
DC voltage: 1000 V
AC voltage: 750 V
Capacitance: 40 mF
