Description
ITEM DESCRIPTION

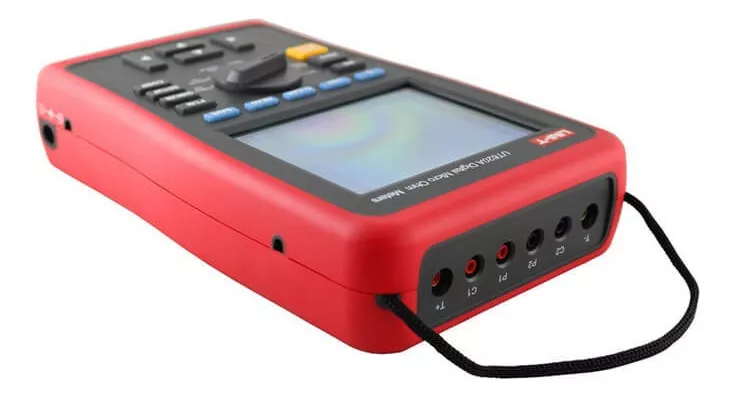

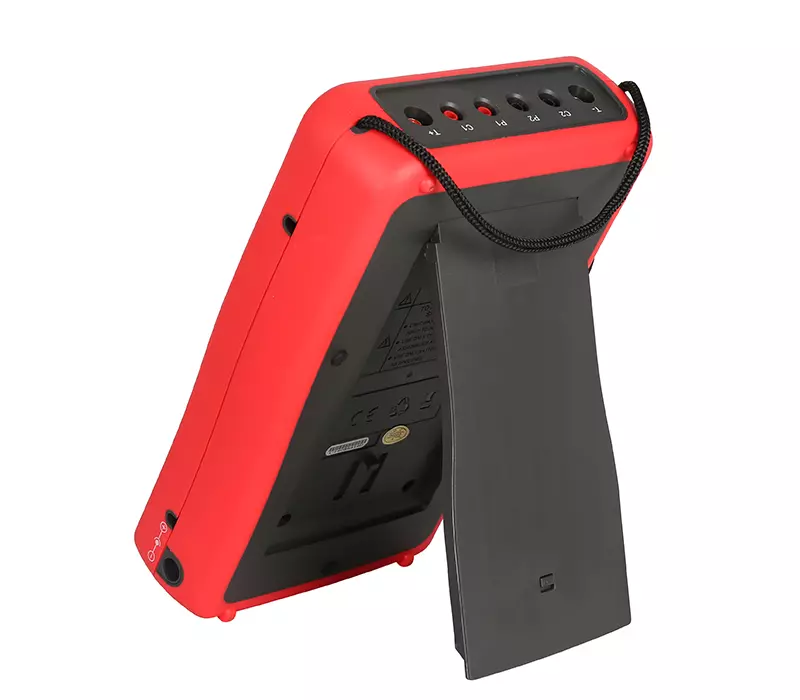

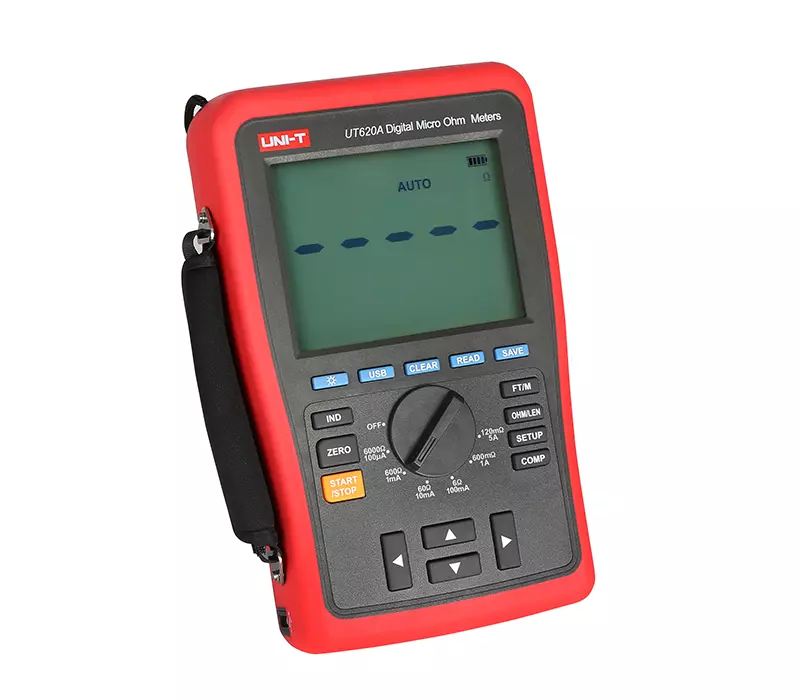

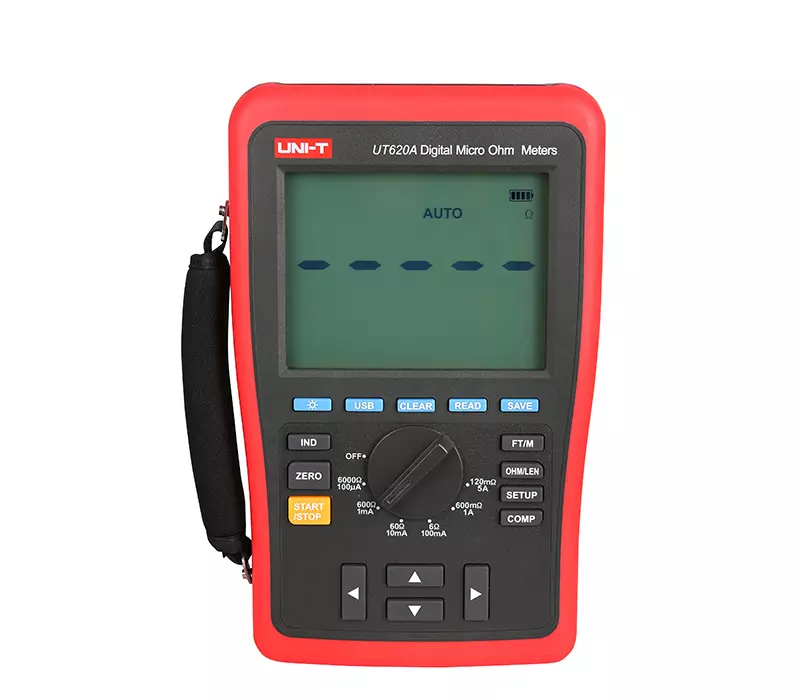

The UNI-T UT620A is a precision low-resistance meter designed to measure very low resistances, with a range ranging from 0.5 milliohms to 6 kilohms, using currents of up to 5A for the lowest measurements.
It offers a minimum resolution of 10 micro-ohms and features a 60,000-count LCD screen for easy reading.

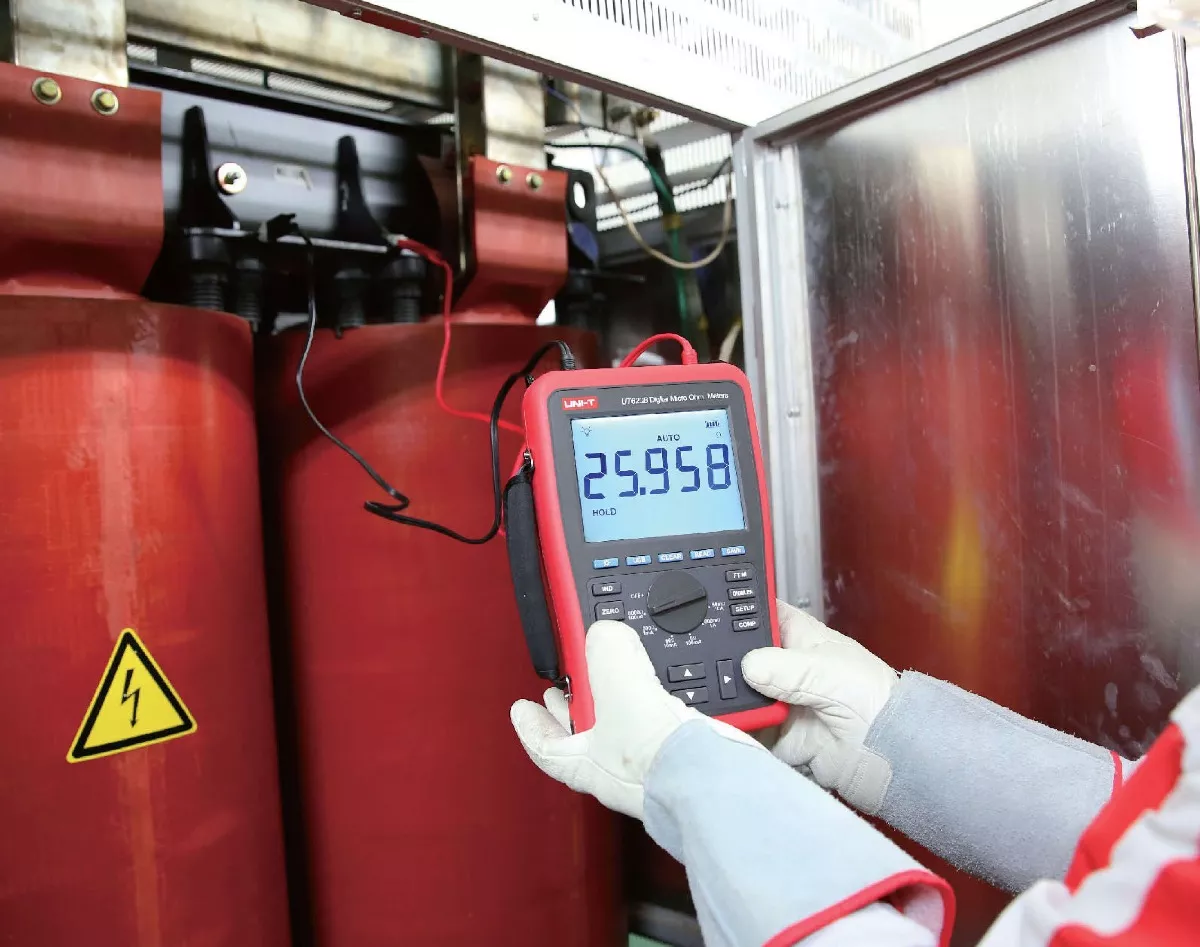

In addition, it can store up to 1000 measurement data that can be transferred to a PC via USB. It includes useful features such as low and high limit alarms, and uses a four-wire method to ensure accuracy in measurements. This meter is ideal for applications in electronics, automotive, and engineering fields where accurate resistance measurements are required.
Characteristics
Improved measurement method: Improves accuracy by counteracting the contact resistance of wires.
Comparison Metering: Allows you to set upper and lower limits for measurements.
Cable length measurement: Results expressed in meters or feet.
Built-in lithium battery: Rechargeable power supply.
Data storage: Capacity to store up to 1000 groups of data.
Data transmission: USB interface to connect with PC.
Data Retention: Function to keep readings on screen.
LCD Backlight: Improves visibility in low-light conditions.
Zeroing function: Relative mode to compensate for variations in measurements.
IND resistance measurement mode: Specific for resistance measurements.
SPECIFICATIONS
Measurement range:
120Megaohms/5A: ±(0.25% + 25)
600Megaohms/1A: ±(0.25% + 25)
6ohms/100mA: ±(0.25% + 25)
60ohms/10mA: ±(0.25% + 25)
600ohms/1mA: ±(0.25% + 25)
6kohms/100uA: ±(0.75% + 30)
Number of displays: 60,000
Four-wire measurement: Yes
High/low limit alarm: Yes
Manual range: Yes
Relative value: Yes
Low battery indication: Yes
GENERAL FEATURES
Power: 7.4V 4000mAh lithium-ion battery, rechargeable.
Screen: 116 mm x 87.5 mm.
Product color: Red and gray.
Net product weight: 1.5 kg.
Product dimensions: 268 mm x 168 mm x 60 mm.
Standard Accessories:
Test leads with Kelvin clips (red and black).
Power cable and power adapter.
USB interface cable.
Packing: Gift box, carrying bag, English manual.
Standard quantity per box: 1 piece.
Standard Gross Cardboard Weight: 3 kg.
