Description

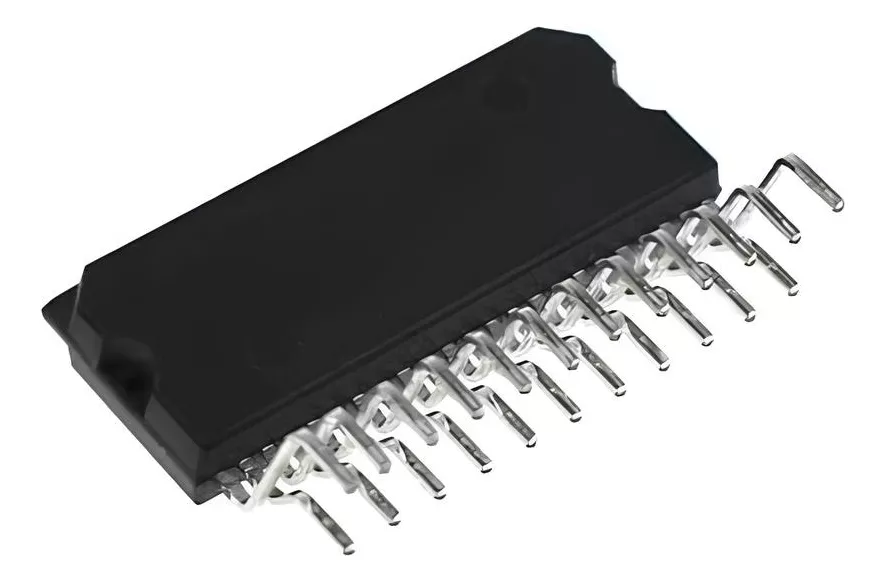

The TDA8954J integrated circuit is a high-efficiency Class D audio amplifier manufactured by NXP Semiconductors. Here’s some detailed information about this device:
Main Features:
Amplifier Type: Class D – This type of amplifier uses digital switching to improve energy efficiency compared to class A, B or AB amplifiers.
Modes of Operation: It can operate in SE (Single-Ended) or BTL (Bridge-Tied Load) mode. In BTL mode, higher output power can be achieved.
Power Output: It can deliver an output power of several watts per channel, depending on the circuit configuration and the connected load.
Energy Efficiency: The Class D architecture provides high energy efficiency, which means it converts a greater proportion of input energy into useful output energy, thus minimizing heat dissipation.
Integrated Protection: It usually includes integrated protections such as short circuit protection, thermal protection and surge protection to ensure the safety and reliability of the circuit.
Gain Configurability: The gain of the amplifier can be adjusted by external components, allowing it to be adapted to different input and output signal requirements.
Supply Voltage Range: It can typically operate with supply voltages ranging from 10V to 40V, providing flexibility in system design.
Typical Applications:
Car audio systems.
Multimedia speakers and home theater systems.
Professional audio equipment, such as power amplifiers and live sound systems.
Industrial applications that require high-quality, energy-efficient audio amplification.
Packaging:
The TDA8954J is available in various types of packages, such as PDIP-24, allowing it to be integrated into a variety of circuit designs.
Main Specifications:
Amplifier Type: Class D
Mode of Operation: SE (Single-Ended) or BTL (Bridge-Tied Load)
Supply Voltage: Variable, typically between 10V and 40V
Output Power: Up to several watts per channel, depending on circuit configuration and design
Load Impedance: 4 ohms to 8 ohms (SE), 8 ohms to 16 ohms (BTL)
SNR (Signal-to-Noise Ratio): Generally high, providing quality audio reproduction with low noise
Integrated Protections: Short circuit protection, thermal protection, surge protection
Additional Features:
Operating Temperature Range: Normally -40°C to +85°C
Packaging: Various packaging types available (e.g., TDA8954JN: PDIP-24 package)
Gain Setting: Adjustable by external components
Energy Efficiency: High efficiency typical of Class D amplifiers
