Description
A viscometer is an instrument used to measure the viscosity of a liquid. Viscosity is a measure of a fluid’s internal resistance to flowing or warping under the influence of external forces, such as gravity or agitation.
ABOUT THIS TEAM:
CGOLDENWALL NDJ-5S Rotary Viscosity Meter Rotary Viscometer 110V 110V 1~100,000mPa.s Accuracy: +-3.0% (with 0# rotor)
High measurement accuracy: measurement range: 1 mPa.S-100,000 mPa.S (1 mPa.S = 1 cp). Measurement error: ±3%, with 4 rotors (no. 1, 2, 3, and 4) and 4 speeds (6, 12, 30, 60 rpm) that are made up of 16 combinations. You can determine the viscosity as low as 1 mPa.s with 0# rotor. If you need, please choose the digital viewfinder with 0# rotor, the 0# rotor needs to be tested together with the machine.
Microcomputer Control Technology: Adopts advanced mechanical design, manufacturing technology and microcomputer control technology.
LCD Digital Display: It has perfect data acquisition and the monitor’s LCD screen selected blue backlight with high brightness so that it can display the results more clearly.
Reliable and easy to use: It has a high-sensitivity measurement, so the test results are reliable and also the operation is very easy.
Application: Can be used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquid. It can also be widely used in viscosity testing of oil, paint, plastics, paints, detergents, medicines, jewelry, and other objects.

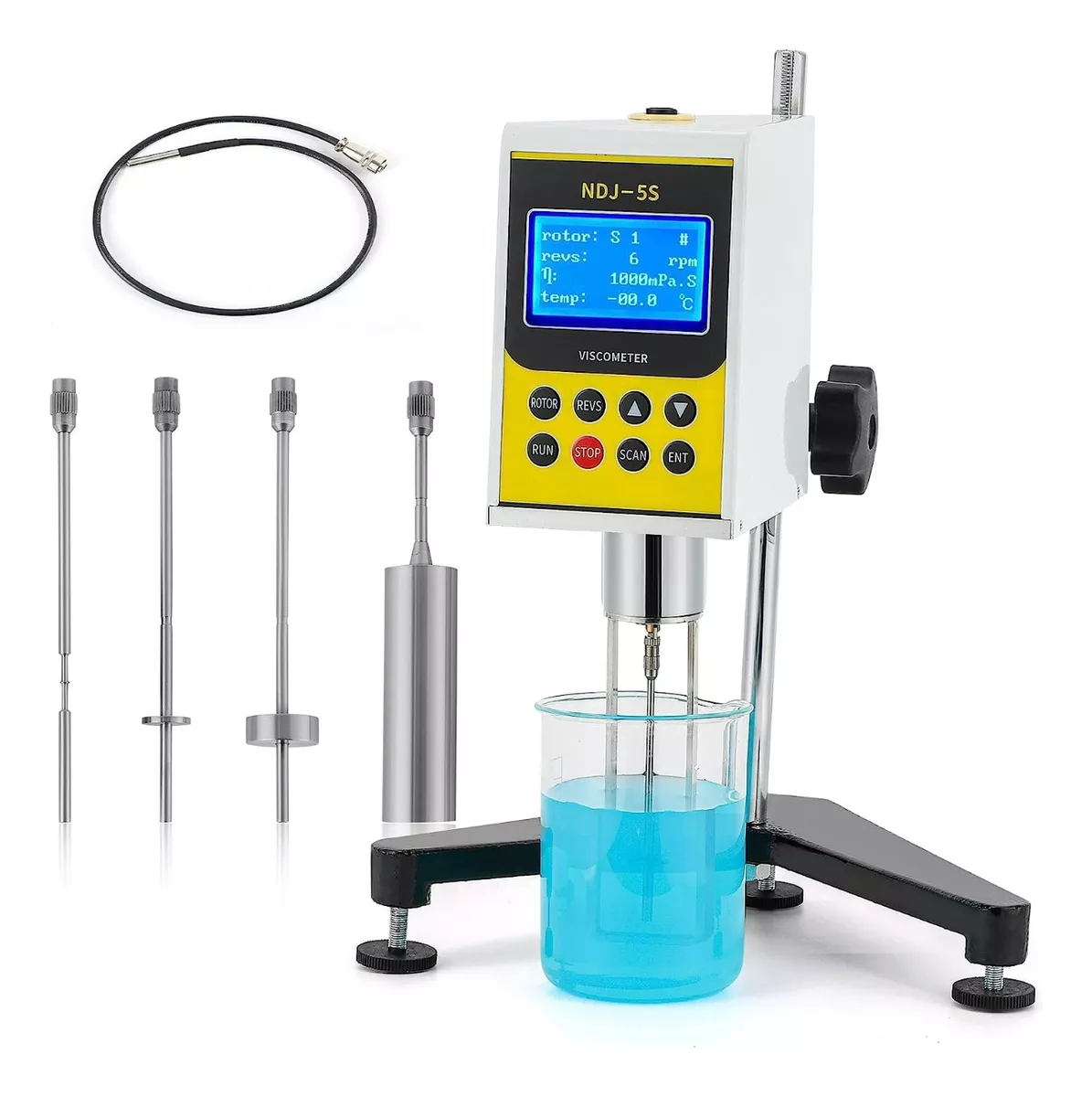

NDJ-5S Digital Rotational Viscosity Meter
It uses microcomputer technology, which can easily set the range (rotor number and speed), and clearly display the set value of rotor number, speed, viscosity value of the measured liquid and its percentage value at full scale. NDJ-5S Equipped with 5 rotors (No. 0, 1, 2, 3 and 4) and 4 speeds (6, 12, 30, 60 rpm), which are composed of 16 combinations. It can measure the viscosity of various liquids in the measuring range.
Intelligent control, automatically complete liquid viscosity measurement, the results are output from the display.
The instrument uses a microcomputer to control the speed of the stepping motor, so that the speed of the instrument can be continuously adjusted, and its accuracy is improved.
It has the characteristics of compact structure, stable working, high measurement accuracy and good anti-interference performance.
It can be used to measure the viscous resistance and viscosity of liquids. Widely used in paint, food, medicine, adhesive and other industries.
The NDJ-5S is a digital instrument that offers accurate and easy-to-use measurement. Here are some features and highlights of this viscosity meter:
Measurement range: The NDJ-5S can measure a wide range of viscosities, from highly fluid liquids to highly viscous liquids. The viscosity range is usually specified in centipoises (cP) or in units of dynamic viscosity (e.g., Pa·s).
Digital display: Features a digital display that displays viscosity in real-time during testing. This makes it easier to read and track the results.
Adjustable rotation speed: Allows you to adjust the rotation speed of the rotor. The rotation speed is selected based on the expected viscosity of the liquid to be measured. The higher the viscosity, the lower the rotational speed required to obtain an accurate reading.
Multiple rotors: The NDJ-5S typically comes with different interchangeable rotors, allowing you to adapt to different viscosity ranges and provide more accurate measurements for a wide variety of liquids.
Additional Features: In addition to basic viscosity measurement, some models may have additional features, such as data storage, automatic calculations, temperature adjustment, and connections for printers or computers to facilitate documentation and analysis of results.
