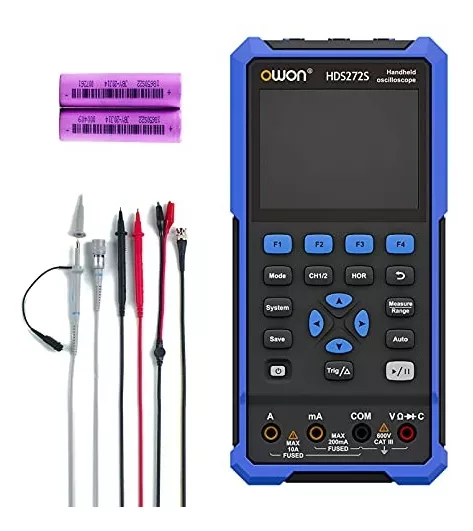

HDS272S OWON Oscilloscope 2+1CH Handheld Digital Oscilloscope Multiumeter 3 in 1 70MHz Bandwidth 3.5 “LCD Multiumeter OSC+DMM+waveform signal generator for car maintenance,
Parameter—HDS272S 3.5 inch LCD handheld oscilloscope with 2+1 channel (oscilloscope+multimeter+generator), 70MHz bandwidth, 250MS/s sample rate, 8K recording length; 10,000 WFRMS/s waveform refresh rate; 8-bit vertical resolution; 10mV/div – 10V/Sensitive vertical div ; Input coupling: DC, AC and ground.
Portable 3-in-1 oscilloscope — 2+1CH built-in multimeter and waveform generators are very convenient, 3-in-1 functional USB oscilloscope, you can do the job well without carrying multiple devices for your jobs. Due to the accurate detection function, the ability to activate well the waveform generators and the oscilloscope useful and 20,000 DMM count.
Cool and Portable: Crisp and bright 3.5-inch color LCD display, displaying a larger-resolution character display, although in dim ambient light situations or outdoor environment, the digital oscilloscope can be intuitive in reading. This handheld oscilloscope is portable and fits comfortably in your hand. It is much lighter, easier and perfect for field use. Practical and intuitive menu page layout, it is intuitive and practical in use.
Multipurpose: The oscilloscope HDS272S performs a fine part for troubleshooting in the field. Wide use, can be practical in automotive diagnostic work to detect the ignition or other injectors and coils; discover intermittent DC voltage drops or problems with industrial equipment and sensors; experimental course for school education; other range in heavy electric prototypes, low voltage, delicate repairs and so on.
Excellent Battery Life: It works with standard 4400mAh 18650 lithium battery, the portable oscilloscope can work continuously for about 6 hours, a single battery can supply power normally, which are easy to charge or buy to replace, convenient for your work anytime and anywhere.
Oscilloscope
Max 10,000 wfms/s waveform refresh rate + dual channel input, bandwidth up to 70 MHz, real-time sampling rate 250 MSa/+ maximum recording length of 8 K + cursor measurement function, multiple automatic measurements, XY function + one-key automatic adjustment function, easy to detect and deb
Multimeter
20,000 counts, standard RMS+ voltage, current, resistance, diode, capacitance measurement and continuity test, automatic ranging function, easy to detect and debug Max AC 750V, DC 1000V Independent input of multimeter and oscilloscope
Waveform Generator (only for HDS242S, HDS272S and HDS2102S)
25 MHz maximum frequency output + sine output, square, ramp, pulse, and built-in special waveforms+0.1 Hz frequency resolution + 14-bit vertical resolution, 125 MSa/s high sampling rate + 5 Vpp maximum output amplitude
Two Acquisition
Modes Peak detection is used for the detection of jamming burrs and the possibility of reducing confusion.
Compatible
cursor measurement function measure the voltage difference between cursors (4V) and the time difference between cursors
7 types of automatic
measurement Frequency, period, amplitude, maximum, minimum, average and PK-PK. 6 maximum automatic measurements can be displayed in
High refresh and deep
storage Maximum refresh rate of 10,000 wfms/s, 8k log length, easy to capture exceptional and low-probability events.
Save
Function saves 4 settings, 4 reference waveforms, 4 waveform images, 4 csv waveform files. The reference waveform can be displayed on the same screen as the measured waveform, convenient for waveform comparison. Connect to the computer via the USB Type-C interface, the computer can recognize the oscilloscope as a USB flash drive, and you can access the images or csv waveform files toview, analyze ze, or share the waveform data.
20,000 unit multimeter with True RMS
Supports voltage, current, resistance, diode, capacitance and continuity test measurement, 20,000 counts, high precision professional multimeter, supports relative value measurement
SPECIFICATION
Bandwidth: 70 MHz, which means it can capture signals up to 70 million cycles per second.
Channels: This oscilloscope has 2 channels for waveform display, plus a function generator with 1 additional channel.
Sample Rate: 250 MSa/s (mega samples per second), which determines the speed with which you can digitize and display waveforms.
Acquisition Model: Uses a normal acquisition and peak detection method to capture signals.
Recording Length: It has a maximum recording length of 8K data points for each waveform.
Display: Equipped with a 3.5-inch LCD screen for waveform display.
Waveform Refresh Rate: Offers a high refresh rate of up to 10,000 waveforms per second.
Input Coupling: Supports DC, AC coupling, and grounding to accommodate different types of signals.
Probe Attenuation Factors: You can adjust the probe’s attenuation factors to 1X, 10X, 100X, 1000X, or 10000X, depending on the application.
Maximum Input Voltage: The maximum input voltage is 400 V (peak-to-peak) for DC and AC signals.
Bandwidth Limit (Typical): Although the bandwidth is 70 MHz, the typical bandwidth limit is 20 MHz.
Horizontal Scaling: The horizontal scale is adjustable from 5 ns/div up to 1000 s/div, with adjustment options in steps of 1 – 2 – 5.
Vertical Sensitivity: The vertical sensitivity is adjustable from 10 mV/div to 10 V/div to display different levels of signal amplitude.
Vertical Resolution: The vertical resolution is 8-bit, which provides detail in the representation of the signals.
NOTE: BATTERIES NOT INCLUDED, ARE FOR ILLUSTRATIVE PURPOSES TO INDICATE WHICH ONES THE EQUIPMENT HAS.
