Description

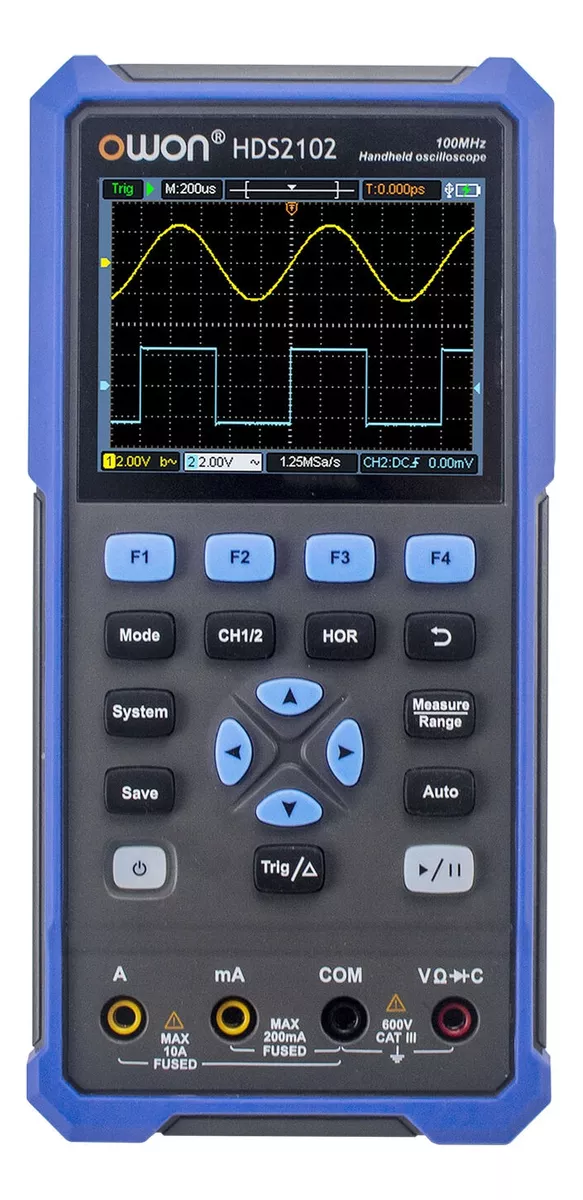

The Owon HDS2102 is a HDS2000 series digital oscilloscope manufactured by Owon.
Bandwidth: The Owon HDS2102 has a bandwidth of 100 MHz, which means it can capture and display signals at frequencies of up to 100 million cycles per second.
Number of Channels: It has 2 analog channels, which allows the simultaneous display of two different signals.
Sample Rate: The sample rate is 1 GSa/s (1 giga sample per second) in single-channel mode and 500 MSa/s in two-channel mode. This ensures high temporal resolution to capture details in waveforms.
Log Length: It can store up to 10 million data points per channel, allowing detailed waveforms to be captured and analyzed.
Vertical Resolution: Offers 8-bit vertical resolution, providing an accurate representation of the amplitudes of the measured signals.
Display: It comes equipped with a 7-inch color LCD screen with a resolution of 800×480 pixels, which offers a clear display of waveforms and measurement parameters.
Connectivity: It has USB ports for storage and remote control, as well as a LAN port for remote control over the network.
Additional Features: Includes advanced features such as automatic measurement, advanced trigger functions, FFT (Fast Fourier Transform) analysis, waveform storage and retrieval, and more.
The Owon HDS2102 is a versatile and powerful tool for measurement applications in laboratories, engineering, research and development, electronic maintenance, and education. It offers reliable performance and advanced features that make it suitable for a wide range of applications in the field of electronics and telecommunications.
SPECS
Bandwidth: 100 MHz
Number of Channels: 2 analog channels
Sample Rate:
Single-channel mode: 1 GSa/s (1 gig sample per second)
Dual-channel mode: 500 MSa/s (500 mega samples per second per channel)
Record Length: Up to 10 million dots per channel
Vertical Resolution: 8 bits
Display: 7-inch color LCD screen with 800×480 pixel resolution
Vertical Sensitivity: 2 mV/div to 10 V/div
Time Base Accuracy: ±50 ppm
Shooting Modes: Edge, Pulse, Video, Slope, Runt, Interval, Fall Time, Rise Time
Math Functions: Addition, Subtraction, Multiplication, Division, FFT
Connectivity: USB ports and LAN port
Storage: Support for waveform storage and retrieval
