Description

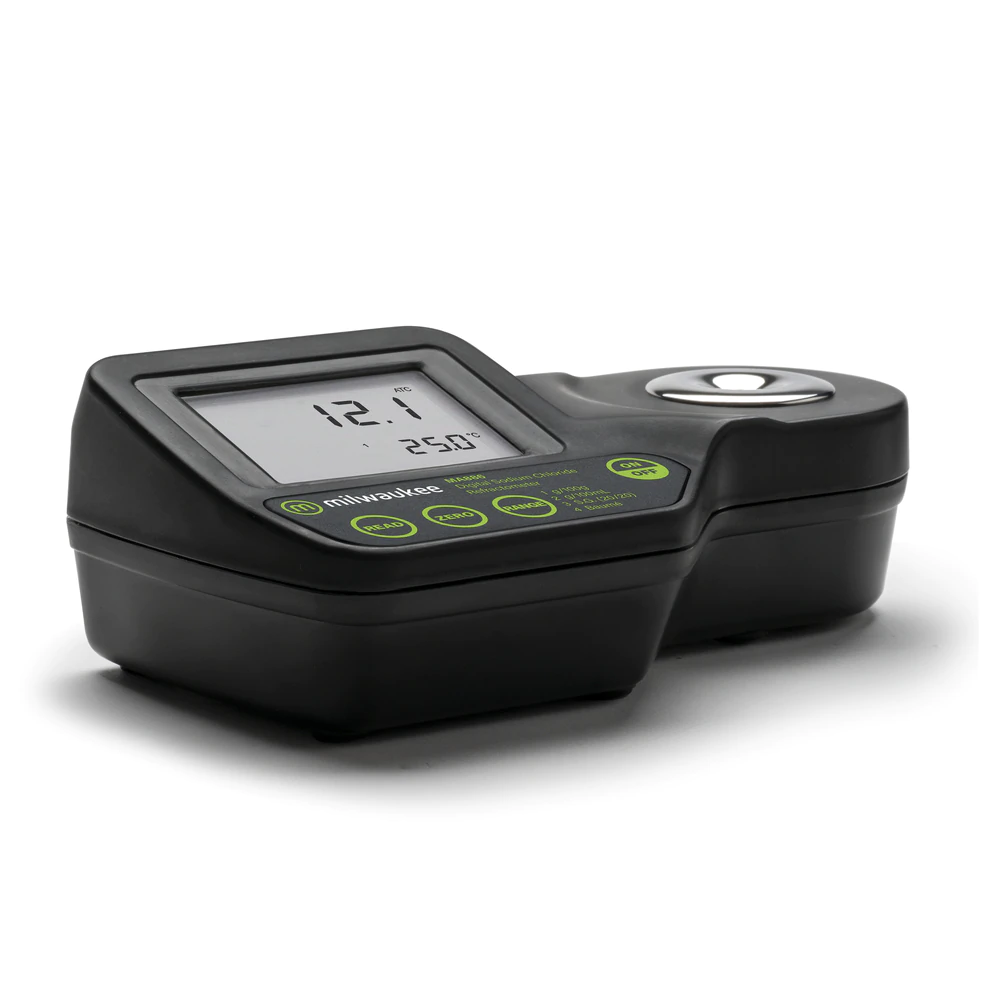

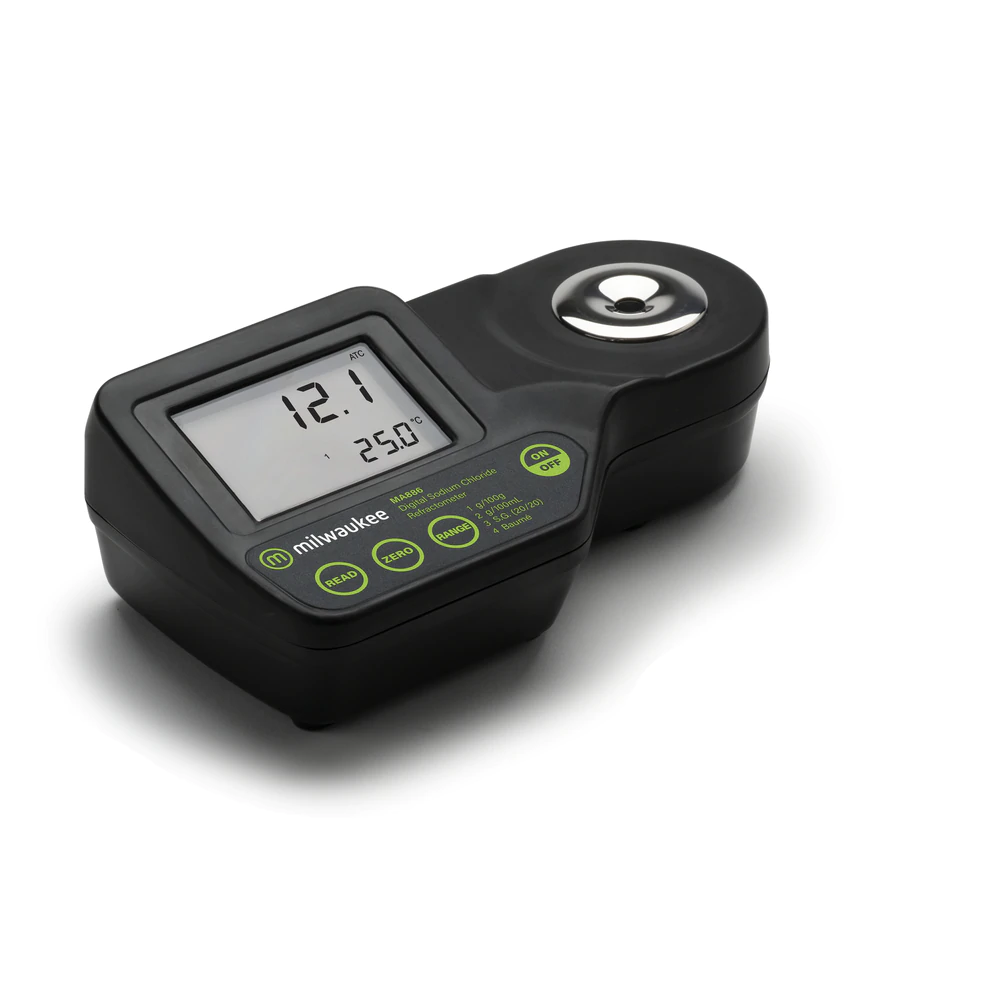

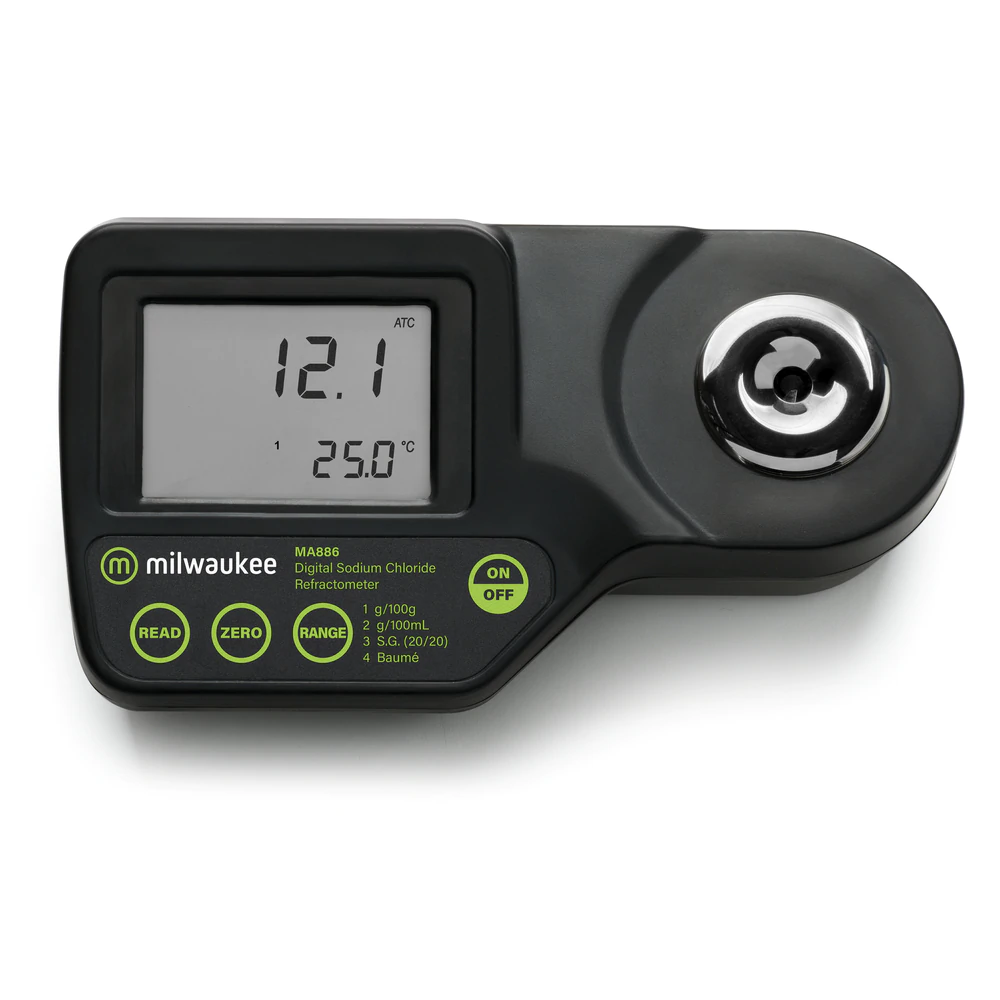

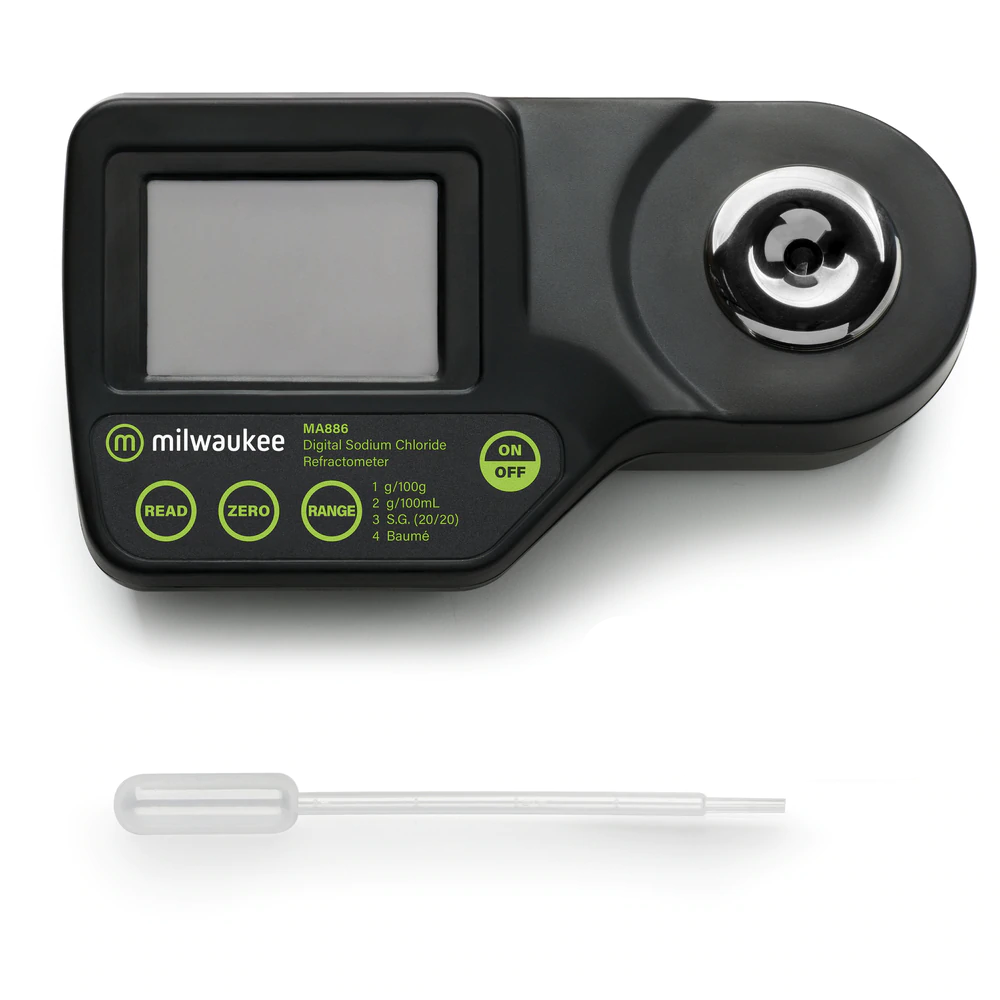

The MA886 digital refractometer uses refractive index to determine the concentration of sodium chloride in aqueous solutions used in food preparation. The MA886 is not designed to measure salinity in seawater or aquarium water. Use MA887 for this application.
The MA886 uses internationally recognized references for unit conversion and temperature compensation. It can display the measurement of NaCl concentration in 4 different ways: g/100 g, g/100 mL, specific gravity, and ° Baumé.
The temperature (in °C or °F) is displayed simultaneously with the measurement (in 3 of the ranges) on the large two-level display along with the “Low Power” icons and other useful message codes.
With the MA886, you can get a digital readout in seconds with an accuracy of ± 2 ppt with automatic temperature compensation (ATC).
CHARACTERISTICS:
Fast and accurate results with dual-level LED digital readout.
Easy measurement with only 2-3 sample drops needed and results in less than 2 seconds.
Automatic temperature compensation.
Simple one-point calibration using distilled or deionized water.
Easy-to-clean stainless steel sample well with unit rated to IP65 as “dust-tight” and protected against water jets.
Battery percentage level indicator with automatic shutdown (batteries included).
SPECS
– Range: 0 to 28 g / 100 g | 0 to 34 g / 100 ml | 1,000 to 1,216 Specific Gravity | 0 to 26 ° Baumé | 0 – 80 C / 32 – 175 F
– Resolution: 0.1g / 100g | 0.1 g / 100 ml | 0.001 Specific Gravity | 0,1 ° Baumé | 0.1°C / 0.1°F
– Accuracy: ± 0.2 g / 100 g | ± 0.2 g / 100 ml | ± 0.002 Specific Gravity | ± 0,2 ° Baumé | ± 0.3°C/±0.5°F
– Light source: Yellow LED
– Measurement time: approximately 1.5 seconds
– Minimum sample volume: 100 μL (cover the prism completely)
– Sample Cell: Stainless Steel Ring and Flint Glass Prism
– Temperature Compensation: Automatic between 10 and 40°C/50 to 104°F
– Case Material: ABS
– Battery: Type 1 x 9V AA (included)
– Battery life: 5000 readings
– Automatic shut-off: after 3 minutes of inactivity
– Housing rating: IP65
– Dimension Gauge: 7.6 x 4 x 2.64 inches (192 x 102 x 67 mm)
– Weight Gauge: 0.42 kg (0.93 lbs)
– Package dimensions: 11 x 6.8 x 4.6 inches (268 x 172 x 118 mm)
– Packaged Weight: 1.46 lbs (0.66 kg)
