Description
Thousands of food and beverage professionals and hobbyists, from chefs and food quality professionals and beverage manufacturers, have moved to digital invert sugar measurement from less accurate and less accurate optical refractometers to sugar analysis.
WHAT PEOPLE ARE SAYING “
Anyone who makes jams, honey, syrup, or drinks should find this product to be one of the best investments they make in any piece of equipment.”
“I’m in love with this instrument. No more large samples. No more false readings from poorly made refractometers.”
“I drastically improved the consistency and efficiency of my commercial production.
“I used it to finish jams and jellies. He had been trying to determine the invert sugar content using a traditional optical refractometer. I found it very difficult to use. The digital refractometer was much easier.”
ABSTRACT

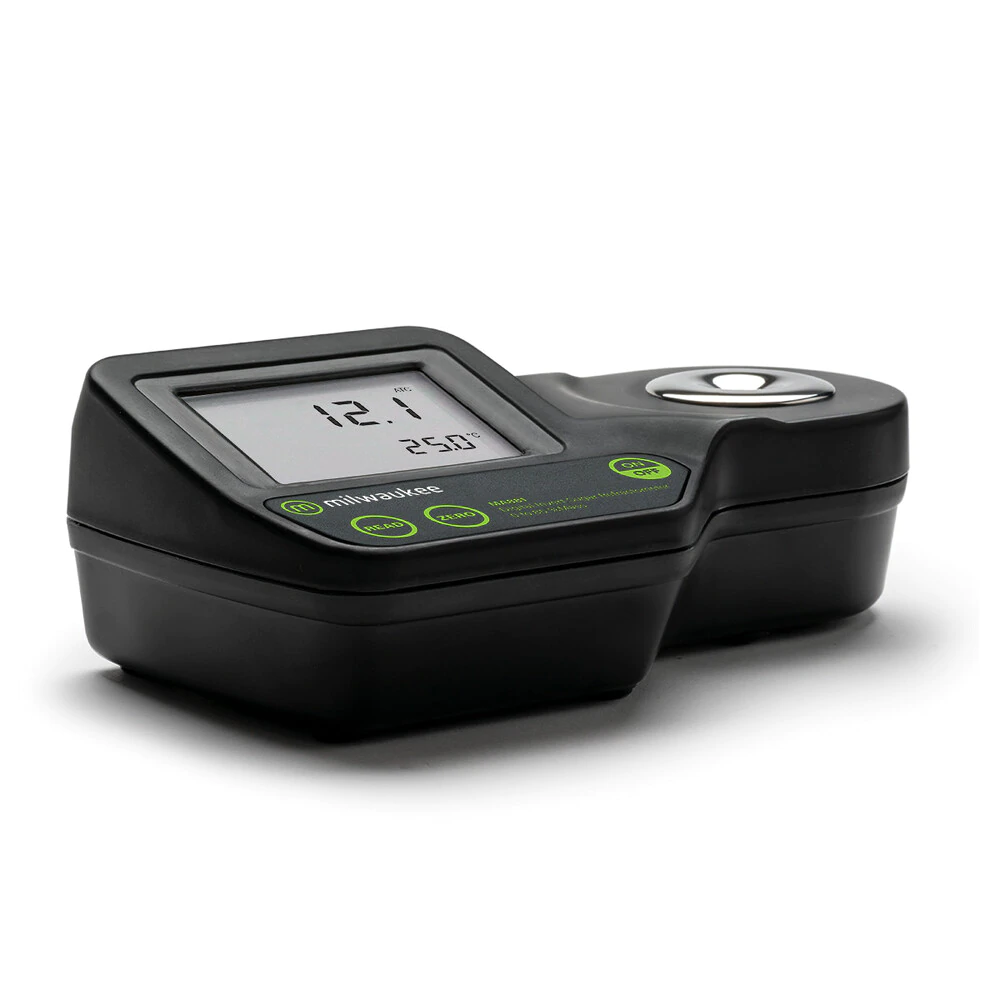

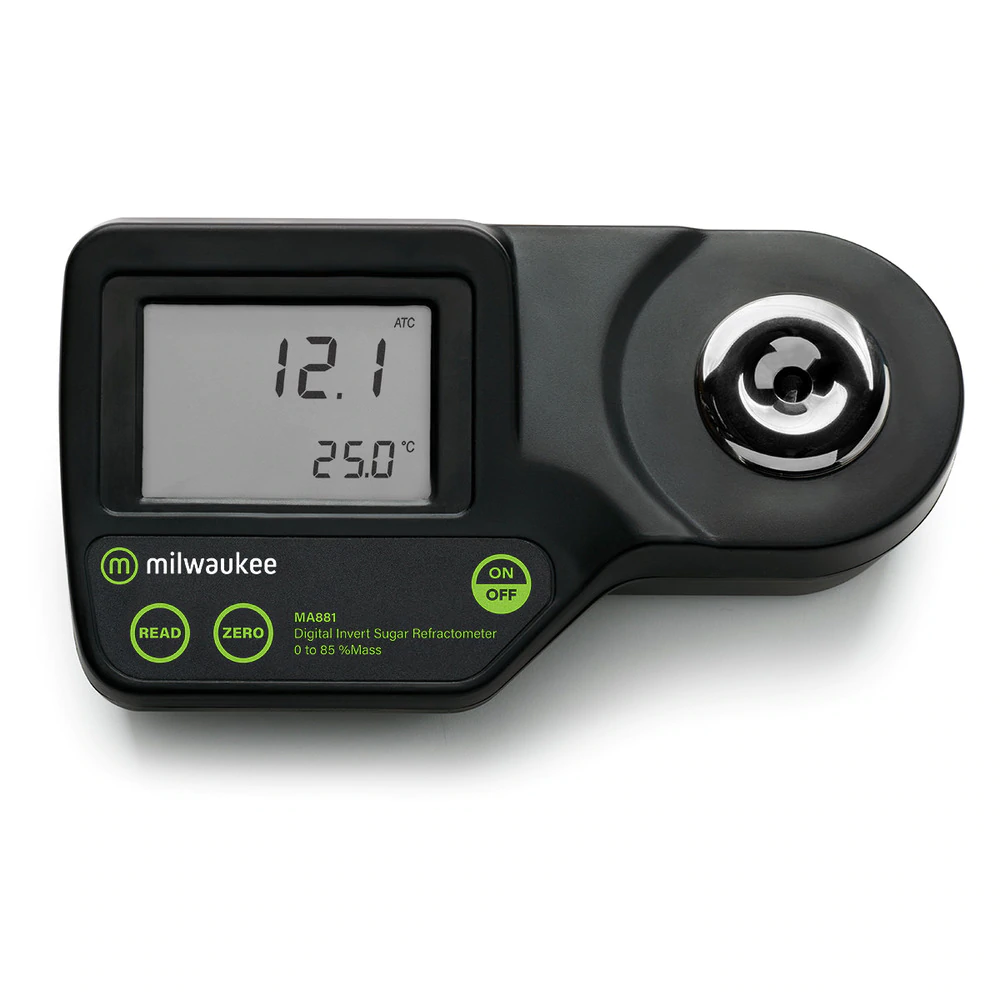

The Milwaukee Digital Inverted Sugar Refractometer is temperature compensated with a MASS range of 0 to 85% and an accuracy of +/- 0.2 percent. It is easy to use with simple two-button operation and fast with a response time of less than 2 seconds. In seconds, the instrument measures the refractive index of the sample and converts it into concentration units of % by weight. Maintenance is also very simple with an easy-to-clean sealed flint glass prism and a stainless steel well.
DESIGN FEATURES-Fast
and accurate results with dual-level digital LCD readout.
-Easy measurement with only 2-3 sample drops needed and results in less than 2 seconds.
-Simple 1-point calibration using distilled or deionized water.
-Easy-to-clean stainless steel sample well with unit rated to IP65 as “dust-tight” and protected against water jets.
-Battery percentage level indicator with automatic shutdown (batteries included).
-Ideal for beverage producers, fruit and vegetable producers, syrup producers, and food producers.
-The temperature measurement and compensation technique uses the methodology recommended in the
ICUMSA Method Book (internationally recognized organization for sugar analysis).
-Low power warnings.
SPECS
-Range: 0 to 85% MASS | 0 to 80°C / 32 to 176°F
-Resolution: 0.1% | 0.1°C / 0.1°F
-Accuracy: ± 0.2% | ± 0.3°C/±0.5°F
-Light source: Yellow LED
-Measurement time: approximately 1.5 seconds
-Minimum Sample: Volume 100 μL or 2 metric drops (cover the prism completely)
-Sample Cell: Stainless Steel Ring and Flint Glass Prism
-Temperature Compensation: Automatic between 10 and 40°C/50 to 104°F
-Degree of protection: IP65
-Case material: ABS-Battery

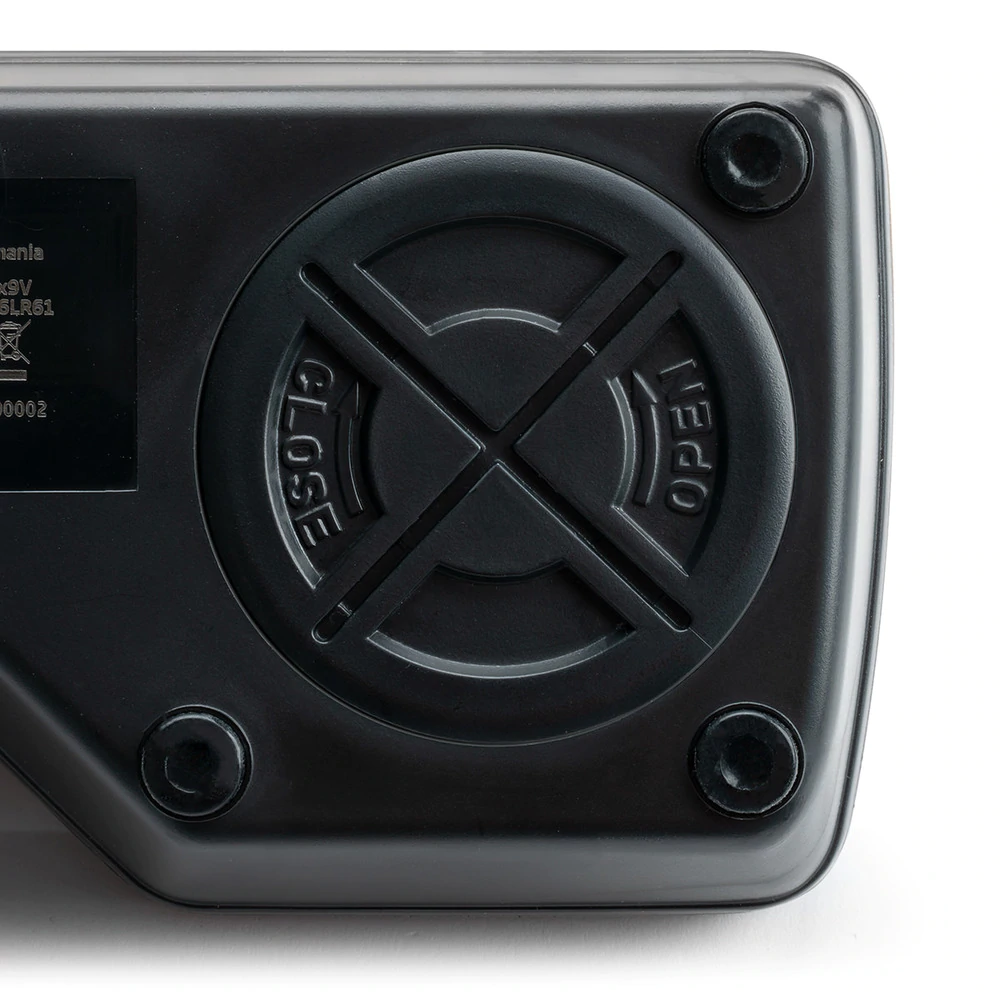

type: 1 x 9V AA (included)
-Battery life: 5000 hours of reading with automatic shut-off after 3 minutes of inactivity-Meter
dimensions: 7.6 x 4.0 x 2.64 inches (192 x 102 x 67 mm)
-Weight gauge: 0.93 lbs. (0.42 kg)
-Package dimensions: 11 x 6.8 x 4.6 inches (268 x 172 x 118 mm)
-Package weight: 1.46 lbs. (0.66 kg)
