Description

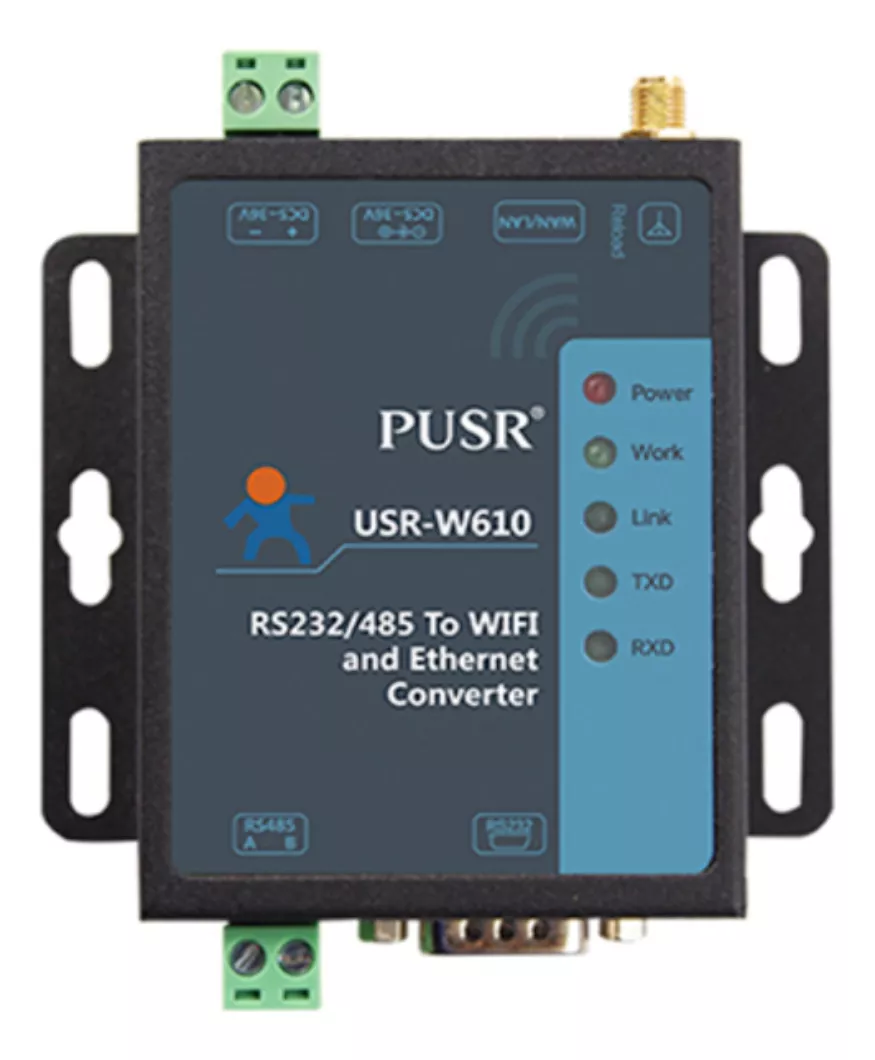

USR-W610 RS485/RS232 to Modbus WiFi/Ethernet Serial Device Converter
Overview:
The USR-W610 is a high-efficiency WiFi/Ethernet serial-to-Ethernet converter that enables bidirectional and transparent data transmission between RS232, RS485 interfaces and Ethernet/Wi-Fi networks. Designed for industrial applications, this device supports Modbus RTU/TCP, MQTT, http, among others, and offers a secure connection through SSL/TLS encryption.
Ideal for industrial automation systems, remote monitoring, IoT, and device control on LAN/WAN networks.
Sheet:
Model No.: USR-W610
Interfaces: RS232, RS485, Ethernet, Wi-Fi
Supported protocols: Modbus RTU/TCP, MQTT, TCP/IP, http
Encryption: SSL/TLS for secure connections
LAN port: 1 RJ45 port
Technical Specifications:
Operating voltage: 5 to 36 V DC
Recommended Input Voltage: 12V DC
Clock frequency: 80 MHz
Flash Memory: 4 MB
SRAM Capacity: 520 KB
Dimensions: 85mm (H) x 82.5mm (L) x 25mm (W)
Weight: Approximately 150 g
Operating Temperature: -40°C to 85°C
Includes: Antenna and Cable
How to use:
Connection: Connect the RS232 or RS485 interfaces to the device and Ethernet port or set up the Wi-Fi connection.
Configuration: Use the management software provided or access via web browser to configure network parameters and protocols.
Operation: Once configured, the device transmits data transparently between connected devices.
Applications: Industrial automation, process control, remote monitoring and integration into IoT systems.
This converter is the perfect solution for connecting traditional serial devices to modern networks easily and securely.
