Description

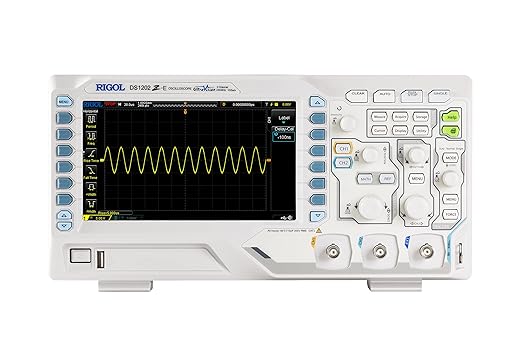

Rigol DS1202Z-E Digital Oscilloscope, 200 MHz
The Rigol DS1202Z-E Digital Oscilloscope is an advanced measurement tool designed to provide accurate visualization of electrical signals. With a bandwidth of 200 MHz and a maximum of 2 channels, this oscilloscope is perfect for engineers and technicians in the areas of electronic circuit design, maintenance and testing.
Its LCD screen and intuitive interface make it easy to analyze signals in real time, making it ideal for professionals and advanced amateurs.
General Description:
Brand: Rigol
Model: DS1202Z-E
Product type: Digital
Oscilloscope Maximum frequency: 200 MHz
Channels: 2 analog
channels Display: 7-inch
LCD screen Signal analysis: High precision in capturing and displaying electrical signals
Additional functionality: Includes advanced features such as automatic measurements and protocol decoding.
Technical Data:
Bandwidth: 200 MHz
Channels: 2 analog
channels Sampling frequency: 1 GSa/s (Gigasamples per second)
Vertical resolution: 8 bits
Screen size: 7 inches, 800 x 480 pixel
resolution Time range: 1 ns/div to 50 s/div
Measurement functions: Automatic measurement of up to 22 parameters
Connectivity: USB ports for storage and remote
control Decoding options: Support for protocols such as I2C, SPI and UART
Specifications:
Frequency band: 200 MHz, suitable for a wide range of diagnostic applications and high frequency signal analysis.
Sampling: 1 GSa/s sample rate, allowing high-speed signals to be captured in great detail.
Vertical resolution: With an 8-bit resolution, the DS1202Z-E is capable of representing signals with sharp image quality.
Display: 7-inch color LCD screen with high resolution (800×480 px), offering excellent visibility and ease of reading.
Automatic functions: Performs automatic measurements of up to 22 signal parameters without the need for additional configurations.
Signal Analysis: Ideal for performing signal analysis of audio, video, communications, and electronic circuits.
USB Connection: Ability to store and transfer data through the USB ports, and also to control the oscilloscope remotely from a PC.
How to Use:
Signal Connection: Connect the test leads to the oscilloscope channels, making sure the probes are securely attached to the measurement points on the circuit or equipment you are analyzing.
Signal Adjustment: Use the time/split and volt/split controls to adjust the display of the signal on the display. This allows you to optimize waveform readout and observe precise signal details.
Automatic measurements: Select the automatic measurement option to quickly obtain key signal parameters such as frequency, amplitude, period, and more.
Data storage: Use the USB port to save screenshots and waveforms for later analysis. You can also connect it to a PC for more detailed analysis.
Protocol Analysis: If you are working with digital signals, use the protocol decoding option such as I2C, SPI, or UART to display the information in a readable format.
Why choose the Rigol DS1202Z-E Oscilloscope?
High accuracy and performance: With 200 MHz wideband and 1 GSa/s sample rate, it is ideal for jobs that require accuracy in signal capture and analysis.
Clear and large screen: Its 7″ screen with a resolution of 800 x 480 px makes it easy to see the signals in detail.
Advanced Features: Automatic measurement and protocol decoding capabilities make analyzing complex signals simple.
Versatility: Perfect for technicians and professionals working in electronics, telecommunications, and circuit design.
USB connectivity: Facilitates data storage and connection to other devices, expanding its functionality.
With the Rigol DS1202Z-E Digital Oscilloscope, you’ll have a powerful, accurate, and easy-to-use tool for your most demanding projects
