Description
The MRF151 is a radio frequency (RF) power transistor designed primarily for high-power applications in VHF (30 MHz to 300 MHz) and UHF (300 MHz to 3 GHz) frequency bands. These transistors are typically used in high-power transmitters and RF amplifiers, particularly in communications systems and industrial applications.
Key Benefits:
High energy efficiency in high RF power applications.
Excellent heat dissipation capability thanks to TO-59 encapsulation, allowing for extended operation without overheating.
Wide operating band covering multiple applications in the VHF frequency bands.
Extended temperature range, making it ideal for extreme environments.
Common Applications:
High-power radio communications systems.
RF power amplifiers in radio transmitter stations.
Industrial radar and communications systems.
Military and defense applications on VHF and UHF frequencies.
High efficiency and ability to handle high powers.
Suitable for high heat dissipation applications.
Commonly used in high-power transmitters and linear amplifiers.
Product Features:
Manufacturer: Macom

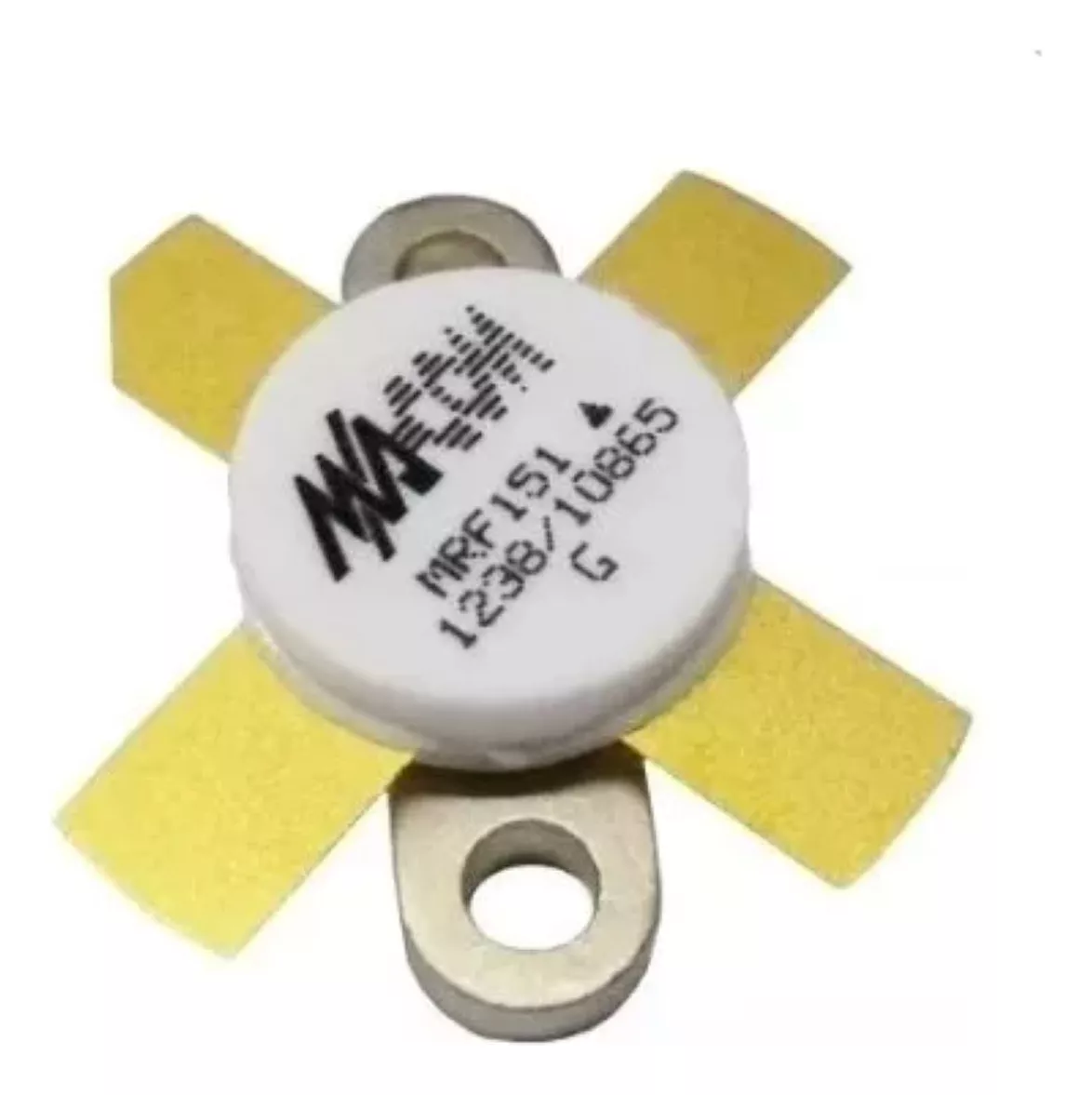

Model: MRF151
Type: RF
Transistor Condition: New (in box)
Technical Specifications:
Operating frequency: 175 MHz
Output power: 150 W
Minimum operating temperature: -65°C
Technical Specifications:
Operating frequency: 175 MHz, ideal for applications in the VHF band.
Output power: 150W, ability to deliver high RF output power, ideal for long-range transmissions.
Maximum Supported Voltage: 65 V (Maximum Collector-Emitter Voltage), suitable for high power applications.
Maximum current supported: 25 A (maximum collector current), supports a considerable current flow for high output powers.
Minimum operating temperature: -65°C, allowing it to be used in very cold environments.
Package: TO-59, metallic package that offers excellent heat dissipation, suitable for high power transistors.
Polarity: NPN, junction bipolar transistor with NPN polarity, a common configuration for high-power transistors.
