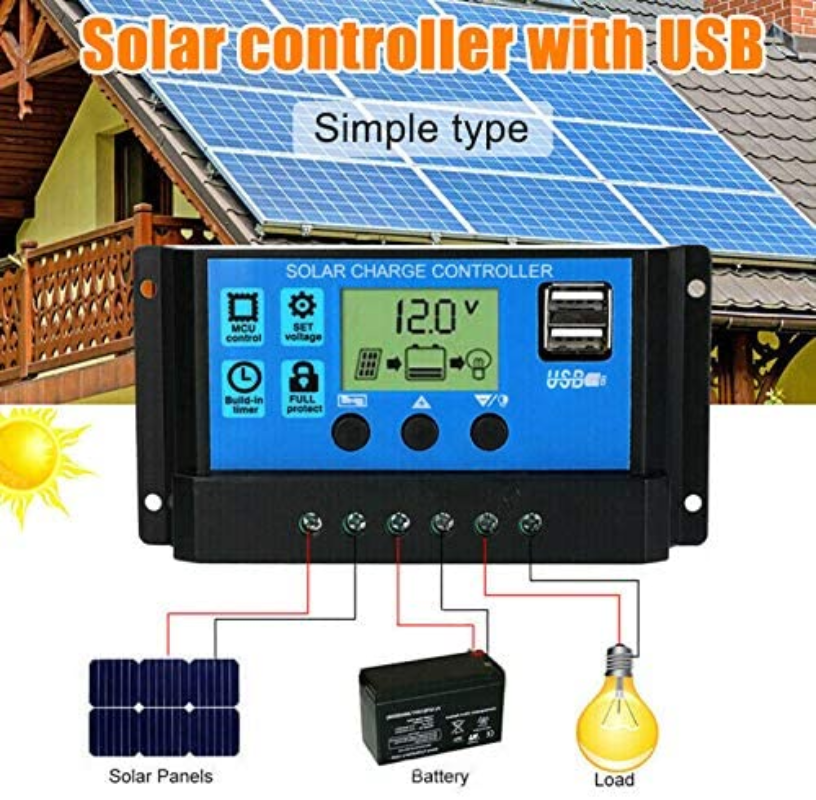

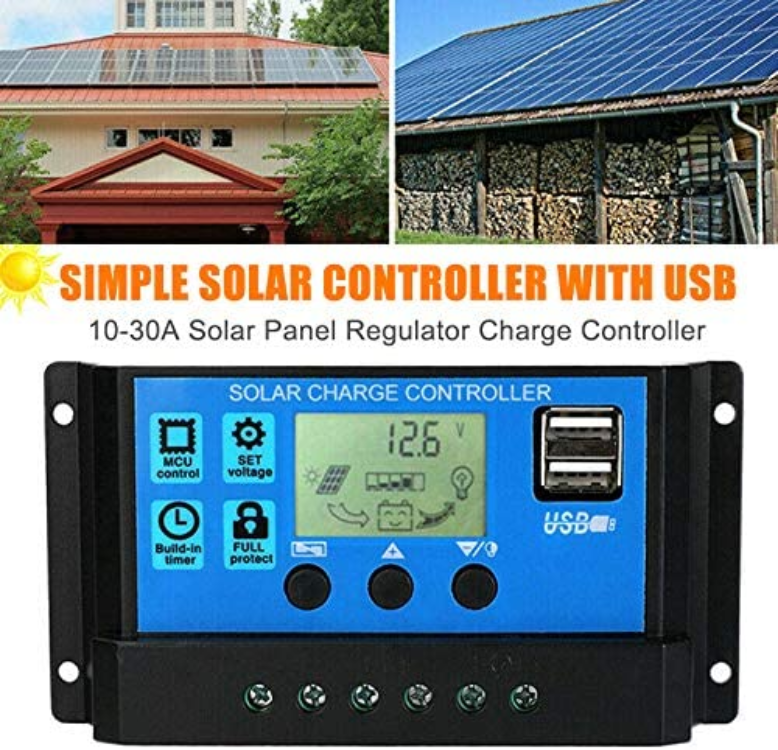

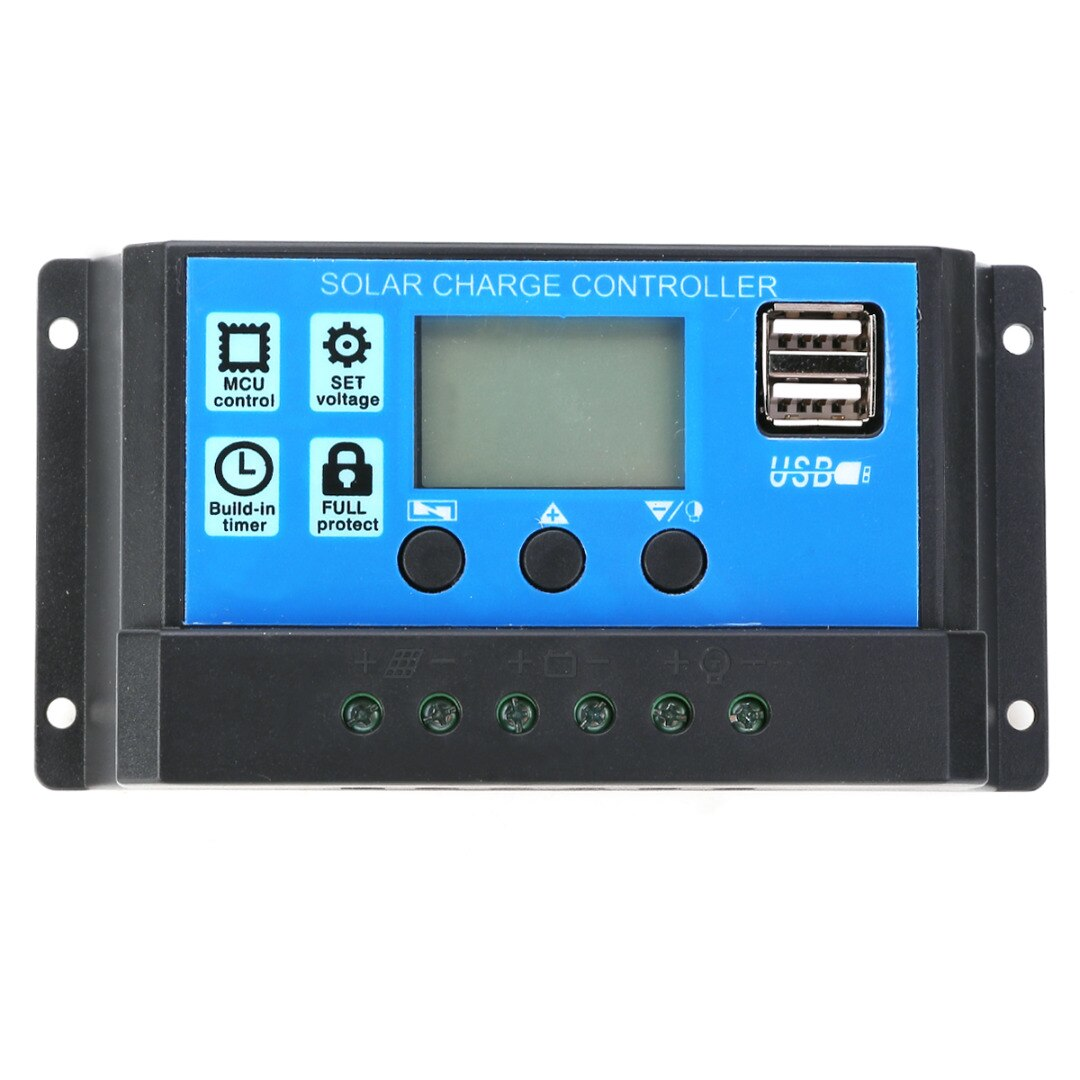

Description
Main features:
-Integrated industrial microcontroller.
-Large LCD display, all system adjustable control parameters.
-4-stage PWM load management.
-Build all necessary protections, including short circuit protection, open circuit protection, reverse protection, and overload protection.
-Dual mosfet offers protection against reverse current, low heat production
Specifications:
-System voltage: 12V / 24V-Maximum
solar input solar panel: 36V battery 24V 18V 12V
battery-Floating charge: 13.7 V default, adjustable, 12.0-15.0 V-Discharge
stop voltage: 10.7 V default, adjustable, 9.0-11.5 V-Discharge
reconnection voltage: 12.5 V default, adjustable, 11.0-13.0 V-Rated
current: 10A / 20A / 30A-Self-consumption
: <10mA-Batteries
: only suitable for OPEN, AGM, GEL-Operating
temperature: -35 ° C- 60 ° C-USB

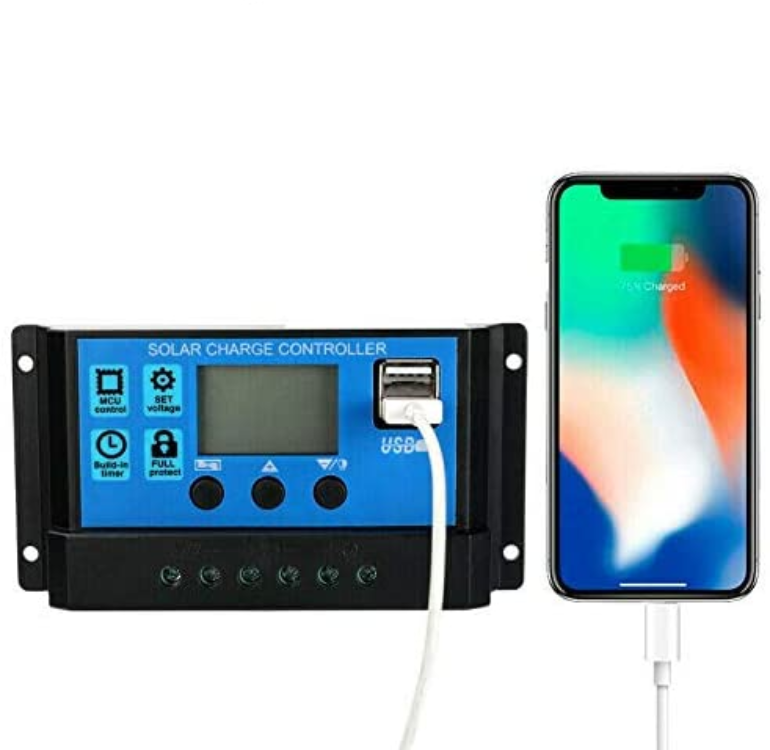

output: 5V / 1A Max-Dimension
: approximately 133 x 70 x 31 mm
