Description
Main features:
– Frequency response: 30Hz to 2000Hz.
– Sensor: Triple axis (X, Y, Z).
– Range: 20/200/2000 mG, 2/20/200uT.
– Data retention (HOLD).
– Maximum retention (MAX).
– Minimum retention (MIN).
– TM-192D is integrated into the USB data logger with capacity for 500 data sets or 9999 data sets.
Application
TM-192 and TM-192D (with USB data logger) are applied to measure extremely low frequency electromagnetic fields (ELF) from 30 to 2000Hz. They are capable of measuring the intensity of electromagnetic field radiation produced by:
– Electric
transmission equipment- Power line.
-Microwave.
-Air conditioning.
-Refrigerator.
– Computer monitor.
– Video/audio device and so on.
Specifications:
-Display: 4-digit triple LCD display,
-Range: 20/200/2000 mG, 2/20/200 uT.
-Resolution: 0.01 / 0.1 / 1 mG or 0.001 / 0.01 / 0.1 uT.
-Frequency response: 30Hz to 2000Hz.
-Sensor: Triple axis (X, Y, Z).
-Accuracy: 20mG/2uT ±(3.0%+30dgt) at 50Hz/60Hz.
± (2.5% + 5dgt) at 50Hz/60Hz.
± (5% + 5dgt) at 30Hz/2000Hz.
-Overload: LCD “OL” display.
-Sample rate: 2.5 times per second.
-Battery: 9V NEDA 1604, IEC 6F22 or JIS 006P.
-Battery life: Approximately 100 hours.
-Operating temperature and humidity: 5C to 40C, below 80% RH.
-Storage temperature and humidity: -10C to 60C, below 70%.

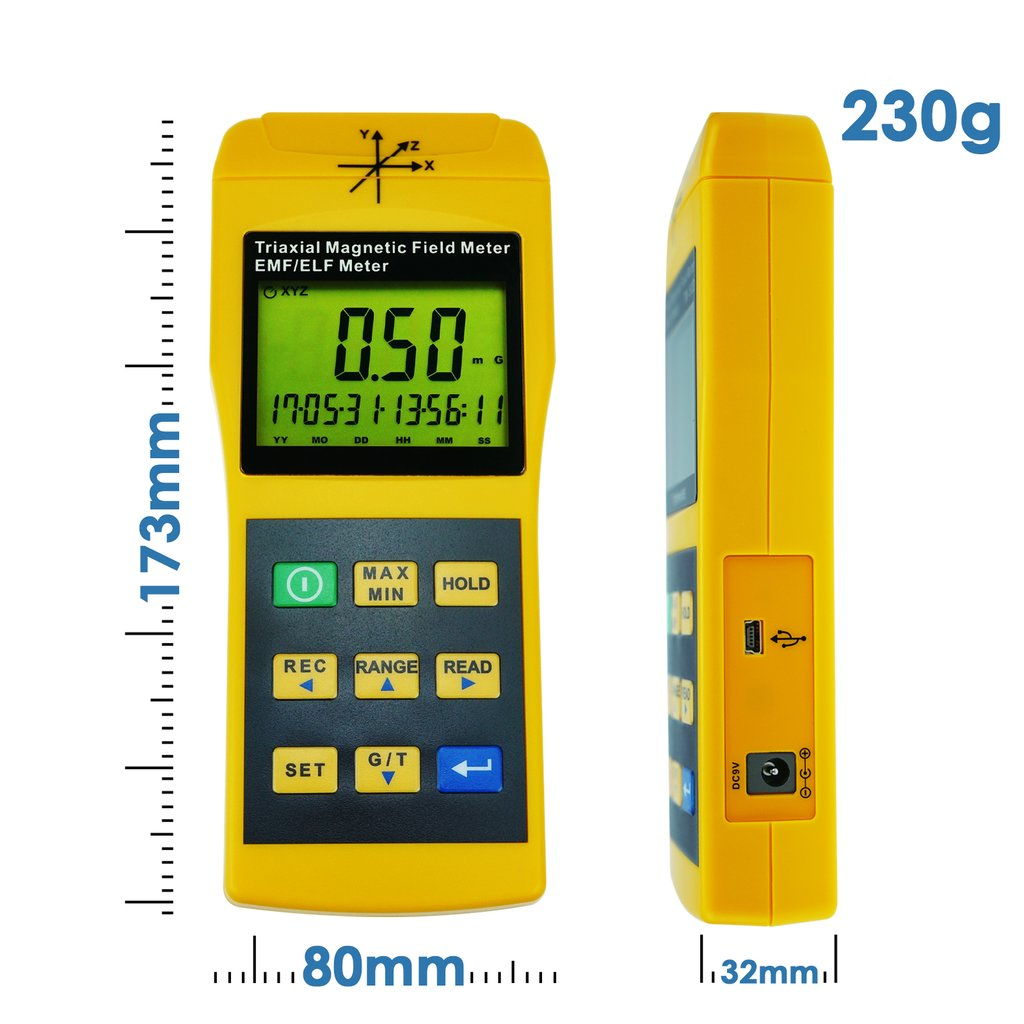

-Weight: Approximately 230g.
-Dimensions: 173 (Length) * 80 (Width) * 32 (Height) mm.
