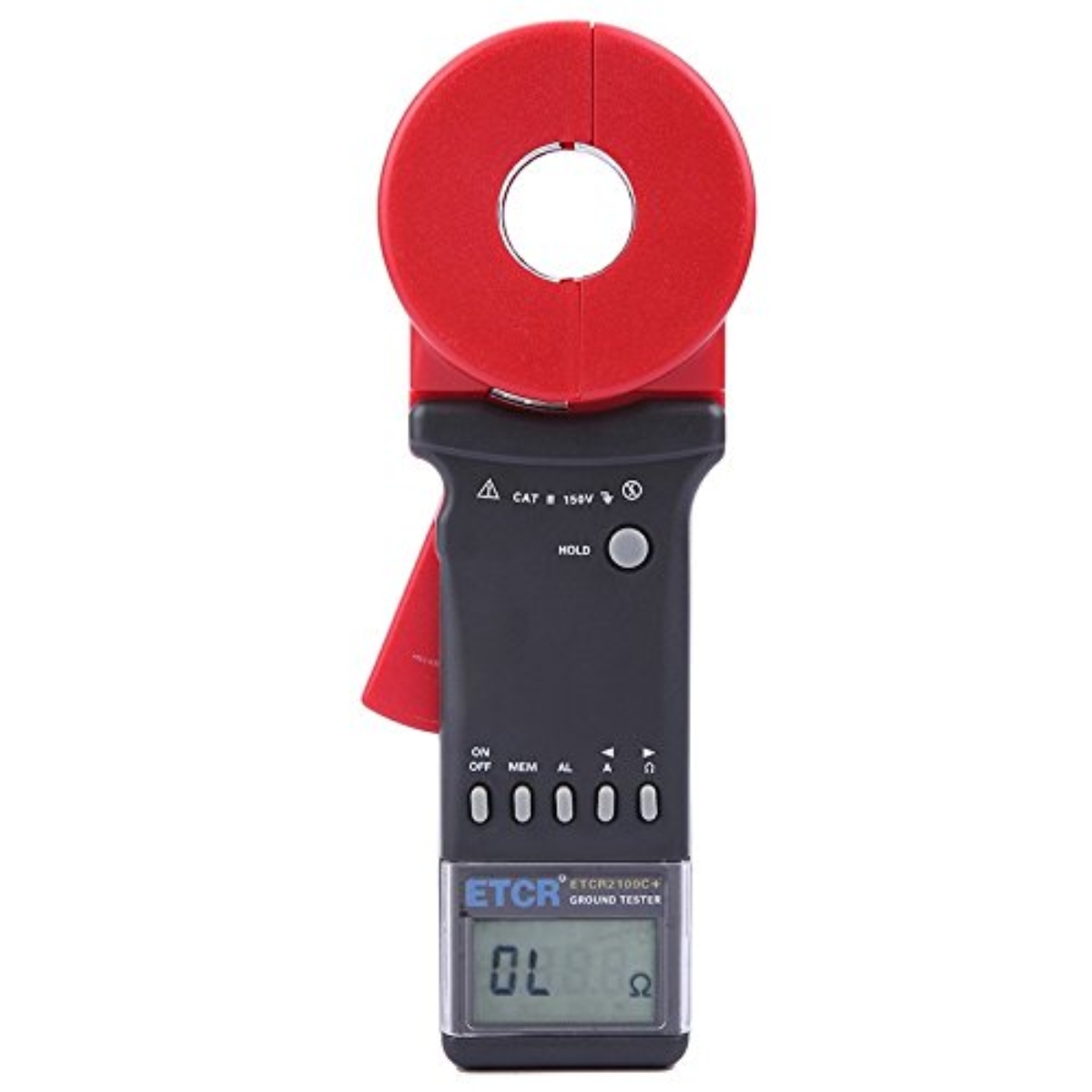

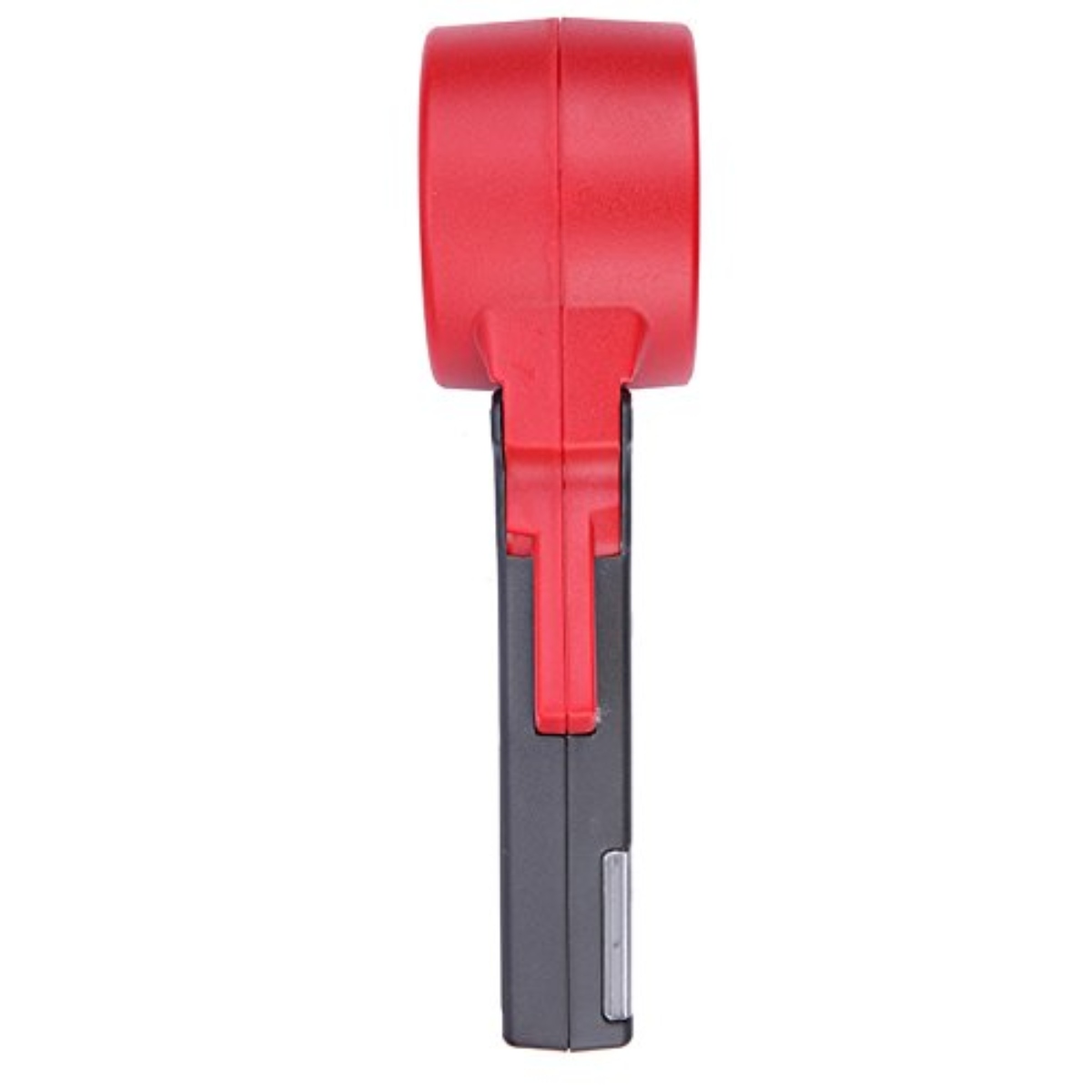

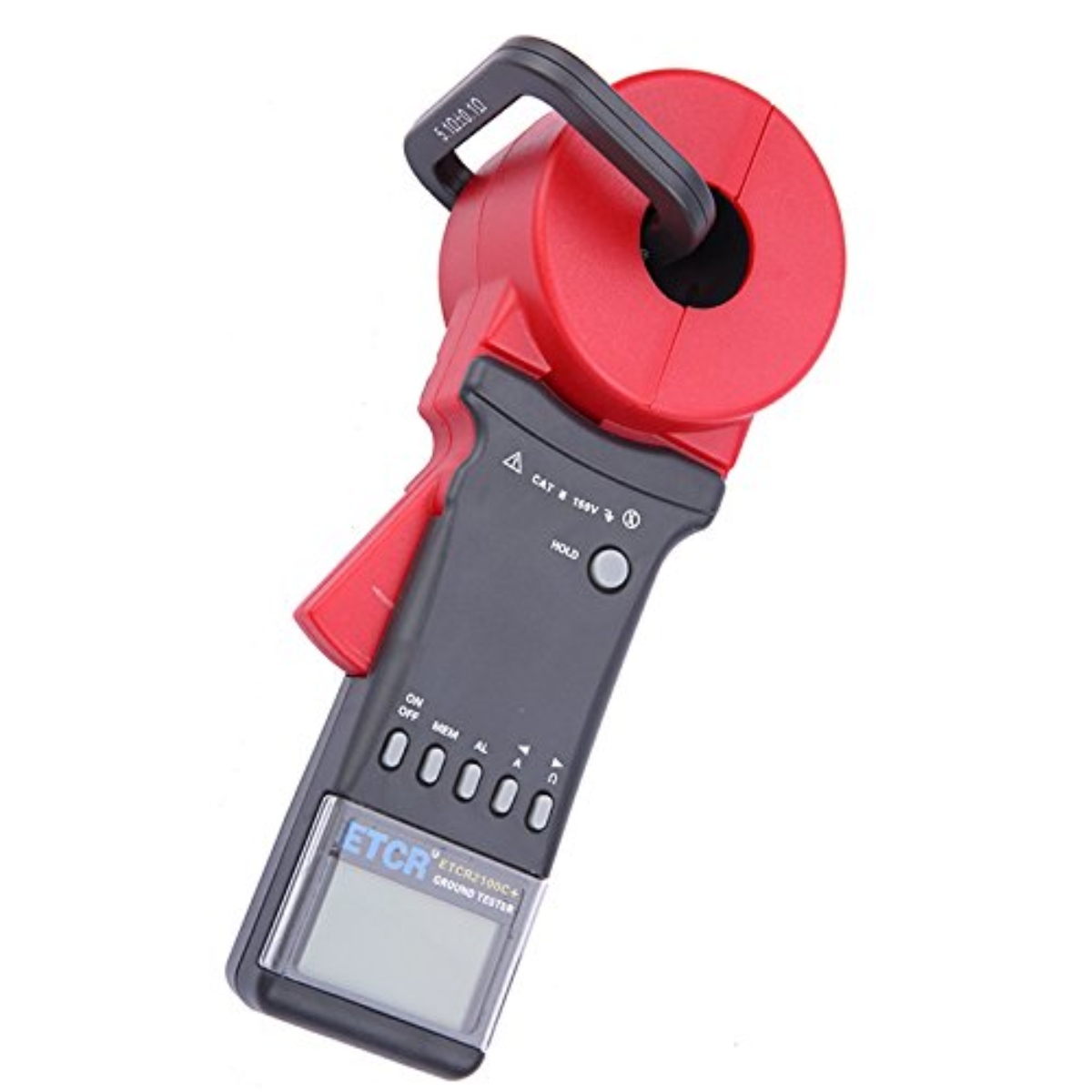

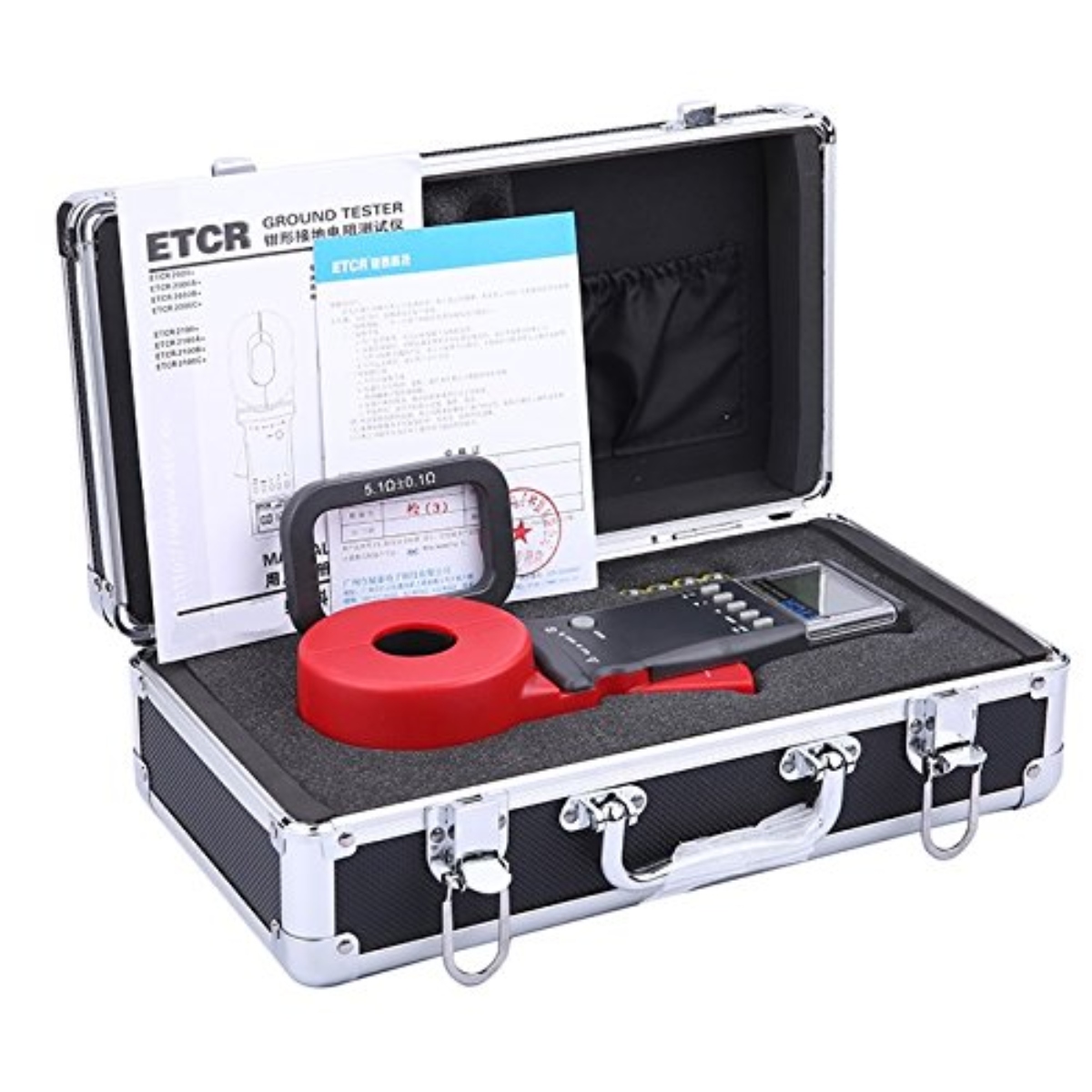

ETCR ETCR2100C+ Digital Clamp Earth Resistance Meter Tester 0.01-1200oHm
Characteristics:
– Start Time: Self-test in 0.5 seconds, start instantly
– Measurement Range: 0.01-200ohm, wider
range- Current Range: 0.00mA-20.0A
– Clamp Size: a32mm
– Data Stored: 99 sets
Specs:

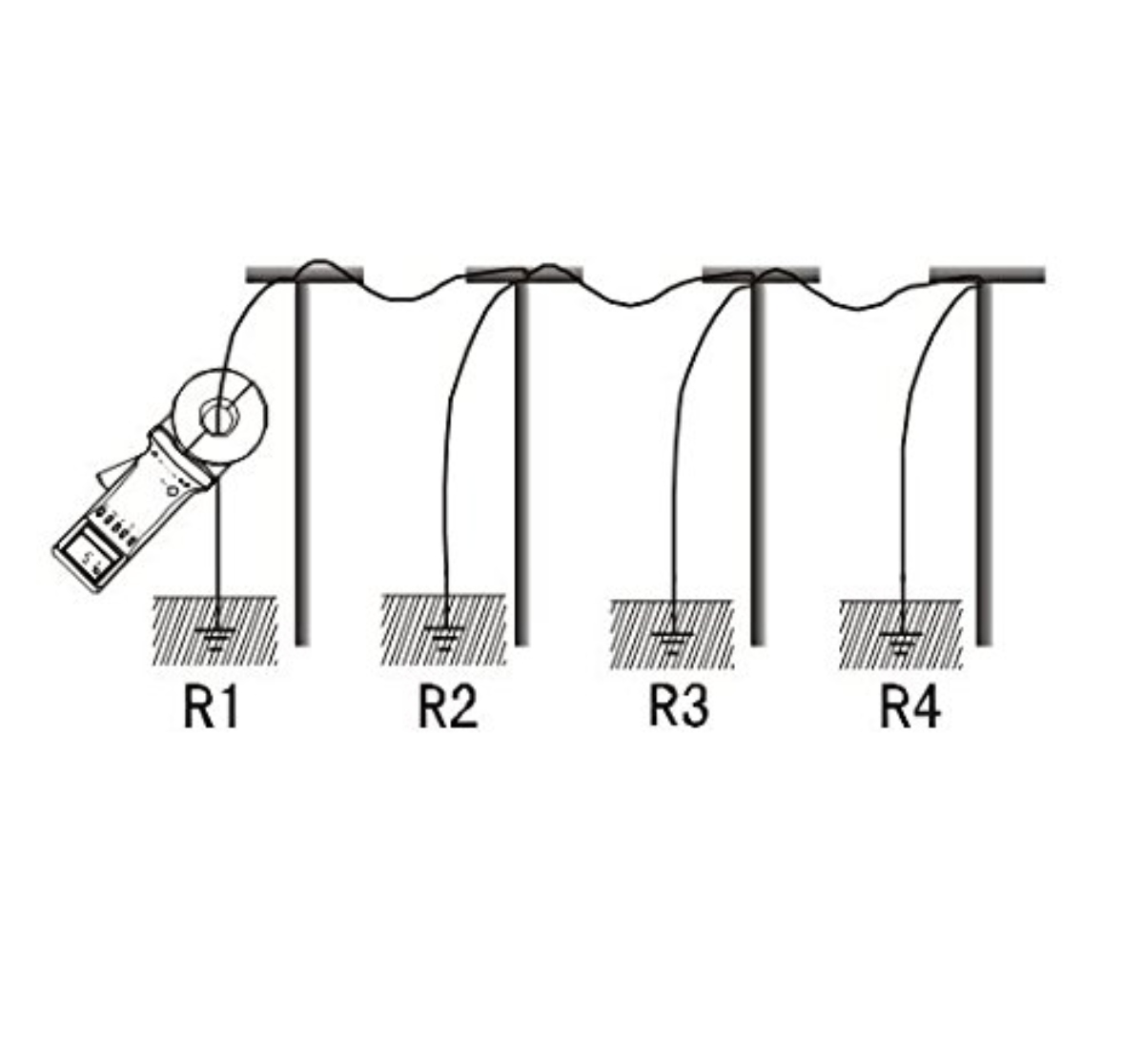

Function: Earth resistance test, loop resistance test
Power supply: 6VDC 4 PCS AA alkaline batteries (not included)
Resistance Range: 0.01-1200ohm
Resistance Resolution: 0.001ohm
Higher Resistance Accuracy: ± 1% ± 0.01ohm
Data Memory: 99 sets
Alarm Threshold Adjustment Range: Resistance: 1-199ohm
Alarm sound and light: “beep-beep-beep” alarm tone, alarm symbol
Working temperature and humidity: -20°C-55°C; 20% RH-90% RH
LCD display: 4-digit LCD display, L x W display: 47 mm x 28.5 mm
Clamp Size: a32mm
Clamp opening extension: 32 mm
Tester weight: 1160g (with batteries)
Clamp Dimension: L x W x T: 285mm x 85mm x 56mm
Protection level: double insulation
Structural Feature: CT Clamp
Transmission: automatic transmission
External magnetic field: <40A/M
External electric field: <1V/M
Single measurement time: 0.5 seconds
Resistance measurement frequency: > 1 KHz
Measured current frequency: 50/60 Hz Automatic measurement
Low battery indication: low battery symbol is displayed when the battery is less than 5.3V
Memory Full Indication: MEM symbol flashes when the memory of all 99 sets is full
Auto Shut-Off: 5 minutes after start-up
Power Consumption: Max 50mA either at start-up or in normal operation, working continuously for 30 hours
