Description
About this item
with multiple internal RF switches for S11 and S21 measurements, and IFFT calculations for TDR and DTF measurements.

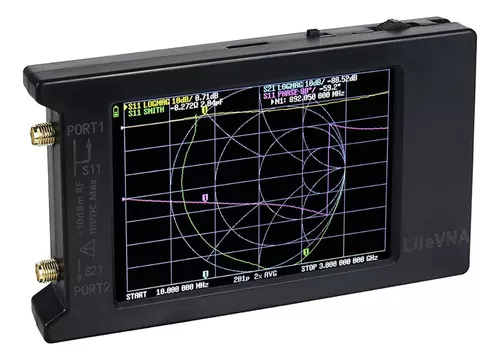

The LiteVNA-64 now offers faster scan speeds and more scan points, plus a wider measurement range.
Combined with an easy-to-use interface consistent with the NanoVNA, the LiteVNA-64 can now be easily used as a field testing tool.
With a measurement range of up to 6.3 GHz, the LiteVNA-64 is capable of satisfying common amateur radio and IoT applications, as well as 5 GHz pop-up testing, enabling the application of the latest 5.8 GHz wifi and 5.8 GHz image transmission.
LiteVNA-64 improves on the popular NanoVNA and SAA2.
Now you can get a portable vector network analyzer (VNA) as small as the NanoVNA and capable of meeting the ultra-wide measurement range of 50 kHz to 6.3 GHz.
To minimize power consumption and size, the LiteVNA-64 uses only one mixer, with multiple internal RF switches for S11 and S21 measurements, and IFFT calculations for TDR and DTF measurements.
Designed with community feedback in mind, the LiteVNA-64 now offers faster scan speeds and more scan points, plus a wider measurement range.
Combined with an easy-to-use interface consistent with the NanoVNA, the LiteVNA-64 can now be easily used as a field testing tool.
LiteVNA-64 includes a MicroSD slot, so you can save field test data or displays to a MicroSD card at any time.
With a measurement range of up to 6.3 GHz, the LiteVNA-64 is capable of satisfying common amateur radio and IoT applications, as well as 5 GHz pop-up tests, enabling the application of the latest 5.8 GHz and 5.8 GHz Wi-Fi image transmission.
The package includes:
– 1 VNA analyzer (with 2000 mAh battery and 4-inch screen).
– 2 x 11.8
” SS405 RF SMA male-to-male cables – 1 SMA to female connector.
– 1 SMA calibration kit.
– 1 x open SMA calibration kit.
– 1 SMA calibration kit.
– 1 x USB Type-C data cable.
– 1 selection
