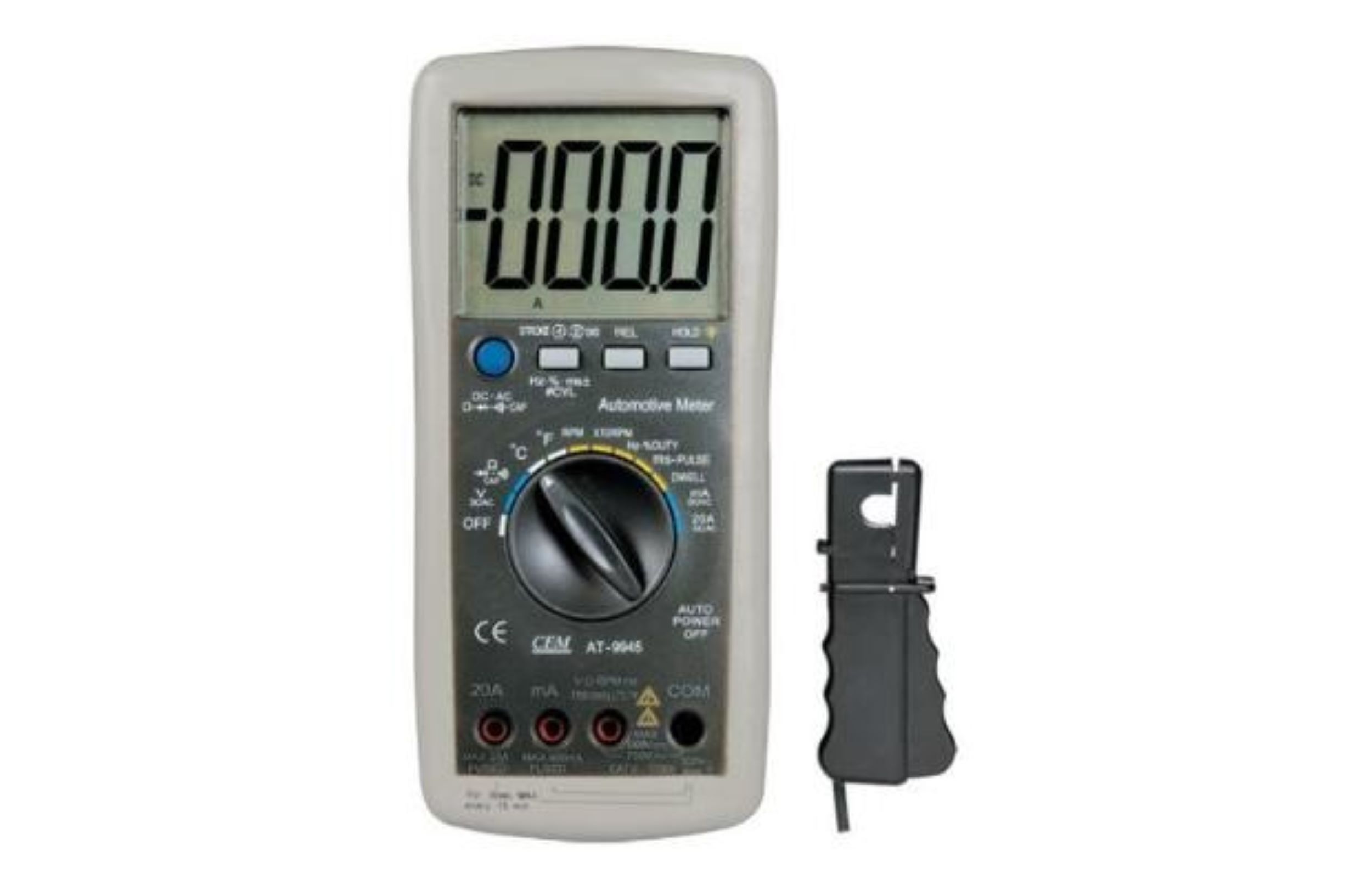

Description
Key Features:
RPM Measurement:
RPM range: 600-4000 RPM / 600-12000 RPM (x10 RPM)
Tolerance: ± (2.0% + 2D)
High contrast LCD screen.
13 Functions:
DCV, ACV
DCA, ACA
RPM (measurement of revolutions per minute)
Resistance
Useful
cycle Frequency
Temperature
Capacitance
Continuity
Diode
check Ignition
angle Auto-off.
Data freeze and relative functions.
Out of range indication.
Overload protection in all ranges.
Millisecond pulse width measurement with real-time test for electronic injection.
Technical Specifications:
DC Voltage:
Ranges: 400mV, 4V, 40V, 400V, 1000V
Tolerance: ± (0.5% + 2D)
AC Voltage:
Ranges: 400mV, 4V, 40V, 400V, 700V
Tolerance: ± (0.8% + 2D)
DC Current:
Ranges: 400uA, 4mA, 40mA, 400mA, 4A, 20A
Tolerance: ± (1.2% + 2D)
AC Current:
Ranges: 400uA, 4mA, 40mA, 400mA, 4A, 20A
Tolerance: ± (1.5% + 2D)
Resistance:
Range: 400omnios
Tolerance: Not specified in detail
RPM (tach):
Ranges: 600-4000 RPM / 600-12000 RPM (x10 RPM)
Tolerance: ± (2.0% + 2D)
Ignition angle:
Ranges: 4CYL, 5CYL, 6CYL, 8CYL
Tolerance: ± (2.5% + 2D)
Useful cycle:
Range: 0.1-99.9%
Tolerance: ± (1.5% + 2D)
Frequency:
Range: 0.001 Hz – 9.99 MHz
Tolerance: ± (2.0% + 2D)
Temperature:
Range: -20°C – 760°C / -4°F – 1400°F
Tolerance: ± (3.0% + 2D)
Capacitance:
Ranges: 40nF, 400nF, 4uF, 40uF, 100uF
Tolerance: ± (3.0% + 2D)
Pulse Width:
Range: 0.1-10 ms
Tolerance: ± (3.0% + 2D)
Diode / Continuity Test:
Open circuit voltage: 1.5V DC
Current test: 0.3 mA Threshold 30omnios
Beeper continuity: 2.7 kHz
Dimensions:
Size (H x W x D): 195 mm x 92 mm x 38 mm
Weight:
380 g
POWER: 9V BATTERY (NOT INCLUDED)
