Description

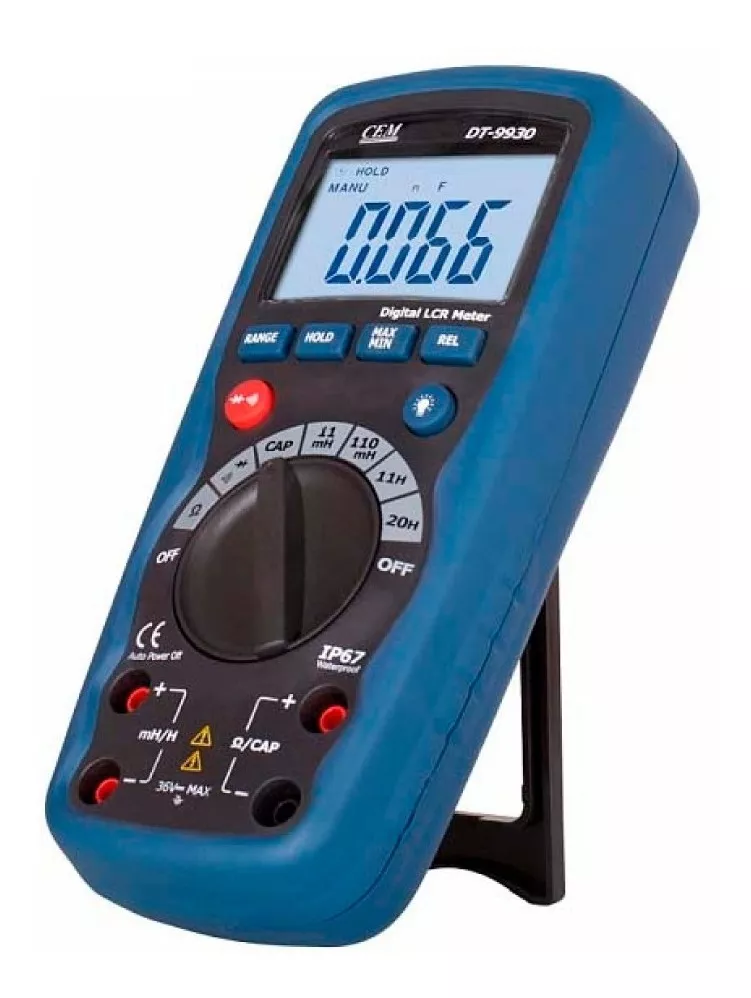

The DT-9930 CEM is a digital LCR multimeter designed to measure inductance (L), capacitance (C), and resistance (R).
Features:
Measurement Functions:
Inductance (L): Measures inductance with high accuracy.
Capacitance (C): Measures capacitance over a wide range of values.
Resistance (R): Measures resistance, including small resistances with high accuracy.
Screen:
Large and clear LCD screen for easy reading.
Simultaneous display of different measurement parameters.
Measurement Range:
Wide measurement ranges for inductance, capacitance and resistance.
Precision:
High measurement accuracy, suitable for laboratory and professional applications.
Additional Features:
Continuity and diode tests.
Data retention function.
Auto-off to save battery.
Overload protection.
Interface:
Intuitive and easy-to-use user interface.
Technical Specifications:
Inductance Measurement Range:
From microhenrium (uH) to henrial (H).
Capacitance Measurement Range:
From picofarads (pF) to farads (F).
Resistance Measurement Range:
From milliohms (momnios) to megaohms (Momnios).
Precision:
High accuracy with low tolerance in measurements.
Use and Applications:
The DT-9930 EMC is ideal for use in laboratories, research centers, and industrial applications where accurate measurement of L, C, and R is required. It is a useful tool for electrical engineers, technicians, and maintenance professionals.
Measurement Functions:
Inductance (L)
Capacitance (C)
Resistance (R)
Continuity Testing
Diode
Testing Measurement Ranges:
Inductance (L):
200uH / 2mH / 20mH / 200mH / 2H / 20H
Capacitance (C):
200pF / 2nF / 20nF / 200nF / 2uF / 20uF / 200uF / 2mF / 20mF / 200mF
Resistance (R):
200omnios / 2komnios / 20komnios / 20komnios / 20Momnios / 20Momnios
Accuracy:
Inductance (L):
± (0.5% + 5 digits)
Capacitance (C):
± (0.5% + 5 digits)
Resistance (R):
± (0.5% + 5 digits)
Display:
Backlit
LCD Display 6000 count
display Additional Features:
Data HoldAuto-off
Overload
Protection Relative Mode
PC Connection for Data Logging (optional)
Power: 9V
Battery Dimensions and Weight:
Dimensions: 195 x 92 x 55 mm
Weight: 400g (including battery)
Included Accessories:
Test
Leads User Manual
Carrying Case
Applications:
Accurate measurement of inductance, capacitance, and resistance
Use in laboratories, research, maintenance, and electronic repairs
Specific Technical Data
Maximum AC Voltage (AC):
600V AC
Maximum DC Voltage (DC):
600V DC
Maximum Frequency in Hz:
10kHz
The DT-9930 CEM is mainly designed to measure inductance, capacitance and resistance with high accuracy and does not include the current measurement function. Peak voltage information refers to the test voltages that the device can safely handle.
POWER: 9V BATTERY (NOT INCLUDED)
