Description
A megohmmimmeter, also known as an insulation resistance meter or insulation resistance tester, is a device used to measure the electrical resistance of insulation in electrical components or systems. Its main objective is to verify the integrity and effectiveness of insulation in electrical equipment to ensure safety and prevent failures.
Operation:
Insulation resistance test: Applies a known voltage to the insulation and measures the resistance it presents. This is accomplished by sending a current through the insulation and measuring the resulting resistance.
Typical Features:
Measurement Range: It can measure very high insulation resistances, usually in megohms (millions of ohms).
Test voltages: They usually have options for adjustable test voltages to suit different applications.
Display: Displays resistance reading in megohms or gigohms, depending on the model.
Additional Features: Some models may have data storage capabilities, interface for computer connection, or other advanced features.
Common Uses:
Electrical Equipment Testing: Used to verify the integrity of insulation in cables, motors, transformers, and other electrical components.
Preventative Maintenance: Helps prevent catastrophic failures or electrical accidents by detecting insulation issues before they cause damage.
Precautions:
Safety: Because it uses significant voltages, proper safety practices should be followed when operating a megohmmimeter to avoid injury or damage to equipment.
The megohmmimeter is an essential tool in environments where electrical safety is paramount, such as in the electrical utility industry, electrical equipment manufacturing, and in facility inspection

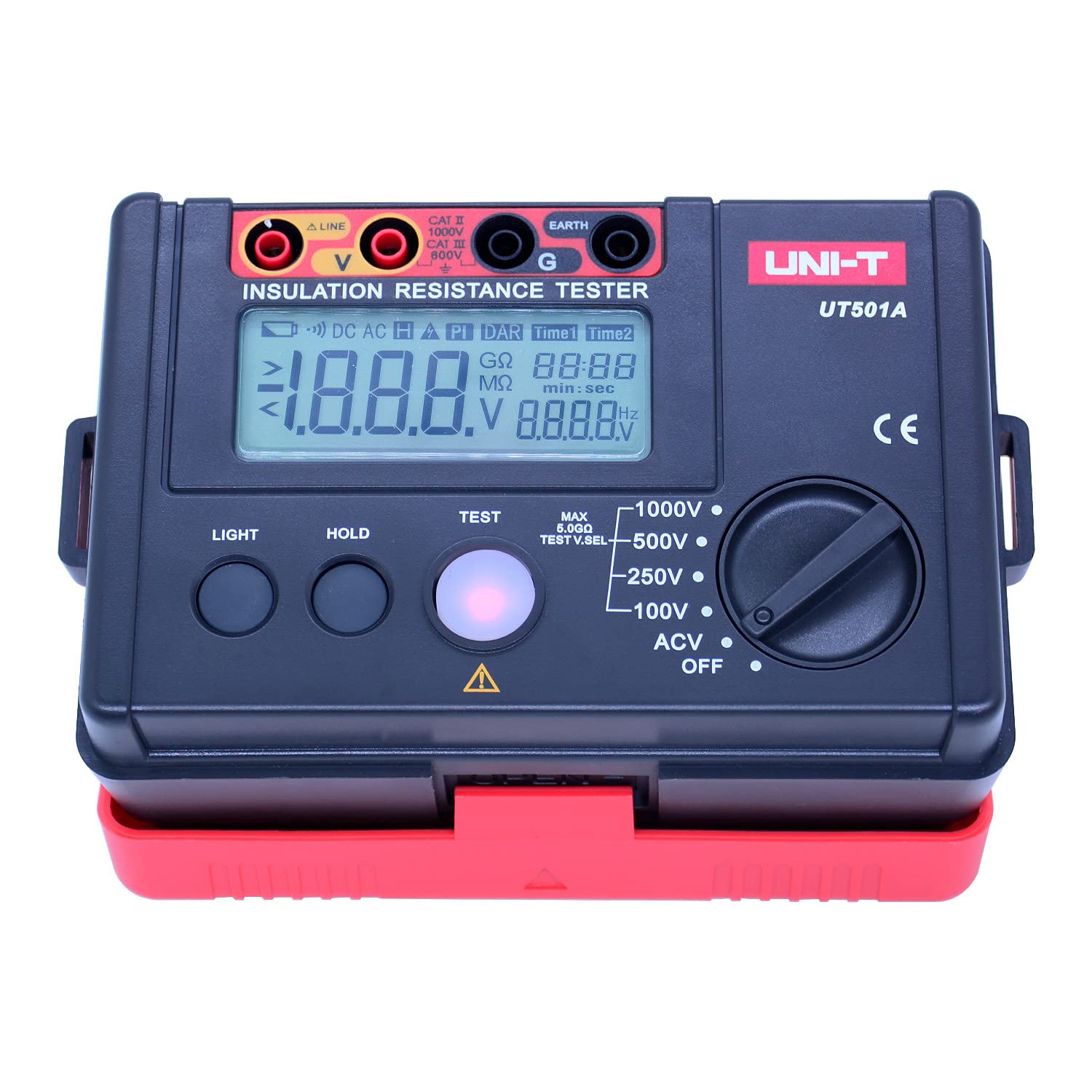

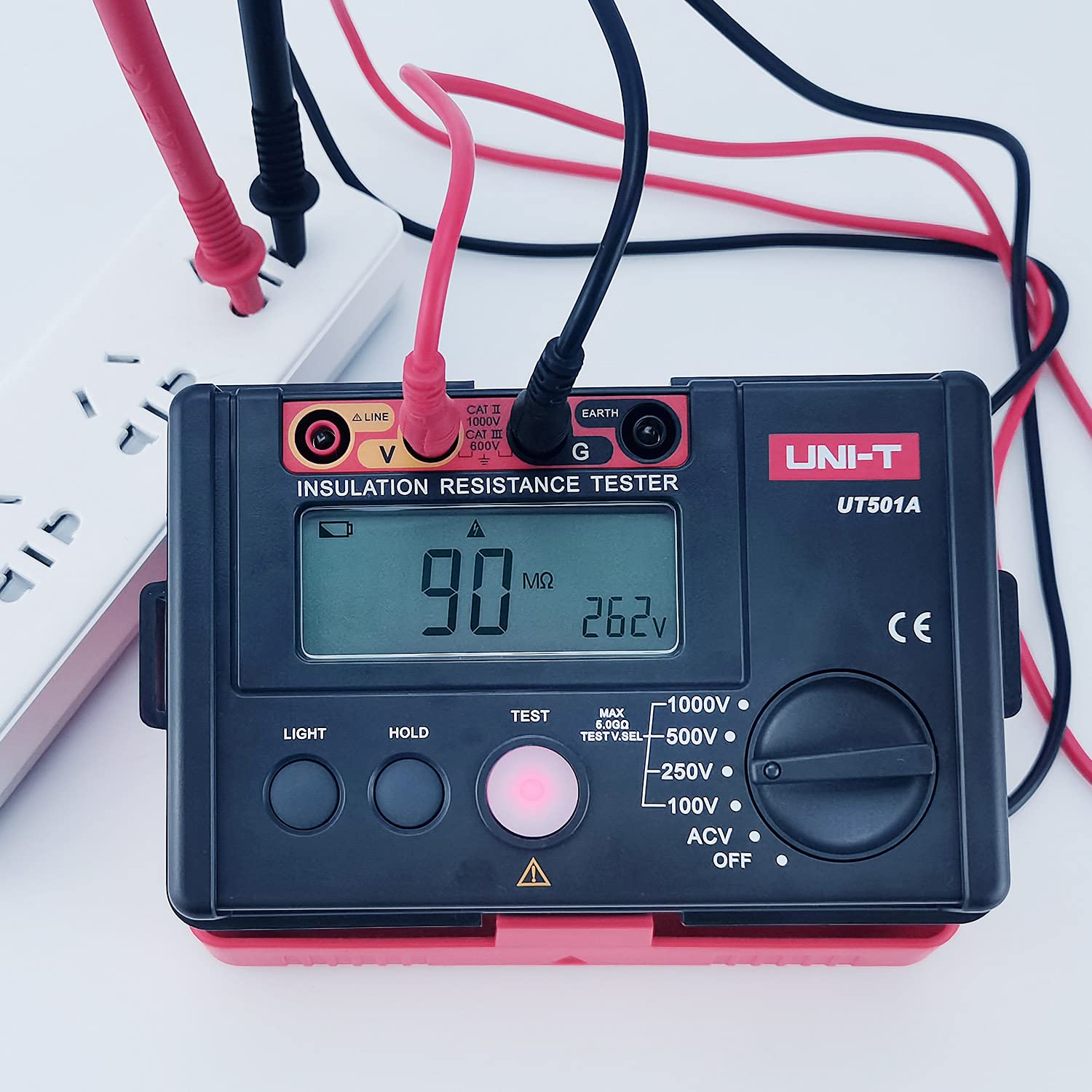

The UT501A insulation resistance tester is an instrument used to measure insulation resistance in electrical systems and equipment. Manufactured by UNI-T, this device has specific features that make it useful in environments where electrical safety is crucial. Here is some information about the UT501A tester:
Main features:
Insulation resistance measurement range: The UT501A can measure insulation resistances from low to high values, often in megohms.
Adjustable Test Voltages: You can generate different test voltages to suit various applications and insulation levels.
LCD Display: Offers a clear display to display the resistance reading in megohms or gigohms, depending on the scale used.
Additional Features: You may have data storage capabilities to record measurements, and some models may have an interface to connect to computers or external devices.
Safety features: Insulation resistance testers typically have built-in safety features to protect the user and the equipment under test.
Common Uses:
Insulation Verification: Used to evaluate insulation integrity in cables, coils, transformers, electrical distribution systems, and other electrical equipment.
Preventative maintenance: Allows insulation issues to be detected before they become critical failures, which can prevent electrical accidents and costly damage.
Importance:
The UT501A and other insulation resistance testers are vital in industrial settings, laboratories, and electrical utilities, helping to maintain high standards of electrical safety and ensuring the reliable operation of electrical equipment and systems.
About this article
1. Multi-meter Multifunctional Insulation Tester: This insulation resistance tester can measure insulation resistance, AC voltage, etc.
2. High-precision digital tester and stable earth resistance performance: This insulation resistance test megohmmimmeter has a high degree of accuracy, stable performance, easy operation and reliability.
3. Multifunctional and economical support for easier operation: support automatic metering, low battery indication, LCD backlight, alarm light display, alarm buzzer.
4. Wide applications for daily use: Widely used for insulation resistance measurement for insulation materials and various types of electrical equipment such as transformers, electrical machines, cables, switches, electrical appliances.
5. Ideal Tool for Electrical Equipment Testing and Inspection: The insulation tester megohmmimeter is an ideal tool for electrical equipment maintenance, testing, and inspection.

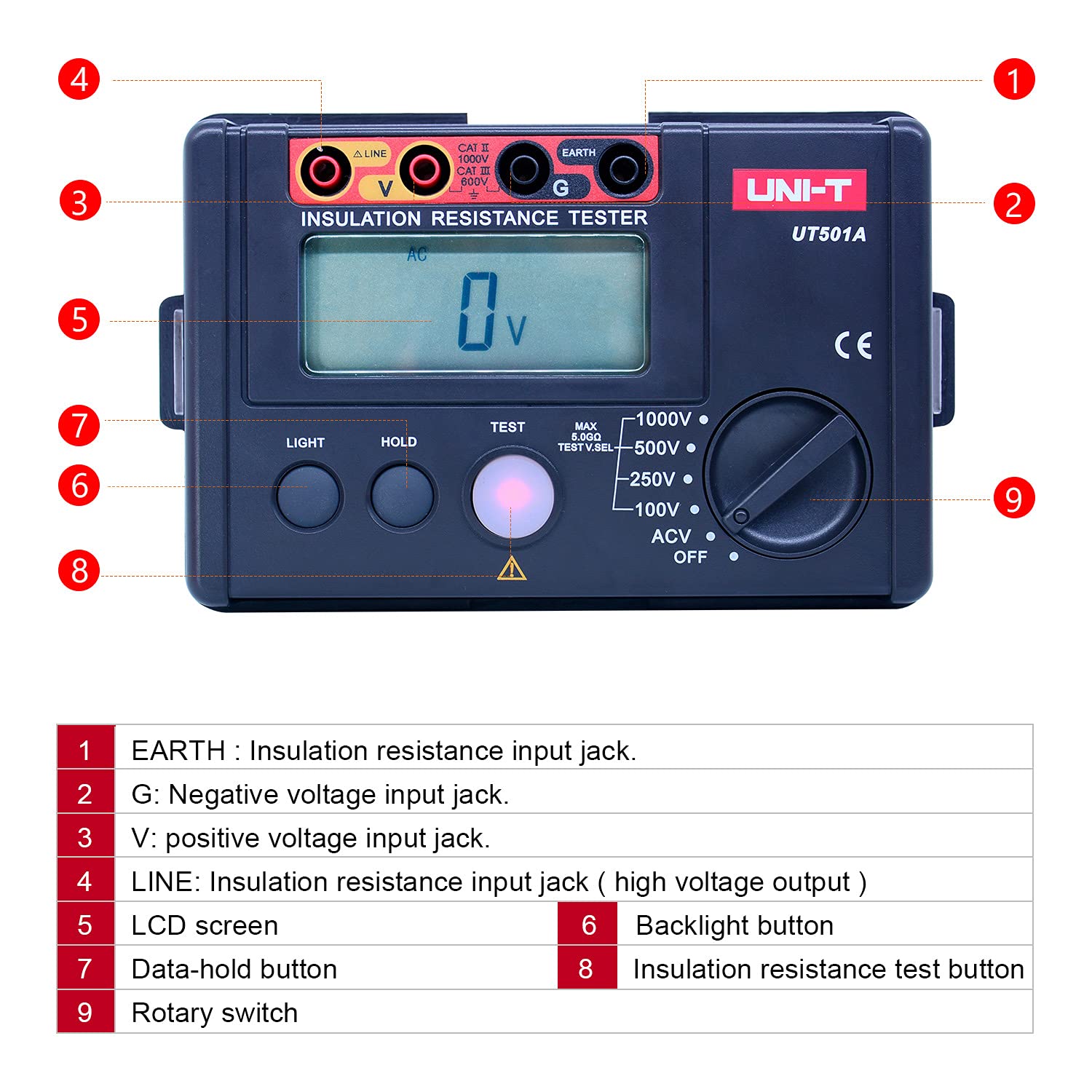

Characteristics
2000 count LCD display, overload indication, backlight
AC voltage measurement, auto shut-off
Automatic download
Continuous low-resistance measurement
Continuous measurements mode, red warning light and buzzer function.
PI and DAR measurement, automatic resistivity calculation.
Low-resistance return-to-zero function for improved accuracy
Display Count 2000
Auto Range/Low
Battery Indication LCD Backlight/Light
Alarm Audible Alarm/High Voltage
Indication Automatic Overcharge/Discharge
Indication 10Momnios Internal Resistance Test
* Illuminated LCD Screen 71 x 34mm – 2000 counts
* HOLD function
* Auto Shut-Off Function
* Battery status indication
* Dielectric Absorption Coefficient 60s/15s and 60s/30s
* Battery check button

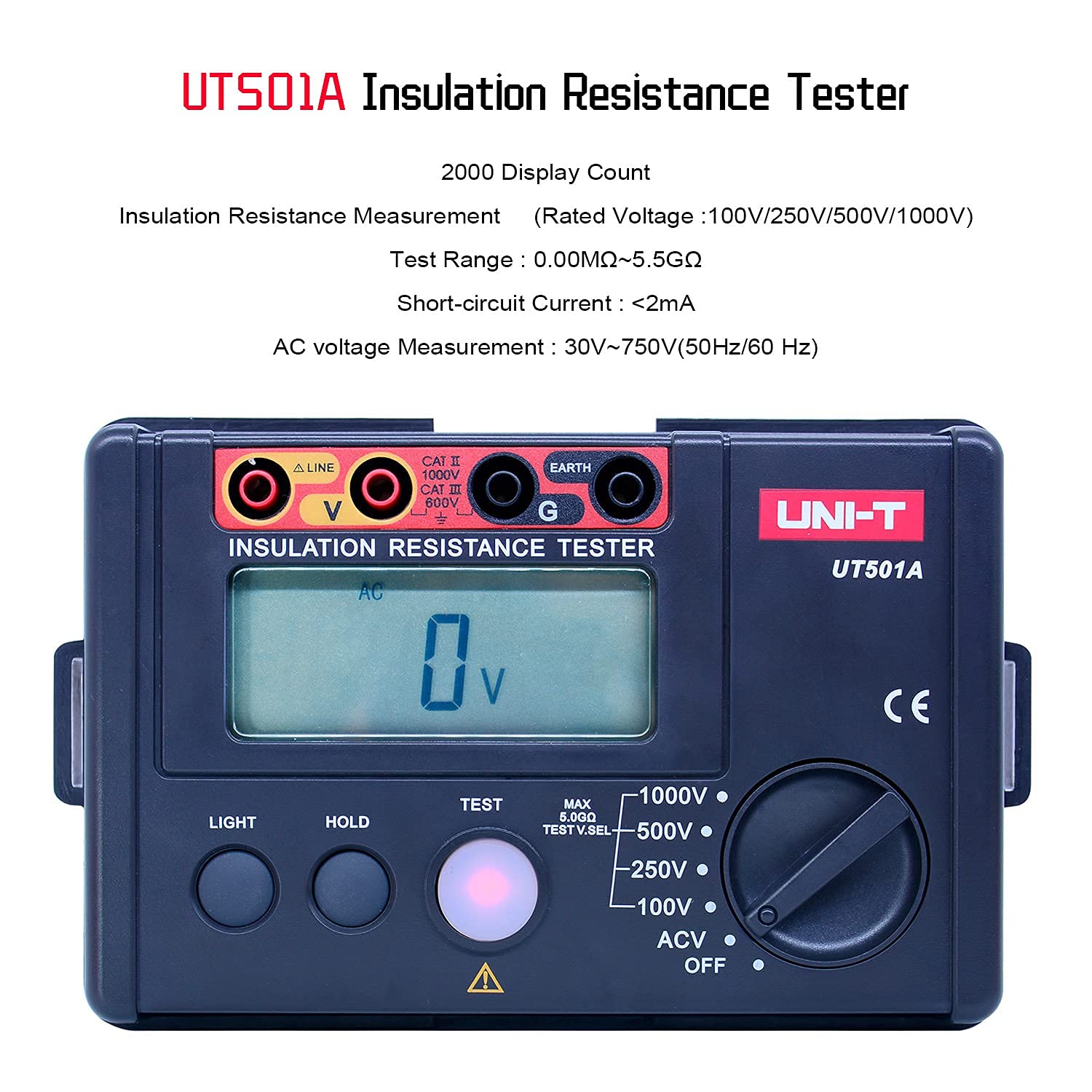

* Test voltages 100V/250V/500V/1000V
* Insulation Resistance between 0MOhm to 5GOhm
* Test current 1mA
* Short circuit current less than 2mA
* Alternating Voltage Testing from 30 to 750VAC
* Auto-range
* Precision measurement with 2 terminals
* Double Electrical Insulation Protection

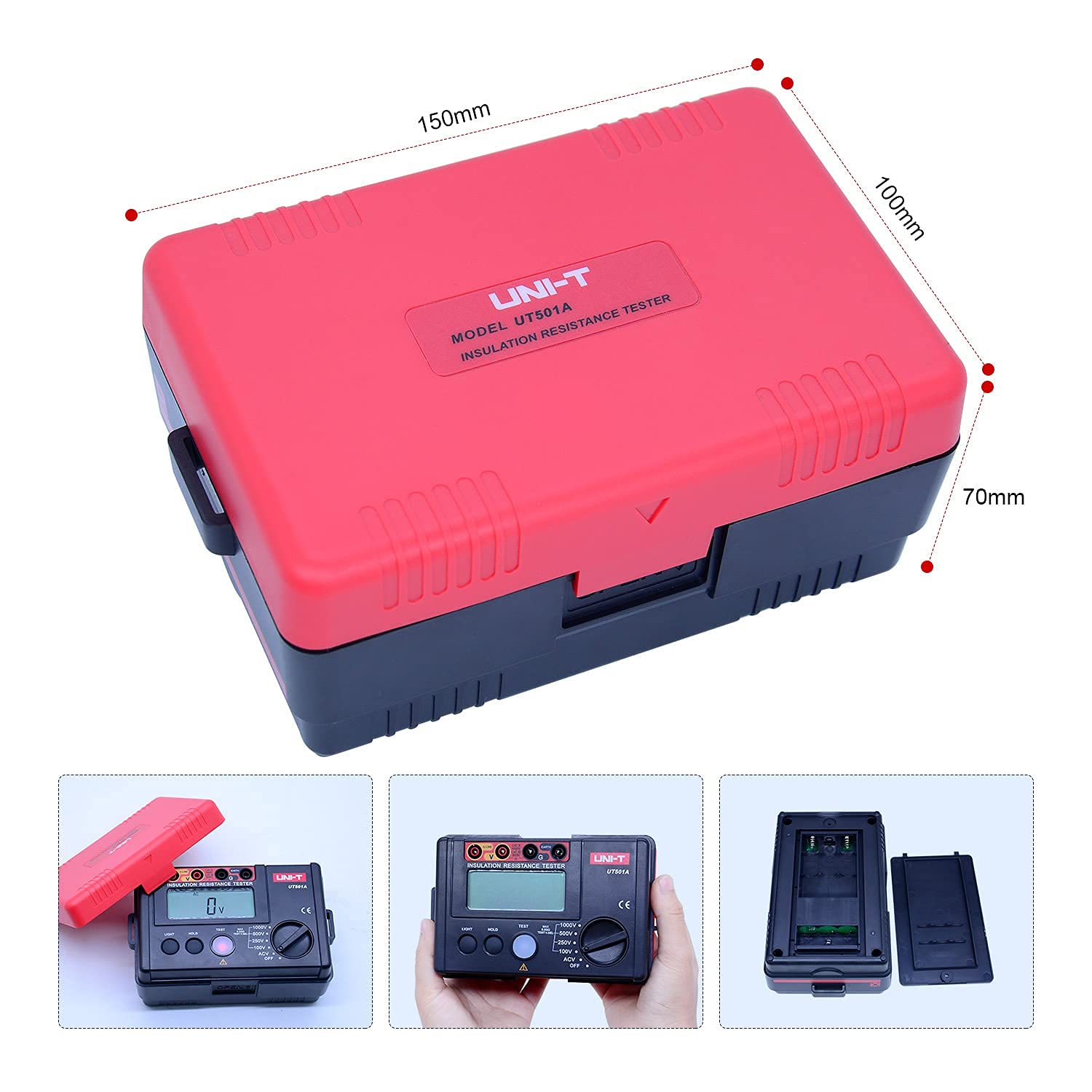

* Dimensions: 15cm x 10cm x 7cm
* Weight: 500gr approximately
* Power: AA batteries x 6 (NOT INCLUDED)
