Description

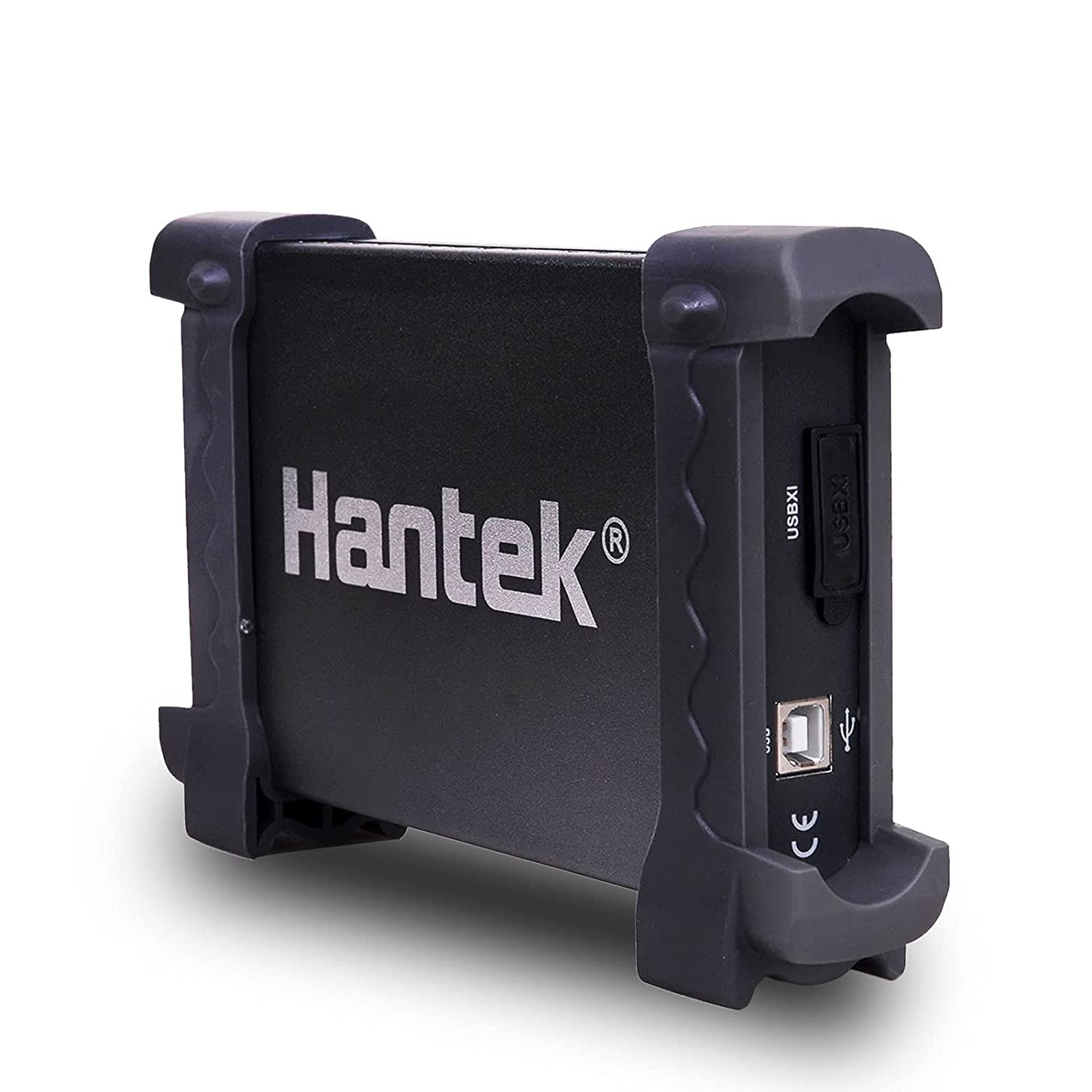

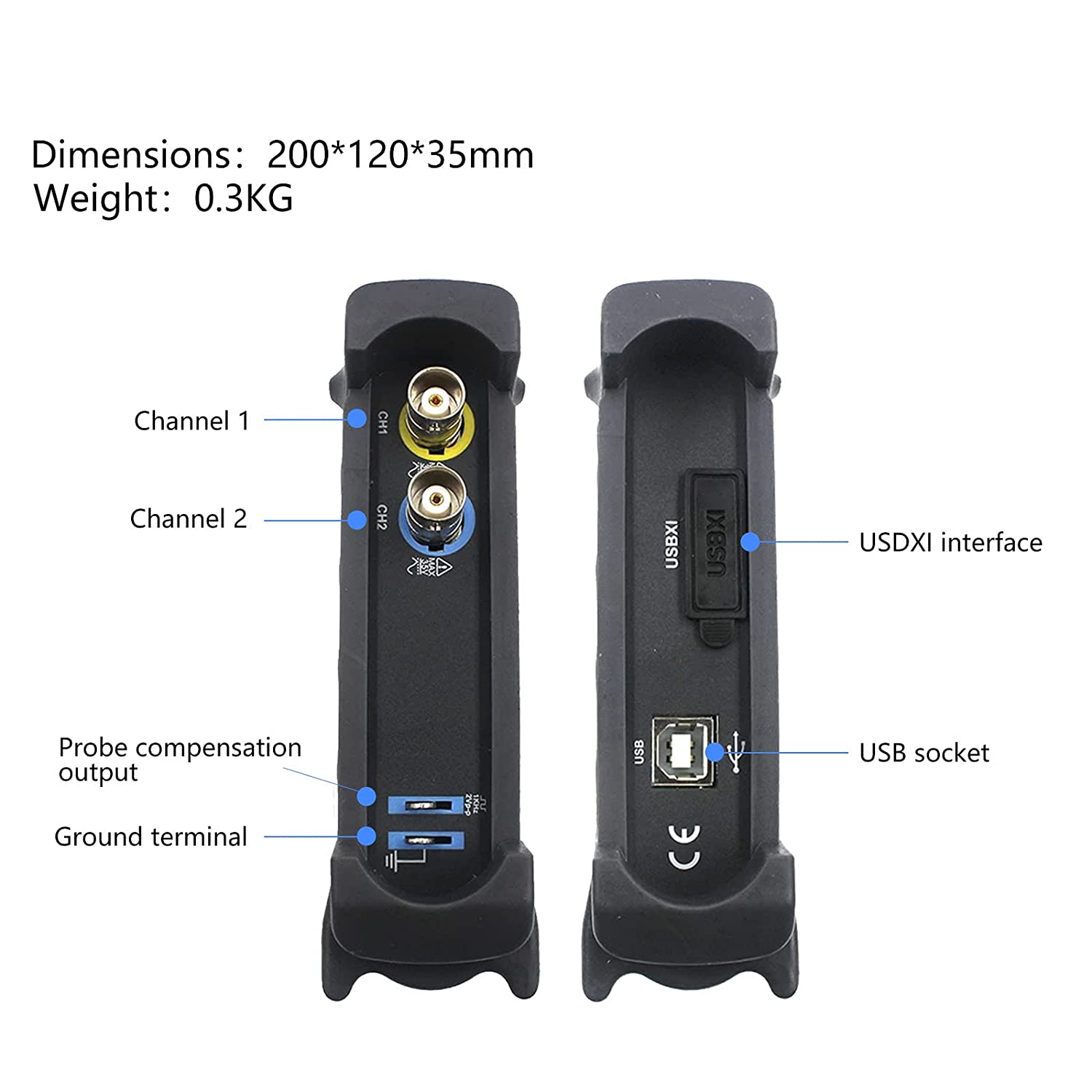

Standard USBXITM interface, easily inserted into the USBXITM housing to form a combined instrument.
Be suitable for laptops, product line maintenance, be easily used in business.
High throughput, real-time sampling of 250 MS/s, bandwidth of 20 MHz to 80 MHz.
23 measurement functions, PASS/FAIL control, suitable for technical applications.

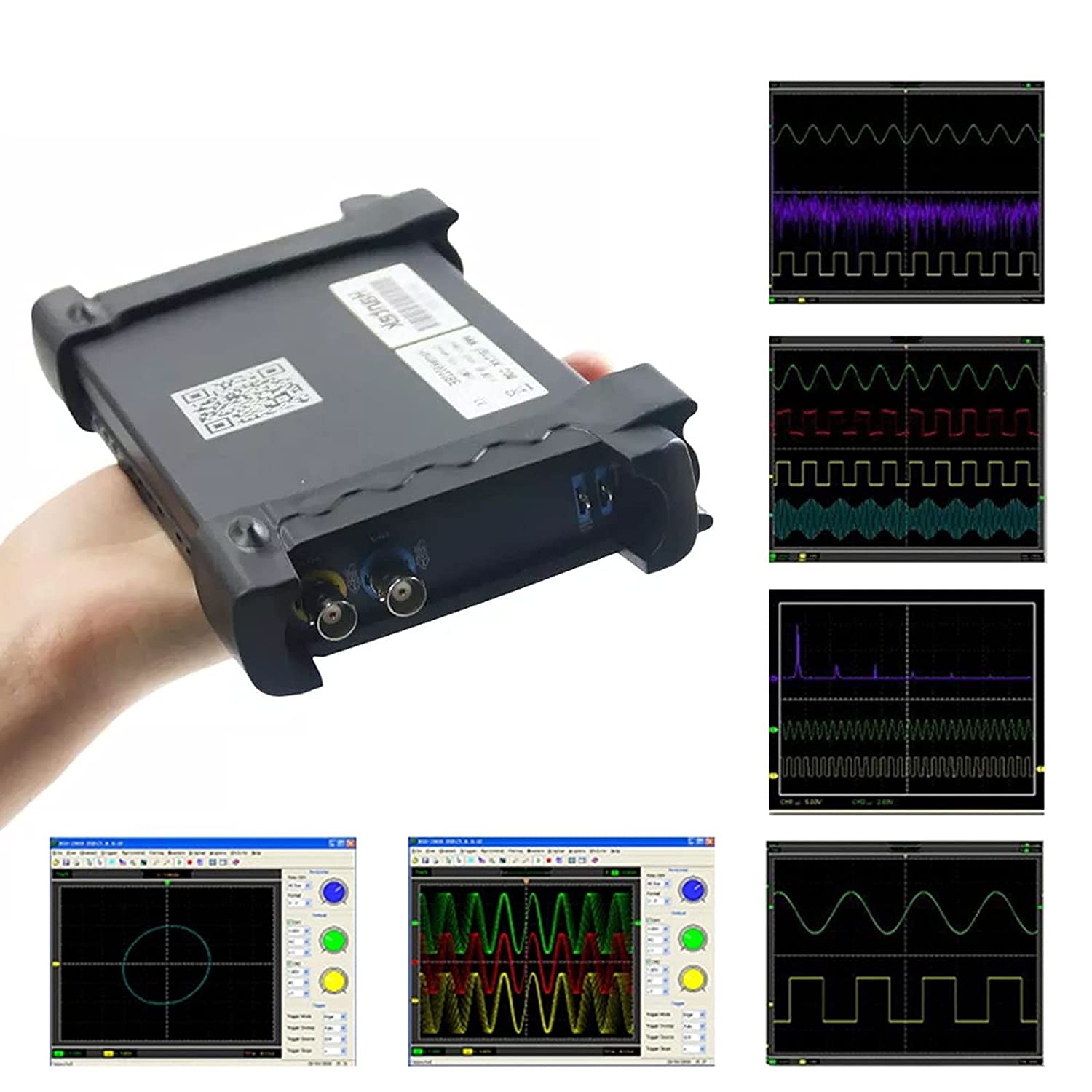

Average of waveform, persistence, intensity, inversion, addition, subtraction, multiplication, division, X-Y graph.
Features:
1. Supported operating system: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA
2. High refresh rate and high sampling
rate 3. Memory depth: 1 Mbyte/channel
4. Built-in Fast Fourier Transform (FFT)
function5.20 Automatic
measurements 6. Automatic cursor
tracking measures 7. Quick
selectable offset calibration 8. Mathematical functions of addition, subtraction, multiplication and division
9. Waveform storage, adjustable waveform intensity and more effective
waveform view 10.Multiple languages selectable by the user
11. Waveform can be saved as EXCEL, BMP, JPG based on time and voltage

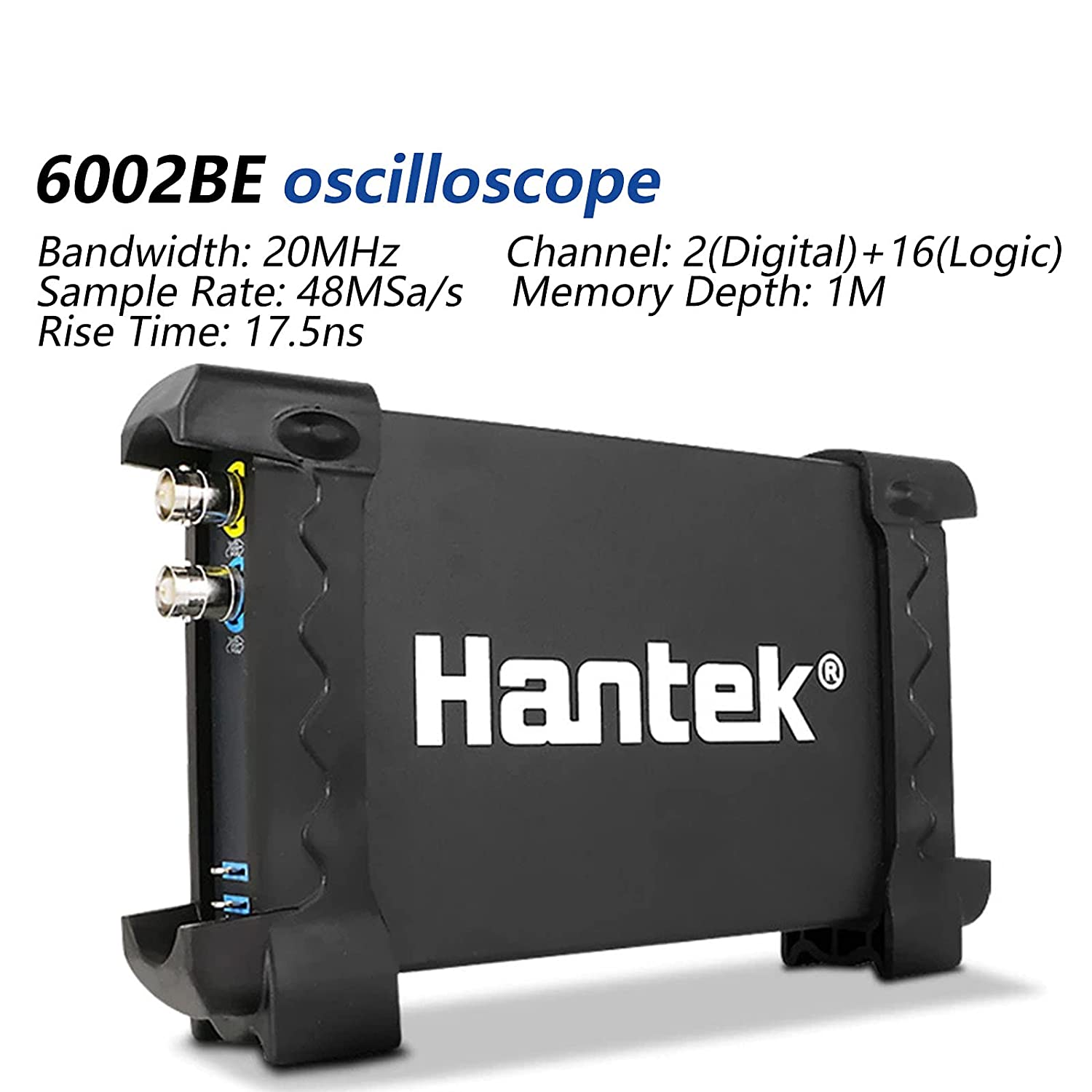

Specifications:
Channel: 2 channels
Bandwidth: 20MHz
max. Sampling rate: 48MSa/s
Storage depth: 1M
Vertical resolution: 8-bit
Voltage range: 20mV-5V, 8 steps
Vertical Accuracy: +/-3%
Time Base Range: 1NS-5000s, 39 steps
Vertical Adjustable: Yes
Inlet Protection: Diode Clamp
XY: Yes
Landscape Mode: Auto, Normal, and Single
– Adjustable Shooting Level: Yes
Trigger source: CH1, CH2
Pre-trigger: 0-100%
Sample Selection: Yes
Waveform display: port/line, intensity
Network: Open/Close
Cursor Measurement: Yes
Math: FFT, inverting, addition, subtraction, multiplication, division
Cursor display: frequency, voltage

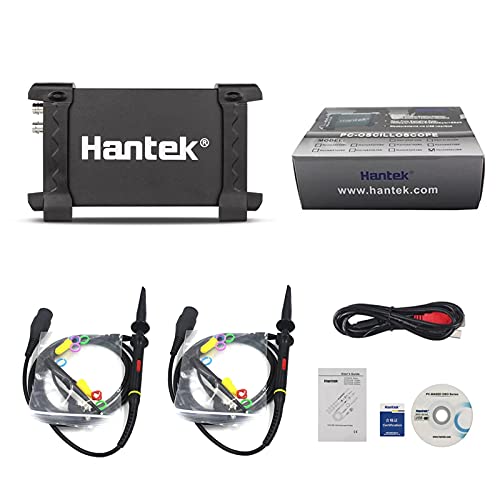

The package includes:
1 * oscilloscope
1 USB cable.
1 * CD
2 * probes
1 * user manual
