Description
One-key automatic: The tablet oscilloscope is equipped with efficient one-key AUTO. One-click screenshots and waveform storage. The built-in storage space of 1 GB can store up to 1000 screenshots + 1000 waveform datasets. The powerful waveform image manager supports thumbnail scanning, viewing, detailed viewing, page turning, deleting and enlarging, shrinking, and waveform movement.
Ultra-high performance: The two-channel oscilloscope has two analog bandwidths of 100 MHz and a sample rate of 1GSa/s; the vertical sensitivity is as high as 50mV/div~500V/div; the maximum test voltage can reach the maximum test voltage: 40V (1X probe), 400V (10X probe); ADC accuracy is 8-bit
USB Charging: The USB oscilloscope has a built-in 6000mAh rechargeable lithium battery, which can be used continuously for 4 hours at the highest screen brightness. It is equipped with USB and can be connected to a computer to share screenshots. Memory compression technology, the waveform update screen does not flicker. Intelligent anti-burn, 1X can withstand resistance voltage of 400V

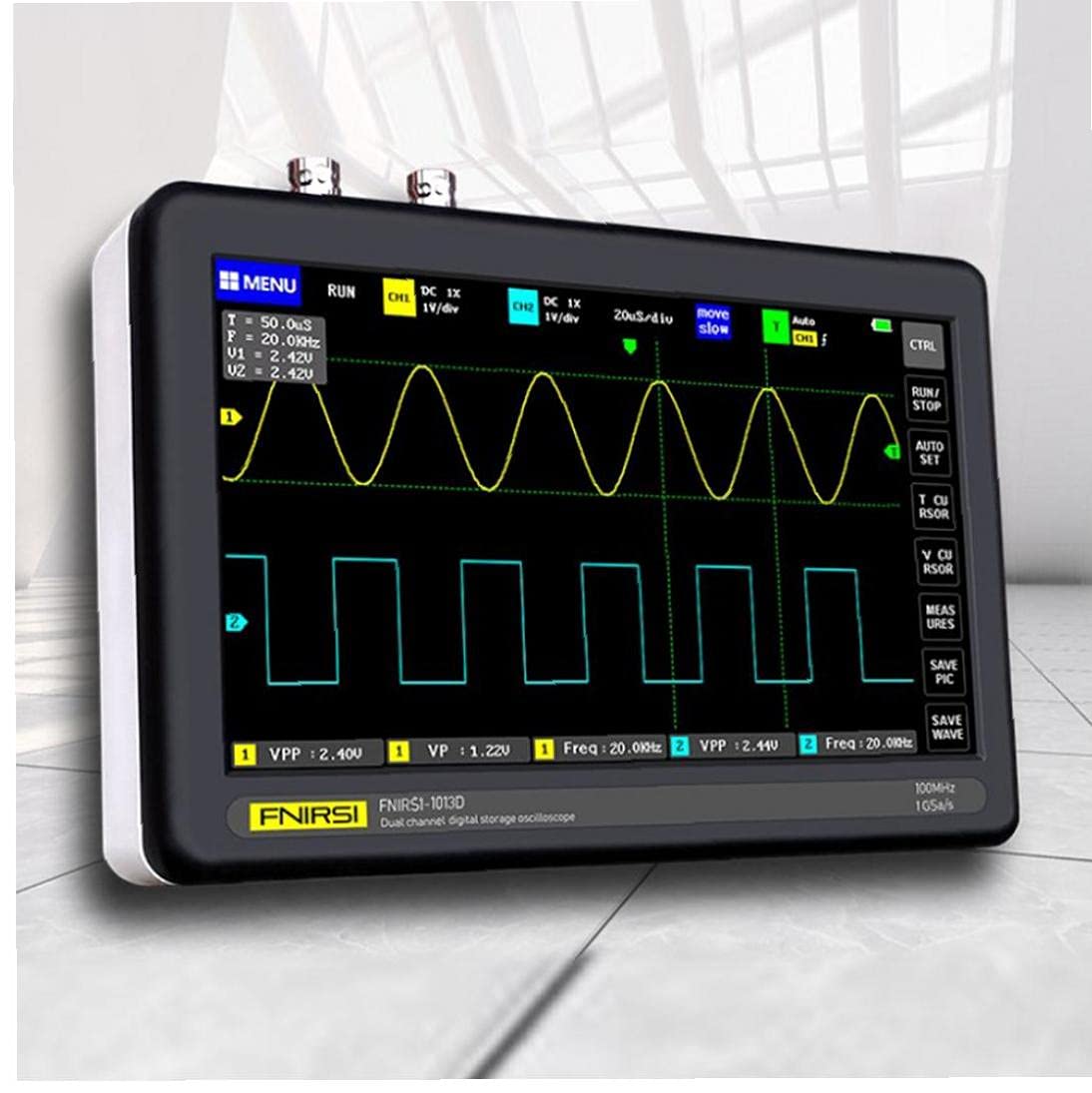

Touch Screen: The oscilloscope has a TFT LCD screen with bright colors and high contrast. The FFT display function can analyze the frequency spectrum characteristics of the signal. Capacitive touchscreens have the same touch patterns as modern mobile tablets
Multifunction: High measuring voltage range, 1X can measure 0~40V, 10X can measure 0~400V, 100X can measure 0~4000V. Up to 12 parameters can be measured: VPP, VP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time+, Time-, Period.Cursor measurement function, convenient for manual measurement of period, frequency and voltage. Trigger function (single, normal, auto), freezes waveform display at any time (pause function)
Specs
-Material: ABS
-Color: Black + White
-Analog bandwidth: 100MHz*2
-Number of channels: 2 channels
-Maximum Real-Time Sampling Rate: 1GSa/s
-Vertical sensitivity: 50mV/div~500V/div
-Horizontal Time Base Range: 50S/div~10nS/div
-Maximum Test Voltage: 40V (1X Probe), 400V (10X Probe)
-Storage depth: 240 Kbit
-Input resistance: 1 M
-ADC precision: 8-bit
-Docking Mode: AC/DC
-Shooting Mode: Simple, Normal, Auto
-Trigger Edge: Rising Edge / Descending Edge
-External Trip Voltage: 0~40V
-Screen: 7 inches – 800*480
-Operation: capacitive touch screen + gesture
-Extension ports: USB image export
-Power Supply: 1 * Lithium Battery, 6000mAh (Included)

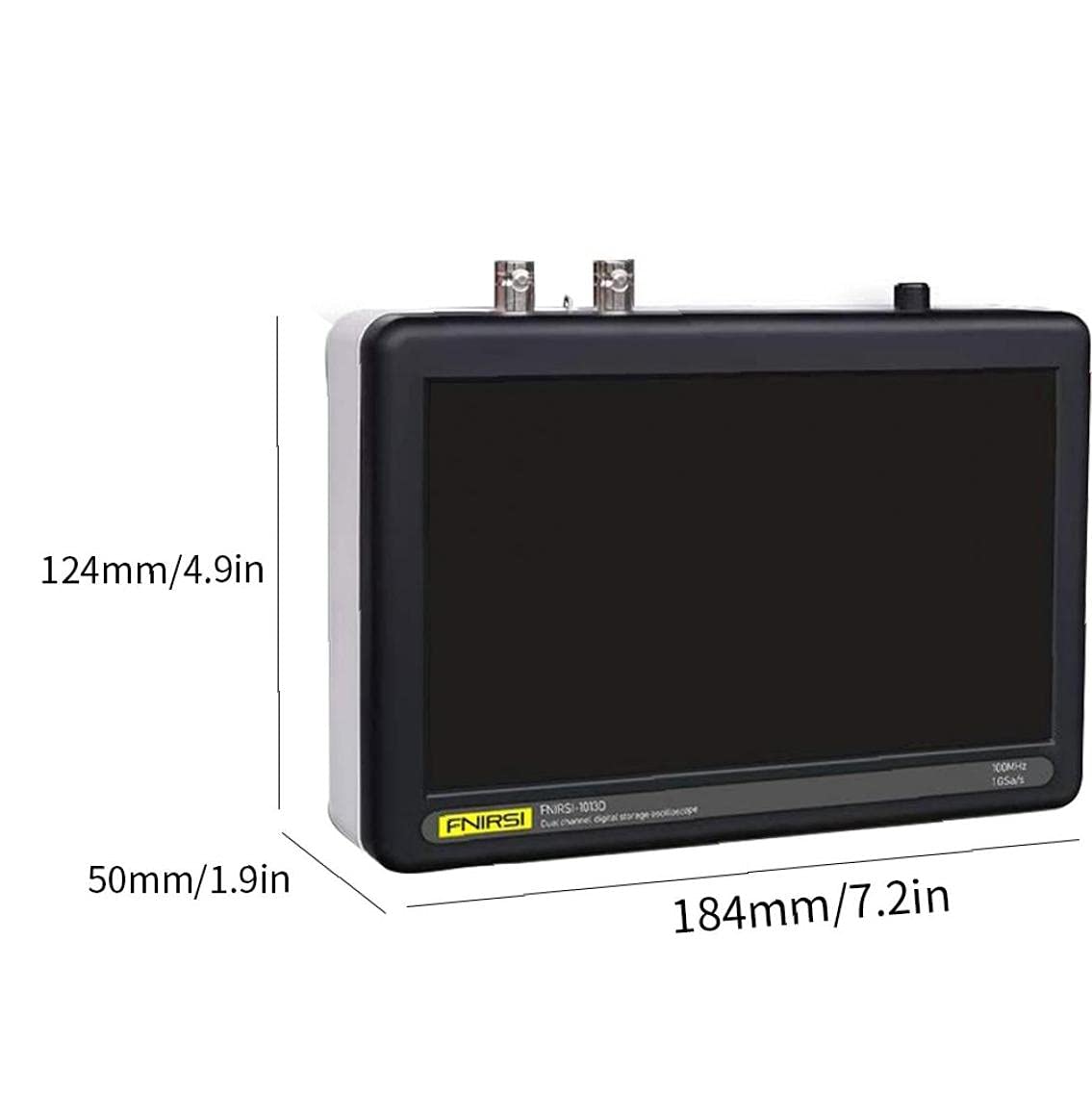

-Item Size: 184*124*50mm/7.2*4.9*2.0in
