Description

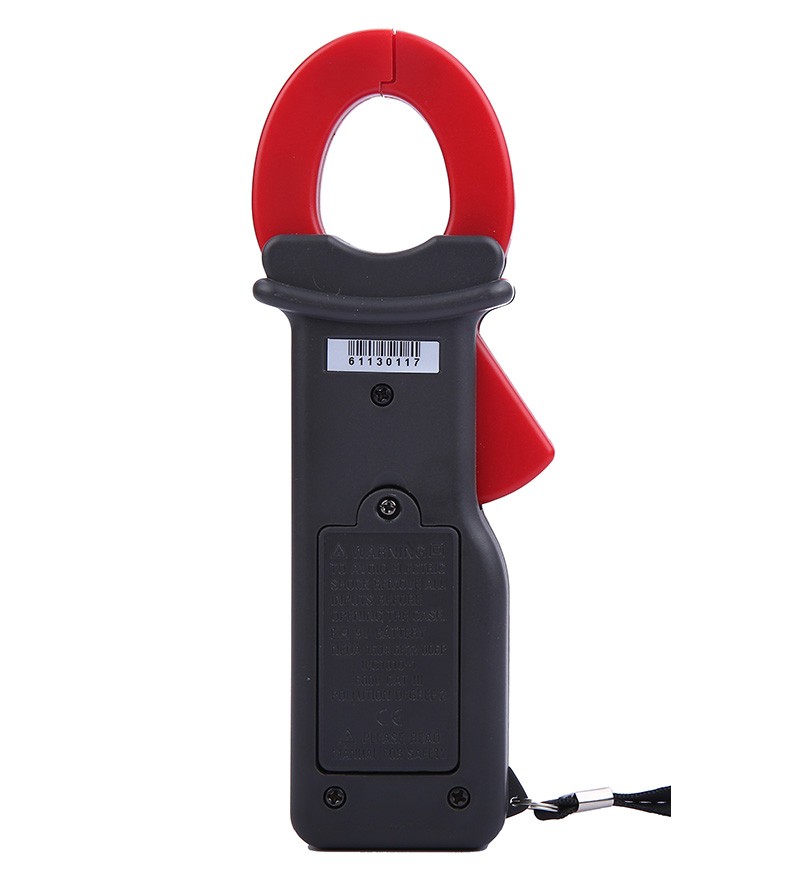

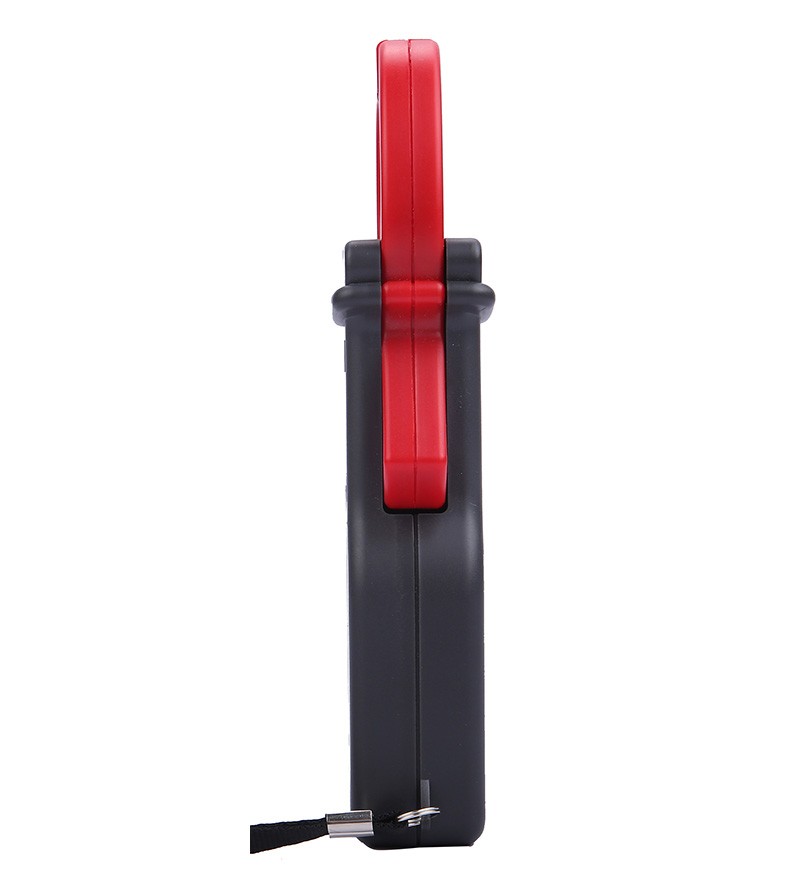

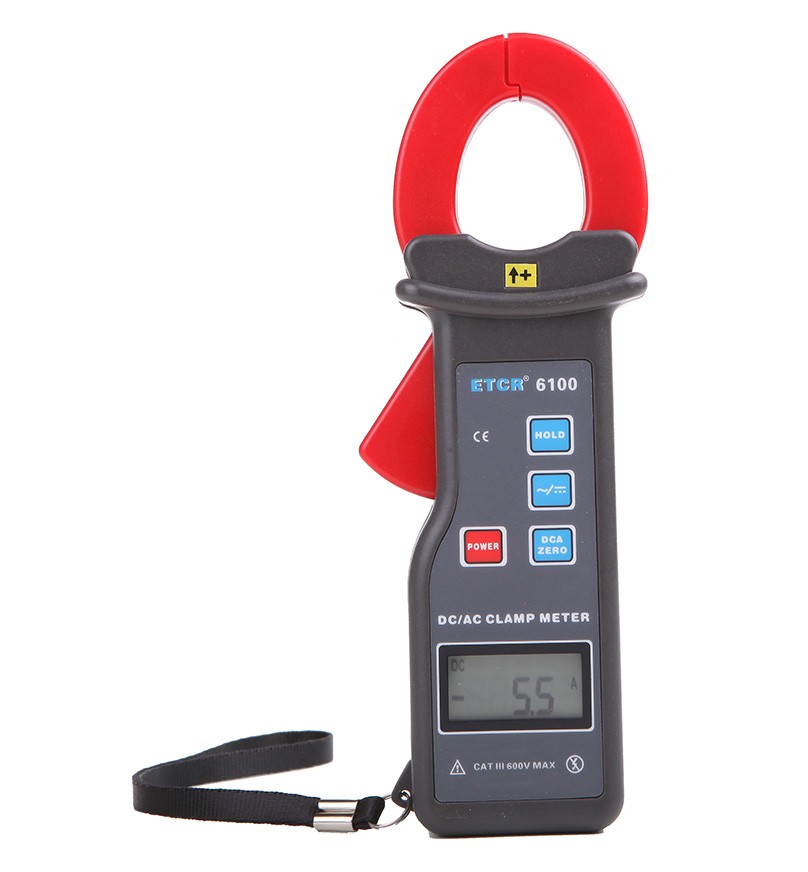

AC/DC clamp current meter ETCR6100 suitable for measuring AC, DC leakage current below 600V, range: AC/DC 0.0A ~ 1000A, CT size: 30mm x 35mm, especially suitable for places with dense flat wire (power measurement system, high-speed rail system, car circuit maintenance, etc.). Non-contact current measurement, safe and simple operation. The instrument is small in size, high precision, stable performance and perfect function, which is one of the necessary tools for electrician safety inspection and maintenance.
The instrument with data retention, data storage and other functions, can store 99 groups of data, the instrument connects the computer by interface, the storage data can be loaded into the computer, it is easy to read, analyze, save, print, etc.
Specs:
-Model: ETCR6100
-Size: CT 30mm x 35mm
-Range: DC/AC 0.0A – 1000A
-Accuracy: ± 2% RDG ± 3DGT
-Resolution: 0.1A
-Meter size: 175mm x 70mm x 38mm
– Weight meter: 200g
-Working current: 10mA
-Measurement function of DC current, AC current, peak hold, online monitoring
– Power supply: 6LR61 9V
-Test Mode Clamp CT, non-contact measurement
-Display Mode: 4-digit LCD display
-LCD Dimension: 35mm x 21.5mm
-Viewing area: 32 mm x 15 mm
-Sampling rate: Approximately 2 times/s
-Frequency: AC 45Hz – 400Hz
-Polar indication Automatic identification for DC current detection, displays “-” symbol
-Cable position: The tested cable should be in the center of the clamp jaw, the clamp with the off-center position will increase the error for a maximum of 1.5% rdg-Switch
automatically-Line
Voltage line measurement: below DC 600V-Software
: Yes, the meter storage data can be uploaded to the computer by software
-Data storage 99 groups, flashing screen FULL symbol indicates that the storage is full, Peak Hold: Maximum value capture and hold function, during the test, press and hold the HOLD key to display the maximum value.
-Data Retention: Data Hold Function: DH
Symbol Display-Overflow Display: Exceeds the Measurement Range Overflow Function: OL
Symbol Display-Auto Power Off: 5 minutes after power on, the meter automatically turns off without any operation to reduce battery
consumption-Battery Voltage: While the battery voltage decreases to around 7.2V, The battery voltage symbol will be displayed under “” and it will remind you to replace the battery.
-Working temperature: -10C~50C, below 80% relative humidity
-Temperature error limit: -10C-0C and 40C-50C, the maximum increase in error is 2% rdg
-Storage temperature: -10C – 60C, below 70% relative humidity
-Insulating Resistance: AC2KV/rms (between core and outer shell)
-Suitable safety standard: IEC1010-1, IEC1010-2-032, pollution, etc. 2, CAT III (600V)
