Description
ICC-500T Programmable CO2 Controller – Inkbird
The Inkbird ICC-500T is a CO2 controller designed to monitor and adjust carbon dioxide levels in environments such as greenhouses, grow rooms, or any space that requires precise environmental control.
The Inkbird ICC-500T Programmable CO2 Controller is a device designed to maintain optimal carbon dioxide levels in greenhouses and other controlled environments. It uses a high-precision NDIR (non-dispersive infrared) sensor, with a measurement range of 0 to 9,999 ppm, allowing accurate monitoring of CO2 levels. Its operation is fully programmable, allowing alarms to be set for high or low CO2 levels and to automate the control of a CO2 generator or fans, with two independent relays to manage these devices.
This controller has an easy-to-use design, with a Plug-and-Play installation, and operates on a 100-240V power supply, compatible with most electrical systems. It is ideal for hydroponics, CO2 enrichment, and other crops that require a controlled environment to maximize plant growth. The ICC-500T is compact, lightweight (1 kg), and its robust plastic design makes it suitable for a variety of working environments, withstanding operating temperatures between 0°C and 50°C.
Key features
Programmable Control:
Allows you to set maximum and minimum CO2 levels, with warning alarms to avoid out-of-range levels.
Plug-and-Play:
Easy to use, with quick installation and intuitive design.

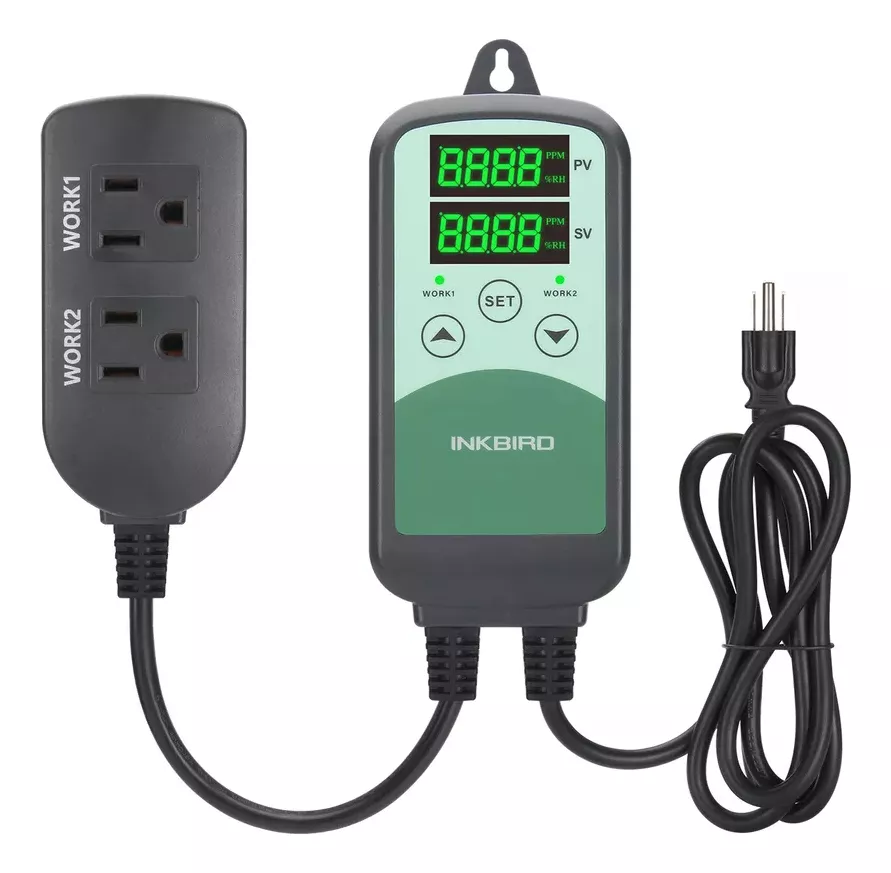

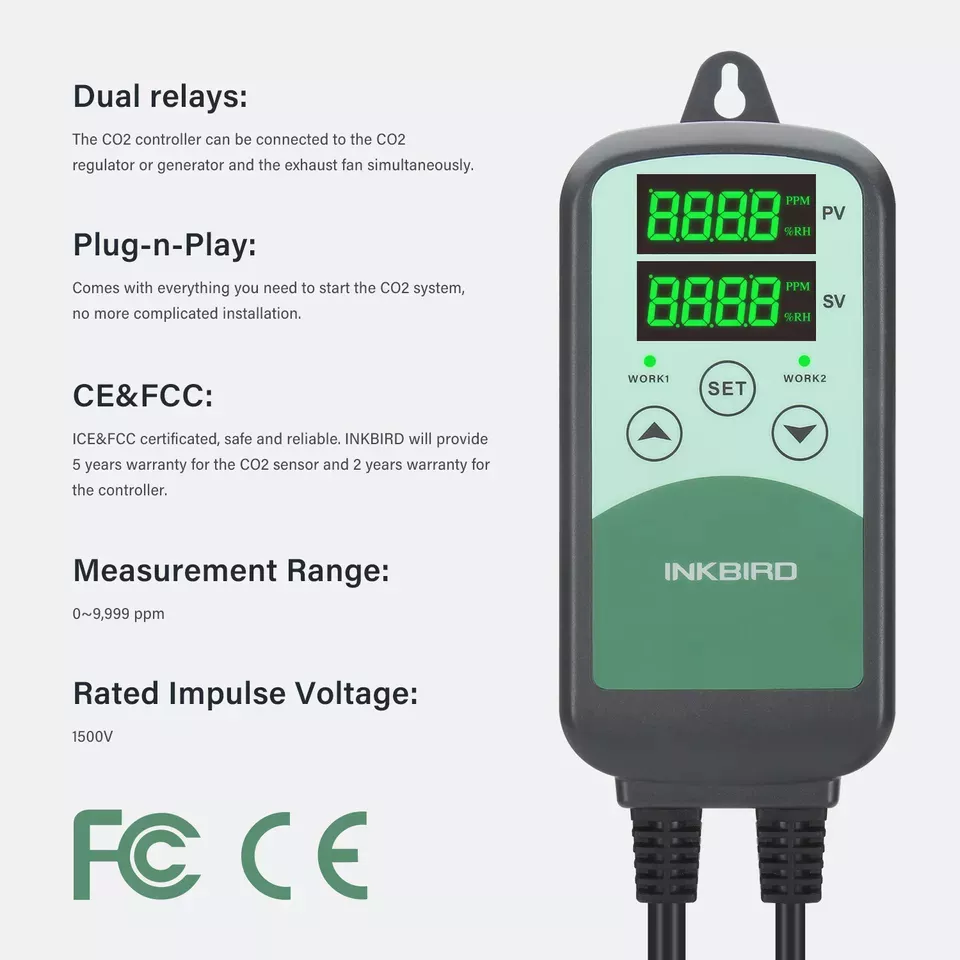

Double Relay:
WORK1: Controls a CO2 generator or regulator.
WORK2: Controls an exhaust fan to maintain environmental balance.
CO2 Controller Digital Inkbird Regulator Monitor Greenhouse Fan Air Ventilation
Digital Inkbird ICC-500T
CO2 Controller Condition and Condition
Item Status: New (unused, in its original packaging).
Model: ICC-500T.
Material: Plastic.
Color: Green.
Item weight: 1 kg.
Technical Specifications
Input/output power:
Input: 100-240Vac, 50/60Hz, 10A MAX.
Output: 100-240Vac, 50/60Hz, 10A MAX.
Measurement range: 0~9,999 ppm.

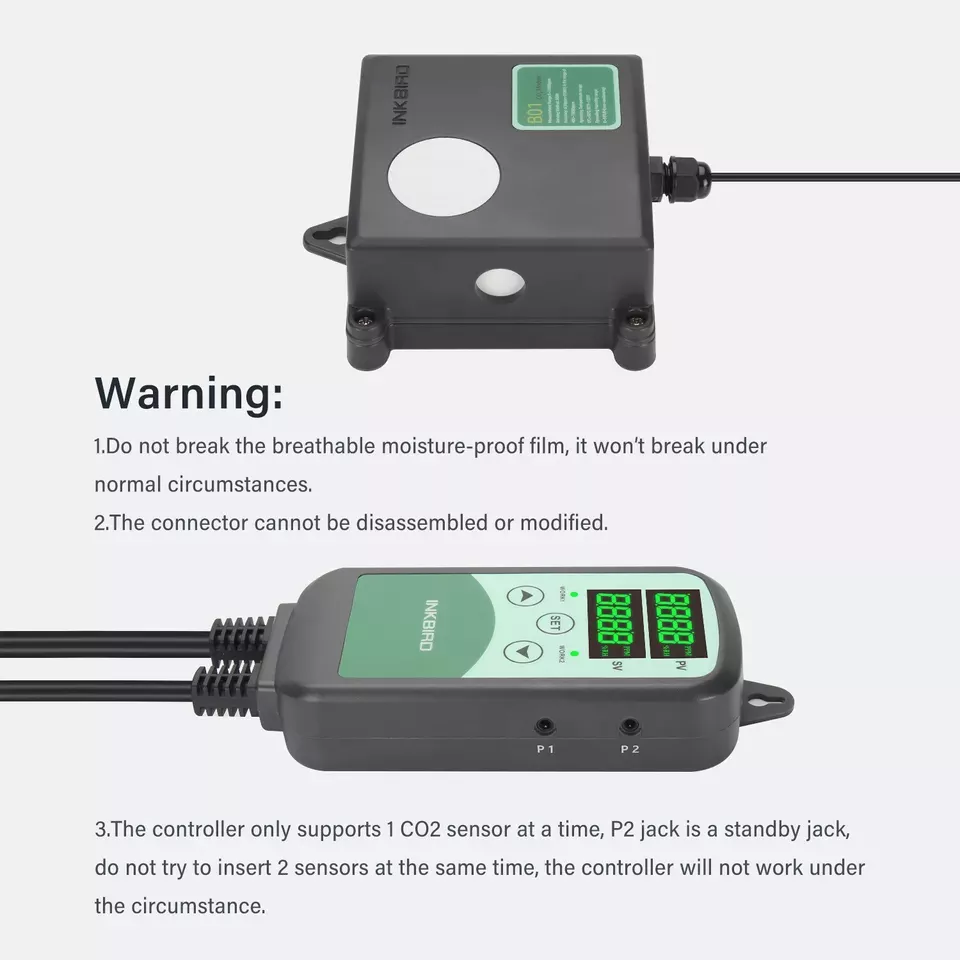

Detection method: NDIR (non-dispersive infrared) sensor.
Working Environment:
Sensor temperature: 0°C~50°C (32°F~122°F).
Room temperature.
Programmable Functional Features
: Includes programming functions for CO2 control, hydroponics and environmental enrichment.
Plug-n-Play: Easy installation and direct use.
Automatic cycles: Up to 6000 operating cycles.
Ventilation system: Compatible with exhaust systems.
Dimensions and Design
Shape: Square.
Applications
Ideal for greenhouses, hydroponics, indoor control, and CO2 enrichment in growing systems.
