Description

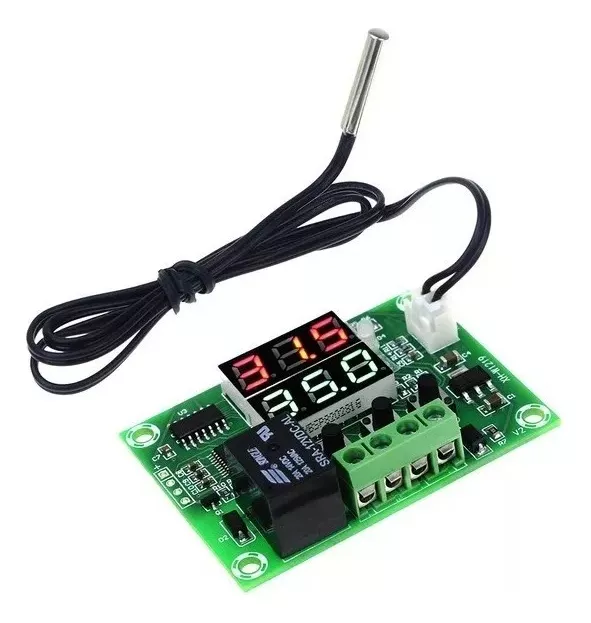

Thermostat temperature controller with Dual LED Digital display, temperature controller, relay control switch, NTC sensor module, XH-W1219 DC 12V.
The XH-W1219 digital controller is a widely used device for temperature control in a variety of applications.
Main features:
LCD display: The XH-W1219 usually includes an LCD display that displays the current temperature and other relevant parameters.
Temperature Sensor: Comes with a temperature sensor that detects the ambient temperature or of a specific environment.
Temperature Control: Allows you to set a desired temperature and control a system to keep it within a predefined range.
Control Mode: You can operate in different control modes, such as constant temperature control, on/off temperature control, etc.
Tuning Functions: Allows you to adjust setting parameters such as target temperature, temperature tolerances, standby times, etc.
Temperature Alarm: It can be equipped with an alarm function that is activated when the temperature reaches certain thresholds.
User interface: It usually has buttons or keys to make it easier to set up and adjust parameters.
Compatibility: It can be used in a variety of applications, such as temperature control in heating systems, refrigeration, incubators, aquariums, etc.
Technical specifications:
Supply voltage: It usually works with a DC power supply in a specific voltage range.
Measurement Accuracy: Specifies the accuracy of the built-in temperature sensor to ensure reliable measurements.
Temperature range: Indicates the temperature range that the device can control.
Output Current: Specifies the maximum current that the device can handle to control the heating or cooling system.
Connections:
Temperature sensor connection: Usually connected via a screw connector or terminal.
Charging connection: Used to connect the device or system to be controlled (e.g., a heater, fan, etc.).
Usage Considerations:
It is important to follow the installation and setup instructions provided by the manufacturer to ensure correct and safe operation.
Appropriate testing and adjustments are recommended to suit the specific needs of the application.
The installation must comply with applicable electrical safety regulations and standards.
Features:
1. Power supply: 12V DC/DC 5V
2. Relay current: <50mA
3. Dimensions: 47*40mm
Instructions:
1. Pay attention to the first use. You need to wait 6s after your configuration data, the module will save the date you have set after 6S.
2. Short Pressure SET Button: If you start the time setting mode, the Nixie tube will flash. You can adjust the T1 and T2 time with the + button and the – button. Please wait after the setup date, the module will save the date you have set after the 5S.
3. Long press SET button: If you start parameter setting mode. There are two groups of parameters for your choice: P0 and P1. You can change P0 or P1 by briefly pressing SET. Under the P0 and P1 parameters, you can set the sync mode with the + button and the – button.
P0–0: Sync mode is from 0 to 999 seconds
P0–1: the time mode is 0 — 999 minutes
P0–2: Synchronization when the pattern is 0 — 999
P1–0: T1 Time Delay Relay (T1 Timer)
: T1 Delay Time Relay Release (T1 Timer)
A: Time delay relay after T1 (T1 timer), then the T2 delay time successor electrical release (T2 timing) ends.
A: The T1 delay time relay is released (T1 timer), then the T2 successor delay time Electric energized (T2 timing) ends.
P1–4: Time delay relay after T1 (T1 timer), then T2 delay time successor electrical release (T2 timer), Repeat cycle.
The T1 delay time relay is released (T1 timer), then the T2 delay time successor is electrically energized (T2 timer), repeats the cycle.
SPECIFICATIONS:
1.Model: XH-W1219
2. Control range: -50~110 degrees Celsius
3. Control precision: 0.1 celsius
4. Measurement input: NTC10K waterproof sensor L=0.5m
5. High temperature alarm: -49~110 degrees Celsius
6. Input voltage: DC 12V
7. Output Type: 10A Relay Output (Max)
8.Return Difference Adjustment: 0.1~30 Celsius
9. Start of delay: 0-10 min
10. Temperature calibration: -10~10 celsius
11. Size: 60*43*16mm
