Description
Features:
Start time: self-test in 0.5 seconds, instant
start Measurement range: 0.01-1200 ohm, wider
range Beep alarm: Yes

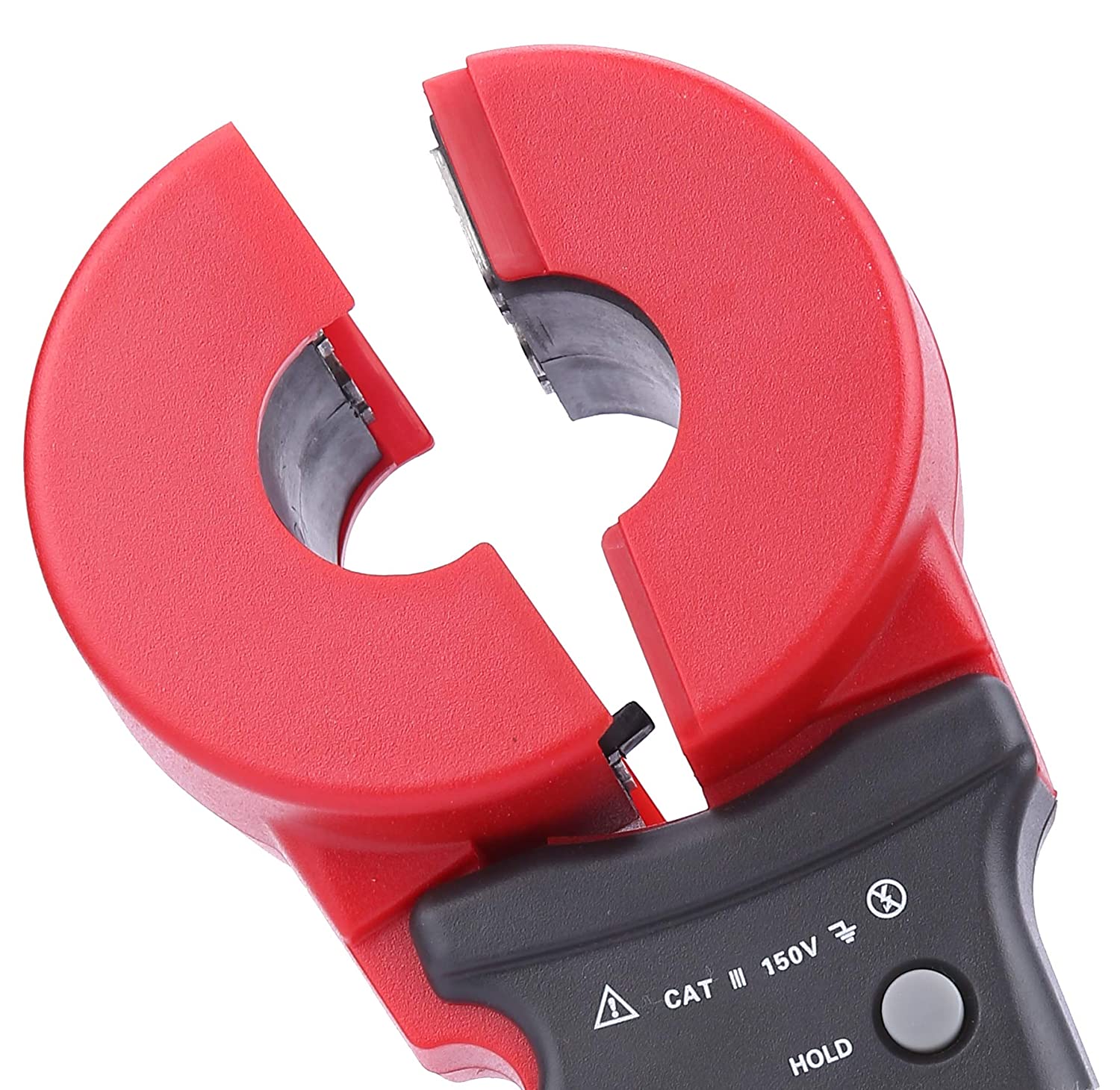

Clamp size: diameter 32 mm
Stored data: 99 sets
Specification:
-Function: Earth resistance test, loop resistance test
-Power supply: 6VDC 4 PCS AA alkaline batteries
-Resistance range: 0.01-1200 ohm
-Resistance resolution: 0.001 ohm-Highest
resistance accuracy: ± 1% ± 0.01 ohm-Data
memory: 99 sets-Alarm
threshold setting range: Resistance: 1-199 ohm-Alarm
sound and light: “beep-beep-beep” alarm tone, alarm symbol -flashing, press the AL key to turn on, turn off the alarm or set the alarm threshold.
-Interference signal recognition: “beep-beep-beep” tone, flashing NOISE symbol
-Working temperature and humidity: -20 C-55 C; 20% RH-90% RH
-LCD Display: 4-digit LCD display, L x W display: 47mm x 28.5mm
-Clamp size: diameter 32mm
-Clamp opening extension: 32 mm
-Tester weight: 1160 g (with batteries)
-Clamp Dimension: L x W x T: 285mm x 85mm x 56mm
-Protection level: double insulation
-Structural Feature: CT Clamp
-Gearbox: automatic transmission
-External magnetic field: <40A/m
-External electric field: <1V/m
-Individual measurement time: 0.5 seconds
-Resistance measurement frequency:> 1 KHz
-Measured Current Frequency: 50/60Hz Automatic Measurement
-Low Battery Indication: Low battery symbol is displayed when the battery is less than 5.3V
-Full memory indication: MEM symbol flashes when the memory of all 99 sets is full
-Over-range indication: Out of range indication “OL ohm”, “L0.01” or “OL A”
-Auto Power Off: Auto Power Off
