Description
A spectrophotometer is an instrument used to measure the amount of light absorbed or transmitted by a sample based on wavelength. It is a tool commonly used in various fields, such as chemistry, biochemistry, physics, and materials science.
The basic operation of a spectrophotometer is based on the Beer-Lambert law, which states that the amount of light absorbed by a solution is directly proportional to the concentration of the substance present in the sample. The spectrophotometer measures the amount of light absorbed by a sample at different wavelengths and provides an absorption or transmittance spectrum.
The instrument consists of a light source, a single-component or multi-component system for selecting different wavelengths of light, a sample sample, and a detector for measuring the intensity of transmitted or absorbed light. The results are shown in a graph called a spectrum, which shows how the sample interacts with light as a function of wavelength.
The spectrophotometer is used in various applications, such as the analysis of chemical components in liquid samples, the determination of concentrations of substances in solutions, the analysis of the composition of food and beverages, quality control in the pharmaceutical industry, among others. It is a very versatile tool and widely used in scientific research and analysis.
ABOUT THIS TEAM:

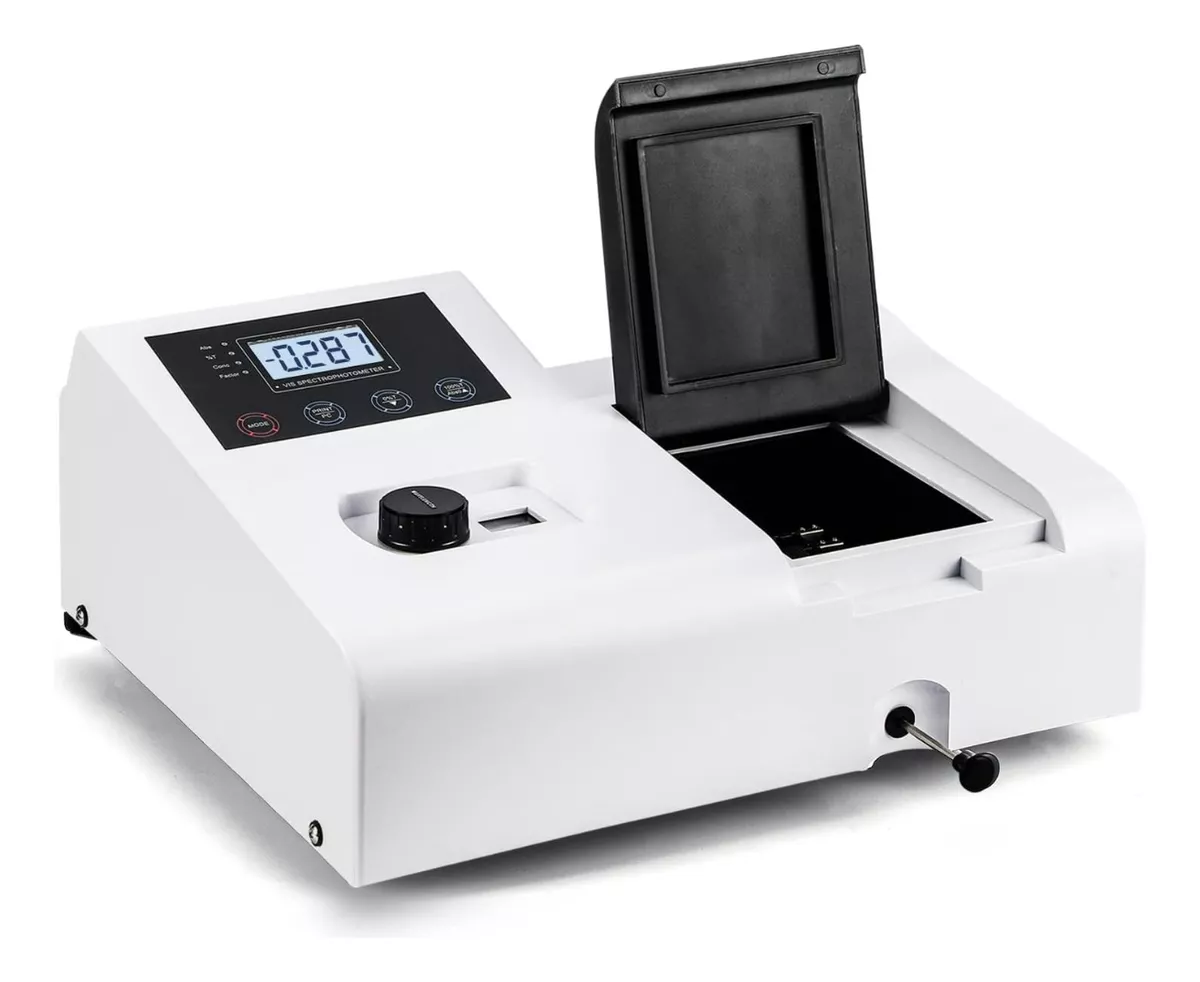

CGOLDENWALL Visible Spectrophotometer 722N, wavelength range 320-1020nm, spectral bandwidth of 4nm, digital LCD, 110V laboratory spectrophotometer with USB and RS232 interfaces, wavelength accuracy ± 2nm.
Technology adopted:
The 722N type spectrophotometer adopts microcomputer processing technology, applicable for material determination and quantitative analysis in visible spectroscopy field. Wavelength range: 12.598-40.157 in. Wavelength accuracy: ± 2nm; Spectral bandwidth: 4 nm
Large Sample Chamber:
The visible spectrophotometer has a large sample chamber that can hold up to 3.9 “of cuvettes, and 4 x 0.4” glass cuvettes included.
Data Output:
This product is equipped with USB and RS232 interfaces, no need to purchase other accessories, it can be directly connected to a printer or PC, making the data output very convenient.
Operating Instructions:
Preheat 30 minutes before use, which will make the measurement data more accurate, then set the wavelength you need, insert blank and set full scale, insert sample and take readings.
Wide Application:
This visible spectrophotometer is suitable for medical, food, petrochemical, environmental monitoring, universities, such as COD testing in water, food nitrite content testing, and other testing of light-permeable solutions.
The adopted spectrophotometer type of 722N technology adopts microcomputer processing technology, applicable for material determination and quantitative analysis in the visible field of spectroscopy.
Large Sample Chamber: The visible spectrophotometer possesses a large sample chamber, which can even accommodate 9.9cm cuvettes
Durable Tungsten Lamp: The instrument adopts a refined tungsten lamp, ensuring the service life of the instrument.
High-precision measurement: The measurement of this spectrophotometer is accurate, reproducible, and stable. There are extremely small errors in the measurement of wavelength and transmittance.
Wide Application: Visible spectrophotometer can be widely applied in medical testing, food, petrochemical industry, environmental protection and monitoring and many other fields.
