Description

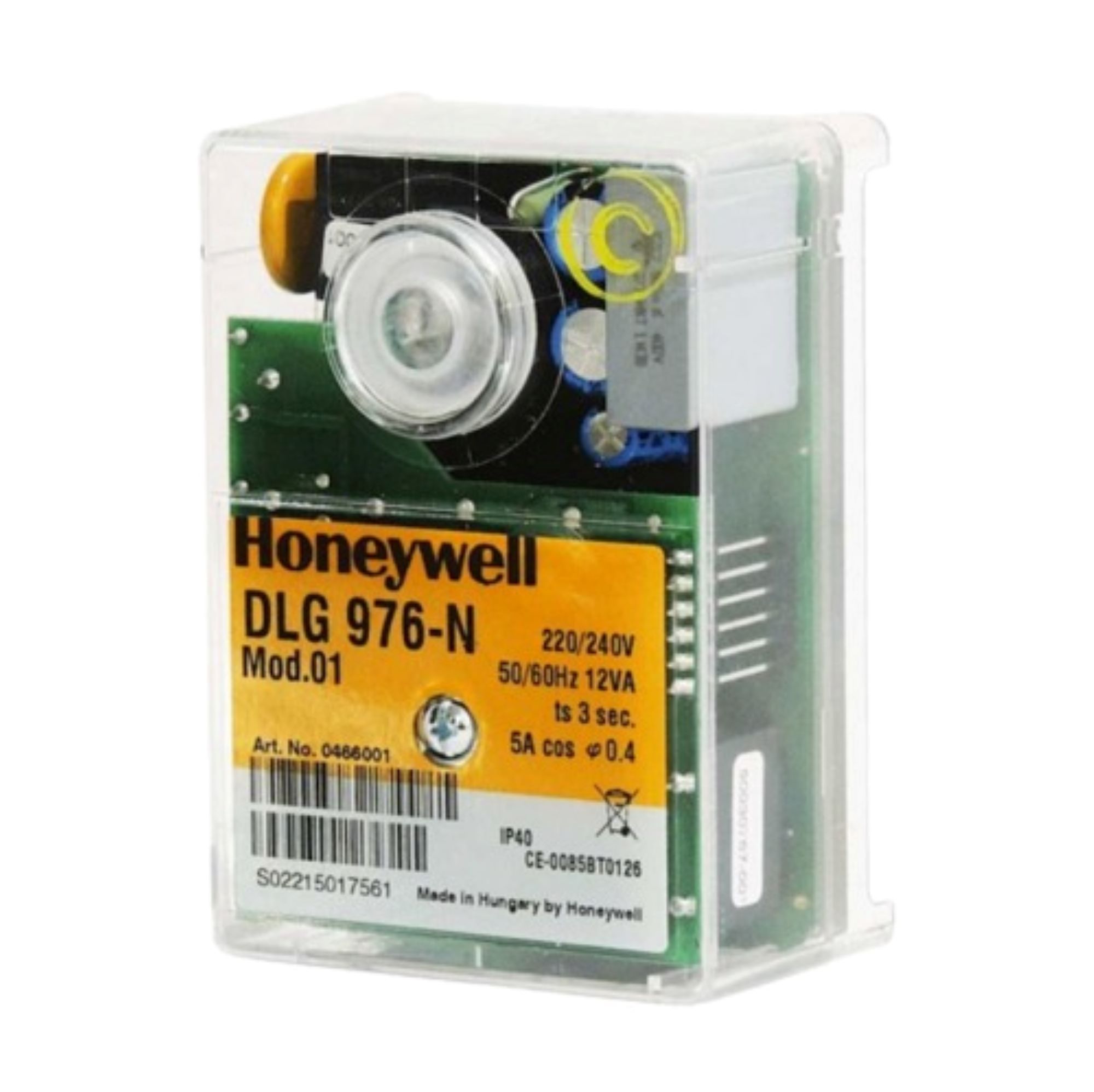

The Honeywell Satronic DLG 976-N flame control is a device used in industrial burner systems and boilers to control and monitor the combustion process. It provides monitoring and safety functions to ensure safe and efficient operation of the equipment.
Control Functions: The DLG 976-N controls the ignition process, flame monitoring, and burner safety sequence. You can manage the ignition and shutdown of the burner as needed to maintain the desired operating conditions.
Flame monitoring: The controller continuously monitors the presence and quality of the flame during burner operation. If it detects an anomaly, such as an unstable flame or no flame, it will activate the corresponding safety protocols to stop the fuel supply and avoid dangerous situations.
User Interface: The DLG 976-N can have a user interface that allows operators to monitor burner status, view alarms, and adjust operating parameters as needed. This interface can consist of buttons, LED indicators, or a digital display, depending on the model and configuration.
Compatibility: This flame controller is compatible with a variety of industrial burners and boilers, making it suitable for a wide range of applications in different industries, such as the petrochemical industry, food processing, among others.
Safety and Compliance: Complies with relevant regulations and safety standards to ensure safe and reliable operation of the burner system. In addition, it can have advanced diagnostic features for easy maintenance and troubleshooting.
Electrical and Communication Connections: The DLG 976-N can be equipped with different types of connectors and communication ports to integrate with other control and monitoring systems in the plant.
Technical data:
Operating voltage: 220 / 240 V (-15… +10%) 50 / 60 Hz (±5%) or 110 / 120 V (-15… +10%) 60 Hz (±5%)
Fuse Rating: 10 A fast, 6 A slow
Power consumption: approximately 12 VA
Maximum load per output:
Terminal 3, ignition transformer: 1.5 A, power factor 0.2
Terminal 4, motor: 2.0 A, power factor 0.4
5+6 terminals, solenoid valves: 1.0 A, power factor 0.4
Terminal B, Alarm Indicator: 1.0 A, Power Factor 0.4
Total Load: 5.0 A, Power Factor 0.4; max. 20 A for 0.5 seconds
