Description

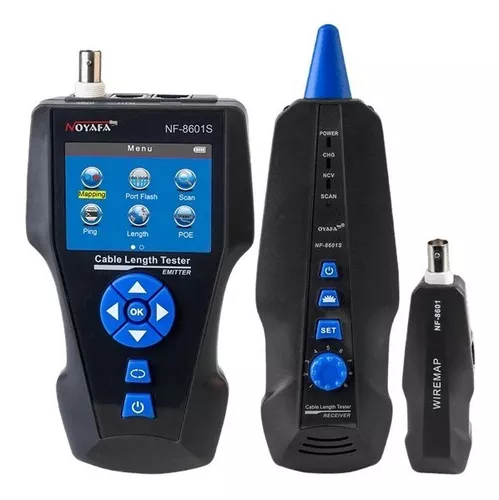

This Tester is a multifunctional cable tracker, including cable transmitter and receiver. It has functions such as telephone cable tracking, network cable tracking, power cable tracking, network cable control, etc. and produces fast and accurate measurements. It is a necessary testing tool for Telecommunications Engineering, Cabling Engineering and Network Maintenance person.
Features:
New digital signal design with strong interference and no noise, easy and convenient to operate.
TDR theory to measure cable length and provide distance to fault information.
It provides complete cable testing in different categories of network, coaxial, or telephone cable.
Tone tracking cable with full AC interference rejection, much easier than other trackers in the markets.
With PING & POE test and calibration functions.
Large color LCD screen for easy reading.
With NCV non-contact induction boom function.
50 data log storage groups and data transmission function.
Low battery indication and automatic shut-off function, rechargeable lithium battery for more efficient work.
Specifications:
Material: ABS
Screen: 2.8 inch color LCD screen (effective visible area 60x45mm).
Cable types: STP/UTP cat5e, cat6, cat6a, cat7 network cable, telephone cable, coaxial cable and common metal cables connected with alligator clip.
Test Device Interface: Main Unit: RJ45(M), RJ45(S), POE/PING, RJ11, BNC ports. Remote Identifier: RJ45, RJ11, BNC
Ports Range: 1~1500m
Calibration Accuracy: 2%(± 0.5m or ± 1.5ft); (50m calibration> cable)
Measurement accuracy: 3%(± 0.5 m or ± 1.5 ft)
Display unit: meters, feet, yards
Working temperature: -10 / + 60 C°
Operating humidity: 20% / 70%
Integrated lithium battery: emitter: 1*3.7 V 1800mAh; Receiver: 1*3.7V 1800mAh
Transmitter Size: Approx. 17.3×9.2×3.4cm/6.81×3.62 x inches
Receiver Size: Approx. 18.3×5.8×3.5cm/7.2×2.28 x inches
Adapter Size: Approx. 10.6X3.2×3.0cm/4.17×1.26 x inches
Transmitter weight: Approx. 207g/7.32 oz
Receiver weight: Approx. 120g/4.24 oz
Adapter weight: Approx. 37g/1.32 oz
Package weight: Approx. 776g/28.38 oz
Package size: Approx. 27.2x20x9.3 cm/10.7×7.9 inches
