Description

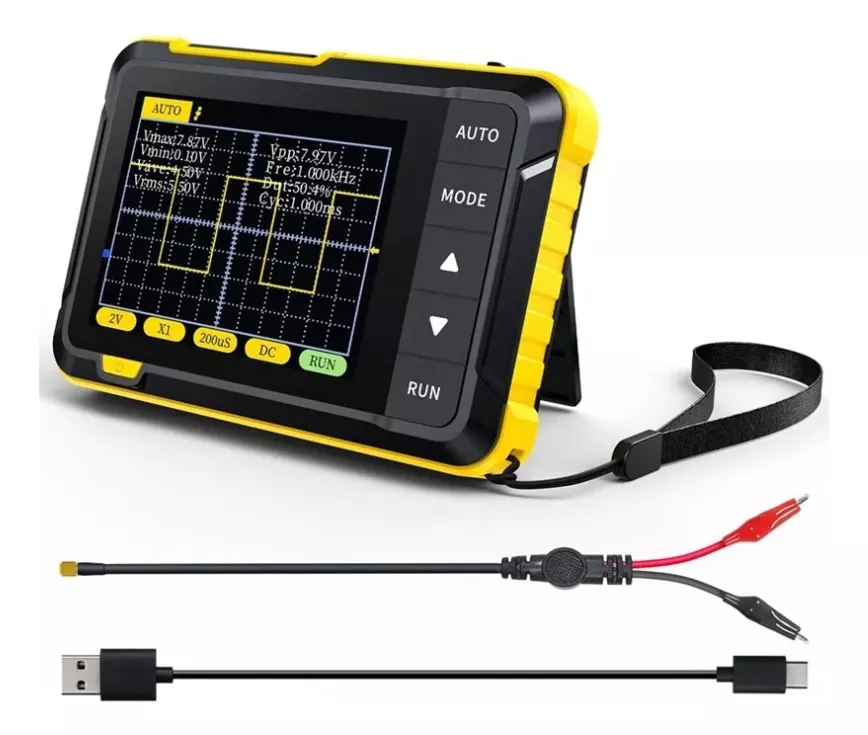

Portable digital oscilloscope FNIRSI DSO152 MIni portable digital oscilloscope 200 KHz
Features
Real-time sampling rate of 2.5 MS/s, bandwidth of 200 kHz.
Full range of trigger functions (single, normal, automatic), for both periodic and non-periodic signals.
Measurement of non-periodic analog and digital signals.
Voltage signal measurement up to ±400V.
Equipped with a highly efficient AUTO button, no need for cumbersome adjustments to display measured waveforms.
1 KHz calibration square wave, easy to calibrate the probe.
Light body, to get rid of heavy equipment problems.
Applicable to a variety of occasions, easy to take to work.
Specs
Model No.: DSO152
Sample Rate: 2.5 MS/s
Bandwidth: 200 kHz
Vertical sensitivity: 10 mV/Div – 20 V/Div (per progression of 1-2-5)
Base Time Range: 10 us/Div – 50 s/Div (scaling from 1-2-5)
Voltage Range:
X1: ±40V (Vpp: 80V)
X10: ±400V (Vpp: 800V)
Shooting Mode: Auto, Regular, Single
Docking Mode: AC/DC
Display: 2.8 inches, resolution 320 x 240 PPI
USB charging: 5V/1A
Interface: Type-C
Lithium-ion battery capacity: 1000mAh
Square Wave Calibration:
Frequency: 1 KHz
Duty cycle: 50%
