Description
Photometer for Reducing Sugars in Wine

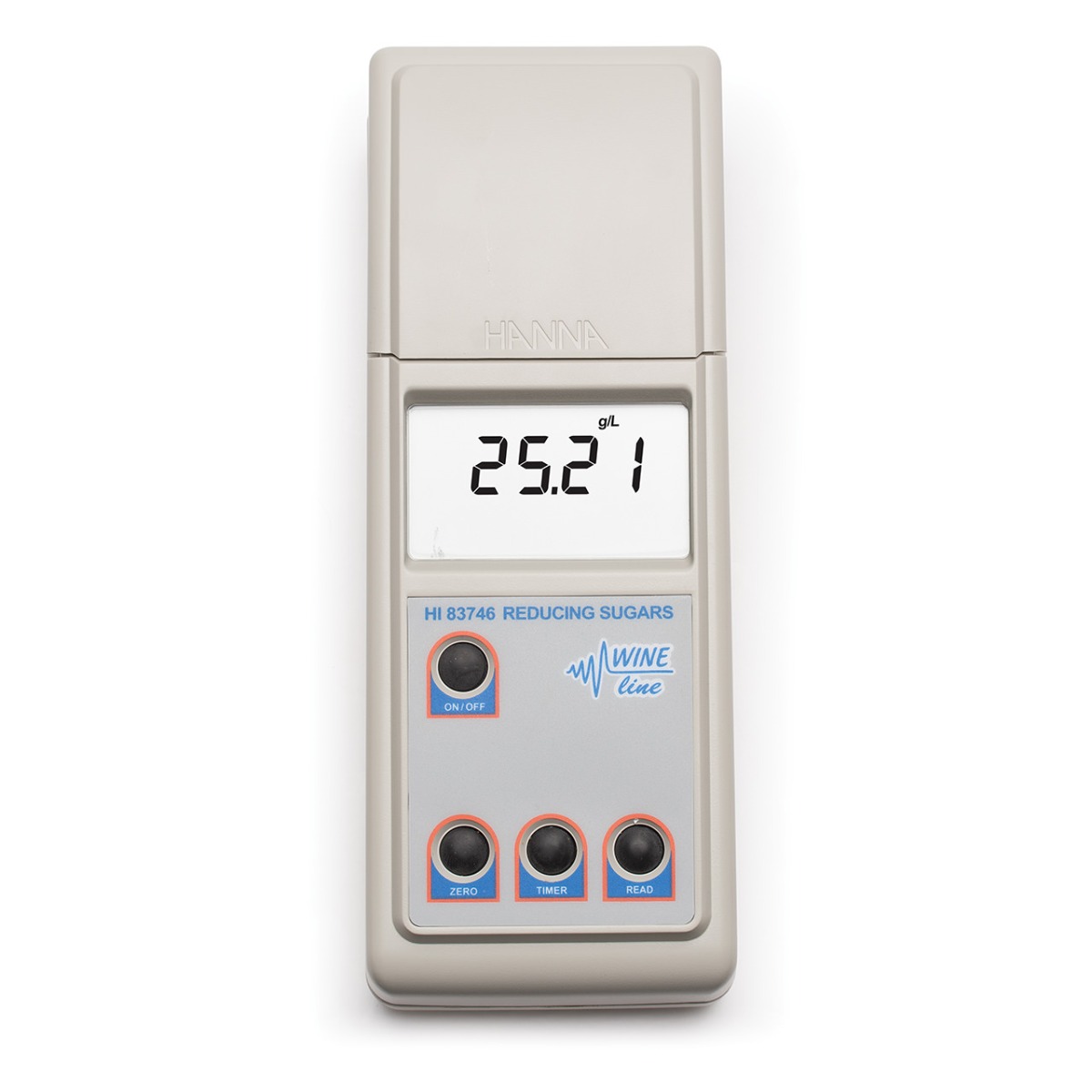

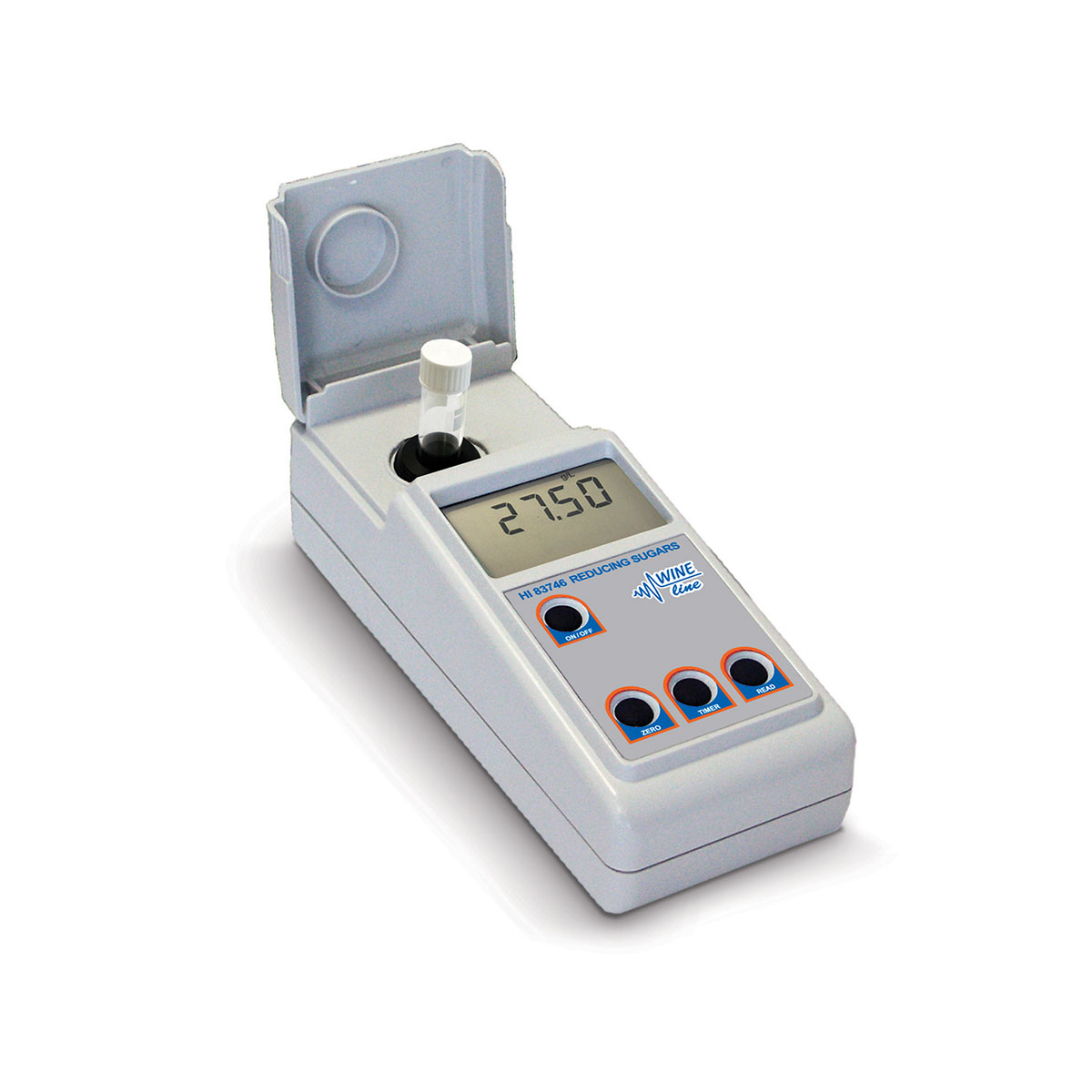

The HI83746 is a Photometer for Reducing Sugars in wine that combines precision and ease of use in an ergonomic and portable design. The user can accurately determine the concentration of reducing sugars in wine within a range of 0.00 to 50.0 g/L (ppt) using the reagents prepared to use HI83746-20.
The HI83746 is a photometer for the determination of reducing sugars in wine. Hanna’s photometers feature an advanced optical system, the combination of a special tungsten lamp, a narrowband interference filter, and a silicon photodetector ensures accurate photometric readings every time. The unique cuvette locking system ensures that the cuvette is inserted into the measuring cell always in the same position to maintain a uniform path length.
General Features
Built-in Timer – Display of the time remaining before taking a measurement. It ensures that all readings are taken at the appropriate reaction intervals for the test being performed.
Zero Key – A simple press of the zero key on the front of the meter will report color and imperfections in the wine sample before adding the reagent.
Auto Off – Auto shut-off after 15 minutes of inactivity when the meter is in metering mode. Prevents wasted batteries in case the meter is accidentally left on.
Battery Status Indicator – Indicates the amount of battery life.
Error Messages – On-screen messages alerting you to problems including no light, inverted display, and out of range.
Units of Measurement – The appropriate unit of measurement is displayed along with the reading.
Specs:
Reducing Sugars Range: 0.00 to 50.00 g/L (ppt)
Reducing Sugars Resolution: 0.25 g/L
Reducing Sugars Method: Fehling Method
Accuracy: ±0.50 to 10.00 g/L
Light Source Photometer/Colorimeter: Tungsten lamp with narrowband interference filter at 610 nm
Light Detector Photometer/Colorimeter: Silicon Photocell
Display: Liquid Crystal Display (LCD)
Power Supply: 1.5V AA batteries (4) or 12 VDC adapter
Battery Type/Duration: 1.5V AA Batteries
Auto Shut-Off: Automatic shut-off after 15 minutes of inactivity
Ambient: 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Weight: 512 g (18 oz)
Dimensions: 224 x 87 x 77 mm (8.8 x 3.4 x 3″)
