Description

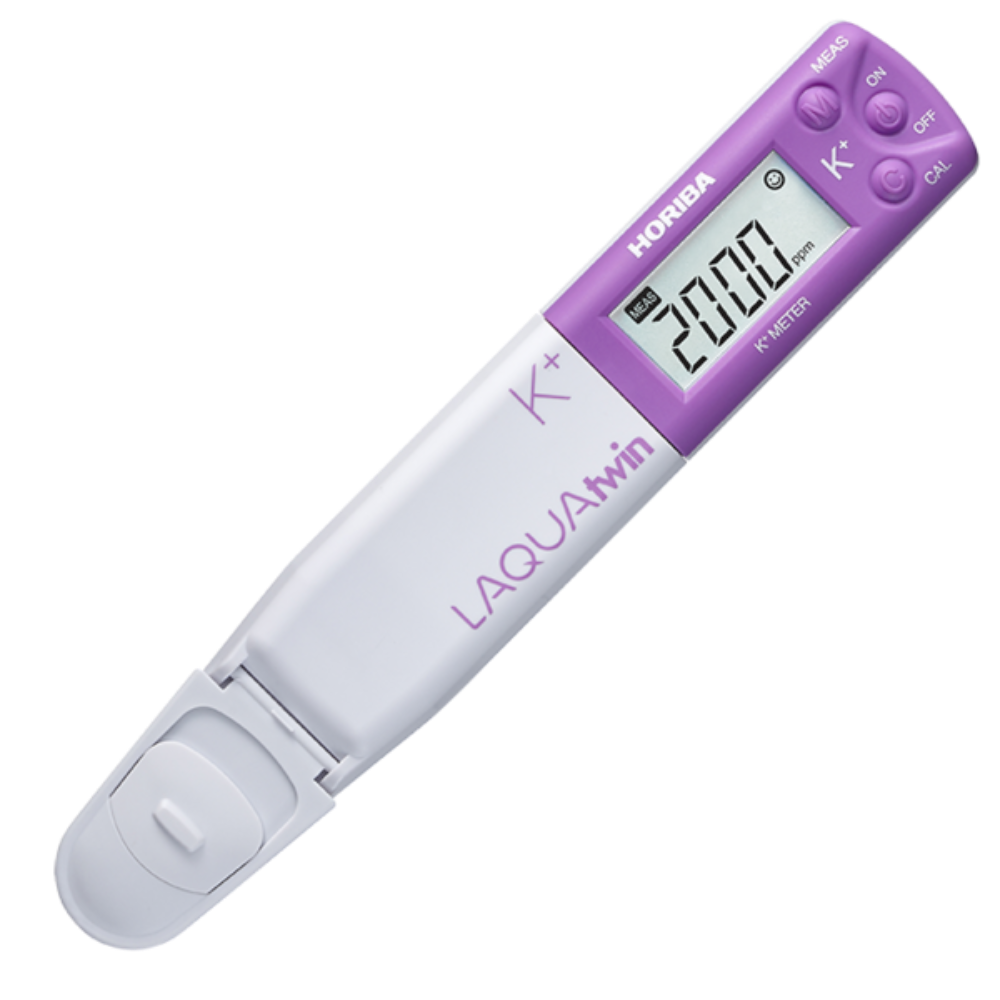

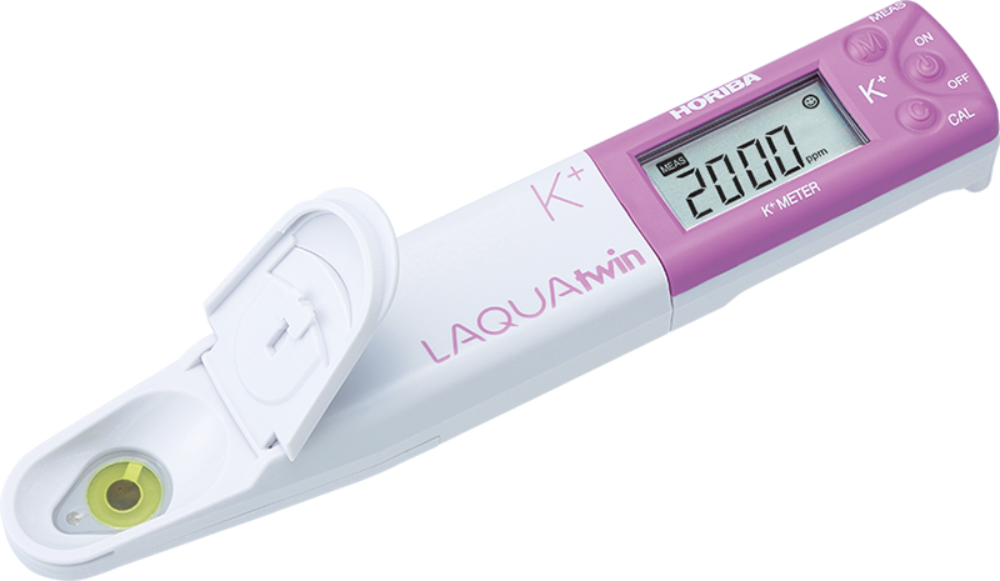

LAQUAtwin-K-11 Potassium Meter
LAQUAtwin-K-11 is a waterproof potassium meter with a large backlit LCD display. This equipment incorporates a flat ion electrode, unique in the world, designed with the latest HORIBA technology for micro-volume measurement.
The replaceable electrode makes use of the same measurement principle as the traditional potassium ion selective electrode (ISE); however, K-11 requires only a few drops (0.3 ml) to provide a fast and accurate analysis.
The potassium concentration of a solid sample can be easily assessed by placing the sample directly on the sensor. Measurements can also be made of samples such as liquids, pastes and powders.
On the other hand, K-11 can be used as a traditional potassium meter by immersing the electrode in a liquid. Finally, an absorbent paper allows us to analyse micro samples from 50 ul.
The wide measuring range of 4 to 9900 ppm (0.1 to 250 mmol/L) allows high concentrations to be measured without the need for dilution. The LAQUAtwin-K-11 does not use reagents.
The LAQUAtwin-K-11 potassium meter is reliable and very easy to use. It takes only a few seconds to give a result, making it an ideal instrument for analysis in the field.
LAQUAtwin meters are perfect for laboratory professionals and field technicians. This tool can be useful for decision-making when carrying out quality inspections, as it provides an immediate assessment of potassium concentration in many applications.
Some uses of the LAQUAtwin-K-11:
Food quality control, soil testing and plant sap analysis (to evaluate fertilization efficiency and crop nutrition), health monitoring.
Soil analysis (evaluation of the concentration of nutrients in the soil).
Plant sap analysis (to assess fertilization efficiency and crop nutrition).
Food analysis (fish, meat, vegetables…).
Saliva analysis.
Features
•Minimum sample volume 0.3 mL (0.05 mL with sampling paper B)
-Measuring range from 4 to 9900 ppm (0.1 to 250 mmol/l)
-Display of potassium, mV and temperature
values-Automatic calibration at 1 or 2 points-Automatic
recognition of calibration solution: 150 and 2000 ppm-Adjustable
calibration point-Temperature
calibration-Automatic temperature
compensation-Stability function and “auto hold”
function-Auto Power Off (30 minutes)
-Low Battery
Indicator-Waterproof and Dustproof (IP67)
-Replaceable
Sensor-Backlit
Display-Battery Life: Up to 400 Hours in Continuous Use Without Backlight
FUNCTIONS:
• Automatic calibration
solution recognition• Adjustable
calibration point values• Temperature
calibration• Automatic
temperature compensation• Dilution
compensation function• Waterproof (IP67)
• Stability function and “auto hold”
function• Backlit
display• Automatic shut-off (30 minutes)
• Low
battery indicator• Replaceable sensor
SPECS:
Model No.: K-11
Measuring Principle: Ion Selective Electrode Method
Minimum sample volume: 0.3 mL or more (0.05 mL with sample sheet B)
Measuring range:
4 to 9900 ppm (mg/L)
0.1 to 250 mmol/L
2 to 5000 kg/10a
Resolution:
-From 0 to 99 ppm: 1 ppm-From
100 to 990 ppm: 10 ppm-From
1000 to 9900 ppm: 100 ppm
Accuracy: ±10% of the reading
value Calibration points: one point or two points (selectable and adjustable).
Temperature display: from 0 to 50.0 °C
Temperature calibration: from 5 to 40°C
Display: customizable digital LCD (monochrome)
Operating temperature: From 5 to 40°C
Operating humidity: 85% or less relative humidity (non-condensing).
Power supply: CR2032 batteries (x 2)
Battery life: Approx. 400 hours in continuous
use Main material: Epoxy ABS
Dimensions: 164 mm × 29 mm × 20 mm (not including protrusions)
Weight: Approx. 50 g (meter only, without batteries)
