Description

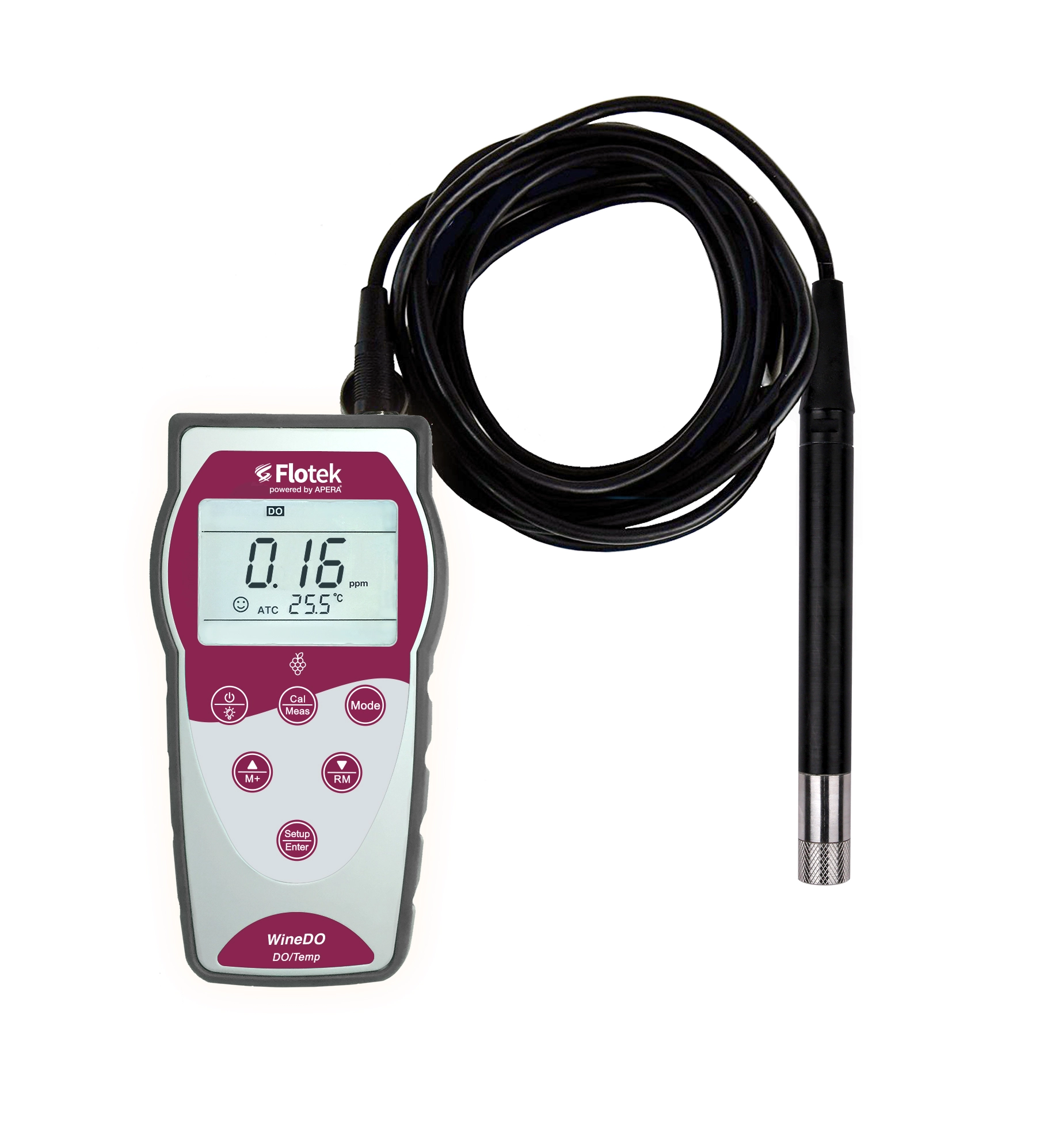

FloTek WineDO Optical Dissolved Oxygen Meter Kit
This state-of-the-art instrument is designed for your wine industry with an algorithm specific to red and white wine alike, ensuring an ultra-fine DO sensitivity measurement range of 0 to 2 ppm. (Scalable over the full saturation range.)
Luminescent
Optical DO Sensor-Stability and Accuracy: No oxygen is consumed during measurements. It is not affected by the sample flow rate and therefore provides a stable measurement.
-Easy to use: there are no electrolytes or membranes in the meter; Frequent calibration is not necessary.
-Interference-free: The sensor cover is coated with a protective layer against light and minimizes the impact of external light sources. The use of non-chemical sensors helps reduce a variety of heavy metal ion interference in the aqueous environment, along with H2S and NH4 and other chemicals.
-Long service life. Apart from mechanical deterioration (such as scratches on the light protection layer), the sensor cover has up to 8000 hours of service life.
-Easy to calibrate and maintain. The probe is equipped with a calibration/storage sleeve, which makes calibration and maintenance more convenient and reliable.
Intelligent
Instrumentation-Built-in microprocessor chip, featured with Auto. temperature compensation, Auto. Air pressure compensation, parameter adjustment, automatic. Low power off and reminder.
-The meter meets the requirements of international LPG standards, clock display, manual storage and automatic timing storage. USB data output.
-Stable reading and auto-lock modes available.
-LCD screen with white backlight.
-Meets IP57 waterproof rating; In addition, a sturdy carrying case is provided.
Dissolved
Oxygen-Dynamic Range: (0-20.00) ppm (mg/L), (0-200.0)%
-Resolution: 0.01/0.1 ppm (mg/L), 0.1/1%
-Accuracy: ± 2% of reading or ± 0.2 mg/L, whichever is greater//± 2% of reading or ± 2% of saturation, whichever is greater-Response
Time: ≤ 30s (25°C, 90% response)
-Calibration Points: Saturation Point and Zero
Oxygen-Temperature Compensation: automatic, (0 to 50) C-Pressure
compensation: automatic, (60 to 120) kPa-Salinity
compensation: manual or automatic, (0 to 45) ppt
Temperature-Range
: (0 to 50.0) C-Resolution
: 0.1C-Accuracy
: ± 0.5C
Other-Data
storage: 500 groups (with date and time)
-Output: USB-Batteries
: AA x 3 (1.5 V × 3)
-IP rating: IP57-Dimensions
and Weight: Meter: 88 × 170 × 33 mm / 313g With case: 360 × 270 × 76 mm / 1.3kg
