Description
A pH/ORP controller is a device used to measure and monitor pH (hydrogen potential) and ORP (oxidation reduction potential) levels in various applications, such as chemistry, water industry, aquaculture, and other industrial processes. Here’s a brief overview of what a pH/ORP controller does:
pH Measurement: The pH/ORP controller uses a pH electrode to measure the pH level in a solution. pH is a measure of the acidity or alkalinity of a substance and is important in many chemical and biological processes.
ORP Measurement: ORP (Oxidation Reduction Potential) is a measurement that indicates a solution’s ability to oxidize or reduce chemicals. It is also measured using an ORP-specific electrode.
Automatic Control and Adjustment: The controller is designed to keep pH and/or ORP levels within specific ranges. When values deviate from the desired ranges, the controller can trigger chemical reagent dosing systems (such as acid or base) to adjust the pH, or trigger other control processes as needed.
Display and settings: pH/ORP controllers typically have a display that shows the measured values and allows operators to configure desired ranges and control settings.
Applications: These controllers are used in a variety of applications, from monitoring and controlling swimming pools and water treatment systems to industrial processes that require specific chemical conditions.
Importance: Maintaining adequate pH/ORP levels is essential in many applications, as changes in these parameters can affect water quality, the efficiency of chemical processes, and the health of living organisms in aquatic systems.
ABOUT THIS TEAM:

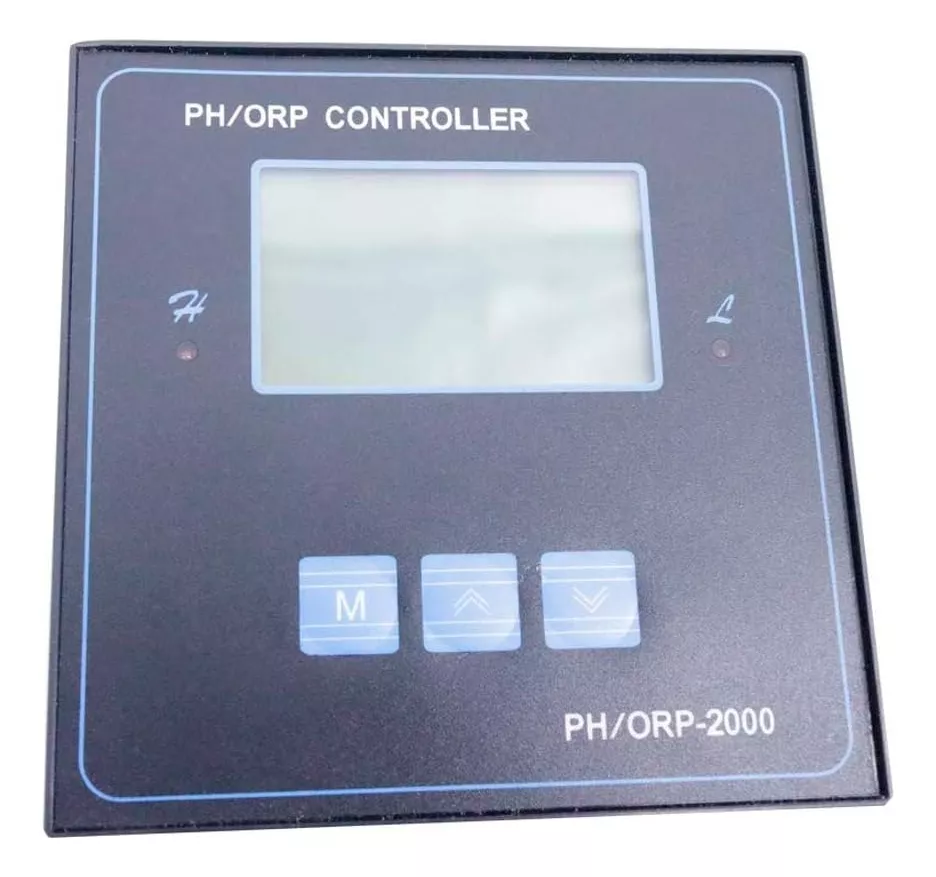

Tongbao PH-ORP-2000 PH Controller/ORP-2000 PH Portable PH Meter ORP Controller
Measurement range: 0 – 14 pH/1 mV. -1000-1000 mV.
Output: DC4-20mA optional, max, 1k load.
The operating instructions should be read and understood by the people involved before starting work with the pH/ORP controller.
Control action: maximum on/off 220 VAC/max3 A/max600 VA.
Specs:
Range: 0 – 14 PH / 1 mV, -1000 – 1000 mV.
Resolution: 0.01 PH 1 mV.
Screen: LCD.
Output: Optional DC 4 to 20 mA, 1 K maximum load.
Control action: on/off.
Current: 220 V AC max. 3 A or 600 VA.
Control set: 2 (high, low).
Operating temperature: 0 to 140.0 °F.
Power supply: 220 V AC, 50 Hz/110 V AC, 60 Hz.
BATTERIES NOT INCLUDED IF DEVICE REQUIRES IT
