Description

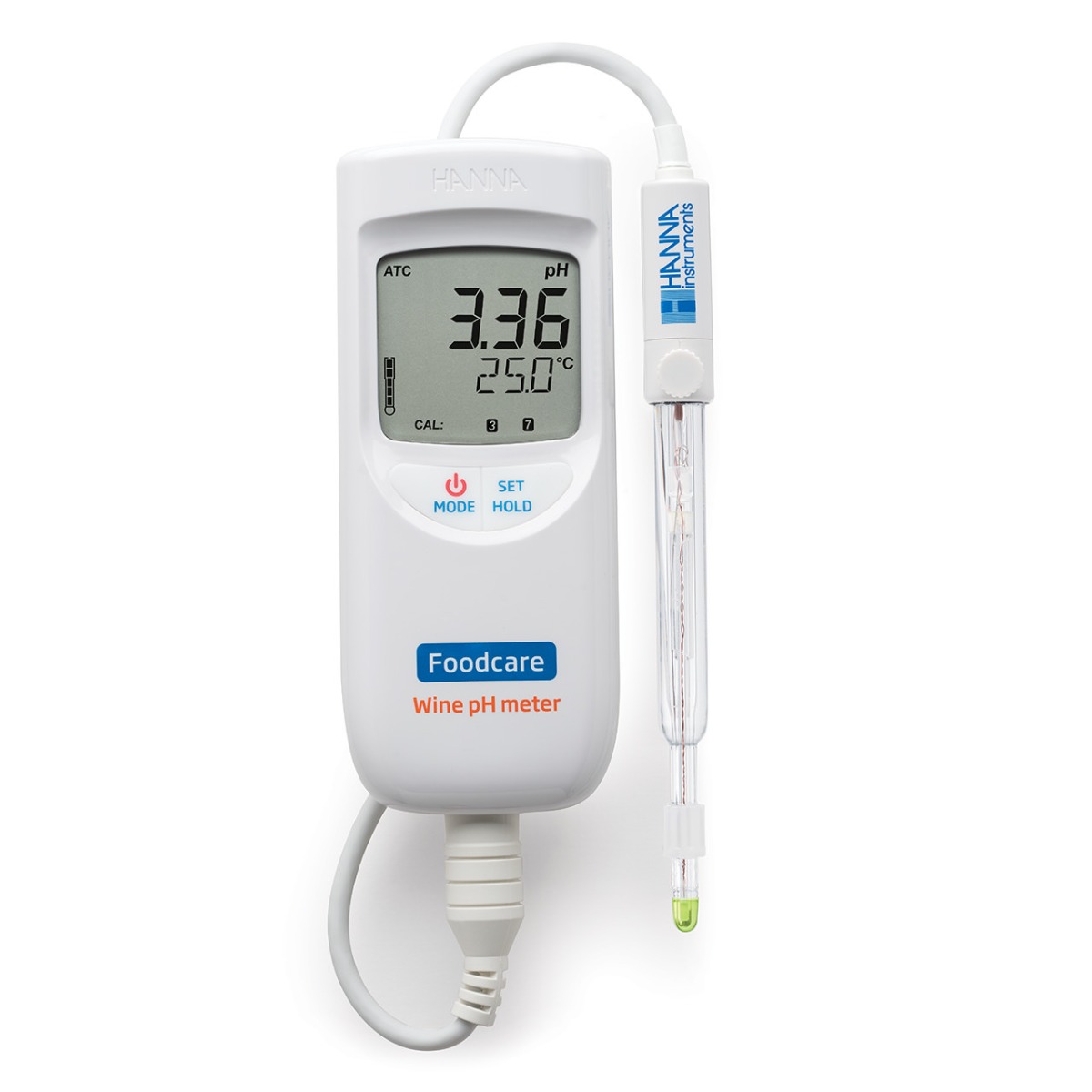

The Hanna Instruments HI99111 is a durable, waterproof and portable temperature and pH meter designed specifically for the measurement of juices including grape juice and must. Automatic calibration is performed at one or two points with two sets of solutions. Calibration standards include a calibration point of pH 3.00 instead of pH 4.01 to improve the expected pH value. All calibration and measurement readings are automatically compensated for temperature variations. The split-level LCD display displays pH and temperature readings, along with indicators of reading stability, battery percentage, and calibration instructions. The HI99111 uses the glass-bodied FC10483 amplified pH electrode that offers numerous features that enhance pH testing for a variety of juices with a high solids content.
General Features
Waterproof-The
HI99111 is a waterproof meter with an IP67 rating for immersion in up to one meter of water for 30 minutes.
Automatic Calibration
—One- Two-point calibration is automatic for two sets of selectable solutions.
Automatic Temperature Compensation
—An integrated temperature sensor allows for automatic temperature compensation of pH measurements.
Multi-Level

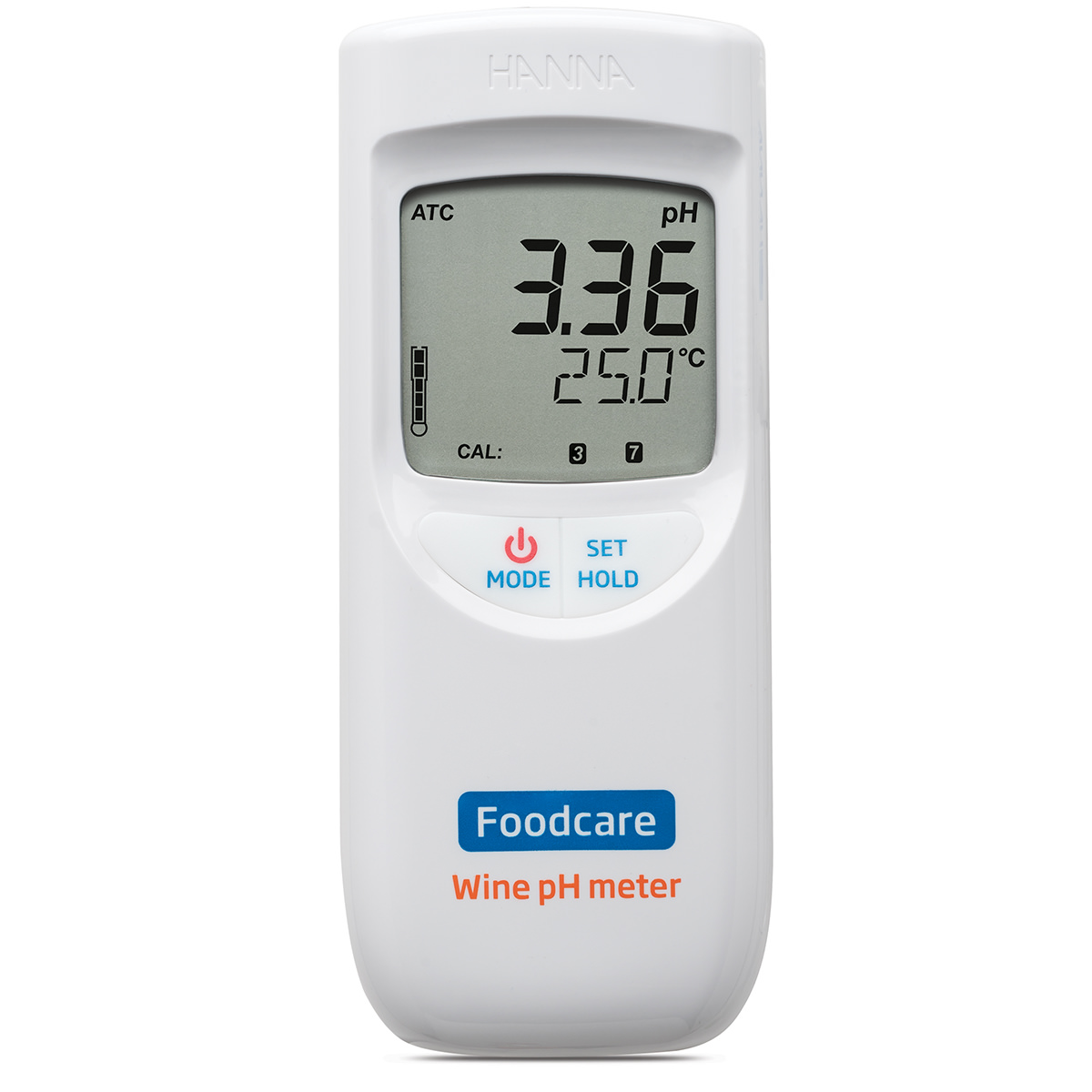

LCD Display-The split-level LCD display displays pH and temperature readings, along with indicators of reading stability, battery percentage, and calibration instructions.
On-Screen Tutorial-Clear
tutorial messages and instructions are available on the screen to quickly and easily guide users through setup and calibration.
Battery
Error Prevention System-The meter will automatically shut off if there is not enough power to get an accurate measurement.
Battery Life Indicator
– The battery percentage level is displayed at startup, alerting the user to the remaining available battery charge.
Specs:
-pH range: -2.00 to 16.00 pH; -2.0 to 16.0 pH
-pH resolution: 0.01 pH; 0.1 pH
-pH accuracy: ±0.02 pH; ±0.1 pH
-pH calibration: Automatic, one- or two-point with two sets of solutions (standard 3.00, 7.01, 10.01 or NIST 3.00, 6.86, 9.18)
-pH Temperature Compensation: Automatic from -5.0 to 105.0ºC (23 to 221ºF)
-CAL Check pH (Electrode Diagnostics): Probe Condition Indicator
-mV range: ±825 mV (pH-mV)
-mV Resolution: 1 mV (pH-mV)
-mV accuracy: ±1 mV (pH-mV)
-Temperature Range: -5.0 to 105.0°C / 23.0 to 221.0°F
-Temperature Resolution: 0.1°C / 0.1°F
-Temperature Accuracy: ±0.5°C (up to 60°C); ±1.0°C (outdoor) / ±1°F (up to 140°F); ±2.0°F (Outdoor)

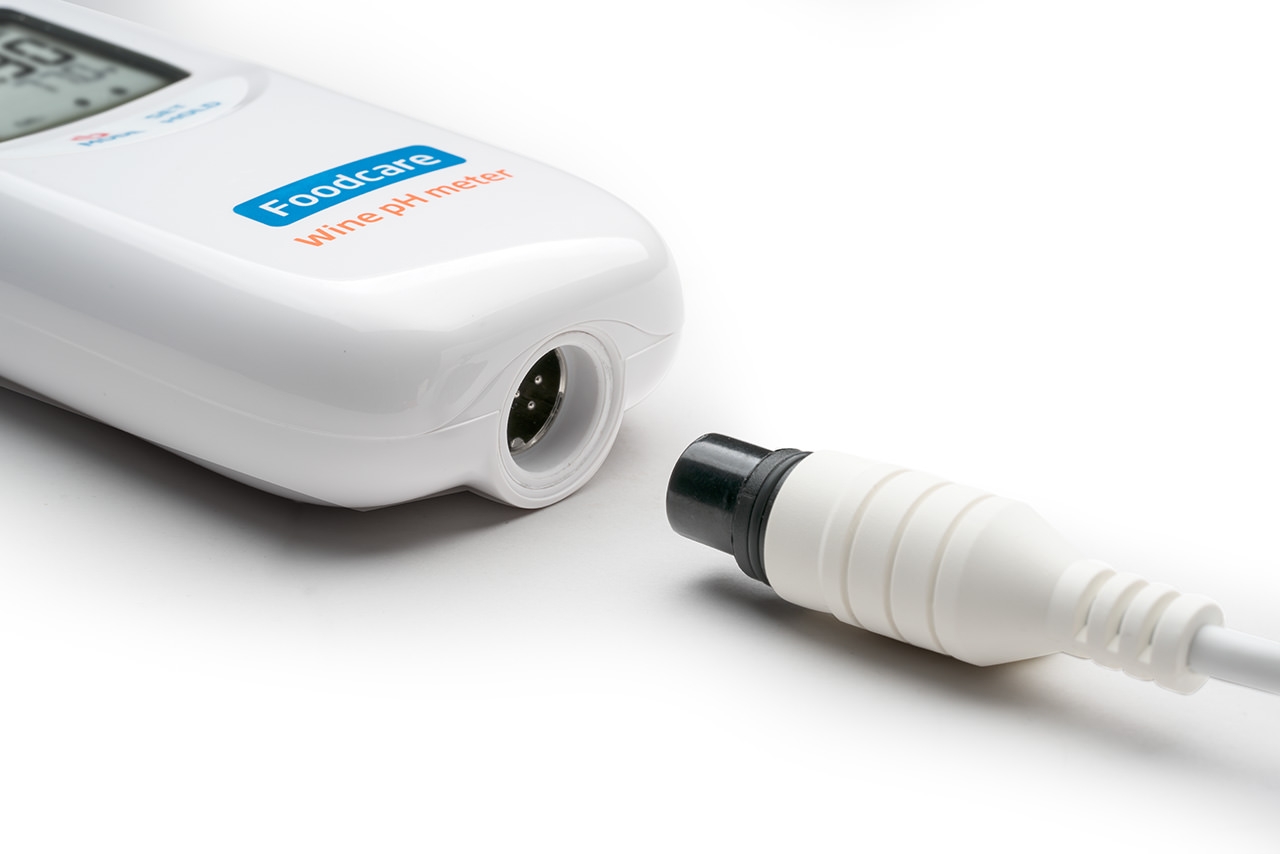

-pH Electrode: Pre-amplified pH probe FC10483 with internal temperature sensor, quick-connect DIN connector and 1m (3.3′) cable (included)
-Auto Power Off: User selectable: after 8 min, 60 min or off
-Battery Type/Duration: 1.5V (3) AAA / about 1200 hours of continuous use; Automatic shut-off after 8 minutes of inactivity
-IP Protection: IP67
-Ambient: 0 to 50°C (32 to 122°F); Max HR 100%
-Dimensions: 154 x 63 x 30 mm
-Weight: 195 g
