Description

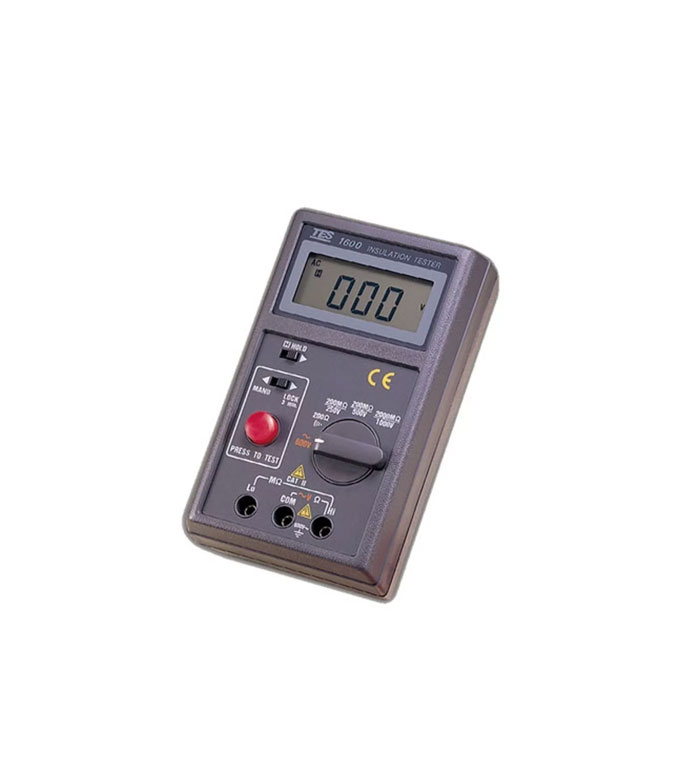

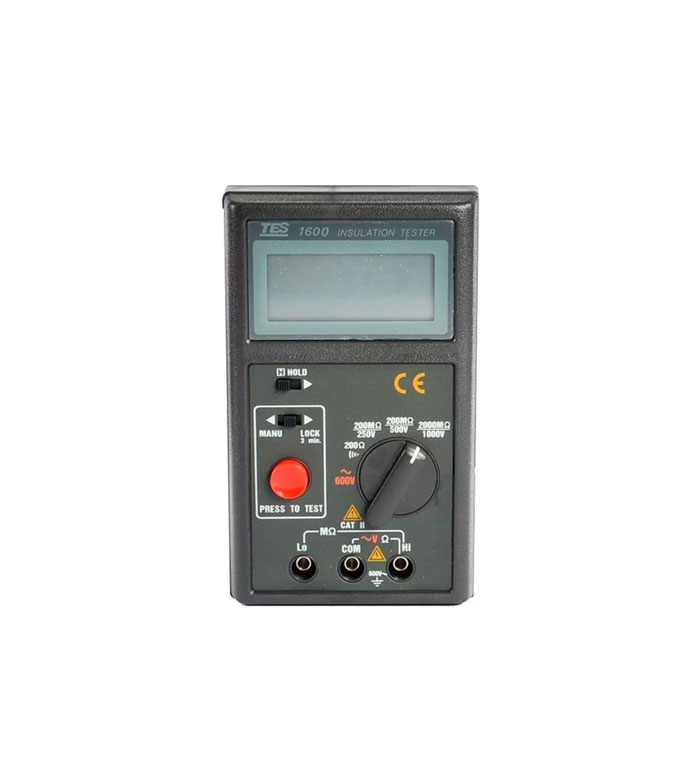

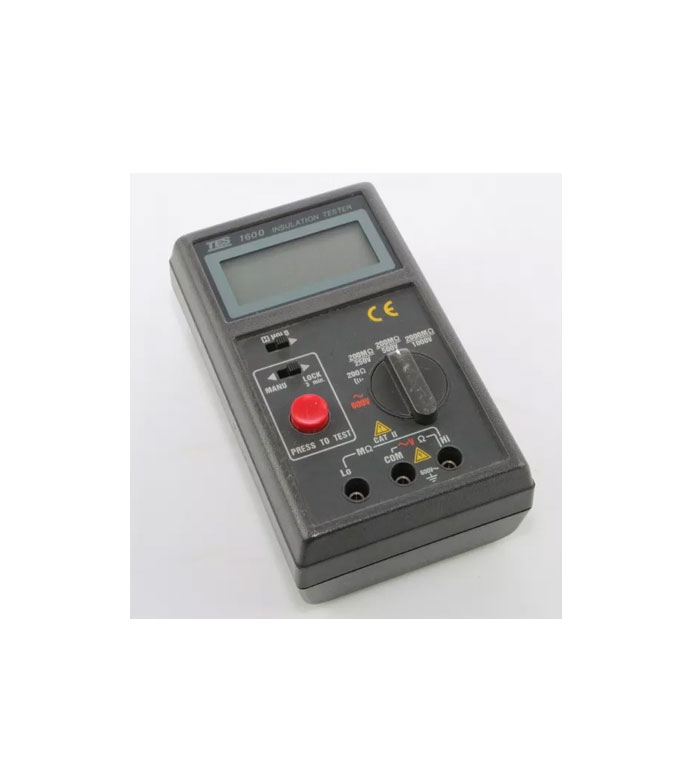

Insulation Meter Easy to obtain digital readout via a 0.65″ LCD screen.
Automatic unit and sign announcement.
Easy to select rotary switch.
The power lock switch (3 minutes) simplifies measurement.
The “Pager” Continuity,
Battery Operated/Overcharge Protection.
Display
0.65″ LCD
Height Maximum Indication 1999
Sampling
Rate 2.5/sec
Time Zero
Adjustment Automatic
Adjustment Operating Temperature? And Storage
Environment: 0¿ to 40¿ <80% do right away!
¡-10¿ to 60¿ <70% make it right away
Power supply 6 “AA” 1.5V batteries.
AC Voltage Range: 750V
Resolution: 1V
Accuracy: 0.8% rdg 3 dgts
Input Impedance: 10MO
Overload Protection: 1100VDC & 800VAC MEG OHMS MEG OHMS
Range: 200MO/250V, 200MO/500V, 2000MO/1000V
Resolution: 0.1MO
Accuracy: 3% rdg 3 dgts
Terminal Voltage: 250V~1000V/-10%
Short Circuit Output Current: 0.4mA/0.9mA/1.7mA Max
Operation/Registration Conditions: 0o C to 40o C < 80%R.H. -10o C to 60o C < 70% R. H. OHMS
Range: 200O
Resolution: 0.1O
Accuracy: 1% rdg 2 dgts
Max open circuit Voltage: 3.3V
Overload protection: 500V DC/AC
Continuity Resolution 0.1O
Resistance Range: < 100O
Max open circuit voltage: 3.3V
Overload protection: 500V DC/AC
Power Source: 6pcs “AA” 1.5V batteries
Display: 3 1/2 digit, 0.65¿ LCD
Sampling Rate: 2.5 times/sec Auto-Zero adjustment Size & Weight: 165mm(L)x100mm(W) x57mm(H) & 500g
