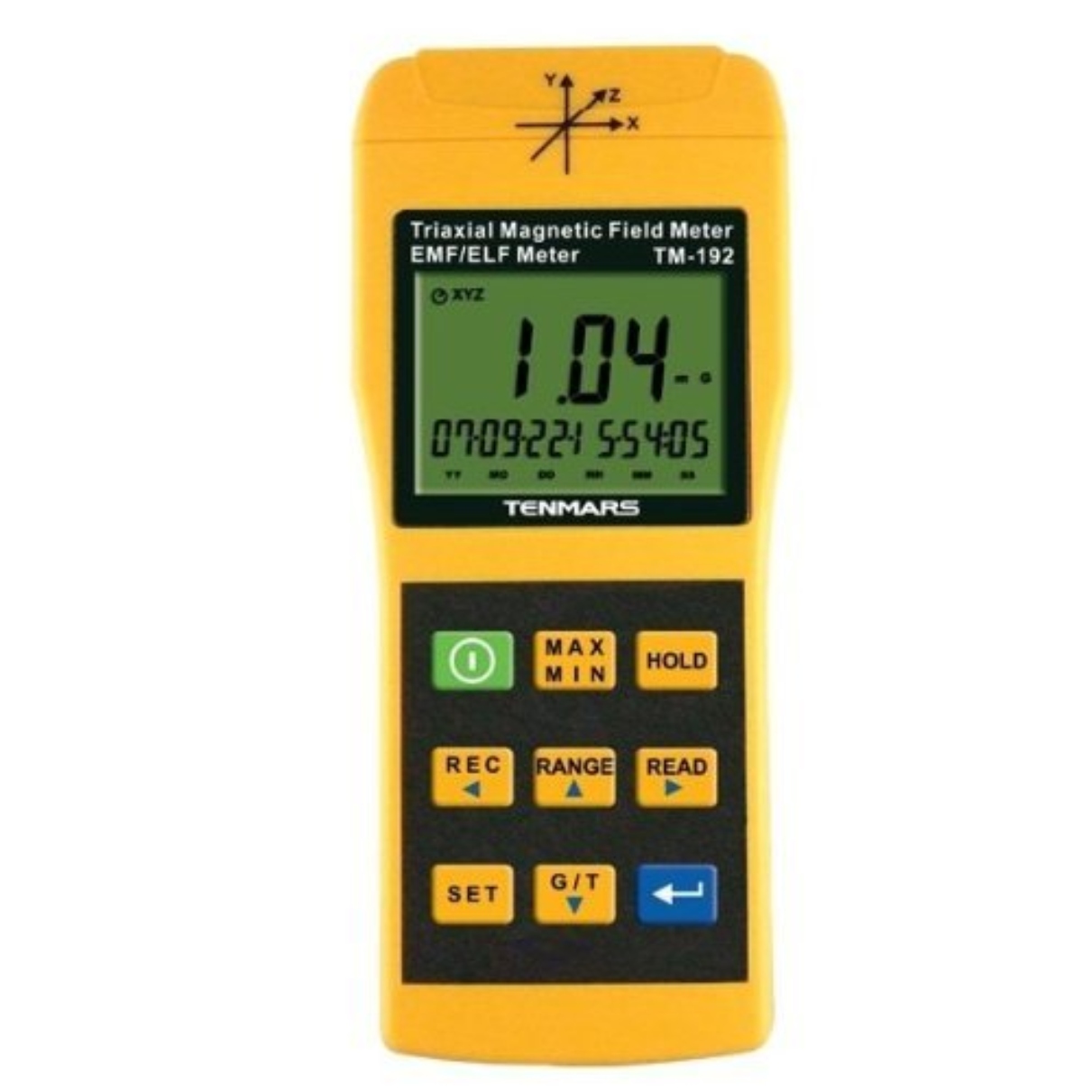

Description
Features:
• MAX/MIN/AVG readout.
• Switch between micro-tesla and milli-gauss display is available.
• Data Hold (Hold)
• Maximum and minimum hold (Max/Min).
• Low battery level indicator.
• Overload indication.
• Auto Range.
• Self-feeding.
• Real-time clock with calendar.
Applications:
• LCD casing display to display x, y, z Axis readings and the average reading (x + y + Z)/3.
• An electromagnetic wave simply means the wave movement of the electromagnetic field (EMF).
• Extremely low frequency (Elf) measurement from 30 to 2000 Hz.
• It is capable of measuring the intensity of electromagnetic field radiation that is produced from electrical, transmission equipment, bottom line, microwave oven, air conditioner, refrigerator, computer monitors, video/audio device and so on.
• The unit of magnetic field is Tesla (T), Gauss (g), milli-gauss (mg), or icro-tesla (ut).
• 1 t =, 1UT = 10 mg, 10,000 g 1 g = 1,000 mg
Specifications:
• Display: 4-digit LCD, maximum reading 9999.
• Range: 20/2000 mg, 2/20/200uT.
• Resolution: 0.1/1 mg or 0.001/0.01/0.1 ut.
• Frequency response: 30 Hz to 2000 Hz.
• Sensor: Triple axis.
• Accuracy: +/-(2.5% + 5dgt) at 50 Hz/60Hz, +/-(5.0% + 5 dgt) at 30 Hz ~ 2000hz.
• Sampling rate: 2.5 times per second.
• Battery: 9 V NEDA 1604, 6 F22 IEC or JIS 006P.
