Description
A standalone automatic start controller is a device designed to control and manage the starting process of electric motors, generators, or other machines. This type of controller is independent in the sense that it is not integrated into the equipment to be started, but is located as a separate unit that is responsible for supervising and controlling the start of the machine.
Parameter Monitoring: Monitors motor conditions, such as temperature, current, and voltage, to ensure safe starting.
Starting Sequence Control: Manages the starting sequence, such as closing and opening contactors, controlling soft starters, etc., to prevent damage to the motor and equipment.
Motor Protection: Provides protection against overcurrent, overheating, lack of phase, and other abnormal conditions that could damage the motor.
Self-diagnostics: It can perform automatic diagnostics to detect problems in the system and generate alarms or notifications in case of failures.
Communication Control: Some controllers can be integrated into larger control systems and can communicate with other devices through standard communication protocols.
Display and Settings: You can have a user interface that allows you to configure parameters, view information about system status, and make adjustments as needed.
These controllers are common in industrial and commercial applications where it is important to manage the starting of motors and equipment safely and efficiently. By using a separate automatic start controller, the performance of motors can be optimized, their life extended, and the risk of costly failures minimized.
DSE 4510 Load Controller Module
The DSE4510 is a standalone auto-start controller manufactured by Deep Sea Electronics (DSE). Deep Sea Electronics is a company specializing in the manufacture of electronic controllers and control systems for generators and motors. The DSE4510 is part of its line of products designed to manage and control generators and other electrical equipment.
Versatile and robust controller that is commonly used in power generation applications, where precise control of generator operation is essential. Some of the typical features and capabilities of the DSE4510 include:
Auto Start & Auto Stop: Allows you to set the generator control to start automatically when a major power outage is detected and stop when the main power is restored.
Motor Monitoring and Protection: Constantly monitors engine conditions, including temperature, oil pressure, speed, voltage, and current, and offers protection against abnormal conditions that may damage the engine.
Configurable boot sequence: Can be customized to suit specific application needs, including setting timeouts, start and stop sequences, and other parameters.

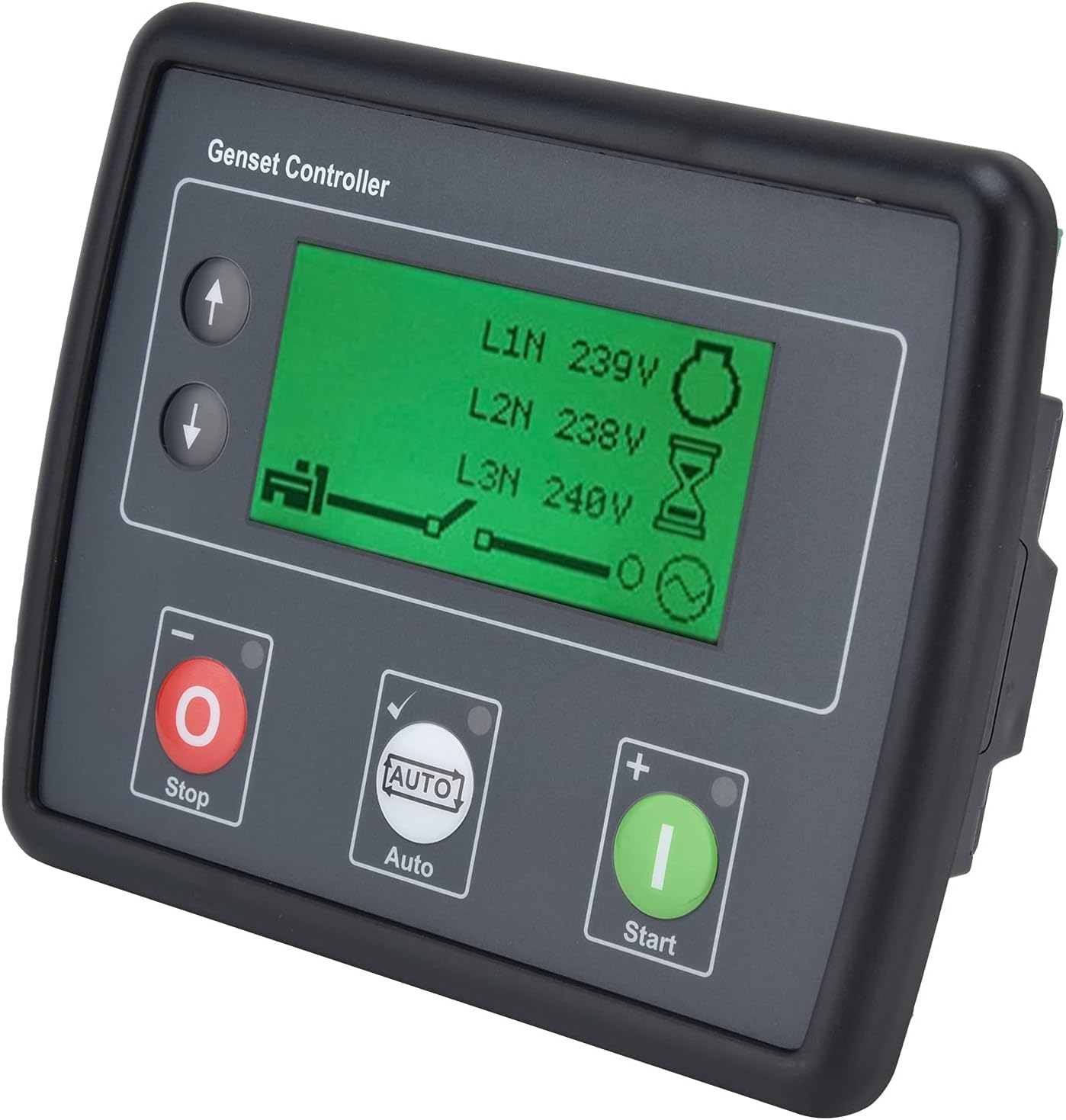

Display and communication: The DSE4510 usually includes an LCD screen that displays relevant information about the status of the generator and allows configurations to be made. In addition, it can be equipped with communication capabilities for integration into broader monitoring and control systems.
Event logging and logging functions: Records important data and events related to generator operation, making it easier to diagnose problems and maintain.
Deep Sea Electronics’ DSE4510 and other products are widely used in industrial, commercial, and emergency applications, where reliable power generation is essential. These controllers are renowned for their quality and ability to ensure safe and efficient operation of generators and motors.
Functions: DSE4510 is an independent automatic start controller, which can provide complete monitoring and protection functions for generator
sets Display: The LCD display with generator remote control can display alarm information such as normal alarms, electric trips, and shutdowns, and supports EFI and non-EFI diesel, gas, and gasoline.

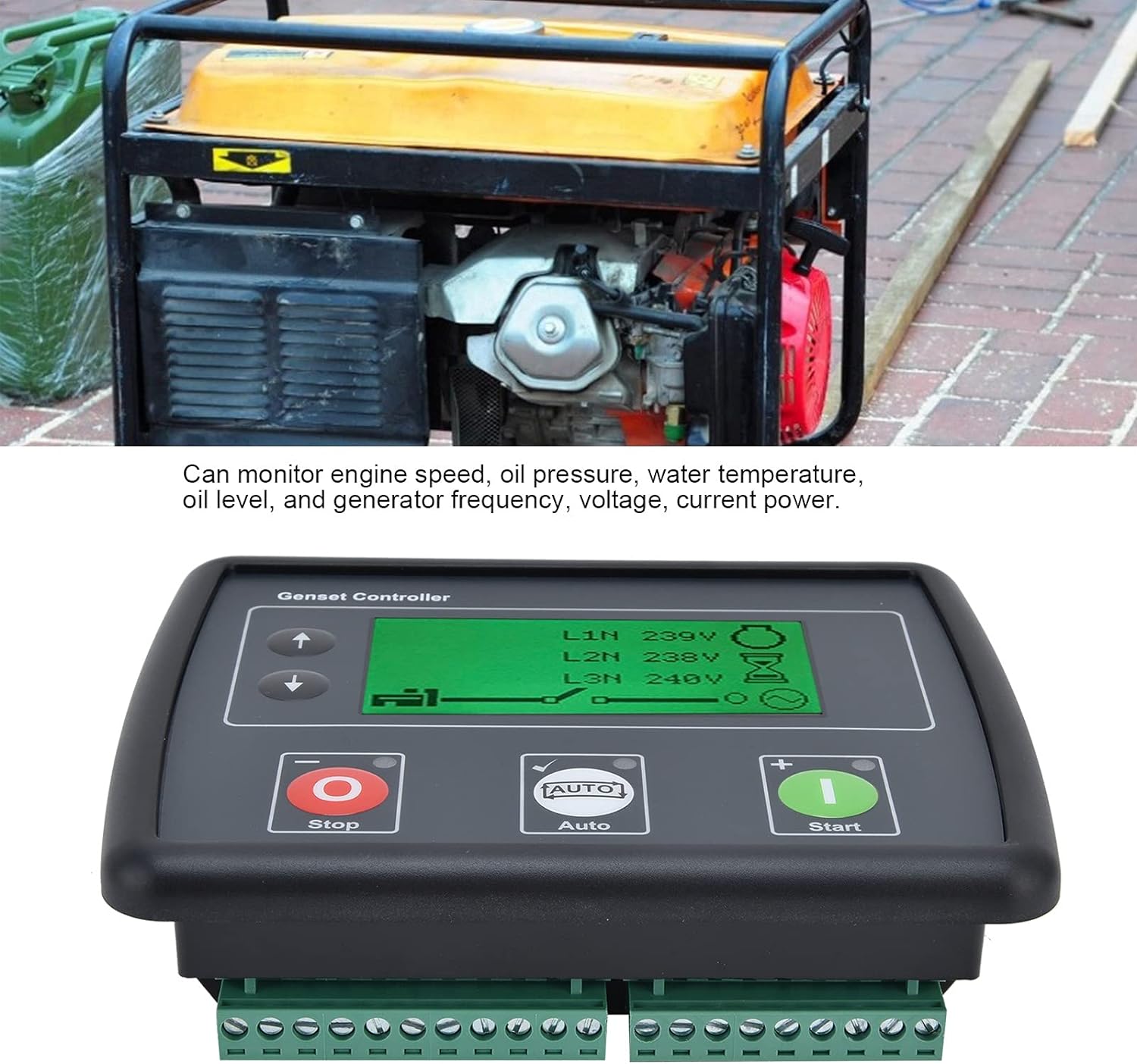

Monitor: The generator controller can control the engine speed, oil pressure, water temperature, generator oil level and frequency, voltage, current power.
Application: Generator control panel with multiple flexible input, output and protection functions, suitable for a variety of application
requirements DSE Software: Generator remote control parameters can be set through DSE software, or parameters can be edited on the front panel.
FEATURES
1. DSE4510 is a stand-alone start-up controller that can provide complete monitoring and protection functions for generator sets.
2. The LCD screen can display alarm information, such as normal alarms, electric trips, and shutdowns, and supports EFI and non-EFI diesel, gas, and gasoline.
3. It can monitor engine speed, oil pressure, water temperature, oil level and generator frequency, voltage, current power.
4. With multiple flexible input, output and protection functions, suitable for a variety of application requirements.
5. Parameters can be set through DSE software, or parameters can be edited on the front panel.
Specs:
Item Type: Generator Set Controller
Functions: self-defining network fault auto-start mode; J1939-75 bracket and shield CAN alarm; generator frequency and CAN detection speed; the largest backlit graphic display among similar products; real-time clock; Can be configured via front panel or computer
All parameters; energy-saving mode; three-phase generator detection; three-phase network detection; support for 6 Line 00 V voltage (LL system); unit/load force monitoring (KW, KVA, KVAr, pf); cumulative power monitoring (KWh, KVAh, KVArh); overload protection; unit/load current detection and protection; fuel output and starting can be customized when connected to EFI;
Advantages: Small product and strong function; automatic switching between network and drives; Real-time clock provides accurate recording of events; reasonable button design, easy operation; parameter adjustment using DSE configuration software; compatible with a variety of EFI engines including Tier4; free PC software; IP65 grade (with gasket) better waterproof performance
Notes:
1. Installation, connection and inspection must be carried out by professionally knowledgeable personnel.
2. In working condition, do not touch the controller to avoid dangerous accidents.
