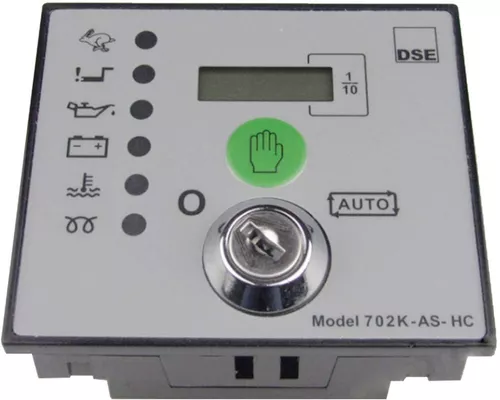

Description
FEATURES-Manual
start-Engine
preheating-Motor protection and monitoring
features-Protected Solid State Outputs (PSS)
-Front
panel mounting-Tamper-proof
motor hour meter-Remote
start-LED indicators-Hour
meter provides accurate information to monitor during maintenance-Various
motor parameters are controlled simultaneously
Technical specifications:
-DC supply: 8 volts to 35 volts
DC continuous-CranKing Drotoups: capable of surviving at 0 volts for 50 mS, as long as the supply is at least 10 V before the fall and the supply is recovered at 5 volts. This is achieved without the need for internal batteries.
-Max. current: operating 50 mA standby 10 mA Alternator input range: 15 volts to 227 volts AC-Alternator
input frequency: 50-60Hz at rated engine
speed-starting output: 1.2Amp DC at supply
voltage-fuel output: 1.2Amp DC at supply
voltage-preheat output: 1.2Amp DC at supply
voltage-Dimensions: 84mm x 72mm x 34.98mm-Operating
Temperature Range: -30°C to +70°C
Applicable standards:
-complies with BS EN 60950
low voltage directive- complies with BS EN 50081-2:1992
electromagnetic compatibility directive- complies with BS EN 61000-6-4:2000 EMC directive
