Description
Features:
1. The measurement frequency of the analyzer is between 50Khz~900Mhz.
2. The RF output of the analyzer is -13dbm and up to -9dbm.
3. This is a NanoVNA vector network antenna shortwave analyzer.

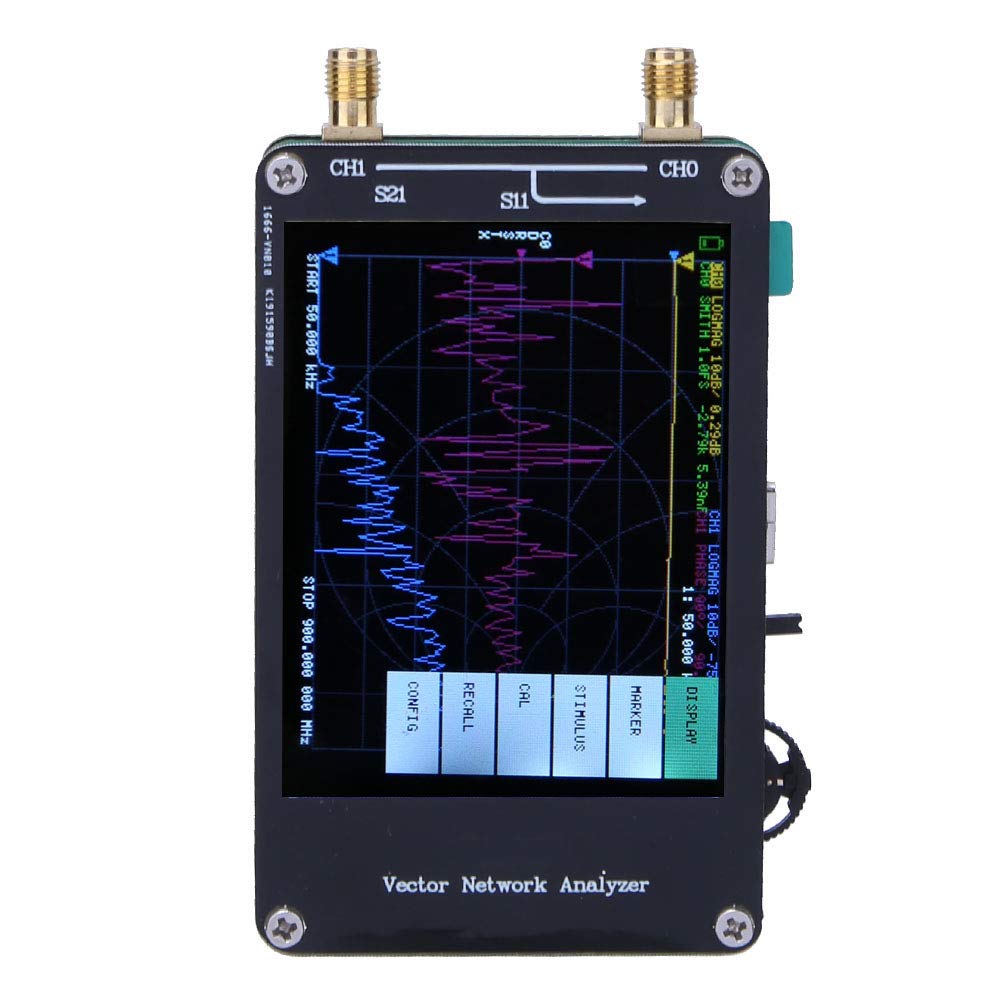

4. Equipped with a 2.8-inch TFT for clear display, a USB and a Type-C.
5. Suitable for measuring S, VSWR, phase, delay, Smith chart parameters.
Specs:
-Item Type: VectorNetwork Antenna Shortwave Analyzer

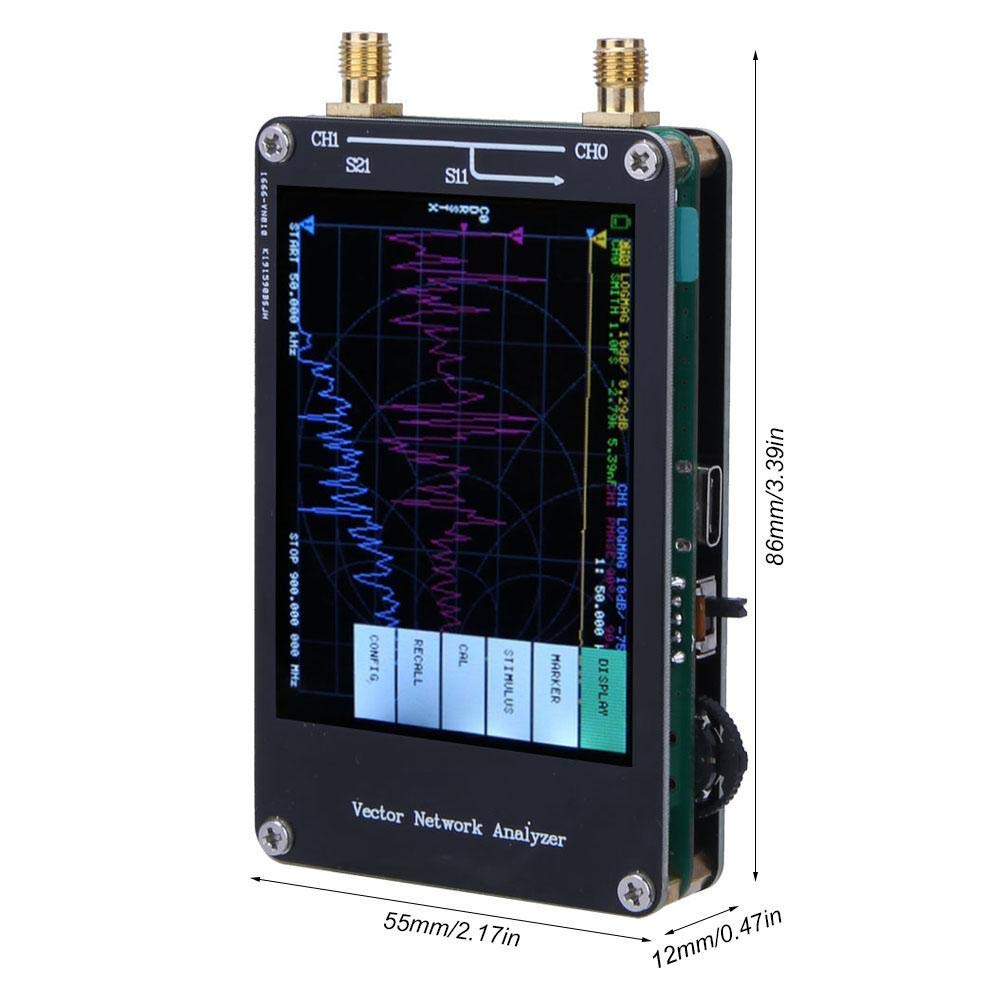

-PCB size: 55 x 86 x 12mm / 2.17 x 3.39 x 0.47 inches (without connector or switch)
-Measurement frequency: 50Khz~900Mhz
-RF Output: -13dbm (max -9dbm)
-Measurement range: 70dB (50kHz-300MHz), 60dB (300M-600MHz), 50dB (600M-900MHz) with extended firmware enabled)
-SWR port: <1.1
-Display: 2.8-inch TFT (320×240)
-USB Interface: USB Type-C
-Mode of communication: CDC (serial)
-Power: USB 5V 120mA, built-in 600mAh battery, 0.8A max charging current
-Number of scan points: 101 (fixed)
-Screen Tracking: 4, Dialing: 4, Setting Save: 5
