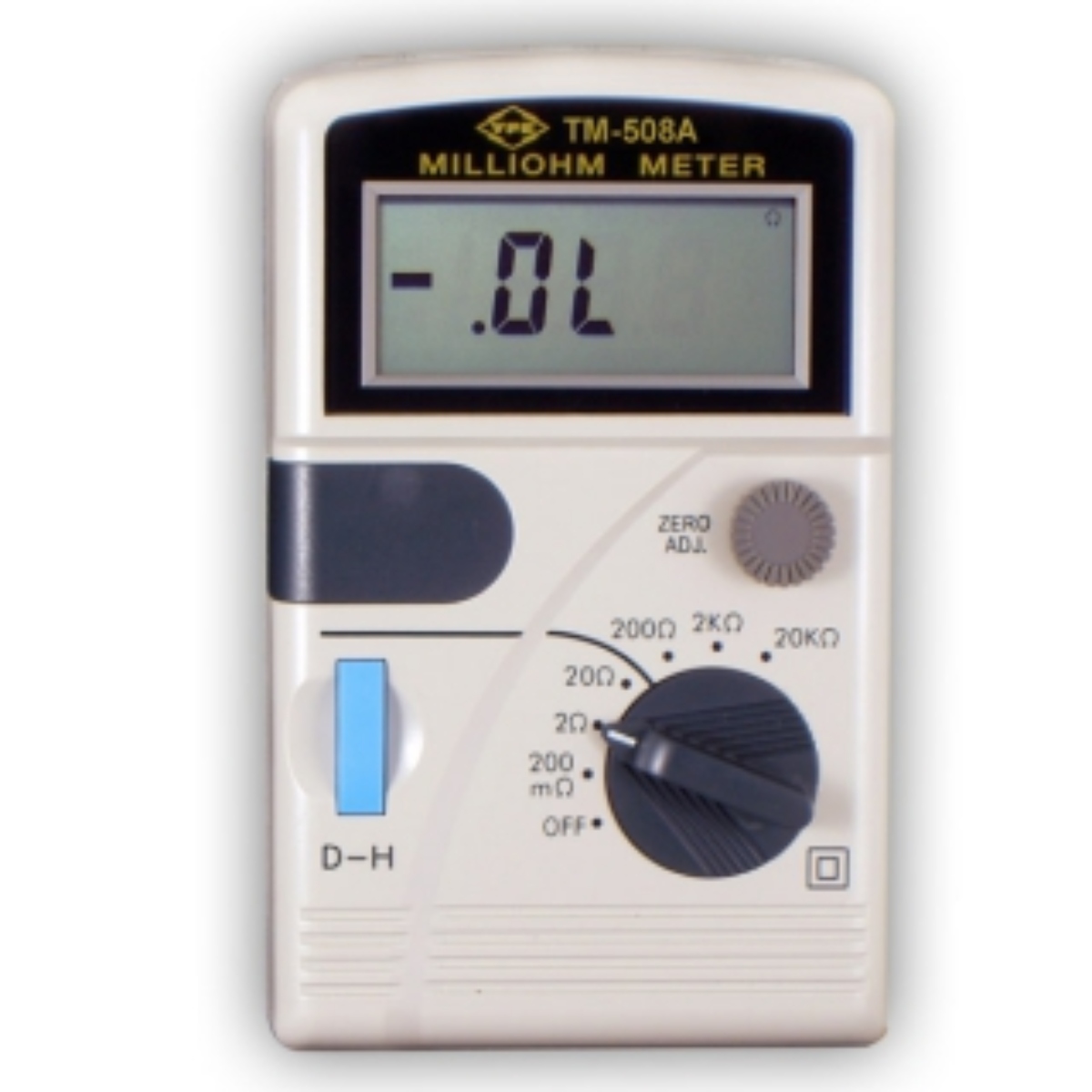

Description
Characteristics:
3-1/2 digit LCD display with a maximum reading of 2000.
Low battery indication.
Zero Adjustment: External zero adjustment control.
Very low impedance measurement, four-wire type, single-pair insulated clip.
Wide measurement range from 1 milliohm to 20k Ohm in six switchable steps.
Fuse Protection: 2 Amp/250Volt (5mm x 20mm), 1500A Fast Minimum Interrupt Ratings.
Function Keys: D-H switch lock readings for the LCD screen.
Dimensions: 160 mm (L) x 100 mm (W) x 52 mm (D)
Weight: 700 g approx.
| Rank | Precision | Resolution | Current Testing | Open-terminal
Voltage |
| 200mΩ |
±(0.3%+4d) |
0.1mΩ | 100mA |
Approx. 4.8VDC |
| 2Ω | 1mΩ | 10 mA | ||
| 20Ω | 10mΩ | 10 mA | ||
| 200Ω | 0.1Ω | 1 mA | ||
| 2kΩ | 1Ω | 1 mA | ||
| 20kΩ | 10Ω | 100 mA |
